How to Add a Button to Heath Zenith Doorbell
Upgrading your home’s entry system doesn’t have to be complicated. If you’ve ever wished you had a second doorbell button—maybe for a side door, garage, or backyard entrance—you’re in the right place. Adding a button to your Heath Zenith doorbell is a practical and rewarding DIY project that can improve convenience and accessibility around your home.
Heath Zenith is known for reliable, user-friendly doorbell systems that are commonly found in residential settings. These systems typically use low-voltage wiring, making them safe and easy to work with for most homeowners. Whether you’re adding a button for a new entrance or replacing an old, worn-out one, this guide will walk you through the entire process step by step.
In this comprehensive how-to guide, you’ll learn how to safely install an additional doorbell button on your existing Heath Zenith system. We’ll cover everything from gathering the right tools and understanding your current setup to running new wires, connecting the button, and testing the system. You’ll also find practical tips, troubleshooting advice, and alternative solutions if traditional wiring isn’t feasible.
By the end of this guide, you’ll have a fully functional second doorbell button that integrates seamlessly with your Heath Zenith chime unit. No electrician required—just patience, basic tools, and a little know-how.
Understanding Your Heath Zenith Doorbell System

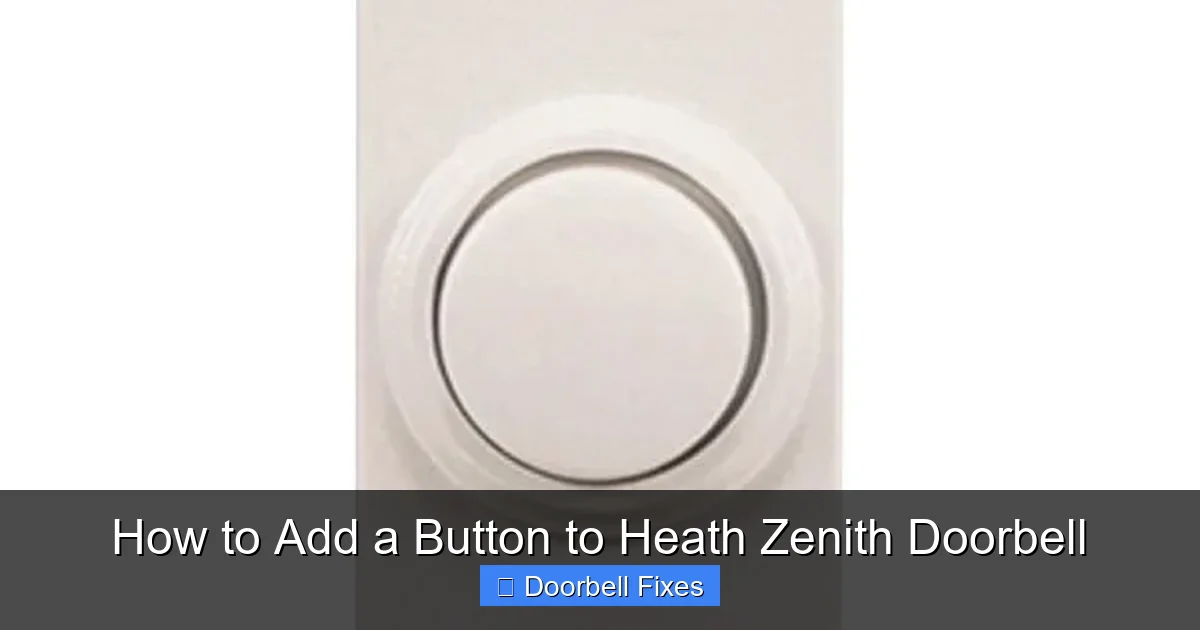

Visual guide about How to Add a Button to Heath Zenith Doorbell
Image source: mobileimages.lowes.com
Before you start installing a new button, it’s important to understand how your Heath Zenith doorbell system works. Most Heath Zenith doorbells operate on a low-voltage circuit, typically using 8–24 volts AC. This means they’re powered by a transformer that steps down your home’s standard 120-volt electricity to a safer level.
The system consists of three main components:
- The doorbell button: Located outside your door, this is what you press to ring the bell.
- The chime unit: Installed inside your home, usually near the front door, this produces the ringing sound.
- The transformer: Hidden in your electrical panel, basement, or utility closet, it converts household voltage to the lower voltage needed for the doorbell.
Wires run from the transformer to the chime unit and then to the doorbell button, completing the circuit. When you press the button, it closes the circuit, sending power to the chime and making it ring.
Heath Zenith systems are designed to be modular, which means you can often add multiple buttons to a single chime. This is great news if you want to install a second button without replacing your entire system.
Checking Compatibility
Not all doorbell buttons are created equal. Before buying a new button, make sure it’s compatible with your Heath Zenith system. Look for these features:
- Low-voltage operation: Must work with 8–24V AC.
- Standard two-wire connection: Most Heath Zenith buttons use two terminals.
- Weather resistance: If installing outdoors, choose a button rated for outdoor use.
You can usually find this information on the product packaging or manufacturer’s website. If you’re unsure, a universal doorbell button from a reputable brand like Heath Zenith, Nutone, or Ring should work fine.
Assessing Your Current Setup
Take a moment to inspect your existing doorbell button and chime. Note the following:
- How many wires are connected to the current button?
- Is the chime unit mechanical (with physical hammers) or electronic (digital sound)?
- Are there any signs of wear, corrosion, or loose connections?
This will help you determine whether your system can handle an additional button and whether any upgrades are needed.
Gathering the Right Tools and Materials
Having the right tools on hand will make your installation faster and safer. Here’s what you’ll need:
Essential Tools
- Screwdrivers: Phillips and flathead for removing covers and terminals.
- Wire strippers: To remove insulation from wire ends.
- Voltage tester: To confirm power is off before working.
- Drill and bits: For creating holes in walls or siding (if needed).
- Fish tape or wire puller: Helps guide wires through walls.
- Tape measure: For measuring wire lengths and placement.
- Pencil or marker: For marking drill points.
Materials Needed
- New doorbell button: Compatible with low-voltage systems.
- Doorbell wire: 18- or 20-gauge stranded wire (typically 2-conductor).
- Wire nuts or terminal screws: For secure connections.
- Electrical tape: For insulating connections.
- Wall anchors and screws: If mounting on drywall or masonry.
- Cable staples or clips: To secure wires along baseboards or trim.
Optional but Helpful
- Labeling tape: To mark wires during disconnection.
- Wireless doorbell extender: If you can’t run wires easily.
- Cable conduit: For protecting wires in exposed areas.
- Multimeter: For advanced testing of voltage and continuity.
Step-by-Step Installation Guide
Now that you’re prepared, let’s get started. Follow these steps carefully to add a button to your Heath Zenith doorbell.
Step 1: Turn Off the Power
Safety first! Even though doorbell systems use low voltage, it’s still important to turn off the power at the source.
- Locate your home’s main electrical panel (breaker box).
- Find the circuit that powers your doorbell. It may be labeled “doorbell,” “chime,” or “low voltage.” If not, you may need to test circuits by turning them off one at a time and checking if the doorbell stops working.
- Switch off the breaker and use a voltage tester to confirm no power is flowing to the doorbell wires.
Pro Tip: Place a piece of tape over the breaker switch to prevent someone from accidentally turning it back on while you’re working.
Step 2: Remove the Existing Button (Optional)
If you’re replacing an old button or need access to the wires, remove the existing one.
- Unscrew the mounting screws and gently pull the button away from the wall.
- Take a photo or label the wires (e.g., “Front Door – Left Wire,” “Front Door – Right Wire”) before disconnecting them.
- Loosen the terminal screws and remove the wires.
Note: If you’re only adding a second button and keeping the original, you can skip disconnecting the old one. Just note where the wires go so you can reconnect them later.
Step 3: Plan the Route for the New Button
Decide where you want to install the new button. Common locations include:
- Side door
- Back door
- Garage entrance
- Patio or deck
Once you’ve chosen the location, plan how the wire will run from the new button back to the chime unit or existing wiring. The best routes usually follow baseboards, under carpets, or inside walls.
Step 4: Run the New Wire
This is often the trickiest part, but with patience, it’s manageable.
- Measure the distance from the new button location to the chime unit or nearest existing wire junction.
- Cut a length of 2-conductor doorbell wire, adding a few extra feet for slack.
- If running through walls, use a drill to create entry and exit points. A fish tape can help pull the wire through.
- For surface mounting, use cable clips or staples to secure the wire along trim or baseboards.
- Avoid sharp edges, heat sources, and areas prone to moisture.
Pro Tip: If you’re drilling through exterior walls, seal the hole with silicone caulk to prevent water intrusion.
Step 5: Connect the New Button
Now it’s time to wire the new button.
- Strip about 1/2 inch of insulation from the ends of the new wire.
- Attach one wire to each terminal on the new button. Most buttons are not polarized, so it doesn’t matter which wire goes where.
- Tighten the terminal screws securely.
- Mount the button to the wall using screws and wall anchors if needed.
Important: Make sure the button is level and securely fastened. A loose button can lead to poor contact and intermittent ringing.
Step 6: Connect the Wire to the Chime Unit
Next, connect the other end of the new wire to your Heath Zenith chime unit.
- Locate the chime unit, usually mounted on a wall near the front door.
- Remove the cover to access the wiring terminals.
- You’ll typically see terminals labeled “Front,” “Rear,” “Trans,” and “C” (common).
- Connect one wire from your new button to the “Rear” terminal (or an unused terminal if “Rear” is taken).
- Connect the other wire to the “C” (common) terminal.
Note: If your chime only has “Front” and “Trans” terminals, you may need to connect the new button in parallel with the existing one. This means both buttons share the same two terminals.
Step 7: Reconnect the Original Button (If Removed)
If you removed the original button earlier, now’s the time to put it back.
- Reattach the wires to the correct terminals.
- Secure the button to the wall.
- Double-check that all connections are tight and wires are not pinched.
Step 8: Restore Power and Test
Once everything is connected, it’s time to test your work.
- Turn the breaker back on.
- Press the new button and listen for the chime.
- Press the original button to ensure it still works.
- If both buttons ring the chime, congratulations—you’re done!
Pro Tip: If the chime doesn’t ring, don’t panic. We’ll cover troubleshooting in the next section.
Troubleshooting Common Issues
Even with careful installation, problems can occur. Here’s how to fix the most common issues.
Doorbell Doesn’t Ring
- Check power: Use a voltage tester to confirm the transformer is working.
- Inspect connections: Loose or reversed wires can prevent the circuit from closing.
- Test the button: Use a multimeter to check for continuity when the button is pressed.
- Replace the button: If the button is faulty, try a new one.
Chime Rings Weakly or Intermittently
- Loose wires: Tighten all terminal connections.
- Corroded contacts: Clean terminals with a small brush or sandpaper.
- Undersized wire: If the wire is too thin or too long, voltage drop can occur. Use 18-gauge wire for runs over 50 feet.
Only One Button Works
- Wrong terminal: Make sure the new button is connected to the correct terminal (e.g., “Rear”).
- Short circuit: Check for exposed wires touching each other or metal surfaces.
- Overloaded chime: Some older chimes can’t handle multiple buttons. Consider upgrading to a modern electronic chime.
Buzzing or Humming Sound
- Transformer issue: The transformer may be failing or incompatible. Replace it with a 16V, 10VA transformer if needed.
- Faulty chime: Internal components may be worn. Replace the chime unit.
Alternative: Wireless Doorbell Extender
If running wires seems too difficult or you’re renting and can’t modify walls, a wireless doorbell extender is a great alternative.
These devices work by pairing a wireless button with your existing chime. When you press the wireless button, it sends a signal to a receiver plugged into an outlet near your chime, triggering the ring.
Benefits of Wireless Options
- No wiring required
- Easy to install in minutes
- Portable and repositionable
- Often include multiple tones and volume settings
Popular Models
- Heath Zenith SL-6540 Wireless Doorbell Extender
- Ring Doorbell Chime Pro (works with Ring buttons)
- GE Personal Security Wireless Doorbell Kit
Note: Wireless extenders may require batteries and can be affected by interference from other electronic devices.
Safety Tips and Best Practices
Working with electricity—even low voltage—requires caution. Follow these safety guidelines:
- Always turn off power at the breaker before handling wires.
- Use insulated tools to reduce the risk of shock.
- Never work in wet conditions.
- Keep wires away from heat sources like furnaces or water heaters.
- Label all wires during disconnection to avoid confusion.
- Test connections before closing up walls or covers.
If you’re ever unsure, consult a licensed electrician. It’s better to be safe than sorry.
Conclusion
Adding a button to your Heath Zenith doorbell is a practical upgrade that can make your home more convenient and accessible. With the right tools, a clear plan, and attention to safety, this project is well within the reach of most DIYers.
We’ve covered everything from understanding your system and gathering materials to running wires, making connections, and troubleshooting issues. Whether you choose a wired installation or opt for a wireless extender, you now have the knowledge to enhance your doorbell setup with confidence.
Remember to always prioritize safety, double-check your work, and test thoroughly. A well-installed doorbell button not only works reliably but also adds value to your home.
So go ahead—press that button and enjoy the satisfying chime of a job well done.
