How to Add New Wired Doorbell

Installing a new wired doorbell doesn’t have to be intimidating. This guide walks you through every step—from turning off power to testing your chime—so you can upgrade your home’s entryway with confidence. Perfect for DIYers who want a reliable, long-lasting doorbell solution.

Key Takeaways

• Turn off power at the breaker: Always shut off electricity before working on doorbell wiring to prevent shocks or damage.
• Use the right tools: A voltage tester, screwdrivers, wire strippers, and a drill are essential for a smooth installation.
• Match voltage requirements: Most wired doorbells run on 8–24V AC; check your transformer and chime compatibility.
• Label wires during removal: This prevents confusion when connecting the new doorbell button and chime unit.
• Test before finalizing: Power up and test the system after wiring but before securing covers to catch issues early.
• Follow local codes: Some areas require permits or licensed electricians for doorbell work—check regulations first.
• Upgrade smart options wisely: If adding a smart chime, ensure your existing wiring supports it or plan for a power adapter.

How to Add a New Wired Doorbell: A Complete DIY Guide

Upgrading or installing a new wired doorbell is one of the most rewarding home improvement projects you can tackle yourself. Unlike wireless models that rely on batteries or Wi-Fi, a hardwired doorbell offers consistent performance, better sound quality, and often integrates seamlessly with smart home systems. Whether you’re replacing an old, broken unit or adding a doorbell where none existed before, this guide will walk you through the entire process—safely, efficiently, and without unnecessary stress.

In this comprehensive how-to, you’ll learn how to assess your current setup (or lack thereof), gather the right tools, connect the wiring correctly, install both the doorbell button and indoor chime, and troubleshoot common issues. We’ll also cover smart doorbell considerations, safety best practices, and tips for ensuring your new system lasts for years. By the end, you’ll have a fully functional, reliable wired doorbell that enhances your home’s curb appeal and functionality.

Let’s get started!

What You’ll Need Before You Begin

Before touching any wires or mounting hardware, make sure you have all the necessary tools and materials. Rushing out to buy something mid-project can be frustrating—and worse, dangerous if you’re working with live electricity.

Here’s a checklist of what you’ll need:

• New wired doorbell kit: Includes the doorbell button (push button) and indoor chime unit. Choose a style that matches your home’s aesthetic.
• Voltage tester (non-contact): Essential for confirming power is off.
• Screwdrivers (Phillips and flathead): For removing old units and securing new ones.
• Wire strippers: To expose fresh copper ends on wires.
• Electrical tape: For insulating connections.
• Drill and drill bits: Only if you’re installing in a new location or need to run new wires.
• Fish tape or flexible drill bit: Helpful if running wires through walls.
• Pencil and measuring tape: For marking mounting spots.
• Ladder: If your doorbell is mounted high on the doorframe.
• Safety glasses and gloves: Basic protection while drilling or handling wires.

Pro tip: If you’re unsure about your home’s existing doorbell wiring, take a photo of the current setup before disconnecting anything. This visual reference can save time and prevent mistakes later.

Step 1: Turn Off the Power

Safety first! Even though doorbell circuits operate at low voltage (typically 8–24 volts AC), they’re still connected to your home’s electrical system via a transformer. That means there’s a risk of shock—or damaging your new doorbell—if you don’t disconnect power properly.

Locate Your Doorbell Transformer

The transformer steps down your home’s standard 120V AC power to the lower voltage needed for the doorbell. It’s usually located in one of these places:

• Inside the electrical panel (breaker box)
• In the attic near the chime unit
• Behind the existing doorbell chime
• In a garage or basement junction box

Look for a small black or gray box with two wires coming out—it often says “16V” or “10V” on it.

Turn Off the Correct Circuit

Once you’ve found the transformer, trace which circuit it’s connected to in your breaker panel. Some homes have a dedicated doorbell breaker labeled “Doorbell” or “Chime.” If not, turn off the main breaker temporarily or use a process of elimination: turn off individual breakers and test the doorbell until it stops working.

Verify Power Is Off

Use your non-contact voltage tester near the doorbell button and chime terminals. Touch the probe to the wire connections—if the tester doesn’t beep or light up, power is off. Double-check by pressing the doorbell button; nothing should happen.

⚠️ Never skip this step. Even low-voltage systems can cause injury or fry sensitive electronics.

Step 2: Remove the Old Doorbell (If Applicable)

If you’re replacing an existing doorbell, carefully remove the old components before installing the new ones.

Remove the Doorbell Button

Unscrew the mounting screws on the exterior button and gently pull it away from the wall. You’ll see two wires connected to terminals (usually labeled “Front” or just small screws). Take a photo or label the wires (e.g., “Top Wire” and “Bottom Wire”) so you know how to reconnect them later.

Loosen the terminal screws and disconnect the wires. Tuck them back into the wall slightly so they don’t fall in.

Remove the Indoor Chime Unit

Go inside to where your chime is mounted (typically near the front door). Unscrew the cover and remove it. You’ll see several wires:

• Two from the doorbell button (often red and white)
• Two from the transformer (usually black and white)
• Possibly a third pair if you have a second door (like a back door)

Label each wire clearly using tape and a pen (e.g., “Transformer,” “Front Door,” “Rear Door”). Then disconnect all wires and remove the old chime unit.

Set the old parts aside—you may be able to recycle or donate them if they’re still functional.

Step 3: Prepare the New Doorbell Components

Now that the old system is out, it’s time to get your new doorbell ready.

Check Compatibility

Most modern wired doorbells are compatible with standard 16V transformers, but always check the packaging or manual. If your transformer outputs a different voltage (e.g., 8V or 24V), verify that your new chime supports it. Using the wrong voltage can cause weak sound, no sound, or premature failure.

If you’re unsure, measure the transformer output with a multimeter (set to AC voltage) after turning power back on briefly—but only if you’re comfortable doing so safely.

Assemble the Chime Unit (If Required)

Some chime units come pre-assembled; others require you to snap together the cover, base, and internal mechanism. Follow the manufacturer’s instructions carefully. Most will have clear diagrams showing how the wires connect to terminals labeled “Front,” “Trans,” and sometimes “Rear” or “Transformer.”

Prepare the Doorbell Button

Your new button should come with mounting screws and possibly a backplate. No assembly is usually needed, but inspect it for any loose parts or protective film that needs removal.

Step 4: Install the New Doorbell Button

This is the part everyone sees—so make sure it looks good and functions reliably.

Position the Button

Hold the new button against the wall where you want it mounted. Ideal height is about 48 inches from the ground—easy to reach for adults but out of reach of small children who might press it repeatedly.

Use a level to ensure it’s straight. Mark the screw holes with a pencil.

Drill Pilot Holes (If Needed)

If you’re mounting into wood or drywall with studs, drill small pilot holes to prevent splitting. For masonry or brick, use a masonry bit and wall anchors.

Connect the Wires

Take the two wires from the wall (the ones you labeled earlier). Strip about 1/4 inch of insulation from each end using wire strippers.

Attach one wire to each terminal on the back of the doorbell button. Most buttons are polarized, but since doorbell circuits are AC, polarity doesn’t matter—either wire can go to either terminal. However, consistency helps if you ever need to troubleshoot.

Tighten the terminal screws securely. Avoid over-tightening, which can strip the screws or damage the button.

Mount the Button

Align the button with the pilot holes and screw it into place. Don’t overtighten the mounting screws—this can crack the plastic housing.

Give the button a gentle press to ensure it clicks smoothly and sits flush against the wall.

Step 5: Install the Indoor Chime Unit

The chime is the heart of your doorbell system—it receives the signal and produces the sound.

Mount the Chime Base

Hold the chime’s backplate against the wall where you removed the old unit (or a new location if upgrading). Use a level and mark screw holes. Drill pilot holes if necessary.

Secure the base with screws. Make sure it’s snug but not warped.

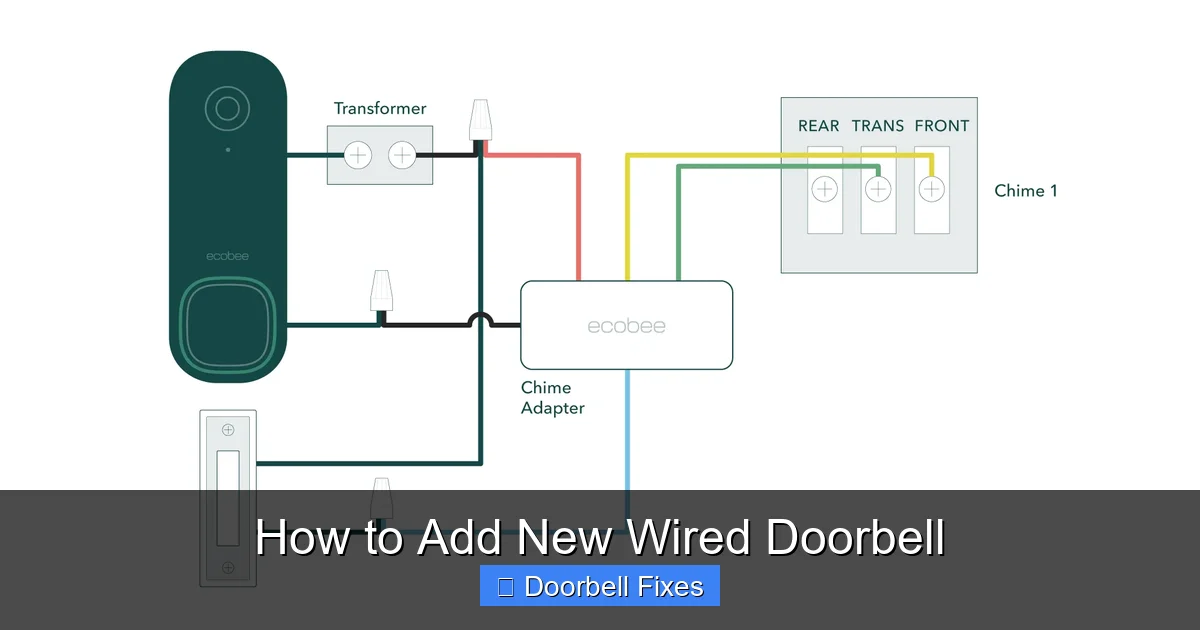

Connect the Wires

Refer to your labels from Step 2. Here’s how to connect them:

• Transformer wires: Connect to the “Trans” or “Transformer” terminals. Again, polarity doesn’t matter for AC.
• Doorbell button wires: Connect to the “Front” terminals.
• Optional rear door wires: If you have a second door, connect those to “Rear” terminals.

Twist the bare wire ends tightly and wrap them clockwise around the terminal screws before tightening. This ensures a solid connection.

After connecting, wrap each terminal with electrical tape for extra insulation—especially if wires are close together.

Attach the Chime Cover

Snap or screw the front cover onto the base. Ensure all wires are tucked neatly inside so they don’t get pinched.

Step 6: Restore Power and Test the System

You’re almost done! Now it’s time to see if everything works.

Turn Power Back On

Go to your breaker panel and restore power to the doorbell circuit. Double-check that only the correct breaker is on.

Test the Doorbell

Press the doorbell button. You should hear a clear, consistent chime from inside. If it works—great! If not, don’t panic. We’ll cover troubleshooting next.

Listen for unusual sounds: a weak buzz, intermittent ringing, or no sound at all. These clues help diagnose the issue.

Adjust Chime Settings (If Applicable)

Many modern chimes offer volume control, melody selection, or dual-tone options. Use the buttons or dials on the unit to customize the sound to your preference.

Some models also have a “Test” button—press it to verify internal functionality without pressing the exterior button.

Troubleshooting Common Wired Doorbell Problems

Even with careful installation, issues can arise. Here’s how to fix the most common ones.

No Sound When Button Is Pressed

• Check power: Use your voltage tester to confirm the transformer is outputting voltage.
• Inspect connections: Loose or corroded wires are a frequent culprit. Re-tighten all terminals.
• Test the button: Use a multimeter to check continuity across the button terminals when pressed. If it doesn’t close the circuit, the button is faulty.
• Transformer failure: If the transformer isn’t stepping down voltage correctly, replace it. A 16V, 10VA transformer is standard for most homes.

Weak or Faint Chime

• Undersized transformer: If your chime requires more power (e.g., for dual doors or loud melodies), upgrade to a 20V or 24V transformer.
• Long wire runs: Voltage drops over long distances. Use thicker gauge wire (18 AWG or lower) if running new wires.
• Corroded contacts: Clean terminal screws and wire ends with fine sandpaper.

Chime Rings Randomly or Continuously

• Moisture in the button: Outdoor buttons can short out if water seeps in. Replace with a weatherproof model or seal around the mounting area.
• Loose wiring: A frayed wire touching metal can cause false triggers. Inspect all connections.
• Faulty chime mechanism: Internal relays can stick. Try tapping the unit gently—if it stops, the chime may need replacement.

Smart Doorbell Not Working with Existing Wiring

Many smart doorbells (like Ring or Nest) require a constant power source, but traditional chimes only send power when the button is pressed. Solutions include:

• Installing a power kit (bypass resistor) across the chime terminals.
• Replacing the mechanical chime with an electronic chime that supports smart devices.
• Using a plug-in chime that runs on batteries or wall power, bypassing the wired system entirely.

Always consult your smart doorbell’s compatibility guide before installation.

Safety Tips and Best Practices

A successful doorbell installation isn’t just about functionality—it’s about doing it safely and sustainably.

• Never work on live circuits: Even low voltage can be dangerous under certain conditions.
• Use wire nuts or terminal screws: Never leave bare wires exposed or twisted together without proper connection.
• Keep wires organized: Bundle excess wire neatly behind the chime to prevent strain on terminals.
• Choose weather-resistant buttons: For exterior use, select buttons rated for outdoor conditions (look for IP44 or higher).
• Label everything: Future you (or a electrician) will thank you for clear labels.
• Consider future upgrades: If you plan to add a camera or smart features later, leave extra wire slack or install conduit.

When to Call a Professional

While most homeowners can handle a standard wired doorbell installation, some situations call for expert help:

• You can’t locate the transformer or breaker.
• Your home has complex wiring (e.g., multiple chimes, intercom integration).
• You’re uncomfortable working with electricity.
• Local building codes require permits or licensed work.
• You’re running new wires through finished walls or between floors.

A licensed electrician can ensure code compliance, prevent fire hazards, and save you time—especially in older homes with outdated wiring.

Conclusion

Adding a new wired doorbell is a practical, cost-effective way to improve your home’s security and convenience. With the right tools, careful planning, and attention to safety, you can complete this project in under two hours—and enjoy reliable performance for decades.

Remember: always turn off power, label your wires, test early, and don’t hesitate to seek help if something feels off. A well-installed doorbell isn’t just a button—it’s your home’s first impression. Make it count!

Whether you’re upgrading to a sleeker design, adding a second door station, or integrating smart features, this guide gives you the confidence to do it right. Now go ahead—ring that bell!
