Adding wiring for a doorbell is a manageable DIY project that enhances home security and convenience. This guide walks you through planning, installing, and testing low-voltage doorbell wiring safely and effectively.
Key Takeaways
- Plan your doorbell layout first: Choose the best locations for the button, chime, and transformer to ensure efficient wiring and functionality.
- Use low-voltage doorbell wire: Standard 18- or 20-gauge stranded wire is safe and designed specifically for doorbell circuits.
- Turn off power at the breaker: Always shut off electricity before working near electrical panels or transformers to prevent shocks.
- Connect wires to the transformer correctly: Match wire colors to terminals and ensure a secure connection to avoid intermittent operation.
- Test the system before finishing: Verify the doorbell works before closing up walls or securing fixtures permanently.
- Use wire staples and protect cables: Secure wiring along studs or baseboards and avoid sharp edges that could damage insulation.
- Call an electrician if unsure: If you’re uncomfortable working with electrical components, seek professional help for safety.
How to Add Wiring for a Doorbell
Adding wiring for a doorbell might sound like a job for an electrician, but with the right tools, a bit of patience, and this step-by-step guide, you can do it yourself. Whether you’re installing a brand-new doorbell system or replacing old, faulty wiring, this project is well within reach for most homeowners. A properly wired doorbell not only improves your home’s curb appeal but also adds a layer of security and convenience.
In this guide, you’ll learn how to safely run low-voltage wiring from your doorbell button to the chime unit and connect everything to a transformer. We’ll cover planning your layout, choosing the right materials, running the wires through walls or along baseboards, making secure connections, and testing the system. You’ll also find practical tips to avoid common mistakes and troubleshoot issues if your doorbell doesn’t work the first time.
By the end of this guide, you’ll have a fully functional doorbell system that you installed yourself—saving money and gaining valuable DIY experience. Let’s get started!
Why Install Your Own Doorbell Wiring?

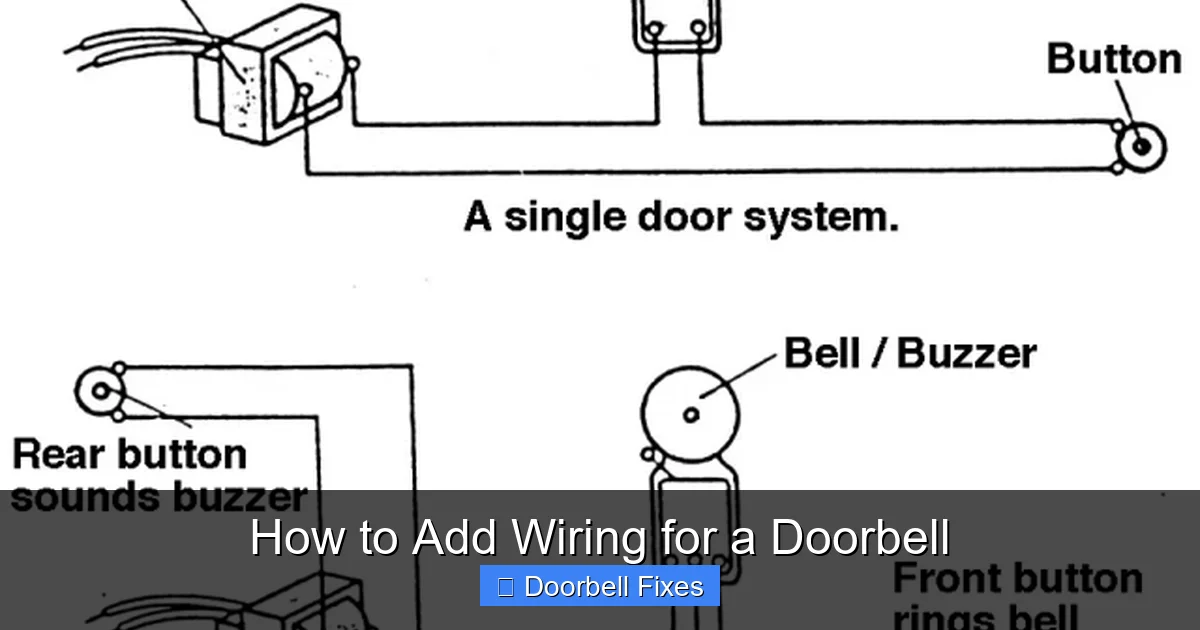

Visual guide about How to Add Wiring for a Doorbell
Image source: buildmyowncabin.com
Many homeowners assume that doorbell installation requires professional help, but that’s not always the case. Modern doorbells use low-voltage systems (typically 8–24 volts), which are much safer to work with than standard household wiring. This makes DIY installation not only possible but often preferable.
One of the biggest advantages of doing it yourself is cost savings. Hiring an electrician can cost $100–$200 or more, while the materials for a basic doorbell wiring project typically cost under $50. You’ll also gain confidence in your home improvement skills and have the satisfaction of completing the job on your own.
Another benefit is customization. When you install the wiring yourself, you can choose the exact placement for your doorbell button and chime. Maybe you want the chime in the living room instead of the hallway, or you’d like a second button at the side entrance. With DIY wiring, you have full control over the layout.
Finally, understanding how your doorbell system works makes future troubleshooting easier. If the doorbell stops working, you’ll know where to look and how to fix it—whether it’s a loose wire, a dead transformer, or a faulty button.
Tools and Materials You’ll Need
Before you begin, gather all the necessary tools and materials. Having everything ready will make the process smoother and safer.
Essential Tools
- Screwdrivers: Both flathead and Phillips for removing covers and securing terminals.
- Wire strippers: To remove insulation from the ends of the doorbell wires.
- Drill and drill bits: For creating holes in walls or studs to run wires.
- Fish tape or flexible rod: Helps pull wires through walls or tight spaces.
- Voltage tester: To confirm power is off before working near electrical components.
- Tape measure: For accurate placement of the button and chime.
- Pencil or marker: To mark drill points and wire routes.
- Wire staples or clips: To secure wiring along baseboards or studs.
- Electrical tape: For insulating connections and bundling wires.
Materials
- Doorbell button: Choose a style that matches your home’s exterior.
- Doorbell chime unit: Mechanical or digital, depending on your preference.
- Doorbell transformer: Usually 16V, 10–30VA, mounted near your electrical panel.
- Low-voltage doorbell wire: 18- or 20-gauge stranded wire, typically sold in 50- or 100-foot spools.
- Wire nuts or terminal screws: For connecting wires securely.
- Wall plates or covers (optional): To hide wire entry points and give a clean finish.
Safety Gear
- Safety glasses
- Work gloves
- Stepladder (if working on high walls or ceilings)
Having these tools and materials on hand will help you work efficiently and avoid unnecessary trips to the hardware store.
Step 1: Plan Your Doorbell Layout
Before touching any wires, take time to plan where each component will go. A well-thought-out layout ensures your doorbell works reliably and looks neat.
Choose the Doorbell Button Location
The button should be easy to reach from the sidewalk or driveway, typically 42–48 inches above the ground. Avoid placing it directly under a downspout or in a spot that gets soaked in rain. If you have a front porch, consider mounting it on a post or near the doorframe.
Make sure the location allows for a clean wire run to the interior of the house. If your exterior wall is brick or concrete, you may need to drill through it carefully. For wood or vinyl siding, drilling is simpler.
Select the Chime Placement
The chime should be in a central location where it can be heard throughout the house—like a hallway, living room, or kitchen. Avoid placing it behind large furniture or in a closet, as this can muffle the sound.
If you want a second chime (e.g., in the master bedroom), plan for a parallel wiring setup. This requires running an additional wire from the transformer to the second chime.
Locate the Transformer
The transformer steps down your home’s 120V power to the low voltage needed for the doorbell. It’s usually mounted inside or near your electrical panel, but it might also be in the basement, garage, or utility closet.
Check your existing transformer if you’re replacing an old system. If you’re installing a new one, choose a location close to an electrical outlet or junction box. The transformer must be connected to a live 120V circuit.
Map the Wire Route
Trace the path the wire will take from the button, through the wall, to the chime, and then to the transformer. The shortest route is usually best, but avoid sharp bends or pinching points.
If running wire inside walls, identify stud locations using a stud finder. You’ll need to drill through studs to pass the wire. For baseboard routing, plan to staple the wire neatly along the wall.
Check Local Codes
While doorbell wiring is generally low-risk, some areas have building codes that apply. For example, if you’re running wires through exterior walls, you may need to use conduit or weatherproofing. When in doubt, consult your local building department or a licensed electrician.
Step 2: Turn Off Power and Install the Transformer
Safety is critical when working near electrical panels. Even though doorbell systems use low voltage, the transformer connects to your home’s 120V circuit.
Turn Off the Breaker
Locate the breaker that controls the circuit where you’ll install the transformer. Turn it off and use a voltage tester to confirm power is disconnected. Label the breaker so others don’t accidentally turn it back on.
Mount the Transformer
Most transformers come with mounting brackets. Attach it to a junction box or electrical panel using screws. Make sure it’s secure and won’t vibrate or rattle.
Connect the 120V Wires
Strip about ½ inch of insulation from the two black (hot) and white (neutral) wires coming from the transformer. Connect them to the corresponding wires in the junction box:
- Black to black (hot)
- White to white (neutral)
Use wire nuts to secure the connections and wrap them with electrical tape for extra protection. Tuck the wires neatly into the box and close the cover.
Connect the Low-Voltage Wires
The transformer will have two low-voltage terminals (usually labeled “Common” and “Front” or just two screw terminals). These will connect to your doorbell wiring.
Leave these disconnected for now—you’ll hook them up after running the wire.
Step 3: Run the Doorbell Wire
Now it’s time to run the low-voltage wire from the button to the chime and then to the transformer.
Start at the Doorbell Button
Drill a small hole (about ¼ inch) through the exterior wall at the button location. Use a drill bit long enough to go through the siding, sheathing, and insulation.
Insert one end of the doorbell wire through the hole from outside to inside. Leave a few extra inches outside for connecting to the button.
Route Wire to the Chime
Inside the house, guide the wire along the planned route. If going through walls:
- Use a stud finder to locate studs.
- Drill holes through the center of studs (avoiding electrical wires or plumbing).
- Use fish tape to pull the wire through if needed.
If routing along baseboards:
- Use wire staples to secure the cable every 4–6 feet.
- Keep the wire out of walkways to avoid tripping.
- Tuck it behind trim if possible for a cleaner look.
Connect to the Chime Unit
Run the wire to the chime location. Strip about ½ inch of insulation from each wire end.
Most chimes have two terminals: “Front” and “Trans.” Connect one wire to “Front” and the other to “Trans.” The polarity doesn’t matter for doorbells, so either wire can go to either terminal.
Run Wire from Chime to Transformer
From the chime, run a second wire (or continue the same cable if using a 3-wire system) back toward the transformer. This completes the circuit.
At the transformer, connect the two low-voltage wires to the two screw terminals. Again, polarity isn’t critical, but keep track of which wire goes where for troubleshooting.
Step 4: Install the Doorbell Button and Chime
With the wiring in place, it’s time to mount the hardware.
Attach the Doorbell Button
Back outside, strip the ends of the two wires coming through the wall. Connect them to the terminals on the back of the doorbell button. Most buttons have two screws—tighten them securely.
Mount the button to the wall using the provided screws. Make sure it’s level and flush with the surface. If the wall is uneven, use plastic anchors for a secure fit.
Mount the Chime Unit
Inside, mount the chime to the wall using screws or adhesive strips, depending on the model. Ensure it’s in a spot where the sound can travel freely.
Double-check that the wires are connected properly and not pinched or frayed.
Step 5: Test the Doorbell
Before celebrating, test the system to make sure everything works.
Turn the Power Back On
Go to your electrical panel and turn the breaker back on. The transformer should now be energized.
Press the Button
Go outside and press the doorbell button. You should hear the chime inside.
If it works—great! If not, don’t panic. Move to the troubleshooting section below.
Check for Common Issues
- No sound: Check wire connections at the button, chime, and transformer. Ensure the transformer is getting power.
- Weak or intermittent sound: Loose wires or a low-voltage transformer could be the cause. Tighten connections or upgrade the transformer.
- Chime buzzes but doesn’t ring: The button may be stuck or shorted. Replace it if necessary.
Troubleshooting Common Doorbell Wiring Problems
Even with careful installation, issues can arise. Here’s how to fix the most common problems.
Doorbell Doesn’t Ring
- Check the transformer: Use a multimeter to test the output. It should read 16V AC (or whatever your system requires). If it’s dead, replace it.
- Inspect wire connections: Loose or corroded wires can break the circuit. Re-strip and reconnect.
- Test the button: Remove the button and touch the two wires together. If the chime rings, the button is faulty.
- Look for breaks in the wire: If the wire was damaged during installation, you may need to re-run it.
Chime Rings Weakly or Intermittently
- Voltage drop: Long wire runs or undersized wire can reduce voltage. Use 18-gauge wire for runs over 50 feet.
- Corroded terminals: Clean the screw terminals on the chime and transformer with sandpaper.
- Faulty chime: Older mechanical chimes wear out. Consider upgrading to a digital model.
Transformer Overheats or Buzzes
- Overloaded circuit: If you’ve added multiple chimes or smart features, the transformer may be underpowered. Upgrade to a higher VA rating.
- Loose connections: Vibrating wires can cause buzzing. Tighten all terminals.
- Defective transformer: Replace if it’s old or damaged.
Safety Tips and Best Practices
Working with electricity—even low voltage—requires caution. Follow these safety guidelines:
- Always turn off power at the breaker before working near the transformer.
- Use insulated tools and wear safety glasses.
- Never run doorbell wire in the same conduit as high-voltage wiring.
- Keep wires away from heat sources, sharp edges, and moisture.
- Label your wires at both ends to avoid confusion.
- If you’re unsure about any step, consult a licensed electrician.
Upgrading to a Smart Doorbell
Once your wiring is in place, you can easily upgrade to a smart doorbell like Ring or Nest. These devices use the existing low-voltage wiring for power and connect to Wi-Fi for video and alerts.
Simply remove the old button, connect the smart doorbell to the same wires, and follow the app setup instructions. Most smart doorbells are compatible with standard 16V transformers.
Conclusion
Adding wiring for a doorbell is a practical and rewarding DIY project. With careful planning, the right tools, and attention to safety, you can install a reliable doorbell system that enhances your home’s functionality and security.
Remember to map your layout, use proper low-voltage wire, secure all connections, and test the system before finishing. If you run into problems, refer to the troubleshooting tips or seek professional help.
By following this guide, you’ll not only save money but also gain valuable skills that can be applied to future home improvement projects. Now go ahead—ring that bell with pride!
