This guide walks you through how to assembly wired doorbell contractor kit safely and correctly. You’ll learn the tools needed, wiring steps, and how to test your new doorbell for reliable performance.
Key Takeaways
- Turn off power first: Always shut off electricity at the breaker before working on doorbell wiring to prevent shocks or damage.
- Use the right tools: A voltage tester, screwdrivers, wire strippers, and a drill are essential for a smooth installation.
- Follow manufacturer instructions: Each wired doorbell contractor kit may have unique parts—read the manual before starting.
- Test connections early: Check wires and voltage at the chime and transformer before final assembly to avoid rework.
- Secure all components: Mount the button, chime, and transformer firmly to prevent loose connections over time.
- Label wires if needed: Use tape or tags to identify front and rear terminals, especially if replacing an old system.
- Call an electrician if unsure: If you’re not confident working with household wiring, seek professional help.
Introduction: Why a Wired Doorbell Contractor Kit Is a Smart Choice
If you’re looking for a reliable, long-lasting doorbell solution, a wired doorbell contractor kit is one of the best options available. Unlike wireless models that rely on batteries or Wi-Fi, wired doorbells draw power directly from your home’s electrical system through a low-voltage transformer. This means fewer interruptions, consistent performance, and no need to constantly replace batteries.
A contractor kit typically includes everything you need: the doorbell button, chime unit (the part that makes the sound inside your home), transformer, and all necessary wiring. These kits are designed for durability and are commonly used in new construction or major renovations. They’re also ideal for homeowners who want a professional-grade installation without hiring an electrician.
In this guide, you’ll learn how to assembly wired doorbell contractor kit from start to finish. We’ll cover safety precautions, tools required, step-by-step installation, and troubleshooting tips. Whether you’re replacing an old doorbell or installing one for the first time, this guide will help you get it right the first time.
What’s in a Wired Doorbell Contractor Kit?

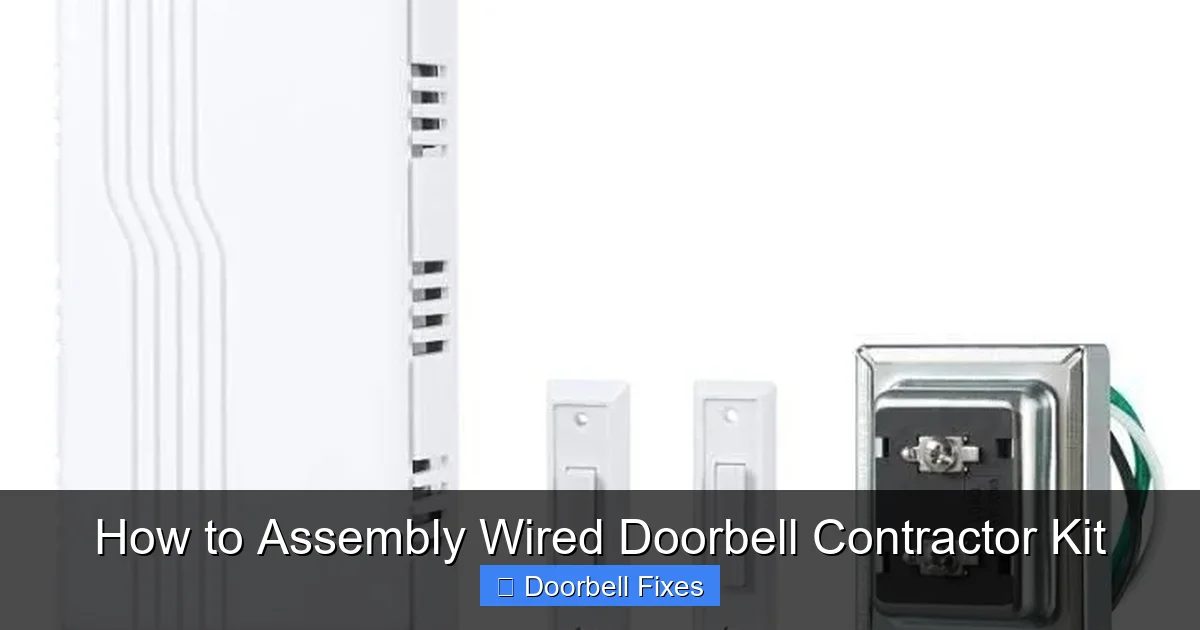

Visual guide about How to Assembly Wired Doorbell Contractor Kit
Image source: d3j17a2r8lnfte.cloudfront.net
Before you begin, it’s important to understand what comes in a typical wired doorbell contractor kit. While brands may vary slightly, most kits include the following components:
- Doorbell Button: The exterior unit that visitors press. It usually has two wire terminals and mounts to your doorframe or wall.
- Chime Unit: The interior device that produces the sound (like “ding-dong”). It connects to the transformer and button via low-voltage wires.
- Transformer: Converts standard 120V household current into safe, low-voltage power (usually 8–24V) for the doorbell system.
- Wiring: Low-voltage electrical wire (typically 18- or 20-gauge) that connects the button, chime, and transformer.
- Mounting Hardware: Screws, anchors, and brackets for securing the button and chime.
- Wire Nuts or Connectors: Used to join wires safely.
Some kits may also include a backplate for the chime, a cover plate for the button, or extra wire for longer runs. Always check the packaging and manual to confirm what’s included.
Tools and Materials You’ll Need
Having the right tools on hand will make the installation faster and safer. Here’s a checklist of what you’ll need:
- Voltage Tester: To confirm the power is off before working.
- Screwdrivers: Both flathead and Phillips for mounting and connecting wires.
- Wire Strippers: To remove insulation from wire ends without damaging the copper.
- Drill and Drill Bits: For creating holes in walls or doorframes if needed.
- Pliers: For bending or twisting wires.
- Tape Measure: To plan wire routing and placement.
- Electrical Tape: For insulating connections.
- Pencil or Marker: For marking drill points.
- Ladder: If installing the button high on a wall.
Optional but helpful:
- Fish Tape: For pulling wire through walls.
- Cable Clips or Staples: To secure wire along baseboards or trim.
- Multimeter: For advanced voltage testing.
Safety First: Preparing for Installation
Working with electricity—even low-voltage systems—requires caution. Follow these safety steps before touching any wires:
Turn Off the Power
Locate your home’s main electrical panel (breaker box). Find the circuit that powers the doorbell transformer—this is often labeled “doorbell,” “chime,” or “low voltage.” If you’re unsure, turn off the main breaker to be safe. Use a voltage tester at the chime or transformer to confirm no power is flowing.
Wear Protective Gear
Even though the voltage is low, it’s smart to wear safety glasses and avoid working in wet conditions.
Work with a Partner if Possible
Having someone nearby can help in case of an emergency or if you need an extra hand holding a ladder or wire.
Read the Manual
Every wired doorbell contractor kit is slightly different. Review the manufacturer’s instructions for specific wiring diagrams, voltage requirements, and mounting guidelines.
Step 1: Choose the Right Location
Proper placement ensures your doorbell is functional and convenient.
Doorbell Button Placement
The button should be:
- About 48 inches above the ground (standard height for accessibility).
- Near the door, within easy reach of visitors.
- Avoiding direct sunlight or rain if possible (or use a weatherproof model).
If replacing an old button, you can reuse the existing mounting holes. If installing new, mark the spot with a pencil.
Chime Unit Placement
The chime should be:
- Inside your home, in a central location where it can be heard.
- Away from loud appliances like TVs or refrigerators.
- Mounted on a wall or placed on a shelf (some models are freestanding).
Transformer Location
The transformer is usually installed:
- Near the electrical panel or in a junction box.
- Inside the attic, basement, or garage—anywhere it can connect to 120V power and low-voltage wires.
- Out of reach of children and protected from moisture.
Step 2: Install the Transformer
The transformer is the heart of your doorbell system. It steps down household voltage to a safe level for the doorbell.
Locate the Existing Transformer (If Replacing)
If you’re replacing an old doorbell, the transformer may already be installed. Look for a small gray or black box near your breaker panel, in the attic, or behind the chime. It will have two wires coming out (low-voltage) and two or three wires connected to household power.
Turn Off Power and Remove Old Transformer
Turn off the breaker, then disconnect the wires. Note which wires go where—take a photo if needed.
Install the New Transformer
Follow these steps:
- Mount the new transformer to a junction box or electrical box using screws.
- Connect the black (hot) and white (neutral) wires from your home’s electrical system to the corresponding terminals on the transformer. Use wire nuts to secure.
- Connect the low-voltage output wires (usually red and white) to the terminals labeled “common” and “front” or “transformer.”
- Tuck wires neatly into the box and secure the cover.
Test the Transformer
Turn the power back on and use a voltage tester or multimeter to check the output. You should see 8–24V AC. If not, double-check connections.
Step 3: Run the Low-Voltage Wiring
Now it’s time to connect the button, chime, and transformer with low-voltage wire.
Plan the Wire Route
Decide the path the wire will take from the transformer to the chime, then to the button. Common routes include:
- Through the wall from the transformer to the chime.
- Along baseboards or under trim to the door.
- Through the attic or basement for hidden runs.
Drill Holes if Needed
Use a drill to create small holes in walls or doorframes for the wire. Be careful not to damage electrical wires or plumbing inside walls.
Feed the Wire
If running wire through walls, use a fish tape to pull it through. For surface runs, use cable clips to secure the wire along trim or baseboards.
Strip the Wire Ends
Use wire strippers to remove about 1/2 inch of insulation from each wire end. Twist the copper strands to prevent fraying.
Step 4: Install the Doorbell Button
The button is the part visitors interact with, so it must be secure and weather-resistant.
Disconnect Power
Turn off the breaker again before connecting wires to the button.
Connect the Wires
Most buttons have two terminals labeled “front” and “transformer” or just two screw terminals. It doesn’t matter which wire goes where—doorbell circuits are not polarized. Connect one wire to each terminal and tighten the screws.
Mount the Button
Position the button on the wall or doorframe. Use the included screws to secure it. If mounting on brick or concrete, use plastic anchors.
Seal the Button (Optional)
Apply a small bead of silicone caulk around the edges to prevent water from entering, especially in rainy climates.
Step 5: Install the Chime Unit
The chime is where the sound comes from. It connects to both the transformer and the button.
Mount the Chime
Use the included bracket or screws to attach the chime to the wall. Make sure it’s level and secure.
Connect the Wires
Most chime units have three terminals:
- Transformer: Connects to the transformer wire.
- Front: Connects to the doorbell button.
- Rear (optional): For a second button (e.g., at a back door).
Strip the wire ends and connect them to the correct terminals. Tighten the screws securely.
Test the Connection
Turn the power back on and press the button. You should hear the chime. If not, check the wiring and transformer voltage.
Step 6: Final Checks and Testing
Before finishing, make sure everything works correctly.
Test the Doorbell
Press the button multiple times to ensure consistent sound. Listen for clarity and volume.
Check for Loose Wires
Gently tug on all wire connections to ensure they’re tight. Loose wires can cause intermittent operation.
Secure All Components
Make sure the button, chime, and transformer are firmly mounted. Use additional screws or anchors if needed.
Label Wires (Optional)
If you ever need to troubleshoot, labeled wires (e.g., “front,” “transformer”) will save time.
Troubleshooting Common Issues
Even with careful installation, problems can occur. Here’s how to fix the most common ones:
Doorbell Doesn’t Ring
- Check if the breaker is on.
- Test the transformer output with a multimeter.
- Ensure all wire connections are tight and correct.
- Verify the button isn’t stuck or damaged.
Chime Sounds Weak or Distorted
- This may indicate low voltage. Check the transformer rating—it should match the chime’s requirement (usually 16V).
- Loose wires can cause poor contact—re-tighten all connections.
Button Gets Stuck
- Clean the button mechanism with compressed air.
- Ensure it’s not installed too tightly against the wall.
Multiple Buttons Not Working
- If you have front and rear buttons, make sure both are connected to the correct terminals on the chime.
- Use a multimeter to test continuity in the wires.
Transformer Hums or Overheats
- This could mean a short circuit or wrong voltage. Turn off power immediately and check wiring.
- Replace the transformer if it’s damaged.
Maintenance Tips for Long-Term Performance
A wired doorbell contractor kit can last decades with proper care.
- Clean the Button: Wipe it with a damp cloth every few months to remove dirt and debris.
- Check Connections Annually: Inspect wires and terminals for corrosion or looseness.
- Test the System: Press the button regularly to ensure it’s working.
- Replace the Chime if Needed: Over time, internal components may wear out. Upgrade to a newer model with better sound or features.
Conclusion: Enjoy Your Reliable Wired Doorbell
Installing a wired doorbell contractor kit is a straightforward DIY project that pays off in reliability and peace of mind. By following this guide, you’ve learned how to safely assemble and install each component, from the transformer to the chime. You’ve also gained troubleshooting skills to keep your system running smoothly.
Unlike wireless doorbells that can lose signal or run out of batteries, a wired system offers consistent performance year after year. With proper installation and occasional maintenance, your doorbell will serve your home well for many years.
Remember: safety comes first. Always turn off the power, use the right tools, and don’t hesitate to call a professional if you’re unsure. Now that your doorbell is installed, you can enjoy the simple satisfaction of a job well done—and the cheerful “ding-dong” every time someone visits.
