Attaching your Ring Doorbell to its mount is a simple process when you follow the right steps. This guide walks you through everything from choosing the right mount to securing the device and testing the connection.
Key Takeaways
- Choose the correct mount type: Ring offers standard, wedge, and corner mounts—each designed for different angles and surfaces.
- Turn off power before installation: Always shut off electricity at the breaker to avoid shocks or damage to the doorbell.
- Use the right tools: A Phillips screwdriver, drill, level, and wire strippers make the job easier and safer.
- Secure the mounting bracket properly: Ensure screws are tight and the bracket is level to prevent wobbling or misalignment.
- Test the connection after setup: Check Wi-Fi signal strength and live view to confirm everything works before finishing.
- Adjust angle for optimal view: Use wedge mounts or adjust the bracket to capture the best field of view of your front door area.
- Maintain regular checks: Periodically inspect screws and connections to keep your Ring Doorbell secure over time.
How to Attach Ring Doorbell to Mount: A Complete Step-by-Step Guide
So, you’ve got your shiny new Ring Doorbell—congratulations! Now comes the fun part: installing it. But don’t worry, attaching your Ring Doorbell to its mount isn’t rocket science. With the right tools, a little patience, and this detailed guide, you’ll have it up and running in under an hour.
Whether you’re replacing an old doorbell or installing one for the first time, the mounting process is crucial. A poorly mounted doorbell can lead to shaky video, poor Wi-Fi connectivity, or even damage to your device. That’s why it’s important to follow each step carefully.
In this guide, we’ll walk you through how to attach Ring Doorbell to mount the right way—whether you’re using the standard mount, a wedge for angled views, or a corner mount for tricky installations. We’ll cover tool requirements, safety tips, wiring basics, and troubleshooting common issues. By the end, your Ring Doorbell will be securely in place, ready to keep your home safe and connected.
Let’s get started!
What You’ll Need Before You Begin

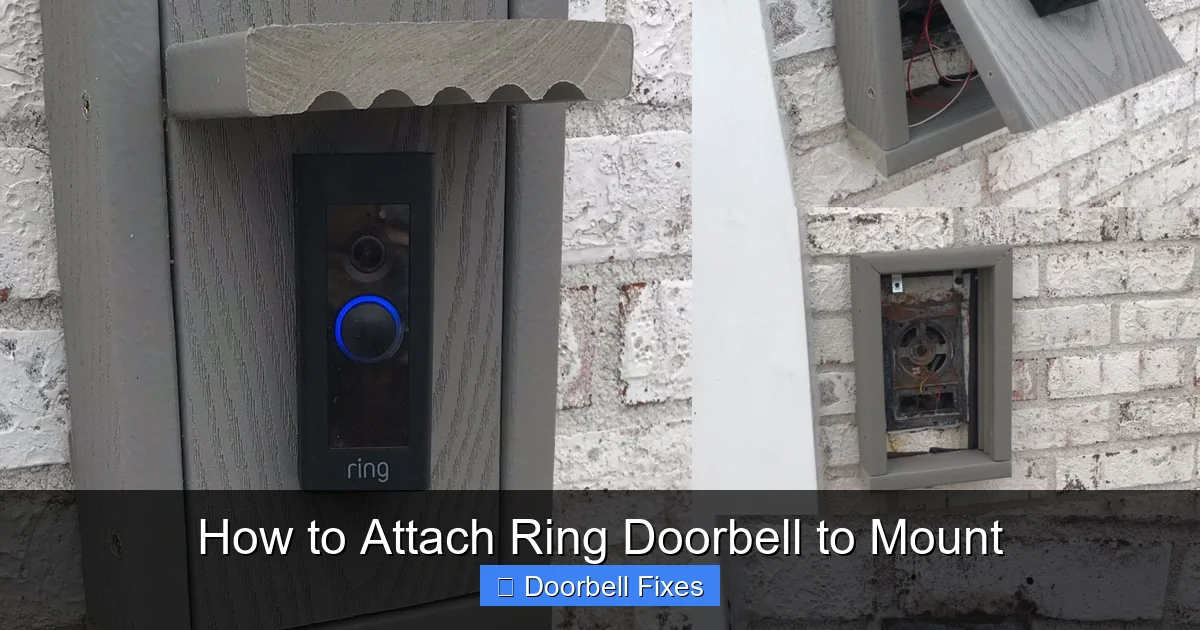

Visual guide about How to Attach Ring Doorbell to Mount
Image source: i.pinimg.com
Before you even think about picking up a screwdriver, make sure you have all the necessary tools and materials. Having everything ready will save you time and frustration.
Here’s a quick checklist:
- Ring Doorbell (any model: Video Doorbell, Doorbell 2, Doorbell 3, Doorbell 4, or Pro)
- Included mounting bracket (standard, wedge, or corner)
- Phillips head screwdriver
- Power drill (optional but helpful)
- Drill bits (for masonry or wood, depending on your wall)
- Level (to ensure the doorbell is straight)
- Wire strippers (if connecting to existing doorbell wires)
- Screws and wall anchors (usually included, but extras are good to have)
- Smartphone with the Ring app installed
- Ladder (if installing above ground level)
- Safety goggles (especially if drilling into brick or concrete)
If you’re replacing an existing doorbell, you may also need electrical tape and a voltage tester to ensure the wires are safe to handle.
Pro tip: Take a photo of your current doorbell wiring before disconnecting anything. This will help you remember how the wires were connected if you need to troubleshoot later.
Step 1: Choose the Right Mount for Your Setup
Not all Ring Doorbells use the same mount, and not all mounts work for every situation. Ring offers three main types of mounting brackets:
- Standard Mount: The default flat bracket that comes with most Ring Doorbells. Ideal for flat walls where the doorbell can be installed straight on.
- Wedge Mount: Angled at 5, 10, or 15 degrees. Used to tilt the camera downward for better coverage of your doorstep.
- Corner Mount: Designed for installing the doorbell on the corner of a house or narrow space where a standard mount won’t fit.
Choosing the right mount depends on your home’s layout and the angle you want the camera to capture.
For example, if your front door is recessed or you want to see packages left on the ground, a wedge mount can help angle the camera down. If you’re installing on a corner wall, the corner mount ensures a secure fit without sticking out awkwardly.
Most Ring Doorbells come with the standard mount, but you can purchase wedge and corner mounts separately from the Ring website or Amazon.
Once you’ve decided which mount to use, attach it to the back of your Ring Doorbell using the provided screws. This step is usually done before mounting to the wall, but we’ll cover that in the next section.
Step 2: Turn Off the Power (For Wired Installations)
Safety first! If you’re installing a wired Ring Doorbell (like the Ring Video Doorbell Pro or any model connected to existing doorbell wires), you must turn off the power at the circuit breaker.
Here’s how:
Locate Your Circuit Breaker
Go to your home’s electrical panel. Look for the breaker labeled “doorbell,” “chime,” or something similar. If it’s not labeled, you may need to test each one by turning them off and checking if your existing doorbell stops working.
Turn Off the Breaker
Switch the breaker to the “off” position. Use a voltage tester on the doorbell wires to confirm there’s no electricity flowing. This is a critical step—never skip it.
Label the Wires (Optional but Helpful)
If your old doorbell has two wires, use electrical tape to label them (e.g., “Front” and “Transformer”) so you know how to reconnect them later.
Once the power is off and the wires are safe, you can proceed with removing the old doorbell (if applicable) and preparing the mounting area.
Step 3: Remove the Old Doorbell (If Applicable)
If you’re replacing an existing doorbell, you’ll need to remove it first.
Unscrew the Old Doorbell
Use a screwdriver to remove the screws holding the old doorbell to the wall. Gently pull the device away from the wall.
Disconnect the Wires
Carefully disconnect the two wires from the back of the old doorbell. Don’t let them fall back into the wall—use a piece of tape to hold them in place.
Inspect the Wiring
Check the condition of the wires. If they’re frayed or damaged, trim them back and strip about 1/4 inch of insulation using wire strippers.
Now that the old doorbell is gone, you’re ready to install the new mount.
Step 4: Position and Mark the Mounting Location
Where you place your Ring Doorbell matters. You want it high enough to avoid tampering but low enough to capture faces clearly. The ideal height is between 48 and 60 inches from the ground.
Use a Level
Hold the mounting bracket against the wall where you want to install it. Use a level to make sure it’s straight. A crooked doorbell looks unprofessional and can affect the camera angle.
Mark the Screw Holes
Once the bracket is level, use a pencil to mark the spots where the screws will go. Most Ring mounts have two screw holes.
Consider Wire Access
Make sure the mounting location allows the wires to reach the terminals on the back of the Ring Doorbell. If the wires are too short, you may need to extend them or reposition the mount slightly.
Pro tip: If you’re installing on brick, stucco, or concrete, you’ll need to drill pilot holes and use wall anchors. For wood or siding, you can often screw directly into the surface.
Step 5: Drill Pilot Holes (If Needed)
If you’re mounting into a hard surface like brick or concrete, drilling pilot holes is essential. This prevents the material from cracking and ensures the screws go in smoothly.
Choose the Right Drill Bit
Use a masonry bit for brick or concrete. For wood, a standard drill bit will work.
Drill Carefully
Drill slowly and steadily into each marked spot. Go just deep enough for the wall anchor (if using) or screw to sit flush with the surface.
Insert Wall Anchors (If Needed)
Tap the wall anchors into the holes using a hammer. This provides a secure base for the screws.
Now you’re ready to attach the mounting bracket.
Step 6: Attach the Mounting Bracket to the Wall
This is where the magic happens—your Ring Doorbell starts to take shape on the wall.
Align the Bracket
Hold the mounting bracket over the pilot holes or anchors. Make sure it’s level and aligned with your marks.
Secure with Screws
Use the provided screws to attach the bracket to the wall. Tighten them firmly, but don’t over-tighten—this can strip the screws or damage the bracket.
Double-Check Stability
Give the bracket a gentle tug to make sure it’s secure. It shouldn’t wobble or move.
If you’re using a wedge or corner mount, attach it to the standard bracket first (if required), then mount the entire assembly to the wall.
Step 7: Connect the Wires (For Wired Models)
Now it’s time to connect the doorbell to power. If you’re using a battery-powered Ring Doorbell, you can skip this step and go straight to attaching the device.
Strip the Wire Ends
If you haven’t already, strip about 1/4 inch of insulation from the ends of the two doorbell wires.
Insert into Terminals
On the back of the Ring Doorbell, you’ll see two small terminals labeled “Front” and “Transformer.” Loosen the screws, insert the wires, and tighten them securely.
It doesn’t matter which wire goes where—Ring Doorbells are not polarity-sensitive. But for consistency, try to match the labels from your old doorbell.
Tuck Wires Neatly
Once connected, gently push the wires back into the wall so they don’t interfere with the doorbell when you attach it.
Step 8: Attach the Ring Doorbell to the Mount
This is the moment you’ve been waiting for—actually attaching the Ring Doorbell to the mount.
Align the Back Plate
Hold the Ring Doorbell so the back plate aligns with the mounting bracket. The two should fit together like a puzzle.
Slide Into Place
Gently slide the doorbell down onto the bracket. You should hear a soft click when it’s securely in place.
Secure with the Security Screw
Use the small security screw (included in the box) to lock the doorbell to the mount. This prevents theft and ensures it stays put.
Don’t forget this step! Without the security screw, your doorbell could be easily removed by someone pulling it off the mount.
Step 9: Turn the Power Back On
If you turned off the power earlier, now’s the time to restore it.
Flip the Breaker
Go back to your circuit breaker and turn the power back on.
Wait for the Doorbell to Boot Up
Your Ring Doorbell will take a few seconds to power on. You’ll see lights on the front indicating it’s connecting to Wi-Fi.
Check the Ring App
Open the Ring app on your smartphone. You should see your doorbell appear as “online.” If not, follow the in-app setup instructions to reconnect.
Step 10: Test the Doorbell and Adjust the Angle
Now that everything is installed, it’s time to test it out.
Check the Live View
Open the Ring app and tap on your doorbell to view the live feed. Make sure the image is clear and the angle covers your desired area.
Adjust if Needed
If the view is too high or too low, you may need to adjust the mount. For wedge mounts, you can swap out different angles. For standard mounts, you might need to reposition the bracket slightly.
Test the Motion and Ring Alerts
Walk in front of the doorbell to trigger motion detection. Ring the doorbell (if wired) or simulate a ring in the app to test notifications.
Check Wi-Fi Signal
In the Ring app, go to Device Health to check the signal strength. If it’s weak, consider moving your router or using a Wi-Fi extender.
Troubleshooting Common Installation Issues
Even with careful installation, problems can happen. Here are some common issues and how to fix them.
Doorbell Won’t Power On
- Check that the breaker is on.
- Verify the wires are connected securely.
- Test the voltage with a multimeter—most Ring Doorbells need at least 8-24V.
- If using a battery model, make sure the battery is charged.
Poor Wi-Fi Connection
- Move closer to your router during setup.
- Use the Ring app’s Wi-Fi signal tool to find the best location.
- Consider a Wi-Fi extender if the signal is consistently weak.
Blurry or Dark Video
- Clean the camera lens with a soft cloth.
- Adjust the angle to avoid direct sunlight or backlighting.
- Enable HDR in the app settings for better image quality.
Doorbell Falls Off the Mount
- Make sure the security screw is tightened.
- Check that the mounting bracket is securely attached to the wall.
- Use longer or stronger screws if the wall is weak.
False Motion Alerts
- Adjust the motion zones in the app to exclude trees or busy streets.
- Lower the motion sensitivity.
- Ensure the doorbell isn’t facing a heat source (like a vent).
Maintenance Tips to Keep Your Ring Doorbell Secure
Once your Ring Doorbell is installed, a little maintenance goes a long way.
- Check screws monthly: Vibration and weather can loosen screws over time.
- Clean the lens regularly: Use a microfiber cloth to remove dust, dirt, and fingerprints.
- Update firmware: The Ring app will notify you of updates—install them to improve performance and security.
- Inspect wiring annually: Look for corrosion or damage, especially in humid climates.
- Test alerts: Ring the doorbell and walk in front of it every few months to ensure everything works.
Final Thoughts
Attaching your Ring Doorbell to its mount might seem intimidating at first, but it’s a straightforward process when broken down into steps. From choosing the right mount to securing the device and testing the connection, each part plays a role in ensuring your doorbell works reliably.
Remember, safety is key—always turn off the power when working with wires. Use the right tools, take your time, and don’t hesitate to consult the Ring app or customer support if you run into issues.
With your Ring Doorbell properly mounted, you’ll enjoy peace of mind knowing your home is protected by smart technology. Whether you’re watching for packages, greeting visitors, or keeping an eye on things while you’re away, your doorbell is now ready to do its job.
So go ahead—mount that Ring Doorbell with confidence. You’ve got this!
