Is your doorbell weak, slow, or unresponsive? This guide walks you through simple, safe methods to boost doorbell voltage, ensuring your chime rings loud and clear. From checking transformers to upgrading wiring, we cover everything you need for a stronger signal.
Key Takeaways
- Check your transformer first: Most doorbell issues stem from low voltage due to an underpowered or failing transformer—test it with a multimeter.
- Upgrade to a higher-voltage transformer: If your current transformer outputs 16V, switching to 24V can significantly improve performance, especially for smart doorbells.
- Use thicker gauge wire: Thin wiring causes voltage drop over long distances—replace 22-gauge with 18- or 20-gauge wire for better current flow.
- Shorten wire runs when possible: The longer the wire, the more voltage is lost—re-route or reposition components to reduce distance.
- Add a doorbell capacitor (for smart models): Capacitors store energy and deliver a stronger signal, helping video doorbells function reliably on low-voltage systems.
- Avoid DIY on high-voltage lines: Always turn off power at the breaker before working on doorbell circuits to prevent shock or fire hazards.
- Test after every change: Use a multimeter to confirm voltage improvements and ensure your doorbell operates at peak performance.
How to Boost Doorbell Voltage: A Complete Step-by-Step Guide
If your doorbell is acting up—ringing weakly, not ringing at all, or only working intermittently—you might be dealing with low voltage. Don’t worry, you’re not alone. Many homeowners face this issue, especially with older homes or newer smart doorbells that demand more power. The good news? Boosting your doorbell voltage is often simpler than you think.
In this guide, we’ll walk you through everything you need to know to safely and effectively increase your doorbell’s voltage. Whether you’re troubleshooting a traditional wired chime or setting up a video doorbell like Ring or Nest, these steps will help you get a stronger, more reliable signal.
We’ll cover how to test your current voltage, upgrade your transformer, improve your wiring, and even add accessories like capacitors for extra power. By the end, you’ll have a doorbell that rings loud and clear—every single time.
Let’s get started.
Why Is Your Doorbell Voltage Low?

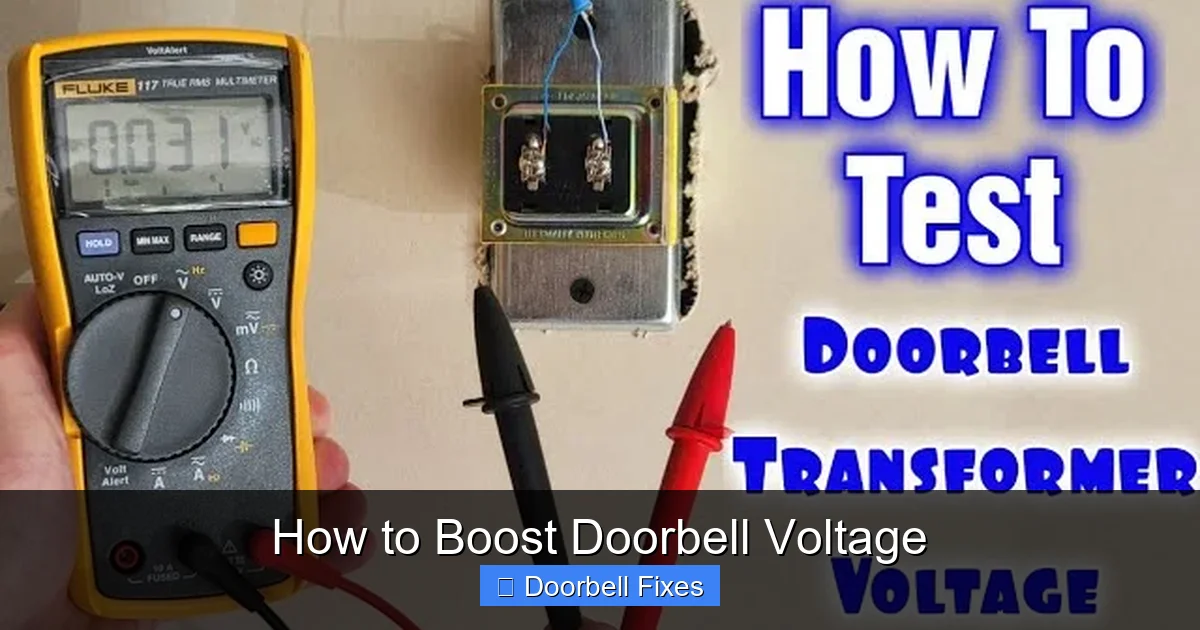

Visual guide about How to Boost Doorbell Voltage
Image source: home-cdn.reolink.us
Before we dive into fixes, it’s important to understand why your doorbell voltage might be dropping in the first place. Doorbell systems are low-voltage circuits, typically running on 8 to 24 volts AC. That’s much safer than standard household outlets (120V), but it also means they’re sensitive to resistance and distance.
Here are the most common causes of low doorbell voltage:
- Underpowered transformer: The transformer converts household voltage (120V) down to the low voltage your doorbell needs. If it’s old, damaged, or not rated high enough, it won’t deliver enough power.
- Long wire runs: The farther your doorbell is from the transformer, the more voltage is lost due to resistance in the wire. This is especially true with thin-gauge wiring.
- Thin or corroded wiring: Over time, wires can degrade, corrode, or become loose, increasing resistance and reducing voltage.
- Multiple chimes or smart features: Smart doorbells with cameras, Wi-Fi, and night vision require more power than traditional mechanical chimes. If your system wasn’t designed for it, voltage drops are common.
- Loose or faulty connections: A loose wire at the doorbell button, chime unit, or transformer can interrupt the circuit and reduce voltage.
Understanding these causes helps you target the right fix. In many cases, boosting voltage isn’t about adding more power from scratch—it’s about optimizing what you already have.
Tools and Materials You’ll Need
Before you begin, gather these tools and supplies. Most are inexpensive and available at hardware stores or online.
- Multimeter (digital preferred)
- Screwdrivers (flathead and Phillips)
- Wire strippers
- Electrical tape
- Voltage-rated wire nuts
- Replacement transformer (16V or 24V, depending on needs)
- 18- or 20-gauge doorbell wire (if replacing old wiring)
- Doorbell capacitor (optional, for smart doorbells)
- Voltage tester (non-contact, for safety)
- Safety gloves and goggles
Having the right tools makes the job safer and faster. A multimeter is especially important—it’s how you’ll test voltage before and after each step.
Step 1: Turn Off the Power
Safety first! Even though doorbell systems use low voltage, they’re connected to your home’s electrical panel. Always turn off the power at the breaker before working on any part of the circuit.
How to Safely Shut Off Power
- Locate your home’s electrical panel (usually in the basement, garage, or utility closet).
- Look for the breaker labeled “doorbell,” “chime,” or “transformer.” If there isn’t one, turn off the main breaker to be safe.
- Use a non-contact voltage tester at the doorbell button or chime unit to confirm power is off.
- Place a note on the breaker panel so no one accidentally turns it back on while you’re working.
Never skip this step. Even low-voltage systems can cause shocks or damage equipment if mishandled.
Step 2: Test Your Current Doorbell Voltage
Now that the power is off, it’s time to measure your current voltage. This will tell you whether the issue is truly low voltage or something else.
How to Use a Multimeter to Test Voltage
- Set your multimeter to AC voltage (usually marked “V~” or “VAC”).
- Turn the power back on temporarily (only for this test).
- Locate the two low-voltage wires at the chime unit or transformer (usually labeled “Front” and “Trans” or “T”).
- Touch the multimeter probes to these two wires.
- Press the doorbell button and note the voltage reading.
- Turn the power off again.
A healthy doorbell system should read between 16V and 24V when the button is pressed. If it’s below 12V, you’ve confirmed low voltage is the problem.
Pro Tip: Test at multiple points—transformer, chime, and doorbell button—to pinpoint where voltage is dropping.
Step 3: Inspect and Upgrade Your Transformer
The transformer is the heart of your doorbell system. If it’s weak or failing, no amount of wiring fixes will help. Most standard doorbells use a 16V transformer, but many smart doorbells perform better with 24V.
How to Locate Your Doorbell Transformer
Transformers are usually hidden in one of these places:
- Inside the electrical panel (mounted on a breaker or junction box)
- In the attic or basement near the chime unit
- Behind the doorbell chime itself
- Inside a junction box in the wall
Look for a small, rectangular box with two wires coming out and a label that says “16V” or “24V.”
How to Replace the Transformer
- Turn off the power at the breaker.
- Disconnect the two low-voltage wires from the transformer.
- Unscrew the transformer from its mounting location.
- Install the new transformer in the same spot, matching wire connections.
- Secure it with screws and reconnect the wires.
- Turn the power back on and test the voltage again.
Choosing the Right Transformer:
– For traditional chimes: 16V is usually sufficient.
– For smart doorbells (Ring, Nest, etc.): Upgrade to 24V for better performance.
– Check your doorbell’s manual for voltage requirements.
Step 4: Upgrade Your Doorbell Wiring
Thin, old, or corroded wiring is a major cause of voltage drop. If your wires are 22-gauge or smaller, or if they’ve been in place for decades, it’s time for an upgrade.
Why Wire Gauge Matters
The “gauge” of a wire refers to its thickness. Lower numbers mean thicker wire, which carries more current with less resistance. For doorbells:
- 22-gauge: Common in older homes, prone to voltage drop over long distances.
- 20-gauge: Better for medium runs (up to 50 feet).
- 18-gauge: Ideal for long runs or high-power smart doorbells.
How to Replace Doorbell Wiring
- Turn off the power.
- Remove the old wires from the doorbell button, chime, and transformer.
- Run new 18- or 20-gauge wire along the same path (or a shorter one if possible).
- Strip about 1/2 inch of insulation from each end.
- Connect the new wires to the doorbell button, chime, and transformer using wire nuts.
- Secure wires with staples or clips to prevent damage.
- Turn the power back on and test.
Pro Tip: If running new wire is difficult, consider using a wireless doorbell extender or relocating the chime closer to the doorbell.
Step 5: Shorten the Wire Run
The longer the wire, the more voltage is lost. If your doorbell is far from the chime or transformer, consider shortening the distance.
Ways to Reduce Wire Length
- Move the chime unit closer to the front door.
- Relocate the transformer nearer to the doorbell (if code allows).
- Use a wireless doorbell kit with a remote receiver.
- Install a secondary chime near the doorbell for immediate feedback.
Even reducing the run by 10–20 feet can make a noticeable difference in voltage.
Step 6: Add a Doorbell Capacitor (For Smart Doorbells)
Smart doorbells often struggle with low voltage because they need constant power for Wi-Fi, cameras, and motion sensors. A doorbell capacitor can help by storing energy and delivering a stronger pulse when the button is pressed.
What Is a Doorbell Capacitor?
A capacitor is a small electronic component that stores electrical energy. When installed in parallel with your doorbell circuit, it charges when the system is idle and releases a burst of power when the button is pressed. This helps overcome voltage drop and ensures reliable operation.
How to Install a Doorbell Capacitor
- Turn off the power.
- Locate the two low-voltage wires at the chime or transformer.
- Connect the capacitor across these wires (polarity doesn’t matter for AC).
- Use wire nuts to secure connections.
- Turn the power back on and test.
Capacitors are inexpensive (usually under $10) and easy to install. They’re especially helpful for Ring doorbells on older wiring.
Step 7: Check and Tighten All Connections
Loose or corroded connections can cause voltage drop even with a good transformer and wiring.
Where to Check
- Doorbell button terminals
- Chime unit connections
- Transformer terminals
- Wire nuts and splices
How to Fix Loose Connections
- Turn off the power.
- Remove and inspect each wire connection.
- Clean any corrosion with a wire brush or sandpaper.
- Reconnect wires securely, using new wire nuts if needed.
- Tug gently to ensure they’re tight.
Even a slightly loose wire can cause intermittent ringing or no ring at all.
Step 8: Test and Verify Your Fixes
After making changes, it’s crucial to test your system thoroughly.
Final Testing Steps
- Turn the power back on.
- Use your multimeter to measure voltage at the doorbell button while pressing it.
- Listen for a clear, strong chime.
- Test multiple times to ensure consistency.
- If using a smart doorbell, check video quality, motion detection, and app notifications.
If everything works, you’re done! If not, revisit the steps above to identify the remaining issue.
Troubleshooting Common Issues
Even after boosting voltage, you might still face problems. Here’s how to fix them:
Doorbell Rings Weakly
- Check for partial wire breaks or corrosion.
- Ensure the chime mechanism isn’t stuck or dirty.
- Verify the transformer is delivering full voltage under load.
Doorbell Doesn’t Ring at All
- Confirm power is on and the breaker hasn’t tripped.
- Test the doorbell button with a multimeter (should show continuity when pressed).
- Check for blown fuses in smart doorbells.
Smart Doorbell Keeps Disconnecting
- Upgrade to a 24V transformer.
- Install a capacitor.
- Reduce Wi-Fi interference by moving the router closer.
Transformer Hums or Gets Hot
- This indicates a faulty transformer—replace it immediately.
- Ensure it’s not overloaded by multiple devices.
When to Call a Professional
While most doorbell voltage issues can be fixed DIY, some situations require an electrician:
- You’re uncomfortable working with electrical systems.
- The transformer is inside the main electrical panel and hard to access.
- You suspect faulty wiring in the walls.
- Your home has aluminum wiring (requires special handling).
Safety is always the top priority. When in doubt, call a licensed electrician.
Conclusion
Boosting your doorbell voltage doesn’t have to be complicated. By testing your system, upgrading the transformer, improving wiring, and adding accessories like capacitors, you can ensure your doorbell rings loud and clear—every time.
Start with the basics: turn off the power, test the voltage, and inspect your transformer. From there, tackle wiring and connections step by step. With the right tools and a little patience, you’ll have a reliable doorbell system that keeps your home secure and connected.
Remember, a strong doorbell isn’t just about convenience—it’s about safety. Whether you’re expecting a package or screening visitors, you deserve a system that works when you need it most.
So grab your multimeter, follow this guide, and give your doorbell the power boost it deserves.
