Building your own video doorbell is a rewarding DIY project that boosts home security and tech skills. This guide walks you through every step, from choosing components to final setup, using simple tools and affordable parts.

Key Takeaways

  • Choose the right camera module: A high-resolution, low-light capable camera ensures clear video even at night.
  • Use a reliable microcontroller: Raspberry Pi or ESP32 boards offer flexibility and strong community support for coding and connectivity.
  • Power safely and efficiently: Always match voltage requirements and consider battery vs. wired power based on your setup.
  • Secure Wi-Fi connectivity: Stable internet access is crucial for real-time alerts and remote viewing.
  • Weatherproof your build: Protect electronics from rain, dust, and temperature changes with proper enclosures and seals.
  • Test before final installation: Run trials indoors to catch bugs early and avoid frustrating rework outdoors.
  • Prioritize privacy and security: Encrypt video streams and avoid cloud storage if you prefer local control.

Introduction: Why Build Your Own Video Doorbell?

Imagine getting a notification on your phone every time someone approaches your front door—even if they don’t ring the bell. With a custom-built video doorbell, you can see who’s there, talk to them remotely, and record footage—all without paying monthly fees or relying on proprietary systems.

Building your own video doorbell isn’t just about saving money (though that’s a nice bonus). It’s also a fantastic way to learn about electronics, coding, and home automation. Whether you’re a beginner tinkering with your first project or an experienced maker looking for a new challenge, this guide will walk you through the entire process.

You’ll learn how to select the right components, wire everything together safely, write basic code for motion detection and alerts, and install your device securely outdoors. By the end, you’ll have a fully functional, personalized video doorbell that fits your home’s style and your security needs.

Best of all? You control the data. No third-party apps tracking your habits—just you, your camera, and peace of mind.

What You’ll Need: Tools and Components

How to Build a Video Doorbell

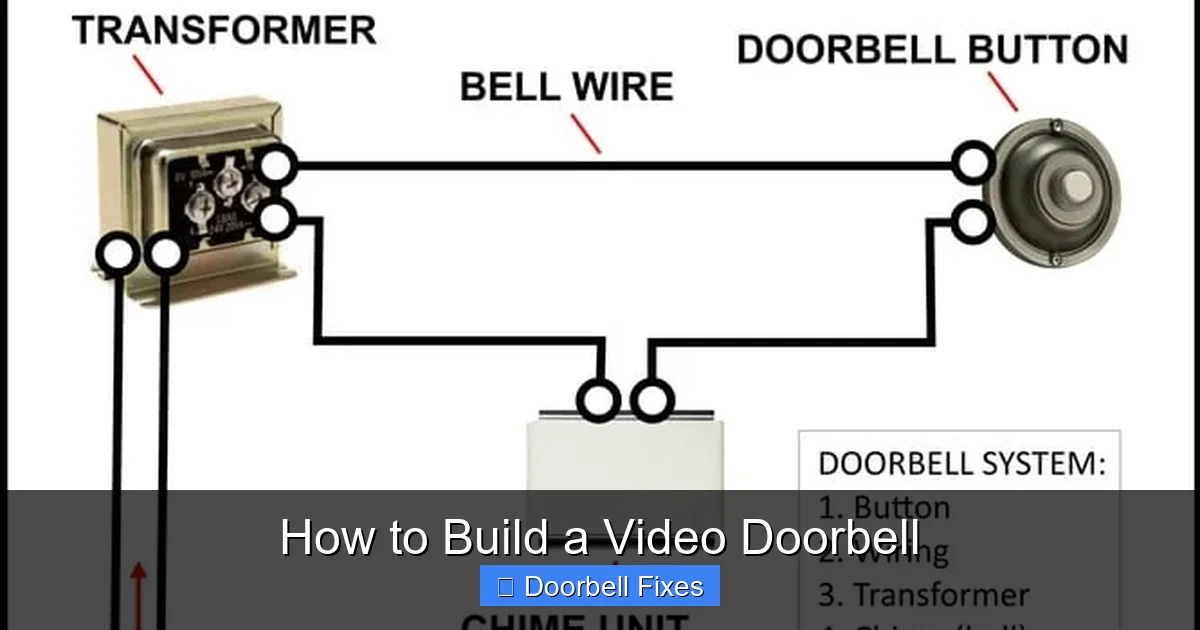

Visual guide about How to Build a Video Doorbell

Image source: circuit-finder.com

Before diving in, gather all the necessary parts and tools. This ensures a smooth build without mid-project delays.

Essential Components

  • Microcontroller: A Raspberry Pi (3B+, 4, or Zero W) or ESP32-CAM module. The Pi offers more power and easier coding; the ESP32 is cheaper and smaller but requires more technical setup.
  • Camera Module: For Raspberry Pi, use the official Raspberry Pi Camera Module 2 or 3 (supports night vision). For ESP32, the OV2640 camera works well.
  • Power Supply: A 5V USB power adapter (2A or higher for Pi), or a 18650 lithium battery with a charging board if going wireless.
  • PIR Motion Sensor: Detects movement near the door. HC-SR501 is a popular, affordable choice.
  • Doorbell Button: A simple momentary push button to simulate a traditional doorbell press.
  • Wi-Fi Access: Your home network must support 2.4GHz (most microcontrollers don’t support 5GHz).
  • Enclosure: A weatherproof plastic or 3D-printed case with mounting holes and ventilation (if needed).
  • Wiring and Connectors: Jumper wires, screw terminals, and heat shrink tubing for secure connections.

Tools Required

  • Soldering iron and solder (for secure connections)
  • Wire strippers and cutters
  • Multimeter (to check voltage and continuity)
  • Drill and bits (for mounting and cable routing)
  • Hot glue gun or silicone sealant (for weatherproofing)
  • Computer with microSD card reader (for flashing OS)

Optional but Helpful Add-ons

  • MicroSD Card: 16GB or larger for Raspberry Pi OS.
  • Speaker and Microphone: For two-way audio (requires additional coding).
  • Infrared (IR) LEDs: For better night vision if your camera lacks built-in IR.
  • Relay Module: To trigger an existing wired doorbell chime.

Step 1: Choose Your Platform

Your choice of microcontroller shapes the entire project. Here’s how to decide:

Raspberry Pi vs. ESP32: Pros and Cons

Raspberry Pi is user-friendly, runs a full Linux OS, and supports high-quality video streaming. It’s ideal if you want to use existing software like MotionEyeOS or Home Assistant. However, it consumes more power and costs more ($35–$55).

ESP32-CAM is ultra-low-cost (under $10), compact, and energy-efficient. It’s great for battery-powered setups but has limited processing power and requires more manual coding. It also lacks native audio support.

Recommendation: Beginners should start with a Raspberry Pi for easier setup. Advanced users or those on a tight budget can try the ESP32.

Camera Considerations

Look for a camera with:
– At least 720p resolution (1080p preferred)
– Wide-angle lens (110°+ field of view)
– Low-light or night vision capability
– Compatibility with your chosen board

The Raspberry Pi Camera Module 3 includes HDR and autofocus—excellent for varying lighting conditions.

Step 2: Set Up the Microcontroller

Now it’s time to prepare your board for action.

For Raspberry Pi

  1. Download Raspberry Pi OS Lite (headless version) from the official website.
  2. Use Raspberry Pi Imager to flash the OS onto a microSD card.
  3. Enable SSH and Wi-Fi by creating empty files named ssh and wpa_supplicant.conf in the boot partition.
  4. Insert the SD card, connect the camera via the ribbon cable, and power it on.
  5. Find the Pi’s IP address on your router and SSH into it using a terminal.

For ESP32-CAM

  1. Install the ESP32 board package in Arduino IDE.
  2. Connect the ESP32-CAM to your computer using a USB-to-TTL adapter (note: the onboard USB chip often fails—external adapter is more reliable).
  3. Upload a basic camera test sketch to verify functionality.
  4. Configure Wi-Fi credentials in the code.

Tip: Label all wires and take photos at each stage. This helps during troubleshooting and reassembly.

Step 3: Wire the Components

Careful wiring prevents shorts and ensures reliable operation.

Connecting the PIR Sensor

The HC-SR501 has three pins: VCC (5V), GND, and OUT.
– Connect VCC to 5V on your board.
– Connect GND to ground.
– Connect OUT to a GPIO pin (e.g., GPIO 4 on Pi, GPIO 13 on ESP32).

Note: Adjust the sensitivity and delay potentiometers on the PIR sensor. Set delay to ~5 seconds to avoid repeated triggers.

Adding the Doorbell Button

Use a momentary push button:
– One side to 3.3V (or 5V, depending on board).
– Other side to a GPIO pin with a pull-down resistor (10kΩ) to ground.

When pressed, the pin reads HIGH, triggering the “doorbell” event.

Power Management

If using batteries:
– Use a 18650 cell with a protection circuit.
– Add a TP4056 charging module for safe recharging via USB.
– Include a voltage booster if your board needs 5V (most 18650s output 3.7V).

For wired setups:
– Tap into existing doorbell wiring (usually 8–24V AC).
– Use a step-down converter to get stable 5V DC.
– Warning: Turn off power at the breaker before working with household wiring.

Step 4: Write the Code

Your software brings the hardware to life. Below are simplified examples.

Basic Motion Detection (Raspberry Pi + Python)

Install required packages:

sudo apt install python3-pip
pip3 install opencv-python gpiozero

Sample script:

from gpiozero import MotionSensor
from picamera2 import Picamera2
import time
import smtplib

pir = MotionSensor(4)
camera = Picamera2()

def capture_and_alert():
    camera.start()
    time.sleep(2)
    camera.capture_file("/home/pi/doorbell.jpg")
    camera.stop()
    # Send email or push notification here

pir.when_motion = capture_and_alert

Doorbell Press Detection

Add this to your script:

from gpiozero import Button

button = Button(17, pull_up=False)

def doorbell_rang():
    print("Ding dong!")
    # Trigger recording or notification

button.when_pressed = doorbell_rang

For ESP32-CAM (Arduino IDE)

Use the ESP32 Camera Web Server example. Modify it to:
– Detect motion via PIR input.
– Save images to SPIFFS or send via email (using SMTP libraries).
– Activate on button press.

Pro Tip: Use IFTTT or Blynk for easy smartphone notifications without complex server setup.

Step 5: Stream Video and Send Alerts

Real-time viewing is the hallmark of a great video doorbell.

Local Streaming Options

– MotionEyeOS: Turn your Pi into a surveillance hub. Install it as an OS or Docker container. Offers web interface, motion detection, and recording.
– MJPG-Streamer: Lightweight streaming for Pi or ESP32. Great for low-latency viewing.
– RTSP Server: Use raspivid and cvlc on Pi for RTSP streams compatible with VLC or Home Assistant.

Remote Access

To view your doorbell from anywhere:
– Set up port forwarding on your router (not recommended for security).
– Use a VPN (like WireGuard) for safe remote access.
– Or use a service like Ngrok to create a secure tunnel.

Notifications

Send alerts via:
– Email (using Python’s smtplib)
– Push notifications (Pushover, Telegram Bot)
– SMS (Twilio API)

Example Telegram alert:

import requests
bot_token = "YOUR_BOT_TOKEN"
chat_id = "YOUR_CHAT_ID"
message = "Motion detected at front door!"
requests.get(f"https://api.telegram.org/bot{bot_token}/sendMessage?chat_id={chat_id}&text={message}")

Step 6: Weatherproof and Mount the Doorbell

Outdoor exposure demands protection.

Choosing an Enclosure

– Use an IP65 or higher rated junction box.
– Drill holes for camera lens, PIR sensor, button, and cable glands.
– Apply silicone sealant around edges and cable entries.

Mounting Tips

– Install at chest height, angled slightly downward.
– Avoid direct sunlight on the camera lens (causes glare).
– Ensure Wi-Fi signal strength—use a repeater if needed.
– Secure with screws or heavy-duty adhesive mounts.

Final Checks

– Test motion detection and button response.
– Verify video quality in daylight and darkness.
– Confirm notifications arrive promptly.
– Check power draw—adjust sleep modes if using batteries.

Troubleshooting Common Issues

Even the best builds hit snags. Here’s how to fix them.

No Video Feed

– Check camera ribbon cable orientation (blue side toward Ethernet port on Pi).
– Ensure camera is enabled in raspi-config.
– Test with libcamera-hello on newer Pi OS versions.

False Motion Alarms

– Adjust PIR sensitivity and delay settings.
– Shield the sensor from wind, rain, or moving foliage.
– Add software debouncing (ignore triggers under 1 second apart).

Weak Wi-Fi Signal

– Move the router closer or add a Wi-Fi extender.
– Use a USB Wi-Fi adapter with an external antenna (for Pi).
– Switch to 2.4GHz band if dual-band router is set to 5GHz only.

Battery Drains Too Fast

– Enable deep sleep mode on ESP32.
– Reduce frame rate or resolution.
– Use a larger battery or solar charger.

Button Not Responding

– Verify pull-down/pull-up resistor is correctly wired.
– Check GPIO pin assignment in code.
– Test button continuity with a multimeter.

Enhancements and Upgrades

Once your basic doorbell works, consider these upgrades:

Two-Way Audio

Add a USB microphone and small speaker. Use arecord and aplay on Pi, or integrate WebRTC for real-time chat.

Local Storage

Save recordings to a USB drive or NAS instead of the cloud. Use cron jobs to auto-delete old files.

AI Person Detection

Use TensorFlow Lite on Raspberry Pi to distinguish people from pets or shadows. Reduces false alerts significantly.

Integration with Smart Home

Connect to Home Assistant, Alexa, or Google Home. Trigger lights, locks, or alarms when motion is detected.

Conclusion: Enjoy Your Custom Video Doorbell

Building a video doorbell is more than a tech project—it’s a step toward smarter, safer living. You’ve learned how to select components, write code, wire circuits, and install hardware outdoors. Along the way, you’ve gained skills that apply to countless other DIY electronics projects.

Your homemade doorbell offers privacy, customization, and satisfaction that off-the-shelf products can’t match. Whether you’re watching for package thieves, greeting guests remotely, or just curious about who’s knocking, your creation delivers real value.

Remember: Start simple, test often, and don’t hesitate to tweak the design. The best builds evolve over time. Now go enjoy your new front-door guardian—and maybe share your creation with the maker community!
