This guide teaches you how to calculate doorbell transformer output current using simple formulas and safety checks. You’ll learn to measure voltage, understand ratings, and ensure your doorbell system runs efficiently and safely.
Key Takeaways
- Understand transformer basics: A doorbell transformer steps down household voltage (120V) to a safe low-voltage (16–24V) for your doorbell.
- Use Ohm’s Law: Calculate current using I = P / V, where I is current (amps), P is power (watts), and V is voltage (volts).
- Check manufacturer specs: Always refer to the transformer’s label for rated voltage and wattage before calculating.
- Measure with a multimeter: Verify actual output voltage under load to ensure accuracy in your calculations.
- Prioritize safety: Turn off power at the breaker before working on any electrical components.
- Match load to transformer: Ensure the total wattage of your doorbell system doesn’t exceed the transformer’s capacity.
- Troubleshoot common issues: Low current can cause weak chimes or intermittent operation—calculating output helps diagnose problems.
How to Calculate Doorbell Transformer Output Current
If your doorbell is acting up—chiming weakly, not ringing at all, or only working intermittently—it might not be the button or the chime unit. Often, the issue lies with the transformer. Specifically, the output current may be too low to power your doorbell system properly.
Understanding how to calculate doorbell transformer output current is a valuable skill for homeowners, DIY enthusiasts, and even electricians. It helps you diagnose problems, choose the right replacement parts, and ensure your doorbell operates safely and efficiently.
In this comprehensive guide, you’ll learn everything you need to know about doorbell transformers, how they work, and—most importantly—how to calculate their output current using simple tools and formulas. We’ll walk you through each step with clear instructions, practical tips, and real-world examples. By the end, you’ll be able to confidently assess your doorbell’s power supply and make informed decisions about repairs or upgrades.
Let’s get started!
What Is a Doorbell Transformer?

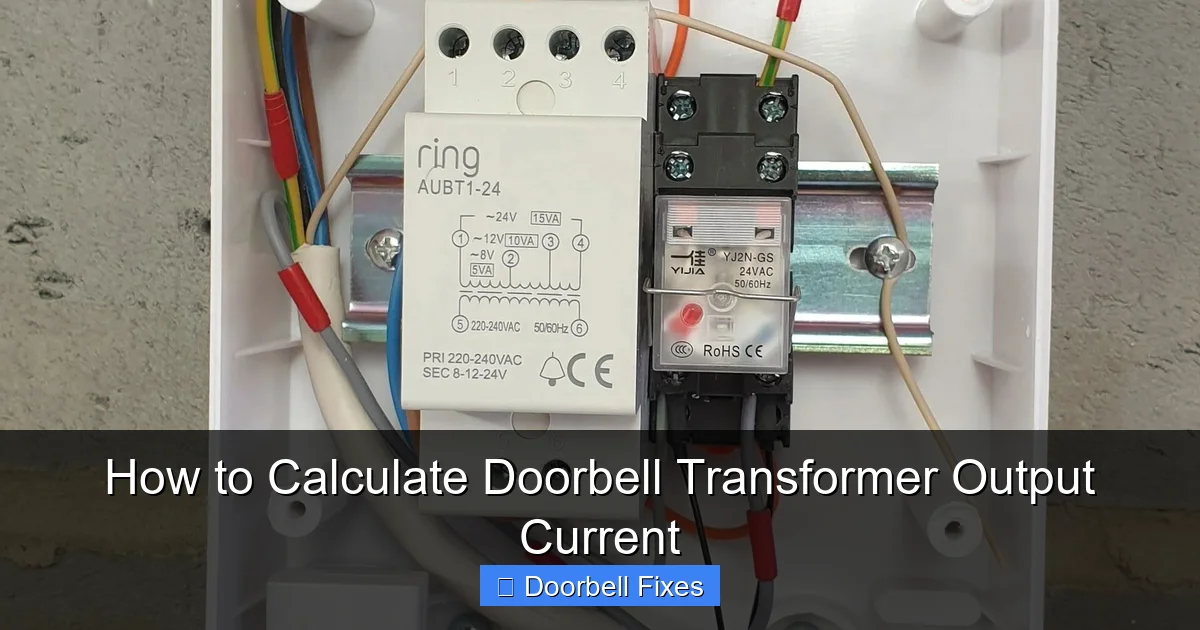

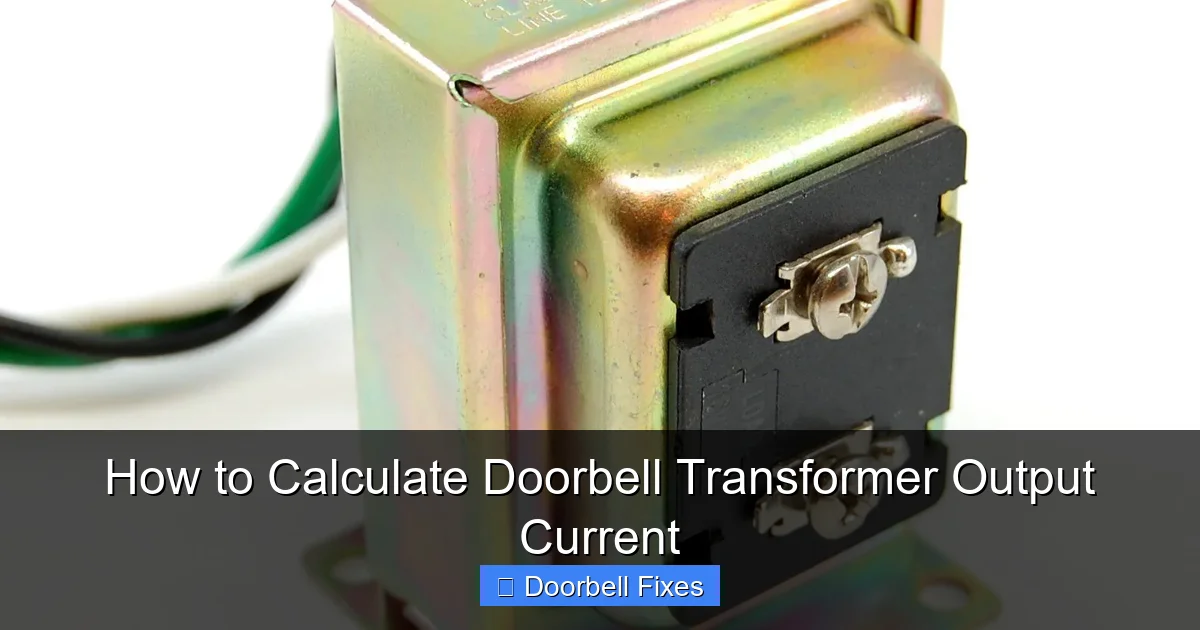

Visual guide about How to Calculate Doorbell Transformer Output Current
Image source: cdn.shopify.com
Before diving into calculations, it’s important to understand what a doorbell transformer does.
Most homes in the U.S. use 120-volt alternating current (AC) from the main electrical panel. However, doorbells operate on much lower voltage—typically between 16 and 24 volts AC. That’s where the transformer comes in.
A doorbell transformer is a small electrical device that “steps down” the high household voltage to a safer, lower voltage suitable for doorbell systems. It’s usually mounted near your electrical panel, inside the basement, garage, or utility closet.
Transformers are rated in two key ways:
– **Voltage (V):** The output voltage, such as 16V or 24V.
– **Wattage (W):** The maximum power the transformer can deliver, such as 10W, 15W, or 30W.
These ratings are crucial because they determine how much current the transformer can supply. And that’s exactly what we’re calculating.
Why Calculate Output Current?
You might be wondering: “Why do I need to calculate the current? Can’t I just replace the transformer if the doorbell isn’t working?”
While replacing a faulty transformer is often the solution, blindly swapping parts can lead to more problems. For example:
– A transformer with too little current may overheat or fail prematurely.
– One with too much current won’t damage the doorbell, but it’s inefficient and potentially wasteful.
By calculating the output current, you can:
– Confirm whether your transformer is supplying enough power.
– Match the transformer to your doorbell’s requirements.
– Diagnose issues like weak chimes or flickering lights on video doorbells.
– Avoid overloading the circuit.
In short, calculating current helps you make smart, safe, and effective repairs.
Tools You’ll Need
Before we begin, gather these tools:
– **Digital multimeter (DMM):** Essential for measuring voltage and verifying output.
– **Screwdriver:** To access the transformer and wiring.
– **Insulated gloves and safety glasses:** For protection when working near electrical panels.
– **Flashlight:** To see in dark areas like basements or closets.
– **Notepad and pen:** To record measurements and calculations.
Make sure your multimeter is set to measure AC voltage (usually marked as “V~” or “ACV”). Most doorbell transformers output AC, not DC.
Step 1: Locate Your Doorbell Transformer
The first step is finding the transformer. It’s typically installed in one of these locations:
– Near the main electrical panel
– Inside a basement junction box
– In a garage or utility closet
– Behind the doorbell chime unit (less common)
Look for a small, rectangular or cylindrical device with wires connected to it. It often has a label showing voltage and wattage (e.g., “16V 10VA”).
Pro Tip: If you can’t find it, turn off the breaker for your doorbell circuit and check the chime unit. The wires leading to it should trace back to the transformer.
Step 2: Turn Off the Power
Safety first! Even though doorbell systems use low voltage, the transformer is connected to your home’s 120V circuit. Working on it while energized can cause shock or damage your multimeter.
How to Safely Shut Off Power
- Go to your main electrical panel (breaker box).
- Look for a breaker labeled “Doorbell,” “Chime,” or “Low Voltage.” If there isn’t one, turn off the main breaker to be safe.
- Use a non-contact voltage tester to confirm the power is off at the transformer terminals.
- Only proceed once you’re certain the circuit is de-energized.
Important: Never assume the power is off. Always test it.
Step 3: Identify Transformer Specifications
Once the power is off, examine the transformer’s label. You’ll find two key numbers:
– **Output Voltage (V):** Usually 16V or 24V.
– **Power Rating (W or VA):** Typically 10W, 15W, or 30W.
Note: “VA” (volt-amperes) is often used instead of “W” (watts) for AC devices. For doorbell transformers, VA and W are essentially the same for calculation purposes.
For example, a label might read:
> “16V 10VA”
This means the transformer outputs 16 volts and can deliver up to 10 watts of power.
Write these numbers down—they’re essential for your calculation.
Step 4: Use Ohm’s Law to Calculate Output Current
Now for the math! We’ll use a simple formula from electrical theory:
I = P / V
Where:
– I = Current (in amperes, or amps)
– P = Power (in watts)
– V = Voltage (in volts)
This formula tells us how much current the transformer can supply at full load.
Example Calculation
Let’s say your transformer is rated at 16V and 10W.
Using the formula:
I = 10W / 16V = 0.625 amps
So, the transformer can deliver up to 0.625 amps of current.
Another Example:
A 24V 30W transformer:
I = 30W / 24V = 1.25 amps
This means it can supply 1.25 amps—more than enough for most modern doorbells, including video models.
Why This Matters
Different doorbells require different amounts of current. For instance:
– A basic mechanical chime might need only 0.2–0.3 amps.
– A smart video doorbell (like Ring or Nest) can draw 0.5–1.0 amps or more, especially when recording or streaming.
If your transformer can’t supply enough current, the doorbell may not work properly. Calculating the output helps you confirm compatibility.
Step 5: Measure Actual Output Voltage (Optional but Recommended)
The label gives you the rated voltage, but real-world conditions can affect performance. For example, long wire runs or aging components may cause voltage drop.
To get the most accurate calculation, measure the actual output voltage under load.
How to Measure Voltage
- Turn the power back on (carefully!).
- Set your multimeter to AC voltage (V~).
- Touch the red probe to the transformer’s positive (or “hot”) output terminal and the black probe to the negative (or “common”) terminal.
- Read the voltage on the display.
Pro Tip: Measure the voltage while the doorbell is ringing (i.e., under load). This gives you the most realistic reading.
If the measured voltage is significantly lower than the rated voltage (e.g., 14V instead of 16V), it could indicate a problem with the transformer or wiring.
Recalculate Current with Measured Voltage
Let’s say your transformer is rated 16V 10W, but you measure only 14V under load.
Using the same formula:
I = P / V = 10W / 14V ≈ 0.714 amps
Wait—that’s higher than before? That seems counterintuitive.
Actually, this calculation assumes the transformer is still delivering full power (10W). But in reality, if voltage drops, the power output may also drop unless the transformer compensates.
A more accurate approach is to measure both voltage and current directly using a clamp meter or by measuring voltage across a known resistor. But for most homeowners, using the rated specs is sufficient.
Still, measuring voltage helps you spot issues like voltage drop, which can affect performance even if the current calculation looks fine.
Step 6: Determine Your Doorbell’s Power Requirements
Now that you know your transformer’s output current, compare it to your doorbell’s needs.
Check the doorbell’s manual or label for its power requirements. Look for:
– Voltage (must match the transformer)
– Current (amps) or power (watts)
For example, a Ring Video Doorbell Pro 2 requires 16–24V AC and draws up to 1.0 amp.
If your transformer supplies 0.625 amps (like the 16V 10W model), it may not be enough. The doorbell might work intermittently or not at all.
Rule of Thumb: Choose a transformer with at least 20–30% more current capacity than your doorbell requires. This ensures reliable operation and accounts for voltage drop or future upgrades.
Step 7: Upgrade If Necessary
If your calculation shows the transformer is underpowered, it’s time to upgrade.
Choosing a New Transformer
Look for a transformer that:
– Matches your doorbell’s voltage (e.g., 16V or 24V)
– Provides sufficient current (amps) or wattage
– Is compatible with your wiring and mounting location
Popular options include:
– 16V 10W: Good for basic chimes
– 16V 15W or 20W: Better for video doorbells
– 24V 30W: Ideal for high-demand systems or long wire runs
Installation Tip: Most transformers plug into a standard outlet or connect directly to the electrical box. Follow the manufacturer’s instructions and local electrical codes.
Troubleshooting Common Issues
Even with the right transformer, problems can occur. Here’s how calculating output current helps diagnose them:
Doorbell Chimes Weakly or Intermittently
– **Possible Cause:** Low output current or voltage drop.
– **Solution:** Calculate current and measure voltage. Upgrade the transformer if needed.
Doorbell Doesn’t Ring at All
– **Possible Cause:** Blown fuse, faulty button, or dead transformer.
– **Solution:** Check voltage at the transformer. If it’s zero, the transformer may be failed.
Transformer Overheats
– **Possible Cause:** Overloaded (too much current draw).
– **Solution:** Recalculate current and ensure the doorbell’s power draw is within limits.
Video Doorbell Keeps Rebooting
– **Possible Cause:** Insufficient current during peak usage (e.g., streaming).
– **Solution:** Upgrade to a higher-wattage transformer (e.g., 20W or 30W).
Safety Reminders
Working with electricity—even low voltage—requires caution. Keep these tips in mind:
– Always turn off power at the breaker before handling wires.
– Use insulated tools and wear safety gear.
– Never touch bare wires with wet hands.
– If you’re unsure, consult a licensed electrician.
Remember: How to calculate doorbell transformer output current is about more than math—it’s about safety and reliability.
Conclusion
Calculating doorbell transformer output current is a straightforward process that can save you time, money, and frustration. By understanding the basics of transformers, using Ohm’s Law, and measuring real-world performance, you can ensure your doorbell system has the power it needs to work reliably.
Whether you’re troubleshooting a faulty chime or installing a new smart doorbell, this skill empowers you to make informed decisions. Always prioritize safety, double-check your measurements, and don’t hesitate to upgrade when necessary.
With the right transformer and a little know-how, your doorbell will ring loud and clear—every time.
