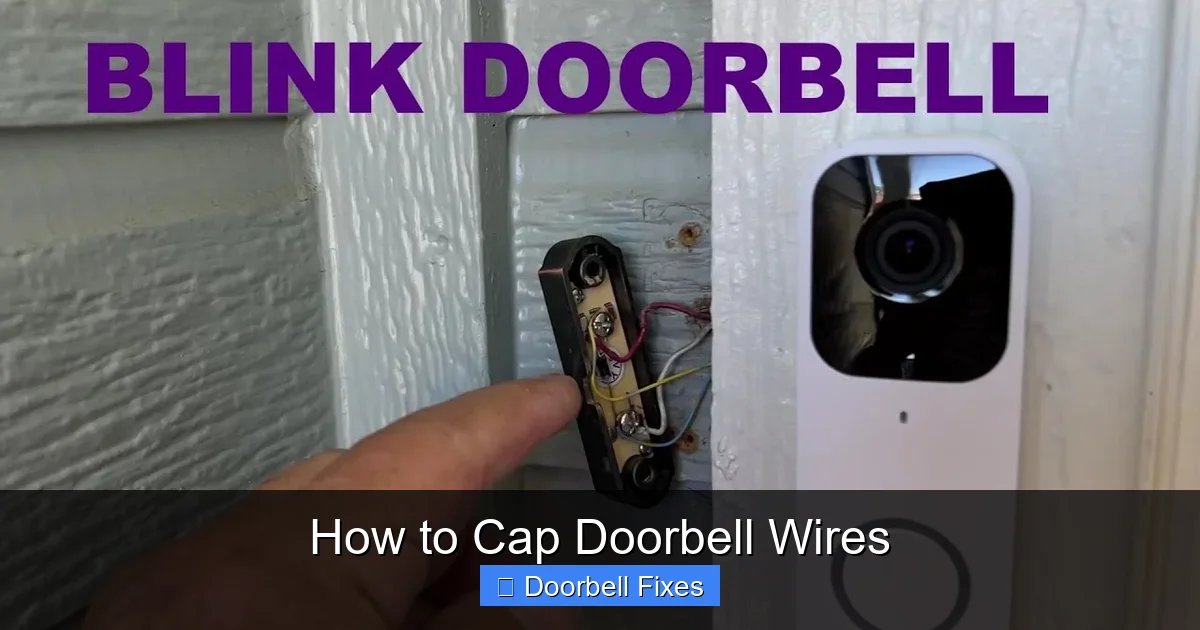

How to Cap Doorbell Wires

Capping doorbell wires is a simple yet essential task when removing or replacing a doorbell system. This guide walks you through the process safely, ensuring no electrical hazards remain. Follow these steps to secure your wires and maintain a clean, safe installation.

Key Takeaways

• Safety first: Always turn off power at the circuit breaker before working on doorbell wires to prevent shocks or short circuits.
• Use wire nuts: Properly sized wire nuts are the most reliable way to cap low-voltage doorbell wires securely.
• Insulate thoroughly: Wrap capped wires with electrical tape for added protection against moisture and accidental contact.
• Label wires if needed: If you plan to reinstall a doorbell later, label the wires before capping to avoid confusion.
• Check local codes: Ensure your capping method meets local electrical codes, especially if wires are inside walls or near high-voltage lines.
• Test before finishing: Use a non-contact voltage tester to confirm the wires are de-energized before capping.
• Store wires safely: Push capped wires back into the wall or junction box to prevent damage and maintain a clean look.

How to Cap Doorbell Wires: A Complete Step-by-Step Guide

So, you’ve decided to remove your old doorbell, upgrade to a smart model, or maybe you’re renovating and don’t need a doorbell at all. Whatever the reason, one important step remains: **capping the doorbell wires**. This might sound like a minor detail, but doing it correctly ensures safety, prevents electrical issues, and keeps your home’s wiring neat and secure.

In this comprehensive guide, we’ll walk you through everything you need to know about how to cap doorbell wires—safely, effectively, and with confidence. Whether you’re a seasoned DIYer or tackling your first home electrical project, this guide is designed to be clear, practical, and easy to follow. You’ll learn why capping is necessary, what tools you’ll need, step-by-step instructions, and troubleshooting tips to handle common issues.

By the end of this guide, you’ll be able to cap your doorbell wires like a pro—no sparks, no confusion, just a clean and safe finish. Let’s get started!

Why Capping Doorbell Wires Matters

Before we dive into the how-to, let’s talk about the *why*. Why is capping doorbell wires so important?

Doorbell systems typically run on low-voltage electricity—usually 8 to 24 volts—supplied by a transformer connected to your home’s main electrical panel. While this voltage is much lower than standard household current (120V), it’s still enough to cause a shock, damage components, or create a fire hazard if wires are left exposed or improperly handled.

When you remove a doorbell, the wires that once connected to the chime or button are now loose ends inside your wall or junction box. If these wires touch each other, a short circuit can occur. If they come into contact with metal surfaces or other wires, they could cause sparks or overheating. Even if the power seems off, it’s possible the transformer is still active, especially if it’s shared with other low-voltage devices.

Capping the wires—essentially sealing them off with protective covers—prevents these risks. It also keeps the wires from getting damaged during future renovations or drywall work. Plus, if you ever decide to reinstall a doorbell, having properly capped and labeled wires makes the process much easier.

In short: **capping doorbell wires is a small step that makes a big difference in safety and future flexibility.**

Tools and Materials You’ll Need

Before you begin, gather the following tools and materials. Most are inexpensive and available at any hardware store or online.

• Wire nuts (also called wire connectors): Choose low-voltage wire nuts, typically yellow or orange, designed for 18- to 22-gauge wires. These are the standard size for doorbell wiring.
• Electrical tape: High-quality vinyl electrical tape (black or red) for extra insulation.
• Non-contact voltage tester: Essential for confirming the wires are not live before you touch them.
• Needle-nose pliers: Helpful for twisting wires together and securing connections.
• Wire strippers: To remove insulation if wires are frayed or need trimming.
• Screwdriver: For removing the doorbell button or chime unit.
• Labeling tape or marker: Optional, but useful if you plan to reuse the wires later.
• Safety glasses: Always a good idea when working with electrical components.

Having these tools ready will make the process smoother and safer. Now, let’s move on to the actual steps.

Step 1: Turn Off the Power

Safety is the number one priority when working with any electrical system—even low-voltage ones. Before touching any wires, you must ensure the power is completely off.

Locate the Doorbell Transformer

The transformer is the device that steps down your home’s 120V current to the lower voltage used by the doorbell. It’s usually located in one of these places:
– Inside the electrical panel (look for a small black or gray box labeled “doorbell” or “transformer”)
– In the basement, attic, or garage
– Near the furnace or air handler
– Inside the doorbell chime unit itself

If you can’t find it, check your home’s electrical panel. The transformer may be plugged into an outlet or wired directly to a circuit.

Turn Off the Circuit Breaker

Once you’ve located the transformer, turn off the corresponding circuit breaker. If you’re unsure which one controls the doorbell, turn off the main breaker to be safe.

Wait a few minutes to allow any residual charge to dissipate. Then, use your non-contact voltage tester to double-check that the wires are not live. Simply touch the tester near the wire ends—if it beeps or lights up, the power is still on, and you need to find the correct breaker.

Test the Doorbell Button

As an extra precaution, press the doorbell button a few times to ensure it doesn’t chime. This confirms the system is truly off.

Only proceed once you’ve verified the power is off. Never assume—always test.

Step 2: Remove the Doorbell Button and Chime

With the power off, it’s time to remove the physical components of the doorbell system.

Remove the Doorbell Button

Use a screwdriver to remove the screws holding the doorbell button to the wall. Gently pull the button away from the wall. You’ll see two thin wires connected to the back.

Carefully disconnect the wires by unscrewing the terminal screws or pulling them out of the quick-connect terminals. Set the button aside.

Remove the Chime Unit

Next, locate the chime unit—usually inside the house, near the front door. Remove the cover (often held by screws or clips) and disconnect the wires. Most chimes have three wires: two from the button and one from the transformer.

Label the wires if you plan to reinstall a doorbell later. For example, use a piece of tape to mark “Front,” “Transformer,” and “Rear” (if you have a second button).

Once disconnected, remove the chime unit from the wall.

Inspect the Wires

Now that the components are removed, inspect the wire ends. Are they frayed, corroded, or damaged? If so, use wire strippers to trim off the damaged section and expose fresh copper. Strip about 1/2 inch of insulation from each wire.

This ensures a clean, solid connection when you cap them.

Step 3: Cap the Doorbell Wires

Now comes the main event: capping the wires. This step prevents accidental contact and keeps the wires safe inside the wall.

Twist the Wires Together (If Applicable)

If you have two wires that were connected to the same terminal (e.g., both from the button), you can twist them together before capping. Use needle-nose pliers to twist the bare copper ends clockwise until they’re tightly bound.

This creates a secure connection and reduces the chance of the wires coming loose inside the cap.

Apply the Wire Nut

Take a wire nut (yellow or orange, sized for low-voltage wires) and place it over the twisted wire ends. Twist the wire nut clockwise until it’s tight and secure. Give it a gentle tug to make sure it won’t come off.

If you’re capping a single wire, simply insert the stripped end into the wire nut and twist until tight.

Wrap with Electrical Tape

For added protection, wrap the wire nut and exposed wire with electrical tape. Start below the wire nut and wrap upward, covering the entire cap and a bit of the insulated wire. This prevents moisture from entering and adds mechanical strength.

Make sure the tape is tight and smooth—no loose edges.

Repeat for All Wires

Repeat this process for every wire you’re capping. If you have multiple wires in one location (e.g., in a junction box), cap each pair or individual wire as needed.

Step 4: Secure the Wires in the Wall or Junction Box

Once the wires are capped, you need to make sure they’re safely stored and won’t get damaged.

Push Wires Back into the Wall

Gently push the capped wires back into the wall cavity or electrical box. Don’t force them—use your fingers or a non-conductive tool like a plastic spoon.

If the wires are too long, you can coil them neatly before tucking them in. Avoid sharp bends or kinks that could damage the insulation.

Close the Junction Box or Cover Plate

If you removed a cover plate or junction box lid, reattach it securely. This protects the wires and maintains a clean appearance.

If you’re not reinstalling a doorbell, you can install a blank cover plate to seal the opening.

Step 5: Restore Power and Test

With everything capped and secured, it’s time to restore power and confirm everything is working as expected.

Turn the Circuit Breaker Back On

Go to your electrical panel and turn the breaker back on.

Test for Power

Use your non-contact voltage tester again to check the area around the capped wires. The tester should not detect any voltage.

If it does, turn the power off immediately and recheck your work. There may be a wiring issue or the wrong breaker was turned off.

Check for Interference

If you have other low-voltage systems (like a security system or intercom), make sure they’re still functioning properly. Improperly capped wires can sometimes cause interference.

Troubleshooting Common Issues

Even with careful work, issues can arise. Here’s how to handle the most common problems:

Wire Nut Won’t Stay On

If the wire nut keeps coming loose, the wires may be too thick or too thin for the cap. Try a different size wire nut, or twist the wires more tightly before capping.

Tester Detects Voltage After Capping

This means the wires are still live. Double-check the circuit breaker and transformer. The transformer may be on a shared circuit or plugged into an outlet that’s still powered.

Wires Are Too Short to Cap

If the wires are too short to twist or cap safely, you may need to splice in a short piece of wire (called a pigtail) to extend them. Use a wire nut to connect the extension, then cap the new end.

Moisture in the Junction Box

If you see signs of moisture, dry the area thoroughly before capping. Consider using silicone-filled wire nuts or adding a moisture-resistant sealant around the box.

Future Reinstallation Concerns

If you think you might reinstall a doorbell later, label the wires clearly and consider leaving a small service loop (extra length) inside the wall for easier access.

Tips for a Professional Finish

To make your work look clean and last longer, follow these pro tips:

• Use color-coded labels: Red for transformer, black for button, blue for rear button—this makes future installations much easier.
• Keep wires organized: If multiple wires are in one box, group them by function and secure with zip ties (non-conductive).
• Document your work: Take a photo of the wiring before disconnecting, or make a simple sketch. This helps if you need to reference it later.
• Use quality materials: Cheap wire nuts can fail over time. Invest in reputable brands like Ideal, 3M, or Leviton.
• Check local codes: Some areas require low-voltage wires to be enclosed in conduit or labeled in specific ways. When in doubt, consult an electrician.

Conclusion

Capping doorbell wires might seem like a small task, but it’s a crucial step in any doorbell removal or replacement project. By following this guide, you’ve learned how to safely turn off the power, remove the components, cap the wires with wire nuts and electrical tape, and secure everything neatly behind the wall.

You’ve also gained valuable troubleshooting skills and pro tips to ensure your work is safe, durable, and ready for the future. Whether you’re upgrading to a video doorbell, switching to a wireless model, or simply removing the system altogether, proper wire capping protects your home and gives you peace of mind.

Remember: **safety first, test twice, and when in doubt, consult a professional.** With the right tools and a careful approach, you can cap doorbell wires like a seasoned DIYer—no electrician required.

Now go ahead and finish that project with confidence!
