Changing a doorbell transformer may seem tricky, but with the right steps, it’s a manageable DIY task. This guide walks you through locating, testing, and replacing your doorbell transformer safely and effectively.
Key Takeaways
- Safety first: Always turn off power at the circuit breaker before working on electrical components to prevent shocks or injury.
- Locate the transformer: Most doorbell transformers are found in the basement, attic, garage, or near the main electrical panel.
- Test before replacing: Use a multimeter to confirm the transformer is faulty before buying a new one.
- Match voltage and power: Choose a replacement transformer with the same voltage (usually 16V) and sufficient VA (volt-ampere) rating.
- Secure wiring properly: Ensure all connections are tight and insulated to prevent short circuits or fire hazards.
- Test the system: After installation, restore power and test the doorbell to confirm it’s working correctly.
- When to call a pro: If you’re unsure about electrical work or can’t locate the transformer, consult a licensed electrician.
How to Change a Transformer for Doorbell
If your doorbell isn’t working, the problem might not be the button or the chime—it could be the transformer. The transformer is a small but crucial component that steps down your home’s standard 120-volt electricity to a safer 8–24 volts needed to power your doorbell. Over time, transformers can fail due to age, power surges, or loose wiring. The good news? Replacing a doorbell transformer is a straightforward DIY project if you follow the right steps and prioritize safety.
In this comprehensive guide, you’ll learn how to safely locate, test, remove, and install a new doorbell transformer. Whether you’re dealing with a silent chime, intermittent ringing, or a completely dead doorbell, this step-by-step tutorial will help you get your system back up and running. We’ll cover everything from identifying the transformer’s location to choosing the right replacement and troubleshooting common issues.
By the end of this guide, you’ll have the confidence and knowledge to handle this common home repair with ease. Let’s get started!
What Is a Doorbell Transformer and Why Does It Matter?

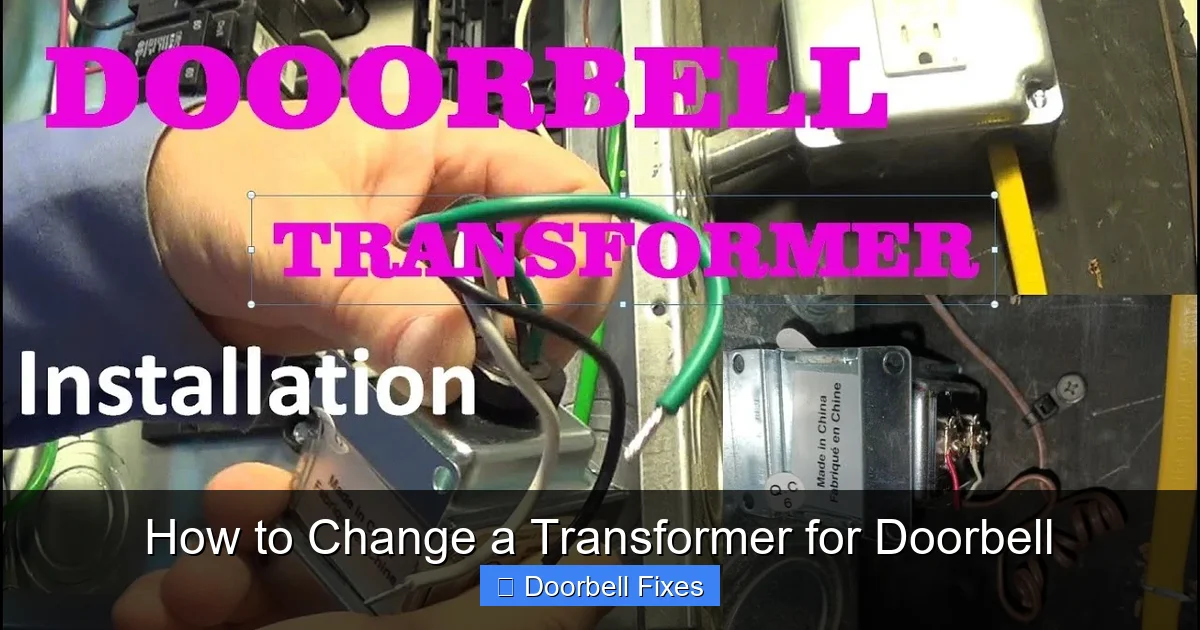

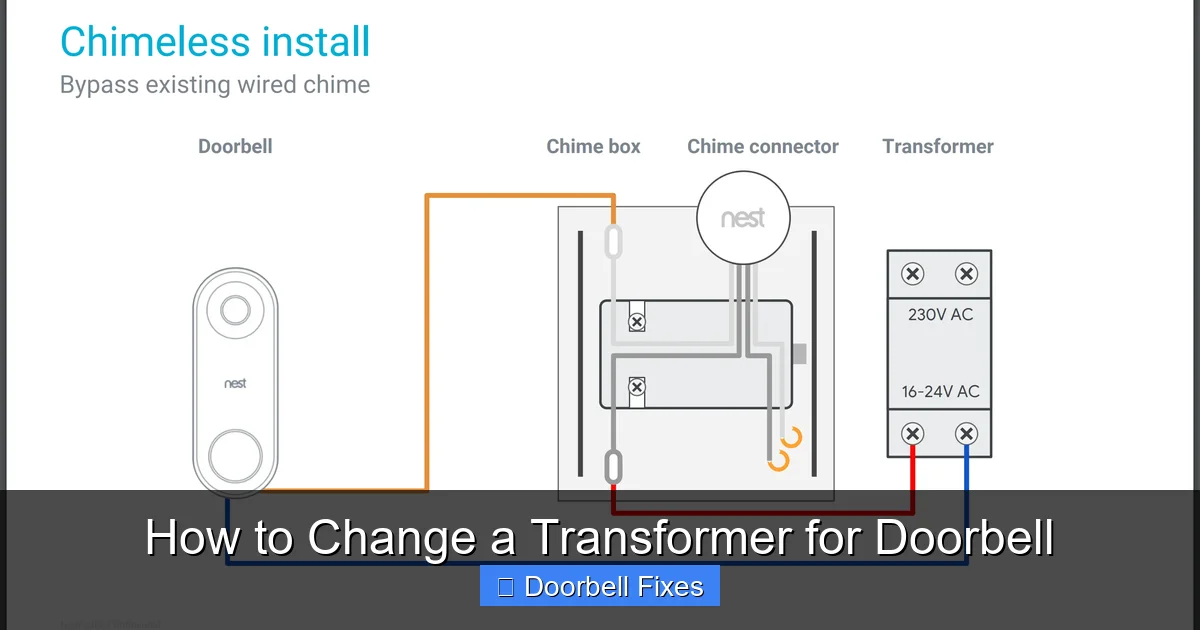

Visual guide about How to Change a Transformer for Doorbell
Image source: i1.wp.com
Before diving into the replacement process, it’s important to understand what a doorbell transformer does. Think of it as the heart of your doorbell system. It converts the high-voltage electricity from your home’s wiring into low-voltage power that safely operates your doorbell button and chime.
Most residential doorbells run on 16 volts, though some older or more advanced systems may use 8, 10, 12, or 24 volts. The transformer ensures that only the right amount of power reaches the doorbell, preventing damage to the delicate internal components.
A failing transformer is one of the most common causes of doorbell malfunctions. Signs that your transformer might be going bad include:
– The doorbell doesn’t ring at all
– The chime sounds weak or distorted
– The button feels warm to the touch
– The doorbell works intermittently
– You’ve already replaced the button and chime, but the problem persists
If you’ve ruled out other issues like dead batteries (in wireless models) or loose wires at the button, the transformer is the next logical suspect.
Tools and Materials You’ll Need
Before you begin, gather the following tools and materials to ensure a smooth and safe replacement process:
- Voltage tester or multimeter: To confirm the transformer is faulty and to verify power is off
- Screwdrivers (flathead and Phillips): For removing covers and loosening wire terminals
- Wire strippers: To prepare wires if needed
- Needle-nose pliers: For handling small wires and terminals
- Electrical tape: To insulate connections
- Wire nuts (if needed): For securing wire connections
- New doorbell transformer: Make sure it matches the voltage and VA rating of the old one
- Safety gear: Rubber-soled shoes, safety glasses, and insulated gloves (optional but recommended)
Having everything ready beforehand saves time and reduces the risk of mistakes.
Step 1: Turn Off the Power
Safety is the most important part of any electrical project. Before touching any wires or components, you must turn off the power to the doorbell circuit.
Locate the Correct Circuit Breaker
Go to your home’s main electrical panel (also called the breaker box). Look for a breaker labeled “Doorbell,” “Chime,” or something similar. If there’s no label, you may need to test breakers one by one.
To do this safely:
– Have someone stand near the doorbell button.
– Turn off one breaker at a time.
– Ask your helper to press the doorbell. If it doesn’t ring, you’ve found the right circuit.
– Turn the breaker back on and repeat until you identify the correct one.
Once found, turn off the breaker and place a piece of tape over it with a note like “Do not turn on – working on doorbell.” This prevents others from accidentally restoring power.
Double-Check with a Voltage Tester
Even after turning off the breaker, always verify that power is off. Use a non-contact voltage tester or multimeter to check the wires at the transformer or doorbell button. If the tester lights up or beeps, power is still on—double-check the breaker.
This extra step could save your life.
Step 2: Locate the Doorbell Transformer
The transformer is usually hidden from view, so finding it can be the trickiest part of the job. Here are the most common locations:
- Near the electrical panel: Many transformers are mounted directly on or near the main breaker box.
- In the basement: Look along the ceiling joists or near the furnace.
- In the attic: Check near the access panel or along the rafters.
- In the garage: Often attached to a wall or ceiling beam.
- Inside a closet or utility room: Especially in newer homes with centralized systems.
The transformer looks like a small metal box (about the size of a deck of cards) with two or three wires coming out. It may be wrapped in electrical tape or enclosed in a junction box.
Follow the Doorbell Wires
If you can’t find the transformer, trace the low-voltage wires from the doorbell button or chime unit. These thin, usually white or yellow wires run through walls and ceilings and eventually connect to the transformer.
Use a stud finder or gently remove baseboards to follow the wire path. Be careful not to damage walls or insulation.
Check Common Hiding Spots
Sometimes transformers are tucked behind electrical panels, inside furnace compartments, or even inside light switch boxes. If you’re still stuck, consult your home’s electrical diagram (if available) or consider calling an electrician for assistance.
Step 3: Test the Transformer
Before replacing the transformer, confirm it’s actually faulty. A multimeter is the best tool for this.
Set Up Your Multimeter
Set your multimeter to measure AC voltage (usually marked as “V~” or “ACV”). Choose a range higher than 24 volts (e.g., 200V AC).
Test the Input and Output
– Input side: Touch the probes to the two screws where the 120V household wires connect. You should read around 120V. If not, the issue may be with the circuit, not the transformer.
– Output side: Touch the probes to the low-voltage terminals (where the doorbell wires connect). You should see 8–24V, depending on your system. If the reading is 0V or very low, the transformer is likely bad.
If the input voltage is correct but the output is missing or too low, the transformer needs replacement.
Alternative Test: Bypass the Transformer
As a quick test, you can temporarily connect the doorbell wires directly to a known working 16V power source (like a spare transformer or a doorbell battery pack). If the doorbell works, the original transformer is definitely the problem.
Step 4: Remove the Old Transformer
Once you’ve confirmed the transformer is faulty, it’s time to remove it.
Disconnect the Low-Voltage Wires
Use a screwdriver to loosen the terminal screws on the transformer where the doorbell wires are connected. Carefully pull the wires free. Note which wire goes where—take a photo or label them with tape if needed.
These wires carry low voltage, so they’re safe to touch, but it’s still good practice to avoid contact if possible.
Disconnect the High-Voltage Wires
Next, remove the two wires connected to the 120V household circuit. These are typically black (hot) and white (neutral), though colors may vary.
Loosen the terminal screws or wire nuts and gently pull the wires away. If the wires are twisted together, use needle-nose pliers to untwist them.
Unmount the Transformer
Most transformers are mounted with screws to a junction box, electrical panel, or wooden beam. Use a screwdriver to remove the mounting screws and carefully take the transformer down.
Set the old transformer aside—don’t throw it away yet. You’ll need it to match the specs for the new one.
Step 5: Choose the Right Replacement Transformer
Not all transformers are created equal. To ensure compatibility, match the following specs from your old transformer:
- Voltage (V): Most doorbells use 16V, but check your chime unit or manual to confirm.
- Volt-Amps (VA): This measures power capacity. Common ratings are 10VA, 15VA, 20VA, and 30VA. Higher VA means it can power more devices (e.g., multiple chimes or smart doorbells).
- Mounting type: Some transformers screw into electrical boxes, while others plug into outlets or snap onto DIN rails.
- Wire configuration: Ensure the new transformer has the same number of terminals and wire types.
If you can’t find the specs, take the old transformer to a hardware store. Staff can help you find an exact match or a compatible upgrade.
Upgrading Your Transformer
If you’re installing a smart doorbell (like Ring or Nest), consider upgrading to a 20VA or 30VA transformer. These devices often require more power than traditional chimes, and a weak transformer can cause connectivity issues or frequent reboots.
Step 6: Install the New Transformer
Now it’s time to install the replacement. Follow these steps carefully.
Mount the New Transformer
Position the new transformer in the same location as the old one. Use the existing mounting holes or screws to secure it in place. Make sure it’s firmly attached and won’t shift or fall.
Connect the High-Voltage Wires
Connect the 120V household wires to the input terminals on the new transformer. Typically:
– Black (hot) wire → one terminal
– White (neutral) wire → the other terminal
Tighten the screws securely. If the transformer uses wire nuts, twist the wires together and cap them with a nut.
Double-check that no bare wire is exposed.
Connect the Low-Voltage Wires
Attach the doorbell wires to the output terminals. It doesn’t matter which wire goes where on the low-voltage side—doorbell circuits are not polarized.
Tighten the terminal screws and ensure the connections are snug.
Insulate All Connections
Wrap each terminal and wire connection with electrical tape for added safety. This prevents accidental contact and reduces the risk of short circuits.
If the transformer is in a junction box, close the cover. If it’s exposed, consider installing a protective cover.
Step 7: Restore Power and Test the Doorbell
With everything connected, it’s time to test your work.
Turn the Power Back On
Go to the breaker panel and turn the doorbell circuit back on. Listen for any unusual sounds (like buzzing or sparking) from the transformer.
Test the Doorbell
Press the doorbell button. The chime should ring clearly and consistently. If it works, congratulations—you’ve successfully changed the transformer!
Check for Issues
If the doorbell still doesn’t work:
– Double-check all wire connections
– Verify the breaker is on
– Test the button and chime for faults
– Use the multimeter to confirm output voltage
If the transformer hums loudly, overheats, or smells burnt, turn off the power immediately—there may be a wiring error or incompatible component.
Troubleshooting Common Problems
Even with careful installation, issues can arise. Here’s how to fix the most common problems:
Doorbell Still Doesn’t Work
– Check the button: A faulty button can mimic transformer failure. Test it with a multimeter or replace it temporarily.
– Inspect the chime unit: Open the chime and look for loose wires, corrosion, or damaged components.
– Verify wire continuity: Use a multimeter to test if the doorbell wires are intact from button to transformer.
Weak or Intermittent Sound
– Low voltage: The transformer may be underpowered. Upgrade to a higher VA model.
– Loose connections: Tighten all terminals and wire nuts.
– Long wire runs: Excessively long wires can cause voltage drop. Consider relocating the transformer or using thicker wire.
Transformer Overheats or Buzzes
– Overloading: The transformer is powering too many devices. Reduce the load or upgrade to a higher VA transformer.
– Incorrect wiring: Ensure high- and low-voltage wires are not crossed.
– Defective unit: The new transformer may be faulty. Return or replace it.
Smart Doorbell Won’t Connect
– Insufficient power: Smart doorbells often need 16V/20VA or higher. Check the manufacturer’s requirements.
– Wi-Fi issues: Ensure strong signal at the doorbell location.
– App settings: Re-sync the device and check for firmware updates.
When to Call a Professional
While changing a doorbell transformer is generally safe for DIYers, there are times when you should call a licensed electrician:
– You can’t locate the transformer after thorough searching
– The wiring looks damaged, burnt, or outdated
– You’re uncomfortable working with electricity
– The breaker trips immediately after turning it on
– You suspect broader electrical issues in your home
Electricians have the tools and expertise to handle complex wiring and ensure compliance with local codes.
Maintenance Tips to Prevent Future Issues
To keep your doorbell system running smoothly:
– Inspect annually: Check wires, connections, and the transformer for signs of wear.
– Clean the button: Dust and debris can interfere with contact. Wipe it gently with a dry cloth.
– Test the system: Press the button monthly to ensure it’s working.
– Upgrade when needed: If you install a video doorbell or multiple chimes, upgrade the transformer to match the power demand.
Regular maintenance can extend the life of your doorbell system and prevent unexpected failures.
Conclusion
Changing a transformer for doorbell is a practical and rewarding DIY project that can save you time and money. By following this guide, you’ve learned how to safely locate, test, remove, and replace your doorbell transformer—all while avoiding common pitfalls.
Remember, the key to success is preparation and caution. Always turn off the power, use the right tools, and double-check your work. If something doesn’t feel right, don’t hesitate to seek professional help.
With a working doorbell, you’ll enjoy peace of mind knowing your home is secure and your visitors can always get your attention. Now that you’ve mastered this repair, you’re ready to tackle other home improvement projects with confidence.
Happy fixing!
