How to Change Doorbell Chime from Mechanical to Electric

This guide walks you through changing your doorbell chime from mechanical to electric safely and efficiently. You’ll learn how to assess your current setup, install a new chime unit, and test the system—no prior experience needed.

Key Takeaways

• Turn off power first: Always shut off the circuit breaker before working on doorbell wiring to prevent shocks or damage.
• Check compatibility: Ensure your new electric chime matches your transformer’s voltage (typically 16V AC).
• Label wires during removal: Mark the front and rear doorbell wires to avoid confusion during reinstallation.
• Use a voltage tester: Confirm the power is off and verify the transformer output before connecting the new chime.
• Mount the chime securely: Choose a central indoor location away from moisture and heat sources for optimal sound and longevity.
• Test after installation: Press each doorbell button to ensure both tones work and the volume is adjustable.
• Keep old parts handy: Store your mechanical chime in case you need to revert or troubleshoot later.

How to Change Doorbell Chime from Mechanical to Electric

Upgrading your doorbell chime from a traditional mechanical model to a modern electric one is a smart, straightforward home improvement project. Not only does an electric chime offer clearer, more customizable sounds—like multiple tones, melodies, or even smartphone alerts—but it also tends to be more reliable and energy-efficient. Whether your old mechanical chime is worn out, too quiet, or just outdated, switching to an electric version can breathe new life into your home’s entryway experience.

In this comprehensive guide, you’ll learn exactly how to safely and successfully change your doorbell chime from mechanical to electric. We’ll cover everything from assessing your current setup and gathering the right tools, to removing the old unit, installing the new one, and testing the system. No electrical expertise? No problem. With careful attention to safety and clear, step-by-step instructions, even a beginner can complete this upgrade in under an hour.

By the end of this guide, you’ll have a fully functional electric doorbell chime that enhances both convenience and curb appeal. Let’s get started!

Understanding Mechanical vs. Electric Doorbells

Before diving into the installation, it’s helpful to understand the key differences between mechanical and electric doorbell systems.

A mechanical doorbell typically uses a solenoid and a physical striker to hit metal bars, producing a classic “ding-dong” sound. When you press the button, it completes a low-voltage circuit that activates the solenoid, which moves the striker. These systems are simple and durable but often produce a softer, tinnier tone that may not carry well in larger homes.

An electric doorbell chime, on the other hand, uses electronic components to generate sound. Instead of physical striking, it relies on digital circuitry or piezoelectric elements to produce clearer, louder, and often customizable tones. Many modern electric chimes offer features like multiple sound options, volume control, LED indicators, and even integration with smart home systems.

The wiring for both systems is similar—both use low-voltage AC power (usually 16 volts) from a transformer connected to your home’s electrical panel. This means that in most cases, you can swap a mechanical chime for an electric one without rewiring your entire system. However, it’s essential to confirm compatibility and follow safety procedures to avoid damage or injury.

Gather Your Tools and Materials

Before you begin, make sure you have all the necessary tools and materials on hand. This will save time and prevent interruptions mid-project.

Essential Tools

• Non-contact voltage tester: To confirm the power is off.
• Screwdrivers (Phillips and flathead): For removing covers and securing wires.
• Wire strippers: In case you need to trim or re-strip wires.
• Electrical tape: For insulating wire connections.
• Pliers: Helpful for loosening tight terminals.
• Drill and bits (optional): If mounting the new chime requires new holes.
• Level: To ensure the chime is mounted straight.

Materials Needed

• New electric doorbell chime unit: Choose a model compatible with your existing transformer (usually 16V AC). Popular brands include Ring, Honeywell, and Nutone.
• Mounting screws: Often included with the chime, but have extras just in case.
• Wire labels or masking tape: To mark wires during removal.
• Wire nuts (optional): If you need to extend or splice wires.

Safety Gear

• Safety glasses: Protect your eyes from dust or debris.
• Work gloves: Optional, but helpful for handling sharp edges.

Having everything ready before you start ensures a smooth, stress-free installation.

Step 1: Turn Off the Power

Safety is the most important part of any electrical project—even low-voltage ones like doorbells. Although doorbell systems use only 16 volts, which is generally safe, it’s still possible to damage components or cause a short circuit if the power is on during installation.

Locate the Circuit Breaker

Go to your home’s main electrical panel (breaker box). Look for the breaker labeled “doorbell,” “chime,” or “low voltage.” If there isn’t a specific label, you may need to test breakers by turning them off one at a time and checking if the doorbell stops working.

Switch Off the Breaker

Once you’ve identified the correct breaker, flip it to the “OFF” position. To be extra safe, use a non-contact voltage tester at the doorbell button or chime location to confirm no power is flowing.

Double-Check with the Doorbell Button

Press the doorbell button a few times to ensure it doesn’t activate. If the chime still rings, the power may still be on—double-check the breaker or consult an electrician.

Never skip this step. Even low-voltage systems can cause damage to sensitive electronic components if mishandled.

Step 2: Remove the Old Mechanical Chime

Now that the power is off, it’s time to remove your existing mechanical chime.

Unscrew the Cover

Most mechanical chimes have a front cover held in place by one or two screws. Use a screwdriver to remove them and gently pull the cover away from the wall. Some models may snap off, so be careful not to force it.

Label the Wires

Inside, you’ll see two or three wires connected to terminal screws. These are typically labeled “Front,” “Rear,” and “Trans” (transformer). Use masking tape and a pen to label each wire with its corresponding terminal. This is crucial—mixing up the wires can cause the chime to malfunction or not work at all.

Disconnect the Wires

Loosen the terminal screws and carefully remove each wire. If the wires are stiff, use pliers to gently wiggle them free. Avoid pulling on the insulation—grasp the bare wire near the terminal.

Remove the Mounting Bracket

Once the wires are disconnected, unscrew the mounting bracket from the wall. You may need to support the chime as you remove the last screw to prevent it from falling.

Set the old chime aside in a safe place. You may want to keep it as a backup or for troubleshooting later.

Step 3: Prepare the New Electric Chime

With the old chime removed, it’s time to get your new electric chime ready for installation.

Unbox and Inspect

Open the packaging and inspect the new chime for any damage. Check that all components are included—typically the chime unit, mounting bracket, screws, and instruction manual.

Read the Manual

Every electric chime is slightly different. Take a few minutes to read the manufacturer’s instructions. Pay attention to:
– Voltage requirements (must match your transformer)
– Wire connection points
– Mounting orientation
– Special features (e.g., volume control, tone selection)

Test Fit the Mounting Bracket

Hold the new chime’s mounting bracket against the wall where the old one was. Make sure it aligns with the existing screw holes. If not, you may need to drill new ones. Use a level to ensure it’s straight.

Prepare the Wires

If the existing wires are too short or frayed, use wire strippers to expose about 1/2 inch of fresh copper. Twist the strands slightly to keep them neat.

Step 4: Connect the Wires to the New Chime

Now comes the crucial step: connecting the wires to your new electric chime.

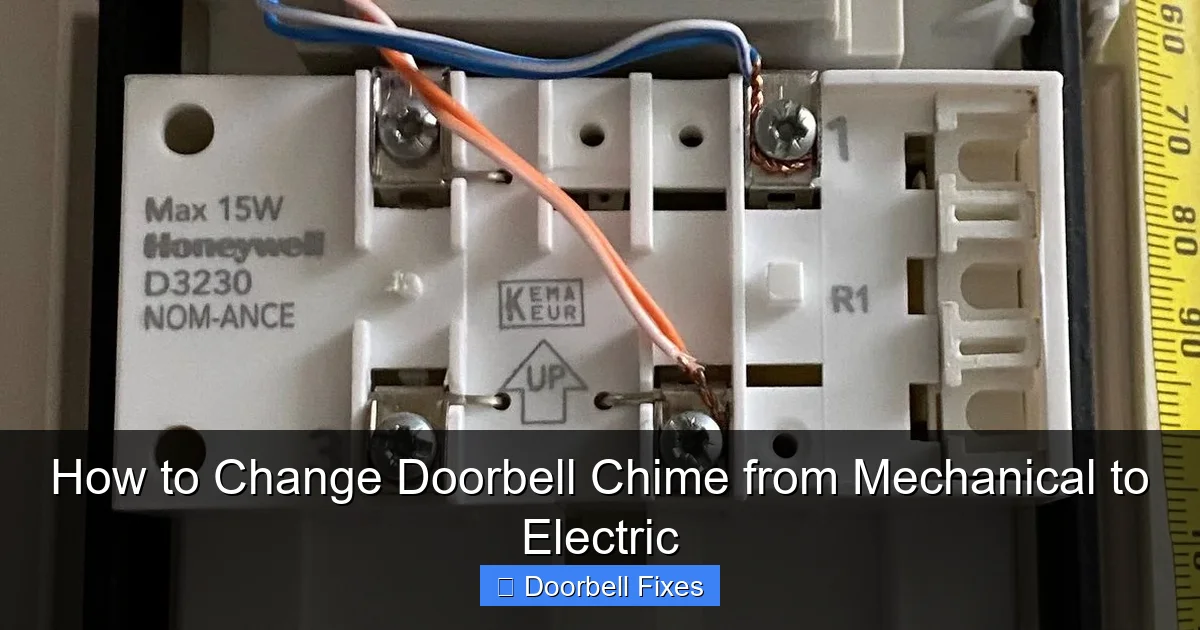

Identify the Terminals

Most electric chimes have three terminal screws:
– Front: Connects to the front doorbell button.
– Rear: Connects to the rear or secondary doorbell button (if you have one).
– Trans: Connects to the transformer (usually via a common wire).

Some models may use different labels like “F,” “R,” and “T”—refer to your manual.

Connect the Wires

Using your labeled wires from the old chime:
1. Attach the wire labeled “Front” to the “Front” terminal on the new chime.
2. Attach the “Rear” wire to the “Rear” terminal.
3. Attach the “Trans” wire to the “Trans” terminal.

Loosen each terminal screw, insert the wire, and tighten securely. Make sure no bare wire is exposed beyond the terminal to prevent shorts.

Secure the Connections

Once all wires are connected, gently tug on each to ensure they’re firmly in place. If any feel loose, re-tighten the screw.

Optional: Use Wire Nuts

If your chime uses wire nuts instead of terminal screws (less common), twist the corresponding wires together and secure with a wire nut. Wrap the connection with electrical tape for extra safety.

Step 5: Mount the New Chime

With the wires connected, it’s time to mount the chime to the wall.

Attach the Mounting Bracket

Align the bracket with the screw holes (old or new) and secure it with screws. Use a level to ensure it’s straight—crooked chimes look unprofessional and may affect sound projection.

Snap or Screw on the Chime Unit

Depending on the model, the chime unit may snap onto the bracket or require screws. Follow the manufacturer’s instructions carefully. Make sure it’s seated securely and doesn’t wobble.

Tuck in Excess Wire

Gently push any extra wire back into the electrical box or wall cavity. Avoid pinching or bending wires sharply, as this can damage insulation over time.

Step 6: Restore Power and Test the System

You’re almost done! Now it’s time to turn the power back on and test your new electric chime.

Turn On the Breaker

Return to the electrical panel and flip the doorbell breaker back to the “ON” position.

Listen for a Click or Hum

Some electric chimes make a soft click or low hum when powered on—this is normal. If you hear nothing, double-check your connections.

Test Each Doorbell Button

Press the front doorbell button. You should hear a clear, pleasant tone from the chime. If you have a rear button, test it too—it should produce a different sound (e.g., “dong” vs. “ding”).

Adjust Settings (If Available)

Many electric chimes allow you to change the tone, volume, or melody. Use the buttons or dials on the unit to customize the sound to your preference.

Check for Issues

If the chime doesn’t work:
– Verify the breaker is on.
– Recheck wire connections.
– Ensure the transformer is supplying 16V AC (use a multimeter if available).
– Confirm the doorbell button isn’t faulty.

Troubleshooting Common Issues

Even with careful installation, problems can arise. Here’s how to fix the most common issues.

Chime Doesn’t Ring

• Cause: Loose or incorrect wiring.
• Solution: Turn off power, recheck all connections, and ensure wires are matched to the correct terminals.

Weak or Distorted Sound

• Cause: Low voltage or incompatible transformer.
• Solution: Use a multimeter to test transformer output. Replace with a 16V AC transformer if needed.

Only One Button Works

• Cause: Rear wire not connected or labeled incorrectly.
• Solution: Verify the “Rear” wire is attached to the correct terminal.

Chime Rings Randomly

• Cause: Faulty doorbell button or short in wiring.
• Solution: Inspect the button for moisture or wear. Replace if necessary.

No Power to Chime

• Cause: Tripped breaker or blown fuse in transformer.
• Solution: Check the breaker and reset if needed. If the transformer is faulty, replace it.

Tips for a Successful Upgrade

To ensure your new electric chime works perfectly for years to come, keep these tips in mind:

• Choose a central location: Mount the chime in a hallway or living area where the sound can be heard throughout the home.
• Avoid moisture and heat: Don’t install near bathrooms, kitchens, or heating vents.
• Label everything: Keep a note of your wiring setup in case you need to troubleshoot later.
• Upgrade the button too: Consider replacing old doorbell buttons with modern, weather-resistant models for better performance.
• Consider smart features: If you want notifications on your phone or two-way audio, look into smart doorbell chimes that integrate with Wi-Fi.

Conclusion

Changing your doorbell chime from mechanical to electric is a simple, rewarding upgrade that enhances both functionality and home aesthetics. By following this guide—turning off the power, carefully removing the old unit, correctly wiring the new chime, and testing the system—you can complete the project safely and confidently.

Not only will you enjoy clearer, more customizable tones, but you’ll also gain peace of mind knowing your doorbell system is modern, reliable, and built to last. Whether you’re a DIY beginner or a seasoned home improver, this upgrade is well within your reach.

So go ahead—give your home the auditory upgrade it deserves. With the right tools, a little patience, and this step-by-step guide, you’ll have a brand-new electric doorbell chime ringing loud and clear in no time.
