How to Change Transformer for Doorbell: A Complete DIY Guide
If your doorbell isn’t working, the problem might not be the button or the chime—it could be the transformer. The doorbell transformer is a small but crucial component that steps down your home’s 120-volt electrical supply to a safer 16- or 24-volt current used by most doorbells. Over time, transformers can fail due to age, overheating, or power surges. Fortunately, replacing a doorbell transformer is a straightforward project for most homeowners—if you follow the right steps and prioritize safety.
In this guide, you’ll learn exactly how to change a transformer for doorbell, from identifying the faulty unit to installing a new one safely and effectively. We’ll cover everything you need to know: where to find the transformer, what tools to use, how to test it, and how to wire the replacement correctly. Whether you’re dealing with a silent doorbell or planning a smart doorbell upgrade, this step-by-step tutorial will help you get your system back up and running.
Why Your Doorbell Might Need a New Transformer

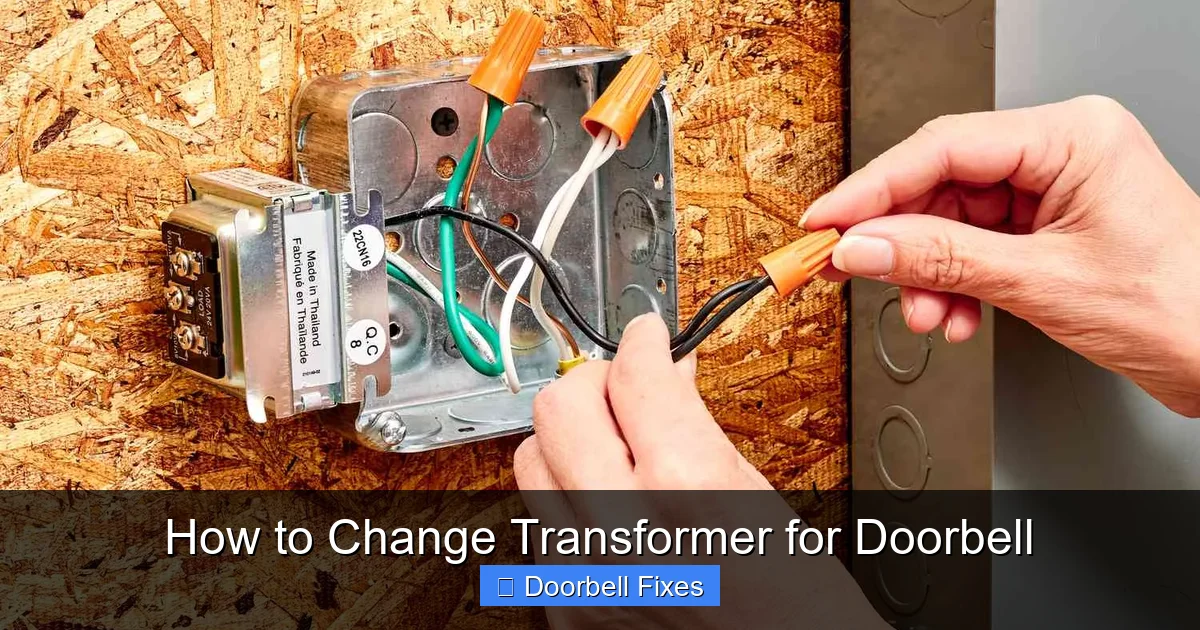

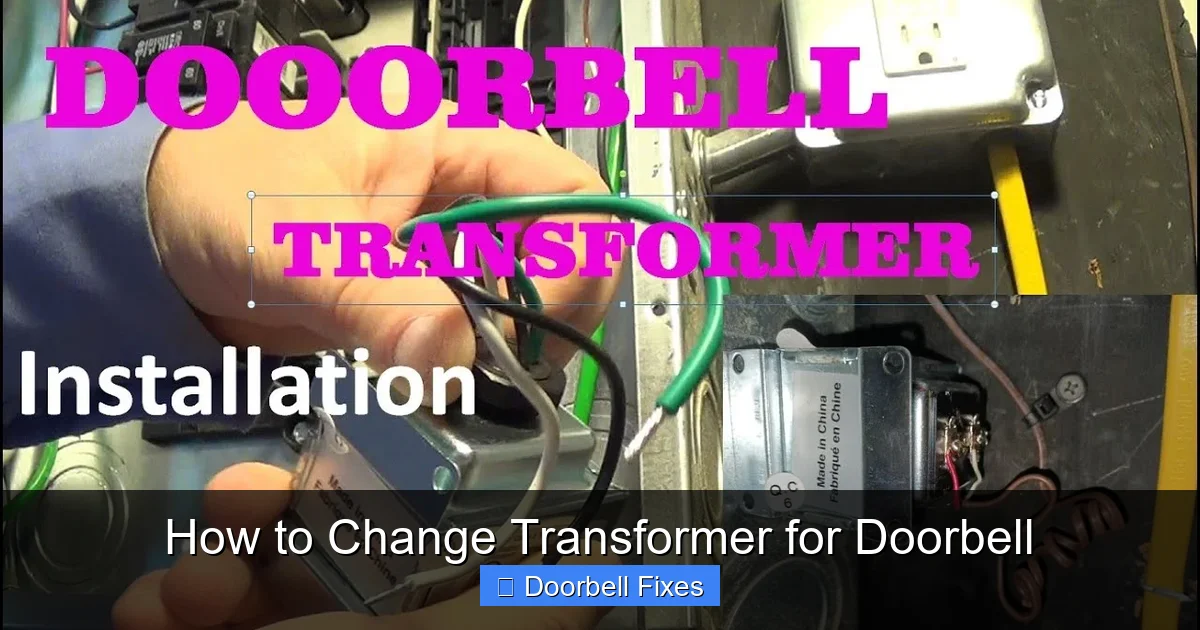

Visual guide about How to Change Transformer for Doorbell
Image source: thespruce.com
Before jumping into the replacement process, it’s helpful to understand why a transformer might fail—and how to confirm it’s the culprit.
Doorbell transformers are designed to last many years, but they’re not immune to wear and tear. Common signs that your transformer is failing include:
- The doorbell doesn’t ring at all
- The chime sounds weak or distorted
- The doorbell button feels warm or hot to the touch
- You’ve recently installed a video doorbell that requires more power
- You notice a burning smell near the electrical panel or doorbell chime
If you’ve already checked the doorbell button, chime, and wiring and everything seems intact, the transformer is the next logical suspect. Unlike other components, the transformer is hidden and rarely thought of—but it’s often the root cause of doorbell issues.
What Is a Doorbell Transformer and How Does It Work?
A doorbell transformer is a small electrical device that converts standard household voltage (120V AC) into a lower voltage (typically 16V or 24V AC) suitable for doorbell systems. It’s usually mounted inside a junction box, near your main electrical panel, or in a basement or garage.
Here’s a simple breakdown of how it works:
- Input side: Connects to your home’s 120V circuit (usually via a dedicated breaker or shared lighting circuit).
- Output side: Sends low-voltage power through thin wires to the doorbell button and chime.
- Function: When you press the doorbell button, it completes the circuit, allowing current to flow to the chime and produce sound.
Most modern doorbells—including wired smart doorbells like Ring or Nest—require a transformer with at least 16V and 10–30VA (volt-amperes). Higher-end models may need 24V or more power, so always check your doorbell’s specifications before replacing the transformer.
Tools and Materials You’ll Need
Before starting, gather the following tools and supplies to ensure a smooth and safe installation:
- Non-contact voltage tester: To confirm power is off
- Screwdrivers (flathead and Phillips): For removing covers and terminals
- Wire strippers: To prepare wires for connection
- Electrical tape: For insulating connections
- New doorbell transformer: Match voltage and wattage (e.g., 16V 10VA, 16V 30VA)
- Wire nuts (optional): If splicing wires
- Flashlight: For visibility in dark areas
- Work gloves and safety glasses: For personal protection
Tip: If you’re unsure about the transformer’s specs, take a photo of the old one before removing it. This will help you buy an exact match.
Step 1: Turn Off the Power
Safety is the most important part of this project. Never work on electrical components while they’re live.
Locate the Correct Circuit Breaker
Doorbell transformers are usually connected to a dedicated 15-amp or 20-amp circuit, often labeled “doorbell,” “chime,” or “lighting.” If your breaker panel isn’t clearly labeled, you may need to test circuits one by one.
To do this:
- Have a helper stand near the doorbell button.
- Turn off one breaker at a time.
- Ask your helper to press the doorbell. If it doesn’t ring, you’ve found the right circuit.
- Label the breaker once identified.
Verify Power Is Off
Even after turning off the breaker, always double-check with a non-contact voltage tester. Touch the tester to the wires at the transformer location. If it beeps or lights up, power is still on—don’t proceed until it’s off.
Tip: Place a piece of tape over the breaker switch to prevent someone from accidentally turning it back on while you’re working.
Step 2: Locate the Doorbell Transformer
Transformers are typically hidden, so knowing where to look saves time.
Common Locations
- Basement: Near the furnace, water heater, or main electrical panel.
- Garage: Mounted on a wall or ceiling joist.
- Attic: Less common, but possible in older homes.
- Inside the doorbell chime box: Some older models house the transformer inside the chime unit itself.
- Near the main electrical panel: Often tucked behind or beside the breaker box.
Look for a small metal or plastic box with two sets of wires: thick wires (120V input) and thin wires (low-voltage output to the doorbell). The transformer may be mounted directly to a junction box or electrical panel.
How to Identify the Transformer
The transformer will usually have:
- A label with voltage and wattage (e.g., “16V 10VA”)
- Two screw terminals for the 120V input (often black and white wires)
- Two screw terminals for the low-voltage output (usually red and white or red and black)
If you’re unsure, trace the thin doorbell wires from the chime back to their source—they’ll lead you to the transformer.
Step 3: Remove the Old Transformer
Once you’ve located the transformer and confirmed the power is off, it’s time to remove it.
Disconnect the Low-Voltage Wires
These are the thin wires that run to your doorbell button and chime.
- Use a screwdriver to loosen the terminal screws.
- Gently pull the wires free.
- Label them with tape (e.g., “to button,” “to chime”) or take a photo for reference.
Tip: If the wires are short or damaged, you may need to splice in new wire later. Keep this in mind when choosing a replacement transformer location.
Disconnect the 120V Power Wires
These are the thicker wires connected to your home’s electrical system.
- Loosen the terminal screws or wire nuts.
- Carefully remove the black (hot) and white (neutral) wires.
- If the transformer is mounted with screws, remove them to free the unit.
Caution: Even though the power is off, treat all wires as if they’re live until proven otherwise.
Remove the Transformer
Once all wires are disconnected, gently pull the transformer out of its mounting location. If it’s inside a junction box, you may need to unscrew the entire box or use pliers to wiggle it free.
Set the old transformer aside—don’t throw it away yet. You’ll need its specs to buy a replacement.
Step 4: Choose the Right Replacement Transformer
Not all transformers are created equal. Using the wrong one can damage your doorbell or cause it to underperform.
Check Voltage and Wattage
Look at the label on the old transformer. Common ratings include:
- 16V 10VA – Standard for basic mechanical chimes
- 16V 15VA – Good for most wired doorbells
- 16V 30VA – Ideal for video doorbells or multiple chimes
- 24V 20VA – Used in some commercial or high-end systems
Tip: When in doubt, go with a higher wattage (VA) rating. A 16V 30VA transformer can power a 16V 10VA doorbell, but not vice versa.
Where to Buy a New Transformer
You can find doorbell transformers at:
- Home improvement stores (Home Depot, Lowe’s)
- Hardware stores
- Online retailers (Amazon, eBay)
Popular brands include Nutone, Heath Zenith, and TransformerTamer. A basic 16V 15VA transformer costs around $10–$20.
Consider a Plug-In Transformer (Optional)
If you don’t want to hardwire a new transformer, consider a plug-in model. These plug into a standard outlet and have a low-voltage wire that runs to your doorbell. They’re easier to install but less permanent and may require drilling a hole for the wire.
Step 5: Install the New Transformer
Now it’s time to install the replacement. Follow these steps carefully.
Mount the Transformer
If the new transformer fits in the same location:
- Secure it to the junction box or electrical panel using the provided screws.
- Ensure it’s firmly attached and won’t move.
If you’re installing in a new location, make sure it’s close enough to run wires to the doorbell and chime.
Connect the 120V Power Wires
- Strip about 1/2 inch of insulation from the ends of the black and white wires (if not already done).
- Connect the black (hot) wire to the terminal labeled “LINE” or “HOT.”
- Connect the white (neutral) wire to the terminal labeled “NEUTRAL” or “WHITE.”
- Tighten the screws securely.
Tip: If your new transformer uses wire nuts instead of screw terminals, twist the wires together and cap them with a wire nut. Wrap the connection with electrical tape for extra security.
Connect the Low-Voltage Wires
- Strip the ends of the thin doorbell wires if needed.
- Connect one wire to the terminal labeled “TRANSFORMER” or “LOW VOLTAGE.”
- Connect the other wire to the second low-voltage terminal.
- It doesn’t matter which wire goes where—doorbell circuits are not polarized.
Double-check that all connections are tight and no bare wire is exposed.
Step 6: Restore Power and Test
Before closing everything up, test the system to make sure it works.
Turn the Breaker Back On
Go to your electrical panel and flip the breaker back on. Listen for any unusual sounds (buzzing, clicking) from the transformer.
Test the Doorbell
Press the doorbell button. You should hear a clear, strong chime. If it works, great! If not, move to the troubleshooting section below.
Check for Heat or Noise
Feel the transformer after a few minutes. It should be slightly warm but not hot. If it’s overheating or making a loud hum, turn off the power immediately—this could indicate a wiring error or incompatible transformer.
Troubleshooting Common Issues
Even with careful installation, problems can arise. Here’s how to fix the most common ones.
Doorbell Doesn’t Ring
- Check the breaker: Make sure it’s fully on and not tripped.
- Test the transformer output: Use a multimeter to check voltage between the low-voltage terminals. You should see 16V or 24V AC.
- Inspect wiring: Ensure all connections are secure and wires aren’t damaged.
- Test the button and chime: Bypass the transformer by connecting the doorbell wires directly to a known good 16V power source (like a spare transformer). If it rings, the issue is with the original transformer.
Weak or Distorted Sound
- Transformer too small: Upgrade to a higher-wattage model (e.g., 16V 30VA).
- Loose connections: Tighten all terminals and wire nuts.
- Long wire runs: If wires are very long, voltage drop can occur. Use a higher-voltage transformer or thicker wire.
Transformer Overheats or Buzzes Loudly
- Incorrect wiring: Double-check that 120V wires are connected to the correct terminals.
- Overloaded circuit: Ensure the transformer isn’t powering too many devices.
- Defective unit: Replace with a new transformer from a reputable brand.
Smart Doorbell Not Getting Enough Power
Video doorbells like Ring or Nest often require more power than traditional chimes. If your smart doorbell keeps disconnecting or won’t charge:
- Upgrade to a 16V 30VA or 24V transformer.
- Ensure the transformer is dedicated to the doorbell (not sharing with lights).
- Consider a plug-in transformer with higher output.
Safety Tips and Best Practices
Electrical work can be dangerous if not done correctly. Follow these guidelines to stay safe:
- Always turn off the power: Never assume a circuit is dead without testing.
- Use insulated tools: Reduce the risk of shock.
- Don’t work in wet conditions: Moisture increases electrical risk.
- Keep one hand in your pocket: This reduces the chance of current passing through your heart if shocked.
- Call a professional if unsure: If you’re uncomfortable at any point, hire a licensed electrician.
Conclusion
Changing a transformer for doorbell is a practical DIY project that can restore functionality to your home’s entry system. By following this guide, you’ve learned how to safely locate, remove, and replace a faulty transformer—saving money on service calls and gaining confidence in your home repair skills.
Remember: safety first. Always turn off the power, use the right tools, and double-check your work. With a new transformer in place, your doorbell should ring clearly and reliably for years to come.
Whether you’re fixing a silent chime or upgrading to a smart doorbell, this step-by-step process ensures a smooth and successful installation. Now go ahead—press that button and enjoy the satisfying *ding-dong* of a job well done.
