Checking the amperage on your doorbell transformer ensures your doorbell system is getting the right power. This guide walks you through safe testing methods using a multimeter, helping you diagnose low voltage or weak chime issues.
Key Takeaways
- Safety first: Always turn off power at the breaker before working on electrical components to prevent shock or injury.
- Use a digital multimeter: This is the most accurate tool for measuring amperage in low-voltage circuits like doorbell transformers.
- Understand transformer ratings: Most doorbell transformers output 16–24 volts AC and 10–30 VA, which translates to roughly 0.4–1.25 amps.
- Test under load: Amperage should be measured while the doorbell button is pressed to simulate real-world usage.
- Interpret results correctly: A reading significantly lower than expected may indicate a failing transformer, wiring issues, or a short circuit.
- Replace if necessary: If the transformer isn’t delivering adequate current, replacing it is often the safest and most effective fix.
- Consult a professional if unsure: If you’re uncomfortable working with electricity, hire a licensed electrician.
How to Check Amps on Doorbell Transformer
If your doorbell is acting up—chiming weakly, not ringing at all, or only working intermittently—the problem might be with the transformer. The doorbell transformer is a small but crucial component that steps down your home’s 120-volt electrical supply to a safer 16–24 volts for your doorbell system. Over time, these transformers can wear out, leading to insufficient power delivery. One of the best ways to diagnose this issue is by checking the amperage (amps) output of the transformer.
In this comprehensive guide, you’ll learn exactly how to check amps on a doorbell transformer safely and accurately. We’ll cover the tools you need, step-by-step instructions, how to interpret your readings, and what to do if something’s wrong. Whether you’re a DIY enthusiast or just trying to fix a silent doorbell, this guide will empower you to troubleshoot like a pro—without calling an electrician.
Why Checking Amperage Matters

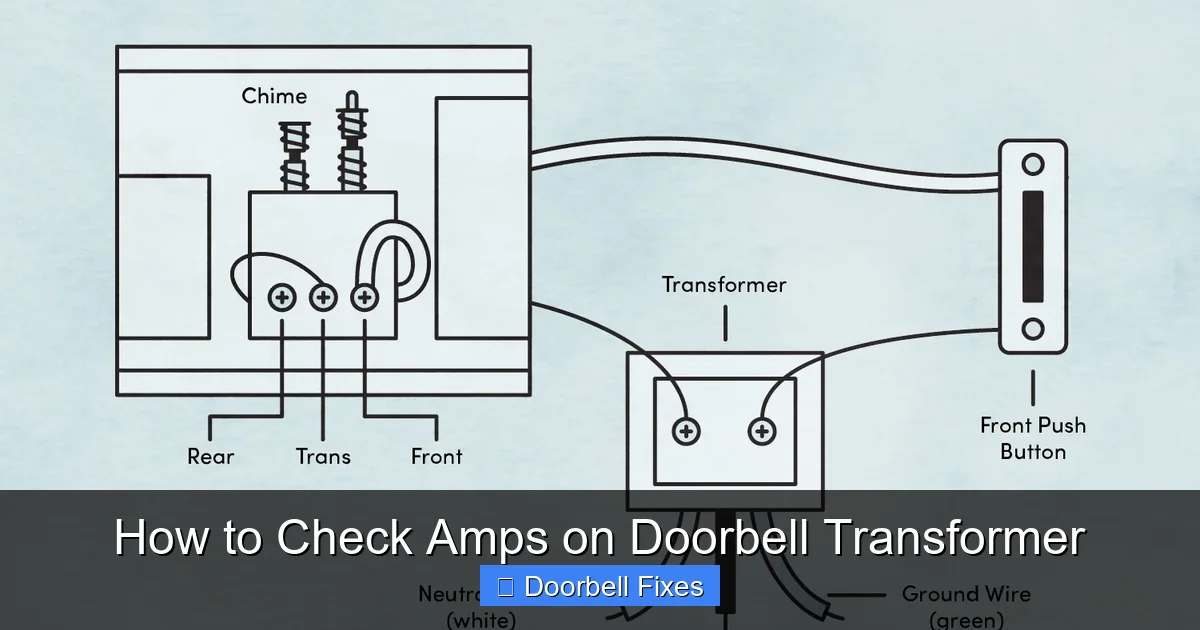

Visual guide about How to Check Amps on Doorbell Transformer
Image source: thespruce.com
Before diving into the how-to, it’s important to understand why amperage matters for your doorbell system. Voltage (measured in volts) tells you the electrical pressure, but amperage (measured in amps) tells you the actual flow of electrical current. Think of it like water: voltage is water pressure, and amperage is the volume of water flowing through the pipe.
Your doorbell needs both the right voltage and sufficient current to operate properly. If the transformer is old or damaged, it might still show the correct voltage when idle—but fail to deliver enough amperage when the button is pressed. This is why measuring voltage alone isn’t enough. You need to check amps under load (i.e., when the doorbell is ringing) to get the full picture.
For example, a typical 16V, 10VA transformer should deliver about 0.625 amps (since amps = VA ÷ volts). If your multimeter reads significantly less—say, 0.2 amps—your transformer may be struggling to keep up, causing weak or inconsistent performance.
Tools and Materials You’ll Need
Before you begin, gather the following tools and materials. Most are inexpensive and widely available at hardware stores or online.
- Digital multimeter – Essential for measuring voltage, current, and resistance. Look for one with a clamp function or the ability to measure AC current in series.
- Insulated screwdrivers – For removing covers and accessing wiring.
- Electrical tape – For securing wires temporarily.
- Non-contact voltage tester – To confirm power is off before handling wires.
- Safety gloves and goggles – Always wear protective gear when working with electricity.
- Ladder (if needed) – Many transformers are mounted near the electrical panel or in the basement ceiling.
- Helper (optional) – Someone to press the doorbell button while you take readings.
Choosing the Right Multimeter
Not all multimeters are created equal. For this task, you’ll need one that can measure AC current (amps) in the range of 0–200 mA or 0–2 A. Many entry-level models have a “mA” or “A” setting for this purpose. If your multimeter has a clamp function (also called a clamp meter), it can measure current without breaking the circuit—this is ideal but not required.
Avoid using analog multimeters, as they’re less accurate and harder to read. A good digital multimeter costs between $20 and $50 and is a worthwhile investment for any homeowner.
Safety Precautions
Working with electricity always carries risk, even at low voltages. While doorbell transformers operate at safe levels (typically under 24V), the wiring often connects to your home’s 120V circuit. That’s why safety must come first.
Turn Off the Power
Before touching any wires, locate your home’s main electrical panel (breaker box). Find the circuit that powers the doorbell transformer—this is usually labeled “doorbell,” “chime,” or “low voltage.” If it’s not labeled, you may need to test circuits by turning them off one at a time and checking if the doorbell stops working.
Once you’ve identified the correct breaker, switch it off. Use a non-contact voltage tester to confirm that power is disconnected at the transformer location. This extra step ensures you won’t accidentally touch live wires.
Wear Protective Gear
Even though the voltage is low, it’s smart to wear insulated gloves and safety goggles. This protects you from accidental shocks, sparks, or debris if a wire comes loose.
Work in a Dry Area
Never work on electrical components with wet hands or in damp conditions. Moisture increases the risk of electric shock.
Don’t Rush
Take your time. Rushing increases the chance of mistakes, such as touching the wrong wire or misreading the multimeter.
Locating Your Doorbell Transformer
The transformer is usually hidden from view, so finding it is the first challenge. Common locations include:
- Inside the electrical panel (mounted on the side or back)
- In the basement, often near the furnace or water heater
- Behind the doorbell chime unit inside the house
- In the attic or crawl space
- Inside a junction box near the front door
To locate it, start by checking the electrical panel. Many transformers are mounted directly inside or nearby. If you don’t see it there, look behind the doorbell chime—remove the cover and inspect the wiring. The transformer will have two thick wires (usually black and white) connected to the 120V line and two thinner wires (often red and white) going to the doorbell button.
If you’re still unsure, trace the doorbell wires from the button back to their source. The transformer will be where the low-voltage wires connect to the household wiring.
Understanding Doorbell Transformer Ratings
Before testing, it’s helpful to know what your transformer is supposed to deliver. Most residential doorbells use transformers rated between 16 and 24 volts AC, with a power rating in volt-amperes (VA). Common ratings include:
- 16V, 10VA
- 16V, 15VA
- 24V, 20VA
- 24V, 40VA (for video doorbells or multiple chimes)
To calculate expected amperage, use this formula:
Amps = VA ÷ Volts
For example:
- A 16V, 10VA transformer should deliver about 0.625 amps (10 ÷ 16 = 0.625)
- A 24V, 20VA transformer should deliver about 0.83 amps (20 ÷ 24 ≈ 0.83)
This gives you a baseline to compare your multimeter reading against.
Step-by-Step: How to Check Amps on Doorbell Transformer
Now that you’re prepared, let’s walk through the process of measuring amperage.
Step 1: Turn Off Power and Access the Transformer
As mentioned earlier, turn off the breaker that supplies power to the transformer. Use a non-contact voltage tester to confirm no voltage is present at the transformer terminals.
Remove the cover or access panel to expose the transformer. You should see two sets of wires:
- Primary side: Connected to 120V household power (usually black and white)
- Secondary side: Connected to the doorbell circuit (usually red and white or red and black)
Step 2: Set Up Your Multimeter
Turn your multimeter on and set it to measure AC current (amps). Look for the “A~” or “AC A” setting. If your meter has separate jacks for current measurement, plug the red probe into the “mA” or “A” port and the black probe into the “COM” port.
If your multimeter has a clamp function, you can use it to measure current without disconnecting wires—this is the easiest method. Simply clamp around one of the low-voltage wires (red or white) on the secondary side.
If your meter doesn’t have a clamp, you’ll need to break the circuit and measure in series (more on that below).
Step 3: Measure Amperage Under Load
This is the most important step. Amperage must be measured while the doorbell is actively drawing power—i.e., when the button is pressed.
Option A: Using a Clamp Meter (Recommended)
If your multimeter has a clamp:
- Clamp around one of the low-voltage wires (red or white) on the secondary side of the transformer.
- Have a helper press and hold the doorbell button.
- Read the amperage on the display.
The reading should be close to the calculated value (e.g., 0.6–0.8 amps for a 16V, 10VA transformer). If it’s much lower, the transformer may be failing.
Option B: Measuring in Series (Without a Clamp)
If you don’t have a clamp meter, you’ll need to interrupt the circuit and connect the multimeter in series:
- Disconnect one of the low-voltage wires (e.g., the red wire) from the transformer terminal.
- Connect the multimeter probes to complete the circuit:
- Red probe to the disconnected wire
- Black probe to the transformer terminal
- Set the multimeter to the highest AC current range (e.g., 10A), then switch down if needed for accuracy.
- Have a helper press the doorbell button.
- Read the amperage on the display.
- After testing, reconnect the wire securely.
⚠️ Warning: Never leave the circuit open while power is on. Always reconnect wires immediately after testing.
Step 4: Record and Interpret the Reading
Write down the amperage reading. Compare it to the expected value based on your transformer’s VA and voltage rating.
- Normal: Reading is within 10–20% of the calculated amperage.
- Low: Reading is significantly lower (e.g., 50% or less). This suggests the transformer is weak or failing.
- Zero: No current flow. Could indicate an open circuit, broken wire, or dead transformer.
- Very high: Reading much higher than expected may indicate a short circuit in the doorbell wiring or chime.
For example, if your transformer is rated 16V, 15VA (expected ~0.94 amps), but you only read 0.3 amps, it’s likely not delivering enough power.
Troubleshooting Common Issues
If your amperage reading is off, here’s how to diagnose and fix the problem.
Low or No Amperage
Possible causes:
- Failing transformer: The most common cause. Transformers degrade over time and lose efficiency.
- Loose or corroded connections: Check all wire terminals for tightness and corrosion.
- Damaged wiring: Inspect the low-voltage wires for cuts, frays, or rodent damage.
- Faulty doorbell button: A stuck or shorted button can affect current flow.
Solution: Replace the Transformer
If the transformer is the issue, replacement is usually the best fix. Here’s how:
- Buy a compatible replacement (match voltage and VA rating).
- Turn off power at the breaker.
- Disconnect the old transformer.
- Install the new one, connecting the 120V wires to the primary side and the doorbell wires to the secondary side.
- Restore power and test the doorbell.
Most transformers cost $10–$25 and take 15–30 minutes to install.
High Amperage Reading
If the amperage is much higher than expected, there may be a short circuit. This could be caused by:
- Wires touching inside the doorbell button
- Damaged insulation on low-voltage wires
- Faulty chime unit
To fix:
- Inspect the doorbell button for damage or moisture.
- Check wiring along the entire path for exposed conductors.
- Test the chime unit by bypassing it temporarily.
If you find a short, repair or replace the damaged component.
When to Call a Professional
While checking amperage on a doorbell transformer is a manageable DIY task, there are times when it’s best to call a licensed electrician:
- You’re uncomfortable working with electricity.
- The transformer is hard to reach (e.g., inside a cramped electrical panel).
- You suspect a problem with your home’s wiring or breaker panel.
- Multiple electrical issues are occurring (e.g., flickering lights, tripped breakers).
- You’re installing a new doorbell system with higher power demands (e.g., video doorbell with Wi-Fi).
Electricians have the tools, training, and experience to handle complex issues safely and efficiently.
Preventative Maintenance Tips
To avoid future doorbell problems, follow these maintenance tips:
- Test annually: Check voltage and amperage once a year, especially before winter.
- Inspect wiring: Look for signs of wear, especially if you have pets or rodents.
- Clean the button: Dust and debris can cause poor contact. Use compressed air or a soft brush.
- Upgrade if needed: If you install a video doorbell or multiple chimes, ensure your transformer can handle the load.
- Label your breaker: Make it easy to find the doorbell circuit next time.
Conclusion
Checking the amperage on your doorbell transformer is a smart way to diagnose power-related issues and keep your doorbell working reliably. With the right tools and a careful approach, you can safely measure current, interpret the results, and determine whether your transformer is up to the task.
Remember: safety comes first. Always turn off power, use protective gear, and double-check your connections. If your readings are low or inconsistent, replacing the transformer is often a quick and affordable fix.
By following this guide, you’ll not only solve your current doorbell problem but also gain valuable skills for future home maintenance. And if you ever feel unsure, don’t hesitate to call a professional—your safety is worth it.
Now go ahead, grab your multimeter, and give your doorbell the power it deserves.
