How to Check Doorbell Chime Voltage

Checking your doorbell chime voltage is essential for diagnosing power issues and ensuring reliable performance. This guide walks you through safe, easy steps using a multimeter to test voltage at the chime, transformer, and button—helping you fix silent or malfunctioning doorbells fast.

Key Takeaways

• Always turn off power before working on electrical components: Safety comes first—shut off the circuit breaker to avoid shocks.
• Use a digital multimeter for accurate readings: This tool measures voltage precisely and is essential for diagnosing doorbell issues.
• Standard doorbell systems run on 8–24 volts AC: Most residential chimes operate within this range; anything outside may indicate a problem.
• Test at multiple points—transformer, button, and chime: Isolating where voltage drops helps pinpoint the source of failure.
• Low voltage often causes weak or no sound: If your chime is silent or faint, low voltage is a likely culprit.
• Replace faulty transformers or wiring if needed: Old or damaged components can’t deliver proper voltage and must be upgraded.
• Consult a licensed electrician for complex issues: If you’re unsure or dealing with high-voltage lines, professional help is safest.

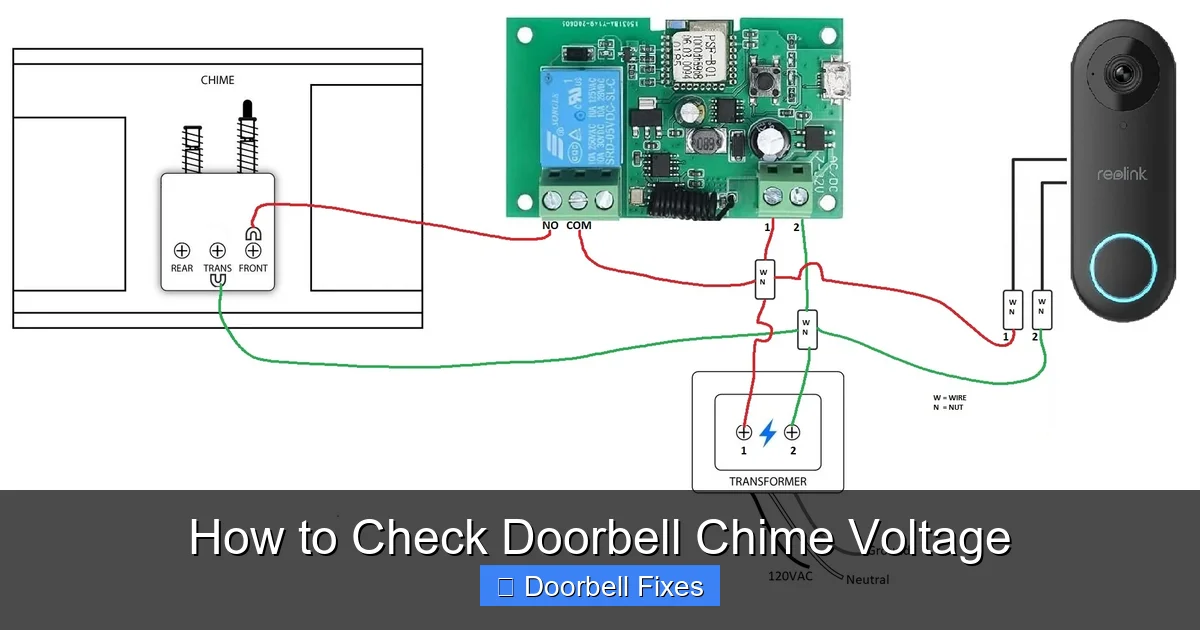

How to Check Doorbell Chime Voltage: A Complete Step-by-Step Guide

If your doorbell isn’t ringing, rings weakly, or behaves erratically, the problem might be as simple as incorrect voltage. Doorbell systems rely on low-voltage electricity—typically between 8 and 24 volts AC—to power the chime and button. When that voltage drops too low or spikes too high, your doorbell won’t work properly. The good news? You can easily check the voltage yourself with a few basic tools and some careful steps.

In this guide, we’ll walk you through how to check doorbell chime voltage safely and accurately. You’ll learn where to test, what readings to expect, and how to interpret them. Whether you’re troubleshooting a silent chime or just doing routine maintenance, this process will help you keep your doorbell in top shape. No electrical degree required—just a little patience and the right approach.

Why Voltage Matters for Your Doorbell

Your doorbell system is a small but vital part of your home’s security and convenience. It consists of three main components: the doorbell button (outside), the chime unit (inside), and the transformer (usually near your electrical panel or furnace). The transformer steps down your home’s standard 120-volt current to a safer, lower voltage that powers the doorbell circuit.

When voltage is too low, the chime may not activate at all or may produce a weak, muffled sound. If voltage is too high, it can damage the chime or button over time. Even minor fluctuations can cause intermittent issues—like a doorbell that works sometimes but not others.

Checking the voltage helps you confirm whether the system is receiving the right amount of power. It’s one of the first steps in diagnosing doorbell problems and can save you time and money by ruling out electrical issues before replacing parts.

Tools You’ll Need

Before you begin, gather these essential tools:

• Digital multimeter: This is the most important tool. Look for one with AC voltage measurement capability (most do). Analog meters work too, but digital is easier to read.
• Screwdriver set: Typically a Phillips or flathead, depending on your chime and transformer housing.
• Insulated gloves (optional but recommended): For added safety when handling wires.
• Flashlight: To see inside dark electrical panels or behind chime units.
• Electrical tape: Useful for marking wires or securing loose connections temporarily.

You don’t need expensive equipment—just a reliable multimeter, which you can find at any hardware store or online for under $20. Many homeowners already own one, but if not, it’s a worthwhile investment for future DIY projects.

Safety First: Preparing to Test Voltage

Working with electricity—even low-voltage systems—requires caution. While doorbell circuits are generally safe, mistakes can still cause shocks, short circuits, or damage to your system. Follow these safety steps before touching any wires:

Turn Off the Power

Even though doorbell voltage is low, it’s smart to shut off the power at the source. Locate your home’s main electrical panel (breaker box) and find the circuit that controls the doorbell. It may be labeled “doorbell,” “chime,” or “low voltage.” If not, you can turn off the main breaker to be safe—but this will cut power to your entire house.

Once you’ve turned off the correct breaker, test the doorbell button to confirm it’s dead. Press it a few times—if nothing happens, you’re good to go. If the chime still rings, double-check your breaker labels or turn off the main power.

Discharge Any Stored Energy

Some doorbell systems have capacitors or residual charge in the wiring. To be safe, press the doorbell button several times after turning off the power. This discharges any leftover energy in the circuit.

Work in a Dry Area

Avoid testing voltage in damp or wet conditions. Moisture increases the risk of shock and can damage your multimeter. If your chime is in a basement or garage, make sure the area is dry and well-lit.

Use Proper Tools

Never use damaged or frayed tools. Ensure your multimeter probes are in good condition, with no exposed wires. If the insulation is cracked, replace them before testing.

Step 1: Locate Your Doorbell Components

Before testing, you need to know where everything is. Most doorbell systems have three key parts:

• Doorbell button: Mounted outside near your front door.
• Chime unit: Usually installed inside, often in a hallway or near the entrance.
• Transformer: Converts high-voltage household current to low-voltage power. Typically found in the basement, attic, garage, or near the furnace or electrical panel.

Start by identifying the chime unit. It’s the box that makes the ringing sound when you press the button. Remove the cover (usually held by one or two screws) to expose the wiring.

Next, locate the transformer. It’s a small metal or plastic box with wires coming out and often has “16V” or “24V” printed on it. If you can’t find it, trace the wires from the chime back to their source—they’ll lead to the transformer.

Step 2: Set Up Your Multimeter

Now it’s time to prepare your multimeter for testing. Here’s how:

Select the Correct Setting

Turn the multimeter dial to the AC voltage setting. It’s usually marked with a “V~” or “VAC” symbol. If your meter has multiple voltage ranges (e.g., 20V, 200V), choose the one that includes your expected voltage—typically 20V or 200V for doorbells.

Most doorbells run on 16V AC, so the 20V setting is ideal. If you’re unsure, start with the higher range (200V) and adjust if the reading is too low.

Insert the Probes

Plug the black probe into the COM (common) port and the red probe into the VΩmA port (or similar). These are standard on most multimeters.

Test the Multimeter

Before touching any doorbell wires, test your multimeter on a known power source—like a lamp plugged into an outlet. Set the meter to AC voltage, touch the probes to the outlet slots, and confirm it reads around 120V. This ensures your meter is working correctly.

Step 3: Test Voltage at the Chime Unit

The chime unit is the most accessible place to test voltage and often reveals the problem.

Remove the Chime Cover

Use your screwdriver to remove the front cover of the chime. Inside, you’ll see two or more wires connected to terminals labeled “Front,” “Trans,” “Rear,” or similar.

Identify the Transformer Wires

Look for the two wires that come from the transformer. They’re usually connected to the “Trans” or “Transformer” terminals. These carry the low-voltage power to the chime.

Turn the Power Back On (Briefly)

For this test, you’ll need power on. Go back to your breaker panel and turn the doorbell circuit back on. Be extra careful—only touch the multimeter probes, not the wires directly.

Touch the Probes to the Transformer Terminals

With the multimeter set to AC voltage, touch the black probe to one transformer terminal and the red probe to the other. Hold them steady and read the display.

You should see a voltage reading between 8 and 24 volts AC. Most systems are designed for 16V, so a reading of 14–18V is normal. If it’s below 10V, the voltage is too low. If it’s above 24V, it’s too high.

Record the Reading

Write down the voltage. This is your baseline. If it’s within range, the chime itself may be faulty. If it’s low, the issue is likely with the transformer or wiring.

Turn Off Power Again

Once you’ve recorded the reading, turn the breaker off again before proceeding.

Step 4: Test Voltage at the Transformer

If the chime voltage is low, the next step is to test the transformer directly. This tells you whether the transformer is supplying enough power.

Locate the Transformer

Find the transformer—usually near your electrical panel, furnace, or in the attic. It’s a small box with two wires coming out (the low-voltage side) and two wires going into your home’s electrical system (the high-voltage side).

Access the Low-Voltage Terminals

Remove the cover or open the housing to expose the low-voltage terminals. These are the wires that go to the doorbell circuit.

Turn Power On and Test

Turn the breaker back on. Set your multimeter to AC voltage and touch the probes to the two low-voltage terminals on the transformer.

You should see a reading close to the transformer’s rated output (e.g., 16V). If it’s significantly lower—say, 8V on a 16V transformer—the transformer may be failing. If it’s zero, the transformer isn’t working at all.

Compare Readings

Compare this reading to the one you took at the chime. If the transformer output is good but the chime voltage is low, the problem is likely in the wiring between them—possibly a loose connection or damaged wire.

Step 5: Test Voltage at the Doorbell Button

The doorbell button completes the circuit when pressed. If it’s faulty, it can cause voltage drops or interruptions.

Remove the Button

Unscrew the doorbell button from the wall. Be careful not to let the wires fall back into the wall.

Expose the Wires

You’ll see two wires connected to the button. Disconnect them (but remember which goes where for reinstallation).

Test Voltage Across the Wires

Turn the power on. Set your multimeter to AC voltage and touch the probes to the two wire ends.

With the button disconnected, you should see the full transformer voltage (e.g., 16V). If the reading is much lower, there may be a short or resistance in the button or wiring.

Now, briefly touch the two wires together (simulating a button press). The voltage should drop slightly as the circuit closes. If it drops dramatically or to zero, the button may be faulty.

Reconnect and Reinstall

After testing, turn off the power, reconnect the wires, and reinstall the button.

Interpreting Your Voltage Readings

Now that you’ve tested at all three points, it’s time to make sense of the numbers.

• Normal voltage (14–24V AC): Your system is receiving adequate power. If the chime still doesn’t work, the issue is likely mechanical—like a stuck solenoid or broken spring.
• Low voltage (below 10V): Indicates a problem with the transformer, wiring, or connections. Check for loose terminals, corroded wires, or an overloaded circuit.
• No voltage (0V): The transformer isn’t working, the breaker is off, or there’s a broken wire. Test the transformer directly to confirm.
• Fluctuating voltage: Suggests a loose connection or failing component. Wiggle wires gently while testing to see if the reading changes.

Remember, voltage can drop over long wire runs. If your doorbell is far from the transformer, consider upgrading to a higher-voltage transformer (e.g., 24V) or using thicker wire.

Troubleshooting Common Voltage Issues

Even with proper testing, problems can persist. Here’s how to address common issues:

Transformer Not Working

If the transformer reads 0V, it may be burned out. Replace it with a compatible model (same voltage and VA rating). Most doorbells use 16V, 10VA or 16V, 20VA transformers.

Loose or Corroded Connections

Over time, wire terminals can loosen or corrode. Turn off power, clean the contacts with a small wire brush, and tighten the screws.

Damaged Wiring

Rodents, nails, or wear can damage doorbell wires. Inspect the wire run from transformer to chime to button. Replace any frayed or broken sections.

Overloaded Circuit

Some transformers power multiple doorbells or smart devices. If you’ve added a video doorbell or extra chime, the transformer may be overloaded. Upgrade to a higher-capacity model.

Faulty Chime Unit

If voltage is good but the chime doesn’t ring, the unit itself may be broken. Try replacing it with a new one—many are plug-and-play.

When to Call a Professional

While checking doorbell voltage is a DIY-friendly task, some situations require expert help:

• You’re uncomfortable working with electricity.
• The transformer is hardwired into your electrical panel.
• You suspect a problem with your home’s main wiring.
• Voltage readings are erratic or inconsistent.
• You’ve replaced components but the issue persists.

A licensed electrician can safely diagnose and repair complex issues, especially those involving high-voltage connections.

Maintaining Your Doorbell System

Regular maintenance can prevent voltage issues before they start:

• Test voltage annually, especially before winter.
• Clean the doorbell button and chime contacts with a dry cloth.
• Check wire connections for tightness and corrosion.
• Replace old transformers every 10–15 years.
• Upgrade to a smart doorbell if you want remote monitoring and alerts.

A little upkeep goes a long way in keeping your doorbell reliable.

Conclusion

Checking your doorbell chime voltage is a simple yet powerful way to diagnose and fix common doorbell problems. With a multimeter and a few careful steps, you can determine whether your system is receiving the right amount of power—and take action if it’s not.

Remember to prioritize safety, test at multiple points, and interpret your readings correctly. Whether you’re dealing with a silent chime or just want peace of mind, this skill will serve you well for years to come.

By following this guide, you’ve taken control of your doorbell’s performance. No more guessing—just clear, actionable information to keep your home safe and functional.
