Checking your doorbell voltage with a multimeter is a simple yet essential skill for diagnosing power-related issues. This guide walks you through the process safely and accurately, helping you determine if your doorbell is receiving the correct voltage to function properly.
Key Takeaways
- Safety first: Always turn off power at the breaker before working on electrical components to prevent shocks or damage.
- Use the right multimeter settings: Set your multimeter to AC voltage (V~) and choose a range higher than your expected doorbell voltage (typically 16–24V).
- Locate the transformer: Most doorbells use a low-voltage transformer mounted near your electrical panel or in the basement/attic.
- Test at the chime unit: Measure voltage at the doorbell chime terminals to confirm power delivery from the transformer.
- Check wiring connections: Loose or corroded wires can cause voltage drops—inspect and tighten all connections.
- Know normal voltage ranges: A working doorbell typically operates between 16 and 24 volts AC; readings outside this range may indicate a problem.
- Replace faulty components: If voltage is correct but the doorbell still doesn’t work, the issue may be with the button, chime, or wiring—not the power supply.

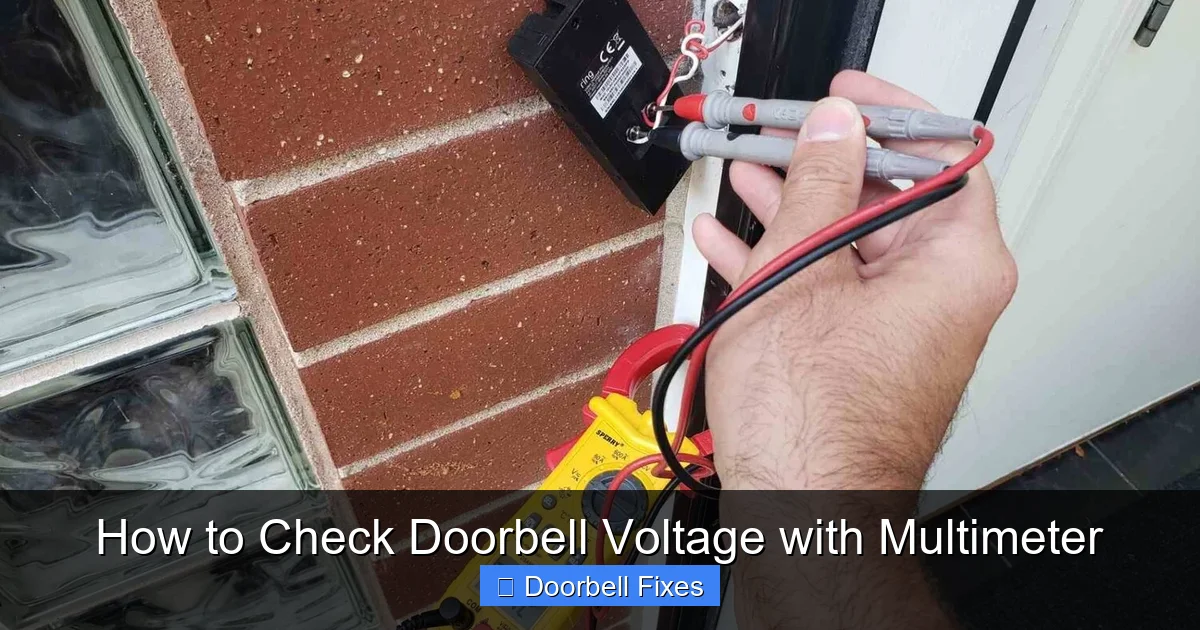

How to Check Doorbell Voltage with Multimeter
If your doorbell isn’t ringing, lights aren’t lighting up, or it’s acting erratically, the problem might be as simple as low or no voltage. Fortunately, you don’t need to call an electrician right away. With a basic multimeter and a few minutes of your time, you can check your doorbell’s voltage yourself—safely and accurately.
In this comprehensive guide, you’ll learn exactly how to check doorbell voltage with a multimeter. We’ll walk you through every step, from gathering tools to interpreting your readings. Whether you’re a DIY beginner or a seasoned home improver, this guide will help you diagnose power issues with confidence.
Most doorbells run on low-voltage AC power, typically between 16 and 24 volts. This power comes from a transformer that steps down your home’s standard 120V line voltage. Over time, transformers can fail, wires can loosen, or connections can corrode—all of which affect voltage delivery. By testing the voltage at key points in your doorbell system, you can pinpoint where the problem lies and fix it quickly.
Let’s get started.
What You’ll Need

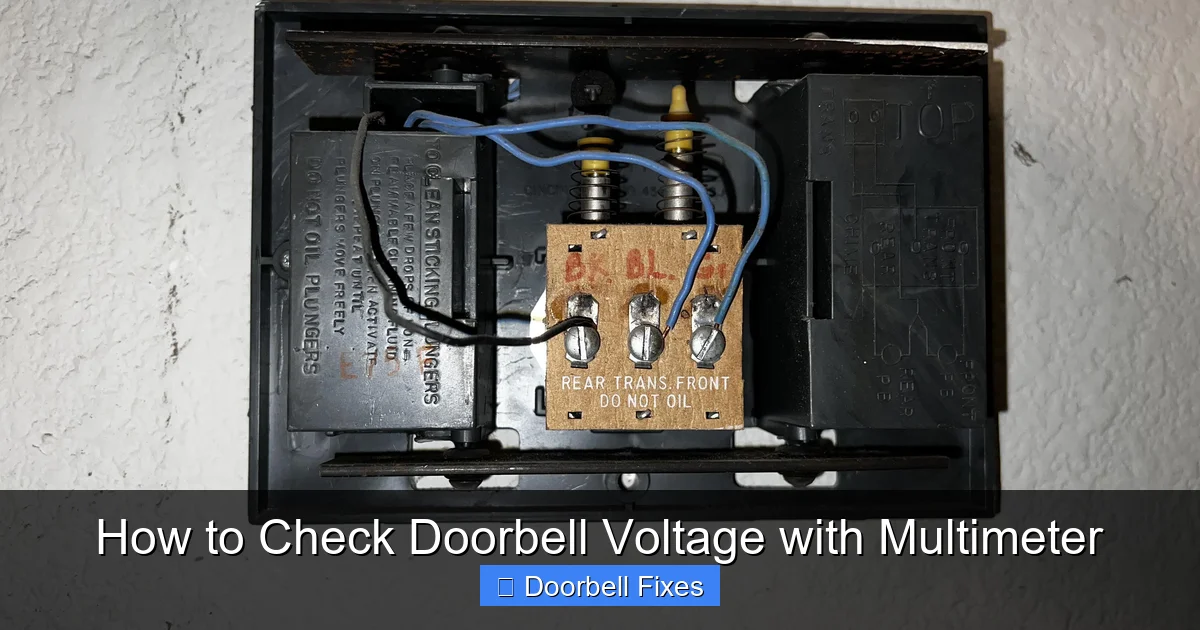

Visual guide about How to Check Doorbell Voltage with Multimeter
Image source: i.redd.it
Before you begin, make sure you have the right tools on hand. Here’s a quick checklist:
- Digital multimeter: Any basic model will work. Look for one with AC voltage measurement capability.
- Screwdriver: Usually a flathead or Phillips, depending on your doorbell chime unit.
- Insulated gloves (optional but recommended): For added safety when handling wires.
- Flashlight: To help you see in tight or dark spaces like attics or basements.
- Notepad and pen: To record your voltage readings for comparison.
Most of these items are likely already in your toolbox. If you don’t have a multimeter, they’re inexpensive and widely available at hardware stores or online. A good entry-level model costs around $15–$25 and can be used for many other home electrical tasks.
Understanding Your Doorbell System
Before diving into testing, it helps to understand how a typical doorbell system works. Most residential doorbells are simple low-voltage circuits consisting of three main components:
- Doorbell button: Mounted outside your door, it completes the circuit when pressed.
- Transformer: Converts 120V household current to 16–24V AC for safe doorbell operation.
- Chime unit: The indoor device that produces the ringing sound when the button is pressed.
The transformer is usually located near your main electrical panel, in the basement, attic, or garage. It has two low-voltage wires that run to the doorbell button and chime. When you press the button, it closes the circuit, allowing current to flow and activate the chime.
Because this is a low-voltage system, the risk of serious electric shock is minimal—but it’s still important to treat it with care. Always assume wires could be live, and follow safety precautions.
Safety First: Preparing to Test
Electrical work, even at low voltage, requires caution. Here’s how to prepare safely:
Turn Off the Power (Optional but Recommended)
While doorbell circuits are low voltage and generally safe, it’s wise to turn off the power at the breaker before handling wires—especially if you’re unsure of the wiring layout. Locate the breaker that controls your doorbell transformer (it may be labeled “doorbell,” “chime,” or “transformer”). If you can’t find it, turn off the main breaker to be safe.
Pro tip: Use a non-contact voltage tester to confirm the power is off before touching any wires.
Wear Protective Gear
Even though the voltage is low, wearing insulated gloves and safety glasses adds an extra layer of protection. It’s a good habit, especially if you’re working in tight or dusty spaces.
Work in a Well-Lit Area
Good lighting helps you see wire colors, terminal labels, and connection points clearly. Use a flashlight if needed, especially when checking the transformer in a dark basement or attic.
Step 1: Locate the Doorbell Transformer
The transformer is the heart of your doorbell’s power supply. It’s responsible for stepping down the voltage from 120V to the 16–24V range your doorbell needs. Finding it is the first step in diagnosing voltage issues.
Where to Look
Transformers are usually mounted:
- Near the main electrical panel
- In the basement ceiling or wall
- In the attic near the entrance
- Inside a junction box in the garage
It looks like a small metal box with wires coming out of it. It may be labeled “doorbell” or “chime.” Some transformers are built into the chime unit itself, especially in newer homes.
Identify the Wires
Once you find the transformer, look for two low-voltage wires (usually white and red or black) that connect to the doorbell circuit. These wires run from the transformer to the doorbell button and chime.
Note: Never touch the high-voltage side of the transformer (the 120V input wires) unless you’re experienced with electrical work. Always assume those wires are live.
Step 2: Set Up Your Multimeter
Now that you’ve located the transformer, it’s time to prepare your multimeter for testing.
Choose the Correct Setting
Set your multimeter to measure AC voltage. Look for the symbol “V~” or “ACV” on the dial. Do not use DC voltage (V⎓), as doorbells use alternating current.
Select the Right Range
Most multimeters have auto-ranging, meaning they automatically select the correct voltage range. If yours doesn’t, set it to a range higher than 24V—such as 200V AC. This ensures you get an accurate reading without overloading the meter.
Insert the Probes
Plug the black probe into the “COM” port and the red probe into the “VΩ” or “V” port on the multimeter. These are standard for voltage measurements.
Test the Multimeter (Optional but Smart)
Before testing your doorbell, verify your multimeter is working. Touch the probes to a known live outlet (with caution) or use a battery to test DC mode. A working meter should display a voltage close to the expected value.
Step 3: Test Voltage at the Transformer
This is the most direct way to check if your transformer is supplying power.
Turn the Power Back On
If you turned off the breaker earlier, turn it back on now. You need power flowing to get a reading.
Access the Transformer Terminals
Carefully remove the cover of the transformer box if necessary. You should see two low-voltage terminals labeled “T” or “Transformer” or simply two screw terminals with wires attached.
Touch the Probes to the Terminals
Place the black probe on one terminal and the red probe on the other. Hold them steady and read the display.
Interpret the Reading
A healthy transformer should output between 16 and 24 volts AC. If you see:
- 16–24V: The transformer is working correctly.
- 0V or very low (under 10V): The transformer may be faulty or not receiving power.
- Over 24V: Rare, but could indicate a transformer issue or incorrect wiring.
Example: If your multimeter reads 18.5V, your transformer is functioning properly. If it reads 3V, the transformer is likely dead and needs replacement.
Step 4: Test Voltage at the Doorbell Chime
Even if the transformer is working, voltage can drop along the wire due to resistance, loose connections, or damaged wiring. Testing at the chime confirms power is reaching the device.
Remove the Chime Cover
Use a screwdriver to remove the front cover of your doorbell chime unit. This is usually located inside your home, near the front door.
Locate the Terminal Screws
You’ll see two or more terminal screws labeled “Front,” “Trans,” “Rear,” or similar. The “Front” terminal connects to the front doorbell button, and “Trans” connects to the transformer.
Test Between “Front” and “Trans”
Set your multimeter to AC voltage again. Touch one probe to the “Front” terminal and the other to the “Trans” terminal.
Read the Voltage
A normal reading should be close to the transformer output—typically 16–24V. If the voltage is significantly lower (e.g., 8V when the transformer outputs 18V), there may be:
- Loose or corroded connections
- Long wire runs with high resistance
- Damaged or frayed wires
Tip: If you have a rear doorbell, test between “Rear” and “Trans” as well.
Step 5: Test the Doorbell Button
The button itself can also cause voltage issues. If it’s stuck, corroded, or damaged, it may not complete the circuit properly.
Remove the Button Cover
Unscrew the doorbell button from the wall. Be gentle—the wires are usually thin and fragile.
Test Voltage Across the Button
With the button disconnected, set your multimeter to AC voltage. Touch one probe to each wire terminal on the button.
Important: The button must be pressed (or bridged with a wire) to complete the circuit. If you don’t press it, you’ll read 0V even if power is present.
Press the Button and Read
Press and hold the button while reading the multimeter. You should see a voltage close to the transformer output (e.g., 18V). If the reading is low or zero, the button may be faulty.
Check for Continuity (Optional)
You can also test the button for continuity using the multimeter’s resistance (Ω) mode. A working button should show near-zero resistance when pressed and infinite resistance when released.
Troubleshooting Common Voltage Issues
Now that you’ve tested the system, let’s address what to do if something’s wrong.
No Voltage at Transformer
If your multimeter reads 0V at the transformer:
- Check if the breaker is on.
- Verify the transformer is receiving 120V input (use caution).
- The transformer may be burned out and need replacement.
Solution: Replace the transformer with one that matches your doorbell’s voltage and wattage (usually 16V or 24V, 10–30VA).
Low Voltage at Chime
If voltage drops significantly between the transformer and chime:
- Inspect wire connections for looseness or corrosion.
- Tighten all terminal screws.
- Check for damaged or frayed wires along the route.
- Consider upgrading to heavier-gauge wire if the run is very long.
Intermittent or Fluctuating Voltage
If the voltage reading jumps around:
- Look for loose connections.
- Test the doorbell button for sticking or poor contact.
- Check for moisture or corrosion in outdoor components.
Voltage Present but Doorbell Still Doesn’t Work
If voltage is correct but the chime doesn’t ring:
- The chime unit itself may be faulty.
- The doorbell button may not be making proper contact.
- There could be a break in the wiring between components.
Tip: Try bypassing the button by connecting the two wires together. If the chime rings, the button is the problem.
Replacing a Faulty Transformer
If your transformer is dead, replacing it is straightforward.
Turn Off the Power
Shut off the breaker supplying the transformer.
Disconnect the Wires
Remove the low-voltage wires from the transformer terminals. Label them if needed.
Remove the Old Transformer
Unscrew it from the electrical box or mounting bracket.
Install the New Transformer
Mount the new transformer in the same location. Connect the low-voltage wires to the output terminals. Ensure the input wires (120V) are securely connected to the circuit.
Restore Power and Test
Turn the breaker back on and test the voltage again. Your doorbell should now work.
Maintenance Tips to Prevent Future Issues
Regular maintenance can keep your doorbell running smoothly:
- Clean the button: Wipe the doorbell button with a dry cloth to remove dirt and moisture.
- Check connections annually: Inspect terminal screws and wires for looseness or corrosion.
- Test voltage yearly: A quick multimeter check can catch problems early.
- Replace old transformers: Transformers typically last 10–15 years. If yours is old, consider proactive replacement.
Conclusion
Checking your doorbell voltage with a multimeter is a simple, effective way to diagnose power-related issues. By following this guide, you’ve learned how to safely test the transformer, chime, and button to ensure your doorbell is receiving the correct voltage.
Remember: most doorbells operate on 16–24V AC. If your readings fall within this range, the problem likely lies elsewhere—like a faulty button or chime. If voltage is low or absent, focus on the transformer, wiring, or connections.
With a little practice, you’ll be able to troubleshoot doorbell problems in minutes—saving time, money, and the hassle of calling a professional. Keep your multimeter handy, stay safe, and enjoy a reliably working doorbell all year round.
