Checking your doorbell voltage is essential for diagnosing malfunctions and ensuring compatibility with new devices. This guide walks you through safe, accurate methods using a multimeter, explains common voltage ranges, and helps you fix low or inconsistent power issues.
Key Takeaways
- Safety first: Always turn off power at the breaker before working on doorbell wiring to prevent shocks or damage.
- Use a multimeter: A digital multimeter is the most reliable tool for measuring doorbell voltage—learn how to set it correctly.
- Standard voltages: Most doorbells run on 8–24 volts AC; smart doorbells may require 16–24V for optimal performance.
- Check transformer output: The doorbell transformer is often the source of low voltage—test it directly if readings are off.
- Inspect wiring and connections: Loose, corroded, or damaged wires can cause voltage drops and intermittent operation.
- Test under load: Measure voltage when the button is pressed to simulate real-world conditions and detect hidden issues.
- Upgrade if needed: If voltage is consistently low, consider replacing an old transformer or upgrading to a higher-capacity model.
How to Check My Doorbell Voltage: A Complete Step-by-Step Guide
Is your doorbell acting up? Maybe it’s not ringing at all, the chime is weak, or your new smart doorbell keeps disconnecting. Before you call an electrician or replace expensive equipment, there’s one simple thing you should check first: your doorbell voltage. Knowing how to check your doorbell voltage can save you time, money, and frustration. It’s a fundamental troubleshooting step that every homeowner should know—whether you’re dealing with a classic wired chime or a high-tech video doorbell.
In this comprehensive guide, you’ll learn exactly how to check your doorbell voltage safely and accurately. We’ll walk you through the tools you need, where to find your doorbell components, how to use a multimeter, and what the readings mean. You’ll also discover common causes of low voltage and how to fix them. By the end, you’ll be able to diagnose power issues like a pro and keep your doorbell working reliably year-round.
Why Doorbell Voltage Matters
Your doorbell runs on low-voltage electricity, typically supplied by a transformer that steps down your home’s 120V AC power to a safer 8–24V range. This low voltage is enough to power the chime mechanism or smart doorbell but safe to handle with basic precautions. However, if the voltage is too low, your doorbell may not function properly. Too high, and you risk damaging sensitive electronics—especially in modern smart doorbells.

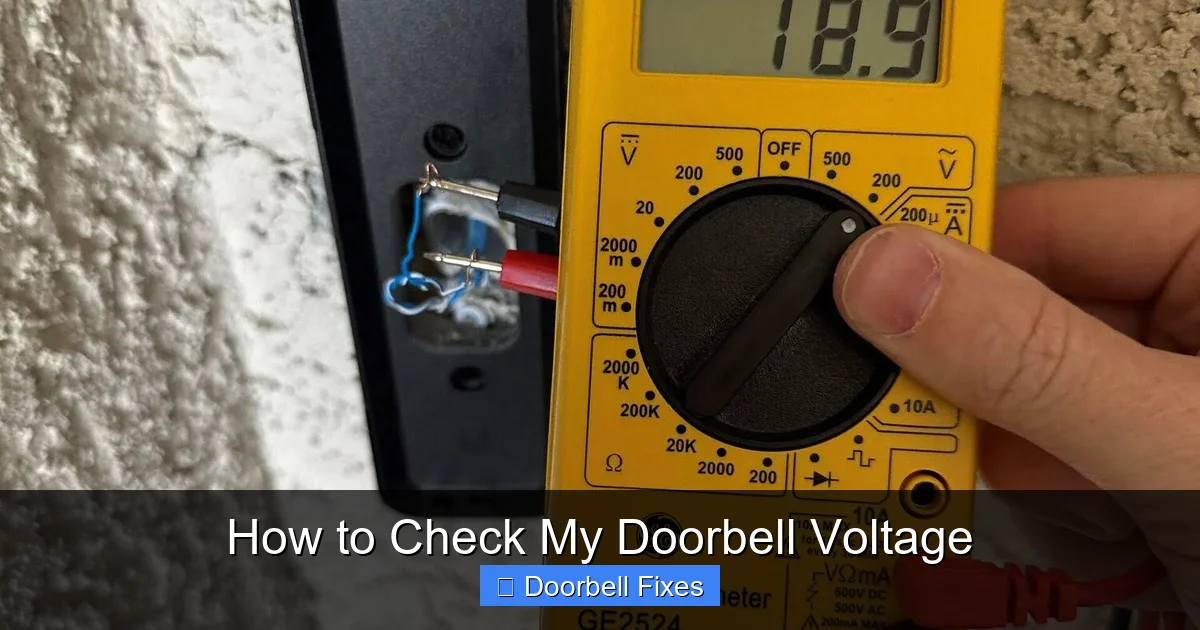

Visual guide about How to Check My Doorbell Voltage
Image source: storables.com
For example, a Ring or Nest doorbell usually requires at least 16 volts to operate reliably. If your transformer only outputs 12V, the device may fail to charge its battery or drop offline frequently. Similarly, an old mechanical chime might not strike clearly if voltage dips below 8V. That’s why checking your doorbell voltage is the first step in diagnosing any performance issue.
Beyond functionality, voltage checks help ensure safety. Frayed wires, loose connections, or a failing transformer can cause overheating or short circuits. Regular voltage testing lets you catch these problems early before they become hazards.
Tools You’ll Need
Before you begin, gather the right tools. Don’t worry—you probably already have most of them at home. Here’s what you’ll need:
- Digital multimeter: This is the most important tool. It measures voltage, current, and resistance. Look for one with an AC voltage setting (usually labeled “V~” or “VAC”). A basic model costs under $20 and is worth every penny.
- Screwdriver: A flathead or Phillips, depending on your doorbell button and chime cover.
- Insulated gloves (optional but recommended): For added safety when handling wires.
- Flashlight: To see inside junction boxes or dark areas where the transformer might be hidden.
- Electrical tape: In case you need to temporarily insulate exposed wires.
You don’t need to be an electrician to use these tools. With a little care and attention, anyone can safely check their doorbell voltage.
Step 1: Turn Off the Power (Safety First!)
Even though doorbell systems use low voltage, it’s still connected to your home’s main electrical circuit through the transformer. To avoid any risk of shock or accidental damage, always turn off the power at the breaker before working on your doorbell.
Locate Your Electrical Panel
Find your home’s main electrical panel (also called the breaker box). It’s usually in the basement, garage, or utility closet. Open the panel door and look for a breaker labeled “Doorbell,” “Chime,” or something similar. If there’s no label, you may need to test breakers one by one—but don’t worry, we’ll cover that below.
Turn Off the Correct Breaker
Switch the doorbell breaker to the “OFF” position. If you’re unsure which breaker controls the doorbell, turn off the main breaker temporarily. This cuts power to the entire house, so only do this if necessary and make sure you have light elsewhere (like a flashlight).
Verify Power Is Off
Press your doorbell button. If the chime doesn’t ring, power is likely off. For extra certainty, use your multimeter to test the terminals on the doorbell button (we’ll show you how shortly). If you read 0V, you’re safe to proceed.
Pro Tip: Place a sticky note on the breaker panel reminding others not to turn the power back on while you’re working.
Step 2: Locate Your Doorbell Components
Most wired doorbell systems have three main parts: the button (at the front door), the chime unit (inside the house), and the transformer (hidden somewhere in the walls or attic). To check voltage, you’ll need access to at least two of these.
Find the Doorbell Button
The button is usually mounted next to your front door. Use a screwdriver to remove the cover. You’ll see two small wires connected to terminals. These carry the low-voltage signal from the transformer to the chime.
Locate the Chime Unit
The chime is typically inside your home, often near the front door or in a hallway. It’s a rectangular box with wires coming in. Remove the cover to expose the wiring terminals. Labeled “Front,” “Trans,” and sometimes “Rear” or “Transformer,” these terminals connect to the button and transformer.
Find the Transformer
This is the trickiest part. The transformer steps down 120V to 8–24V and is usually tucked away in a junction box, attic, basement, or even inside the chime unit itself. Common locations include:
- Inside the electrical panel (mounted on a knockout)
- Behind the chime unit
- In a closet near the front door
- In the attic or crawlspace
Look for a small black or gray box with two wires coming out and a plug or wire leading to the mains. If you can’t find it, don’t panic—you can still test voltage at the chime or button.
Step 3: Set Up Your Multimeter
Now it’s time to use your multimeter. Don’t be intimidated—it’s easier than it looks.
Choose the Right Setting
Turn the dial to the AC voltage setting. It’s usually marked “V~” or “VAC.” If your multimeter has multiple AC ranges (like 20V, 200V, etc.), start with the highest range (e.g., 200V or 600V) to avoid overload. You can adjust down later if needed.
Insert the Probes
Plug the black probe into the “COM” port and the red probe into the “VΩmA” port (or similar). These are standard on most meters.
Test the Multimeter (Optional but Smart)
Before measuring your doorbell, test the multimeter on a known voltage source—like a household outlet. Set the meter to 120V AC, touch the probes to the outlet slots, and confirm it reads around 120V. This ensures your meter is working correctly.
Step 4: Measure Voltage at the Doorbell Button
This is the easiest and safest place to check voltage, especially if you can’t locate the transformer.
Remove the Button Cover
Unscrew the doorbell button from the wall. Be gentle—the wires are thin and can break easily.
Touch the Probes to the Terminals
With the power back on (yes, turn it back on now!), touch the multimeter probes to the two screw terminals on the back of the button. It doesn’t matter which probe goes where—AC voltage has no polarity.
Read the Display
The multimeter will show a voltage reading. Most traditional doorbells should read between 12V and 24V AC. If you see 0V, the transformer may be dead or the wiring disconnected. If it’s below 8V, your doorbell may not work reliably.
Example: If your smart doorbell requires 16V but you’re only getting 10V, that explains why it keeps going offline.
Step 5: Measure Voltage at the Chime Unit
Testing at the chime gives you a more accurate picture of the voltage reaching the device, especially under load.
Remove the Chime Cover
Unscrew the front panel of the chime unit. You’ll see terminals labeled “Front” (for the front door button) and “Trans” (for the transformer).
Test Across the “Trans” Terminals
Touch one probe to the “Trans” terminal and the other to the common (usually the metal frame or ground). This measures the voltage supplied by the transformer.
Test Under Load (Press the Button)
While the probes are in place, have someone press the doorbell button. Watch the multimeter reading. Voltage may drop slightly when the circuit is active—this is normal. But if it drops dramatically (e.g., from 20V to 5V), you likely have a wiring issue or an overloaded transformer.
Pro Tip: A significant voltage drop under load indicates resistance in the wires—possibly due to corrosion, loose connections, or undersized wiring.
Step 6: Test the Transformer Directly (If Accessible)
If you’ve located the transformer, testing it directly gives the most accurate reading of its output.
Identify the Low-Voltage Wires
The transformer has two sets of wires: high-voltage (120V) connected to the mains, and low-voltage (8–24V) going to the doorbell. You’ll test the low-voltage side.
Touch Probes to the Output Terminals
With power on, touch the multimeter probes to the two low-voltage terminals. Again, polarity doesn’t matter for AC.
Compare to Label
Check the transformer’s label—it should specify the output voltage (e.g., “16V AC”). Your reading should be close. A reading 10–20% lower is acceptable due to line loss, but anything below that suggests a problem.
Example: A 16V transformer reading 12V might still work for a basic chime but fail a smart doorbell.
Interpreting Your Voltage Readings
Now that you’ve measured the voltage, what does it mean?
- 8–12V AC: May work for simple mechanical chimes but often insufficient for smart doorbells. Consider upgrading the transformer.
- 12–16V AC: Adequate for most traditional doorbells. Some smart doorbells may struggle.
- 16–24V AC: Ideal range. Supports both classic chimes and modern smart doorbells.
- Above 24V AC: Uncommon and potentially dangerous. Could damage electronics. Check transformer rating.
- 0V or fluctuating readings: Indicates a dead transformer, broken wire, or loose connection.
Remember: Voltage can vary slightly based on household load and wiring length. A reading within 10% of the expected value is generally acceptable.
Troubleshooting Common Voltage Issues
If your voltage is low or inconsistent, here’s how to fix it.
Problem: No Voltage (0V Reading)
Possible Causes:
- Transformer is dead
- Breaker is tripped or off
- Wire is disconnected or broken
Solutions:
- Check the breaker and reset if needed.
- Trace wires from button to chime to transformer. Look for loose connections.
- Replace the transformer if it’s old or damaged.
Problem: Low Voltage (Below 12V)
Possible Causes:
- Undersized transformer
- Long wire runs causing voltage drop
- Corroded or loose terminals
Solutions:
- Upgrade to a higher-voltage transformer (e.g., 24V).
- Use thicker gauge wire (18 AWG or lower) for long runs.
- Clean terminals with sandpaper and tighten connections.
Problem: Voltage Drops When Button Is Pressed
Possible Causes:
- High resistance in wiring
- Transformer overloaded by multiple chimes
- Faulty doorbell button
Solutions:
- Inspect and replace damaged wires.
- Install a dedicated transformer for smart doorbells.
- Replace the doorbell button if it’s worn out.
Upgrading Your Doorbell Transformer
If your voltage is consistently low, upgrading the transformer is often the best fix—especially if you’re installing a smart doorbell.
Choose the Right Transformer
Look for a transformer rated for 16V or 24V AC with at least 10–20 VA (volt-amperes). For example:
- 16V, 10VA: Good for basic chimes
- 16V, 30VA: Ideal for most smart doorbells
- 24V, 20VA: Best for long wire runs or multiple chimes
Avoid cheap, underpowered models—they fail quickly.
Install the New Transformer
Turn off power at the breaker. Disconnect the old transformer, noting wire positions. Connect the new one in the same way. Secure it in a junction box or mount it safely. Turn power back on and test voltage.
Safety Note: If you’re not comfortable working inside electrical panels, hire a licensed electrician.
Maintaining Your Doorbell System
Once your voltage is correct, keep it that way with regular maintenance.
- Test voltage annually: Especially before winter, when heating systems can affect electrical load.
- Clean terminals: Use a small brush or compressed air to remove dust and corrosion.
- Check wires: Look for fraying, cracking, or loose connections.
- Replace old components: Transformers last 10–15 years. Buttons and chimes wear out over time.
A well-maintained doorbell system lasts decades and performs reliably in all conditions.
Conclusion
Learning how to check your doorbell voltage is a simple but powerful skill that every homeowner should have. It helps you diagnose problems quickly, avoid unnecessary replacements, and ensure your doorbell—whether classic or smart—works when you need it most. With just a multimeter and a few basic tools, you can measure voltage safely, interpret the results, and take action to fix issues like low power, wiring faults, or transformer failure.
Remember: Safety comes first. Always turn off the power, use insulated tools, and double-check your connections. If you’re ever unsure, consult a professional. But in most cases, a little DIY know-how goes a long way. So the next time your doorbell acts up, don’t panic—just grab your multimeter and check the voltage. You might be surprised how often that one simple step solves the whole problem.
