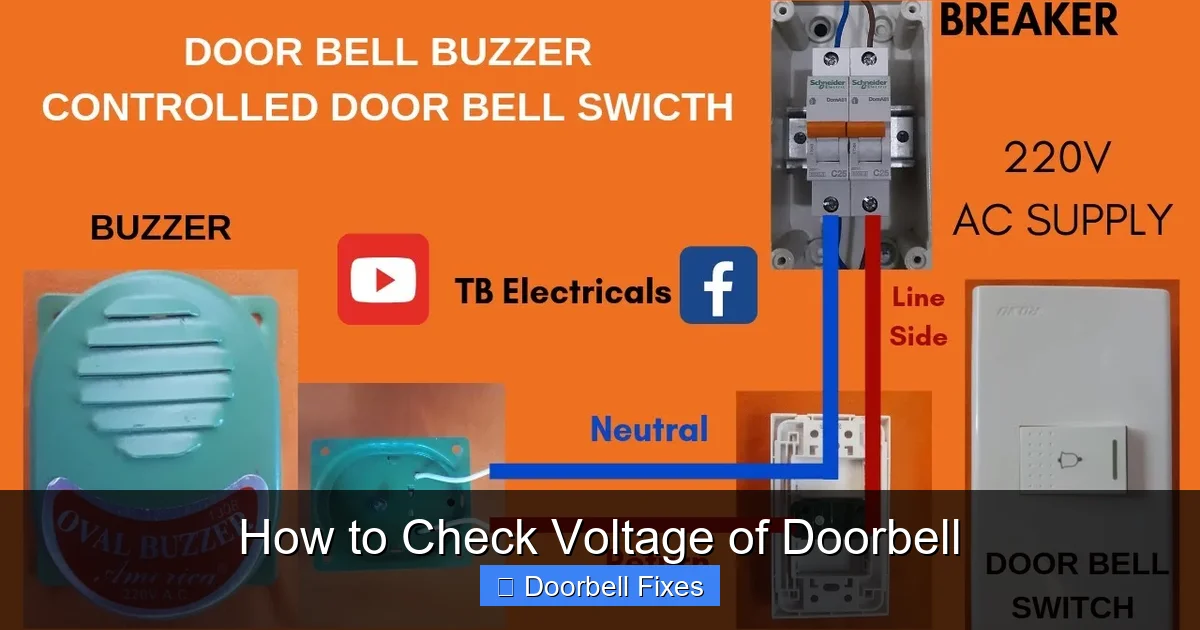

How to Check Voltage of Doorbell

Checking the voltage of your doorbell is a simple yet essential task for diagnosing power-related issues. This guide walks you through the process safely using a multimeter, helping you determine if your doorbell is receiving the correct voltage to function properly.

Key Takeaways

• Safety first: Always turn off power at the breaker before working on electrical components to avoid shocks or damage.
• Use a multimeter: A digital multimeter is the most accurate tool for measuring doorbell voltage—learn how to set it correctly.
• Standard voltage range: Most doorbells operate on 8–24 volts AC; anything outside this range may indicate a wiring or transformer issue.
• Test at the chime and transformer: Check voltage at both the doorbell button and the transformer to isolate the problem.
• Interpret readings correctly: Understand what low, high, or zero voltage means for your doorbell’s performance.
• Replace faulty parts: If voltage is correct but the doorbell still doesn’t work, the issue may be with the button, chime, or wiring.
• When to call a pro: If you’re unsure about electrical work or find complex wiring issues, consult a licensed electrician.

How to Check Voltage of Doorbell: A Complete Step-by-Step Guide

Is your doorbell acting up? Maybe it’s not ringing, the sound is weak, or it only works intermittently. Before you assume the worst—like a broken chime or faulty button—there’s a simple diagnostic step you can take: check the voltage of your doorbell. This often-overlooked task can save you time, money, and frustration by pinpointing whether the issue is electrical or mechanical.

In this comprehensive guide, you’ll learn exactly how to check voltage of doorbell safely and accurately. Whether you’re a DIY enthusiast or a homeowner tackling your first repair, we’ll walk you through every step—from gathering tools to interpreting your multimeter readings. By the end, you’ll know whether your doorbell is getting the power it needs to function properly.

We’ll cover everything: understanding doorbell voltage basics, using a multimeter, testing at different points in the system, troubleshooting common issues, and knowing when it’s time to call in a professional. Let’s get started!

Understanding Doorbell Voltage Basics

Before diving into the testing process, it’s important to understand how doorbell systems work and what voltage they typically use. Most residential doorbells are low-voltage devices, meaning they operate on a safe, reduced electrical current—usually between 8 and 24 volts AC (alternating current). This is much lower than the 120 volts used by standard household outlets, making doorbells relatively safe to work on—but still requiring caution.

The power for your doorbell comes from a small transformer, which steps down the household voltage from 120V to the lower voltage needed. This transformer is usually located near your main electrical panel, in the basement, attic, or garage. From there, low-voltage wires run to the doorbell button outside and to the chime unit inside your home.

When someone presses the doorbell button, it completes the circuit, sending power to the chime and causing it to ring. If the voltage is too low, the chime may not activate. If it’s too high, it could damage the components. That’s why checking the voltage is a critical first step in troubleshooting.

Common voltage-related issues include:

• Low voltage: Causes weak or no ringing. Could be due to a failing transformer, long wire runs, or corroded connections.
• No voltage: Indicates a complete power loss—possibly a blown fuse, tripped breaker, or disconnected wire.
• High voltage: Rare, but can damage the chime or button. Usually points to a faulty transformer.

Now that you know what to look for, let’s gather the tools you’ll need.

Tools and Materials You’ll Need

Checking doorbell voltage doesn’t require a lot of specialized equipment, but you do need a few key items to do it safely and accurately. Here’s what to gather before you begin:

Essential Tools

• Digital multimeter: This is the most important tool. It measures voltage, current, and resistance. Make sure it’s set to AC voltage (usually marked as “V~” or “VAC”).
• Insulated screwdrivers: For removing covers and accessing terminals.
• Needle-nose pliers: Helpful for handling small wires.
• Electrical tape: For securing loose wires temporarily.
• Flashlight: To see inside dark electrical panels or behind chime units.

Safety Gear

• Safety glasses: Protect your eyes from dust or debris.
• Rubber-soled shoes: Reduce the risk of electric shock.
• Non-conductive gloves (optional): Extra protection when working near live circuits.

Optional but Helpful

• Voltage tester pen: A quick way to check if power is present before using the multimeter.
• Labeling tape: To mark wires if you disconnect them.
• Smartphone or camera: Take photos of wiring before disconnecting to help with reassembly.

Once you’ve gathered your tools, it’s time to prepare for the test.

Step 1: Turn Off Power (Safety First!)

Even though doorbells use low voltage, it’s still connected to your home’s main electrical system via the transformer. To avoid any risk of shock or short-circuiting, always turn off the power before working on electrical components.

Locate the Circuit Breaker

Go to your main electrical panel (breaker box). Look for the breaker labeled “Doorbell,” “Transformer,” or “Low Voltage.” If there’s no label, you may need to test breakers one by one—turn each off briefly and check if the doorbell stops working.

Turn Off the Breaker

Switch the correct breaker to the “OFF” position. For extra safety, use a voltage tester pen to confirm that power is off at the transformer or chime unit.

Post a Warning Sign

Place a note on the breaker box saying “DO NOT TURN ON – WORK IN PROGRESS” to prevent someone else from restoring power while you’re working.

Now that the power is off, you can safely access the doorbell components.

Step 2: Access the Doorbell Button

The doorbell button is the first point where you can test voltage. It’s usually mounted near your front door and connected to the low-voltage wires running from the transformer.

Remove the Button Cover

Use a screwdriver to carefully remove the screws holding the doorbell button in place. Gently pull the button away from the wall. You’ll see two small wires connected to the back—these are the low-voltage leads.

Label the Wires (Optional but Recommended)

If you’re unsure which wire goes where, label them with tape (e.g., “Wire A” and “Wire B”) or take a photo before disconnecting. Most doorbell buttons aren’t polarized, so the wires can usually be swapped, but labeling helps avoid confusion.

Disconnect the Wires

Loosen the terminal screws or release the wire connectors to free the wires. Be gentle—these wires are thin and can break easily.

Now you’re ready to test the voltage at the button.

Step 3: Set Up Your Multimeter

A multimeter is essential for measuring voltage. Here’s how to set it up correctly:

Choose the Right Setting

Turn the multimeter dial to the AC voltage setting. This is usually marked with a “V~” or “VAC” symbol. If your multimeter has multiple voltage ranges (e.g., 20V, 200V), start with the highest range (like 200V) to avoid overload.

Insert the Probes

Plug the black probe into the “COM” (common) port and the red probe into the “VΩ” or “V” port (for voltage and resistance).

Test the Multimeter (Optional but Smart)

To ensure your multimeter is working, touch the probes together—you should see a reading close to 0V. Then test it on a known live circuit (like a lamp) to confirm it’s measuring correctly.

Now you’re ready to take a voltage reading.

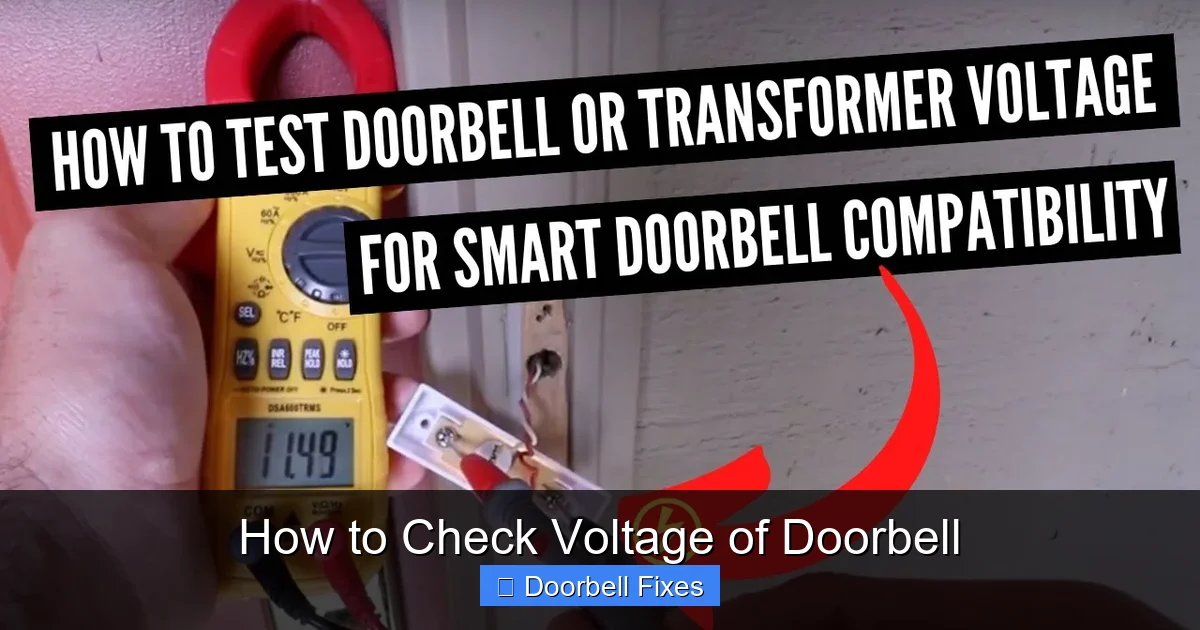

Step 4: Test Voltage at the Doorbell Button

With the power back on (yes, turn the breaker back on for this step!), you’ll measure the voltage at the doorbell button terminals.

Reconnect Power

Go back to the breaker box and turn the doorbell circuit back on. This will restore power to the transformer and allow voltage to flow to the button.

Touch the Probes to the Terminals

Touch the black probe to one terminal and the red probe to the other. It doesn’t matter which probe goes where—since it’s AC voltage, polarity isn’t an issue.

Read the Display

The multimeter will show a voltage reading. For most doorbells, you should see a value between 8 and 24 volts AC. If the reading is:

• Within range (e.g., 12V, 16V, 24V): The button is receiving proper voltage. The issue may be with the button itself or the chime.
• Below 8V: Indicates low voltage—possibly a weak transformer, long wire run, or poor connection.
• 0V or very low: Suggests no power is reaching the button—check the transformer or wiring.
• Above 24V: Could mean a faulty transformer putting out too much voltage.

Record the reading and turn the power back off before moving to the next step.

Step 5: Test Voltage at the Transformer

If the voltage at the button is low or zero, the next step is to test the transformer—the source of power for your doorbell.

Locate the Transformer

The transformer is usually mounted near your electrical panel, in the basement, attic, or garage. It’s a small metal box with wires coming in and out. It may be labeled “Doorbell Transformer” or have a rating like “16V 10VA.”

Access the Transformer Terminals

Remove the cover (if any) to expose the terminals. You’ll see two sets of wires: one connected to the household power (120V) and one to the doorbell circuit (low voltage).

Test the Low-Voltage Output

With the power on, set your multimeter to AC voltage and touch the probes to the two low-voltage terminals (usually labeled “Common” and “Doorbell” or just two screw terminals).

A healthy transformer should output between 8 and 24 volts AC. If the reading is significantly lower or zero, the transformer may be failing and needs replacement.

Check the Input Voltage (Optional)

For advanced users: you can also test the input side (120V) to ensure power is reaching the transformer. Only do this if you’re comfortable working with high voltage. Use extreme caution and consider calling an electrician if unsure.

Turn the power off again before proceeding.

Step 6: Test Voltage at the Chime Unit

The chime unit is where the doorbell sound is produced. Testing voltage here helps determine if power is reaching the chime.

Remove the Chime Cover

Unscrew and remove the front cover of the chime unit, usually located in a hallway or entryway. Inside, you’ll see wiring connected to terminals labeled “Front,” “Trans,” and sometimes “Rear” (for a second button).

Identify the Wires

The “Trans” terminal connects to the transformer. The “Front” terminal connects to the front door button. If you have a rear doorbell, it will connect to the “Rear” terminal.

Test Voltage Across Terminals

With the power on, touch the multimeter probes to the “Trans” and “Front” terminals. You should see a voltage reading similar to what you measured at the button.

If the voltage is correct at the transformer but low or zero at the chime, there may be a break or loose connection in the wiring between them.

Interpreting Your Voltage Readings

Now that you’ve tested voltage at multiple points, it’s time to make sense of the results. Here’s what different readings mean:

Normal Voltage (8–24V AC)

If voltage is within range at the transformer, button, and chime, the electrical system is working. The problem likely lies with the doorbell button (stuck or corroded) or the chime unit (mechanical failure). Try cleaning the button contacts or replacing the chime.

Low Voltage (Below 8V)

Low voltage can cause weak or inconsistent ringing. Causes include:

• A failing transformer
• Long wire runs with thin gauge wire (causing voltage drop)
• Corroded or loose connections
• Multiple doorbells on one transformer (overloading it)

Solution: Replace the transformer with a higher-rated one (e.g., 16V 30VA), upgrade to thicker wire (18-gauge), or clean connections.

No Voltage (0V)

No voltage means power isn’t reaching the component. Check:

• Is the breaker on?
• Is the transformer receiving 120V input?
• Are wires disconnected or broken?
• Is there a blown fuse in the transformer?

Solution: Reconnect wires, replace the transformer, or call an electrician if the issue is in the main wiring.

High Voltage (Above 24V)

Uncommon, but dangerous. Can damage the chime or button. Usually caused by a faulty transformer. Replace it immediately.

Troubleshooting Common Doorbell Issues

Even with correct voltage, doorbells can malfunction. Here are common problems and fixes:

Doorbell Doesn’t Ring at All

• Check voltage (as above).
• Test the button: Press it while listening for a click. If no click, the button may be stuck or broken.
• Inspect the chime: Open it and look for loose wires or burnt components.
• Replace the button or chime if necessary.

Doorbell Rings Weakly or Intermittently

• Low voltage is the usual culprit.
• Clean the button contacts with sandpaper or contact cleaner.
• Check for loose wire connections at the transformer, button, and chime.
• Ensure the transformer is rated for your system (e.g., 16V for most standard doorbells).

Doorbell Rings on Its Own (Phantom Ringing)

• Moisture in the button (common in rainy climates)—replace with a weatherproof model.
• Loose wiring causing intermittent contact.
• Faulty chime mechanism—replace the chime unit.

Only One Button Works (Multi-Door System)

• Test voltage at the non-working button.
• Check wiring to that button—may be disconnected or damaged.
• Ensure the chime has a “Rear” terminal and it’s properly connected.

When to Call a Professional

While checking doorbell voltage is a DIY-friendly task, some situations require expert help:

• You’re uncomfortable working with electricity.
• The transformer is hard to access or wired into the main panel.
• You suspect faulty household wiring or a tripping breaker.
• Multiple electrical issues are present (e.g., flickering lights, frequent breaker trips).
• You’re installing a new doorbell system or upgrading to a smart doorbell.

A licensed electrician can safely diagnose and repair complex issues, ensuring your home’s electrical system remains safe and up to code.

Conclusion

Learning how to check voltage of doorbell is a valuable skill that empowers you to troubleshoot and fix common doorbell problems without calling a technician. By following this guide, you’ve learned how to use a multimeter, test voltage at key points, interpret readings, and take action based on your findings.

Remember: safety comes first. Always turn off power before handling wires, and don’t hesitate to seek professional help if you’re unsure. With the right tools and knowledge, you can keep your doorbell working reliably for years to come.

Now go ahead—test that voltage and restore your doorbell to full working order!
