Checking your doorbell transformer is a simple yet essential task to keep your doorbell working properly. This guide walks you through locating, testing, and diagnosing transformer issues using basic tools and safety precautions.
Key Takeaways
- Know the basics: A doorbell transformer converts standard household voltage (120V) to low-voltage power (typically 16-24V) needed for your doorbell system.
- Safety first: Always turn off power at the breaker before handling electrical components to avoid shock or injury.
- Locate the transformer: It’s usually found in your basement, garage, utility closet, or near your doorbell chime unit.
- Use a multimeter: This tool is essential for testing voltage output and confirming if the transformer is functioning.
- Check wiring connections: Loose or corroded wires can mimic transformer failure—inspect them carefully.
- Replace if necessary: If the transformer reads 0V or significantly below rated output, it likely needs replacement.
- Test after repair: Always restore power and test the doorbell to ensure the fix worked.
How to Check Your Doorbell Transformer: A Complete Step-by-Step Guide
If your doorbell isn’t working—no chime, weak sound, or intermittent ringing—the culprit might be a faulty transformer. The doorbell transformer is a small but critical component that steps down your home’s standard 120-volt electrical current to a safer, lower voltage (usually 16 to 24 volts) that powers your doorbell system. Without a working transformer, your doorbell simply can’t function.
Don’t worry—you don’t need to be an electrician to check your doorbell transformer. With a few basic tools and some careful steps, you can diagnose the problem yourself. This guide will walk you through everything you need to know: from understanding what a doorbell transformer does, to locating it in your home, testing it with a multimeter, and deciding whether to repair or replace it.
By the end of this guide, you’ll be able to confidently check your doorbell transformer and restore your doorbell to full working order—safely and efficiently.
What Is a Doorbell Transformer?

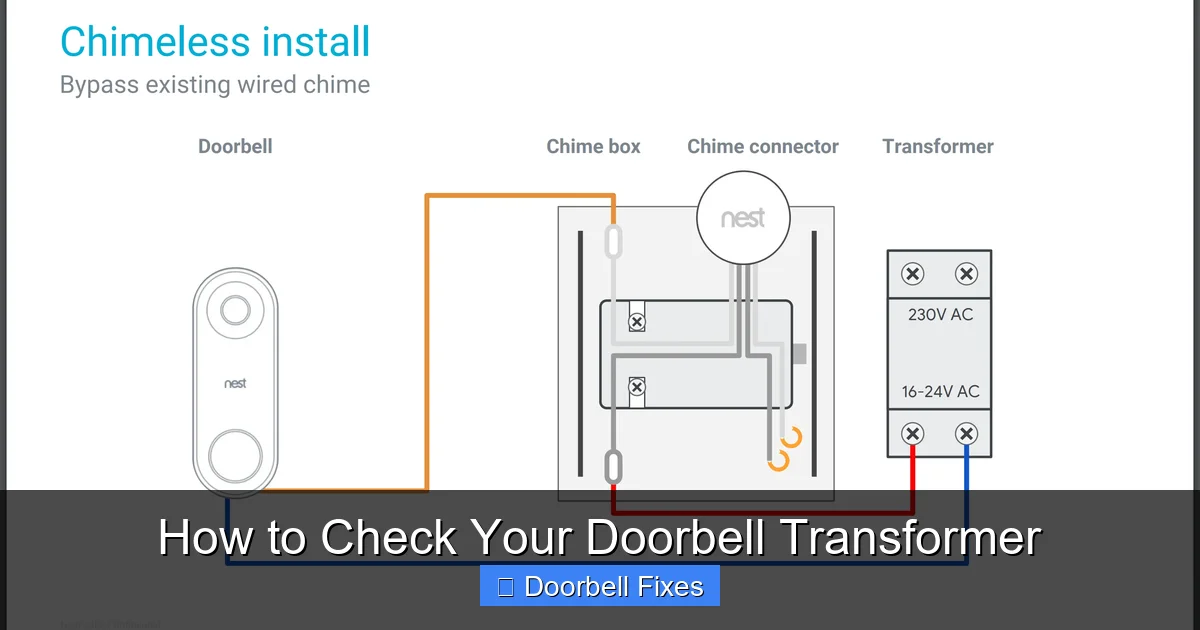

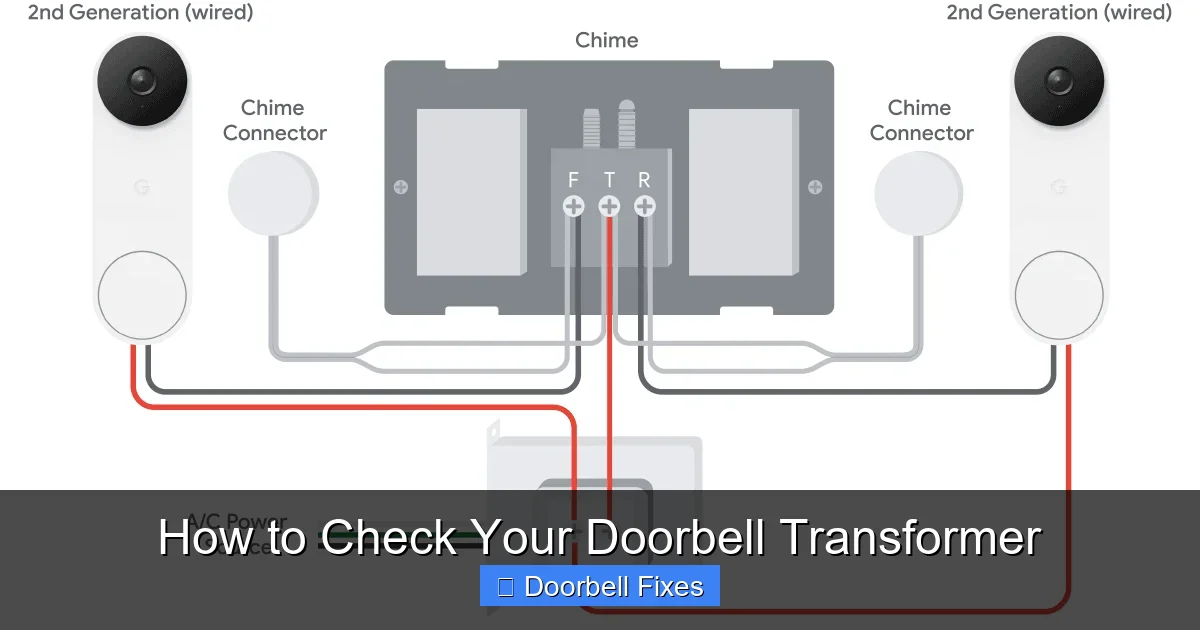

Visual guide about How to Check Your Doorbell Transformer
Image source: i1.wp.com
Before diving into the how-to, let’s quickly cover what a doorbell transformer actually is and why it matters.
The transformer is a small electrical device that converts high-voltage household electricity into low-voltage power suitable for your doorbell. Most homes in the U.S. use 120-volt AC power from the wall outlets, but doorbells typically operate on 16 to 24 volts. The transformer bridges this gap, ensuring your doorbell gets the right amount of power without risking damage or safety hazards.
Transformers are usually small, rectangular or cylindrical devices mounted on a junction box, electrical panel, or near the doorbell chime. They often have two wires leading out—one to the doorbell button and one to the chime unit.
Over time, transformers can fail due to age, overheating, power surges, or loose wiring. When they do, your doorbell may stop working entirely or behave erratically. That’s why knowing how to check your doorbell transformer is such a valuable skill.
Signs Your Doorbell Transformer Might Be Faulty
How do you know if the transformer is the problem? Here are some common symptoms:
- No sound at all: You press the button, but nothing happens—no chime, no buzz.
- Weak or distorted sound: The chime is faint, crackly, or cuts in and out.
- Intermittent operation: The doorbell works sometimes but not others.
- Burning smell near the chime or electrical panel: This could indicate an overheating transformer.
- Visible damage: Cracks, burn marks, or melted plastic on the transformer housing.
If you notice any of these signs, it’s time to check your doorbell transformer. But before you start, let’s go over the tools and safety steps you’ll need.
Tools and Safety Precautions
Safety is paramount when working with electricity. Even though doorbell systems use low voltage, the transformer is connected to your home’s main electrical supply, which can be dangerous if mishandled.
Tools You’ll Need
- Non-contact voltage tester: Helps confirm power is off before you touch anything.
- Digital multimeter: Essential for measuring voltage output from the transformer.
- Screwdriver (flathead and Phillips): For removing covers and accessing wiring.
- Flashlight: Many transformers are in dimly lit areas like basements or closets.
- Work gloves and safety glasses: Optional but recommended for added protection.
Safety First: Turn Off the Power
Before touching any wires or components, you must turn off the power to the doorbell circuit at your home’s main electrical panel (breaker box). Here’s how:
- Locate your breaker panel—usually in the basement, garage, or utility room.
- Look for a breaker labeled “doorbell,” “chime,” or “low voltage.” If there isn’t one, check the main lighting or outlet circuits, as the transformer may be tied to one of those.
- Flip the breaker to the “OFF” position.
- Use a non-contact voltage tester near the transformer and chime to confirm power is off. The tester should not beep or light up.
Pro Tip: If you’re unsure which breaker controls the doorbell, turn off the main breaker to be safe. It’s better to be overly cautious than risk electric shock.
Step 1: Locate Your Doorbell Transformer
The transformer is usually hidden from view, so finding it can be the trickiest part. Here are the most common locations:
- Near the doorbell chime: Open the chime unit (usually mounted on a wall inside your home). The transformer may be attached directly to the chime box or mounted nearby on a wall or junction box.
- In the basement or crawlspace: Look for a small black or gray box mounted on a junction box or electrical panel. It often has two wires coming out.
- In the attic: Less common, but possible—especially in older homes.
- Inside the electrical panel: Some transformers are mounted directly on the main breaker box.
- Behind the doorbell button: Rare, but in some setups, the transformer is integrated into the button housing (usually only in very old systems).
How to Identify It: The transformer will typically have labeling such as “16V,” “24V,” or “10VA” (volt-amperes). It may also have a manufacturer name like Nutone, Heath/Zenith, or Ring.
If you can’t find it after checking these spots, try tracing the wires from the doorbell button or chime. The transformer will be somewhere along that path.
Step 2: Access the Transformer Wiring
Once you’ve located the transformer, you’ll need to access its wiring to test it.
Remove the Cover or Access Panel
If the transformer is inside a junction box or mounted behind a plate, use a screwdriver to remove the cover. Be gentle—old plastic covers can crack easily.
Identify the Wires
You should see two sets of wires:
- Primary side (high voltage): These connect to your home’s 120V power supply. They’re usually black and white (or black and red) and are connected to the breaker circuit.
- Secondary side (low voltage): These are the two thin wires that run to the doorbell button and chime. They’re often labeled “T” or “Transformer” and may be red and white or just two unmarked wires.
Important: Even though the secondary side is low voltage, the primary side is still connected to 120V power. Never touch the primary wires unless the breaker is off and you’ve confirmed no voltage with a tester.
Step 3: Test the Transformer with a Multimeter
Now it’s time to check if the transformer is outputting the correct voltage.
Set Up Your Multimeter
- Turn on your digital multimeter.
- Set it to measure AC voltage (usually marked as “V~” or “ACV”).
- Set the range to 200V or higher. Most doorbell transformers output 16–24V, so 200V is a safe range.
Test the Secondary Side (Low Voltage Output)
- Touch the multimeter’s red probe to one of the low-voltage wires (from the transformer to the doorbell).
- Touch the black probe to the other low-voltage wire.
- Read the voltage on the multimeter display.
What to Look For:
- Normal reading: 16V to 24V (depending on your transformer rating). For example, a 16V transformer should read between 14V and 18V under load.
- Low or no voltage: 0V or significantly below the rated output (e.g., 5V on a 16V transformer) indicates a faulty transformer.
- Fluctuating reading: The voltage jumps around or drops when the doorbell is pressed—this suggests a weak or failing transformer.
Pro Tip: For a more accurate test, press the doorbell button while the multimeter is connected. The voltage may drop slightly under load, but it should remain within the expected range. If it drops to near zero, the transformer can’t handle the current demand.
Test the Primary Side (Optional, Advanced)
If you’re comfortable working with high voltage and have confirmed the breaker is off, you can also test the input side to ensure power is reaching the transformer.
- Set your multimeter to 200V AC or higher.
- Carefully touch the probes to the primary wires (usually black and white).
- Restore power briefly (only if safe) and check for 120V input.
Warning: This step involves live 120V electricity. If you’re not experienced, skip this and assume the input is correct unless you suspect a wiring issue.
Step 4: Inspect Wiring and Connections
Even if the transformer tests okay, faulty wiring can cause doorbell problems.
Check for Loose or Corroded Connections
- Look for wires that are loose, frayed, or disconnected.
- Check for greenish corrosion (especially in humid areas like basements).
- Ensure wire nuts or terminal screws are tight.
Test Continuity (Optional)
Use your multimeter’s continuity mode (usually a diode symbol) to check if the low-voltage circuit is complete:
- Disconnect the wires from the doorbell button.
- Touch one probe to each wire.
- If the multimeter beeps, the circuit is complete. If not, there’s a break in the wire (possibly underground or behind a wall).
This can help rule out wiring issues before replacing the transformer.
Step 5: Replace the Transformer (If Needed)
If your multimeter shows 0V or very low voltage, and wiring is intact, the transformer is likely dead and needs replacement.
Choose the Right Replacement
Match the voltage and power rating (VA) of your old transformer. Common options:
- 16V, 10VA – Standard for most wired doorbells.
- 16V, 15VA – For systems with multiple chimes or longer wire runs.
- 24V, 20VA – For high-end or smart doorbells.
You can find replacements at hardware stores, home centers, or online. Popular brands include Nutone, Heath/Zenith, and Ring.
Install the New Transformer
- Turn off the breaker again (safety first!).
- Disconnect the old transformer’s wires (note which goes where).
- Mount the new transformer in the same location.
- Connect the primary wires (120V) to the breaker circuit.
- Connect the secondary wires (low voltage) to the doorbell circuit.
- Secure all connections with wire nuts or terminal screws.
- Replace any covers or panels.
Pro Tip: Label the wires before disconnecting the old transformer to avoid confusion.
Troubleshooting Common Issues
Even after checking the transformer, your doorbell might still not work. Here are some additional things to check:
Doorbell Button Is Stuck or Faulty
A stuck button can keep the circuit closed, overheating the transformer or preventing the chime from resetting. Remove the button and test continuity with a multimeter. If it stays closed, replace it.
Chime Unit Is Defective
If the transformer and wiring are fine, the chime itself might be broken. Try connecting a known-working doorbell button directly to the transformer to see if it chimes.
Wire Damage or Breaks
Underground or in-wall wires can degrade over time. If you suspect a break, consider replacing the wire or upgrading to a wireless doorbell.
Power Surge Damage
Lightning or electrical surges can fry transformers. If you’ve had recent storms, the transformer may have been damaged even if it looks fine.
When to Call a Professional
While checking and replacing a doorbell transformer is a DIY-friendly task, there are times when it’s best to call an electrician:
- You can’t locate the transformer after thorough searching.
- You’re uncomfortable working with electrical panels or high-voltage wiring.
- The wiring appears damaged or outdated (e.g., cloth-covered wires).
- You suspect a larger electrical issue, like a faulty breaker or grounding problem.
- Your home has a complex doorbell system with multiple chimes or smart features.
Safety should always come first. If in doubt, hire a licensed electrician.
Conclusion
Checking your doorbell transformer is a straightforward process that can save you time and money. By understanding how the transformer works, knowing where to find it, and using a multimeter to test voltage, you can quickly diagnose and fix many common doorbell problems.
Remember: always turn off the power before working on electrical components, inspect wiring carefully, and replace the transformer if it’s not outputting the correct voltage. With these steps, you’ll keep your doorbell ringing reliably for years to come.
And if you’re ever unsure, don’t hesitate to consult a professional. A working doorbell isn’t just convenient—it’s also a key part of your home’s security and curb appeal.
