How to Connect 2 Nest Doorbells to One Chime

Connecting two Nest doorbells to a single chime lets you monitor multiple doors without extra hardware. This guide walks you through wiring, app setup, and troubleshooting to ensure both doorbells ring the same chime seamlessly.

Key Takeaways

• Use a compatible mechanical or digital chime: Not all chimes work with dual Nest doorbells—check compatibility first.
• Proper wiring is essential: Both doorbells must be wired correctly to share the same chime circuit without overloading it.
• Nest app setup streamlines the process: The Google Home or Nest app makes adding and managing multiple doorbells simple.
• Test each doorbell individually: Always test one at a time to isolate issues during installation.
• Power requirements matter: Ensure your transformer provides enough voltage (16–24V AC) for both units.
• Troubleshooting tips save time: Common issues like no ring or delayed alerts can often be fixed with simple checks.
• Professional help is optional but helpful: If wiring feels overwhelming, an electrician can ensure safe, code-compliant installation.

Introduction: Why Connect Two Nest Doorbells to One Chime?

If you have a large home, a front and back door, or a property with multiple entry points, you know how helpful it is to monitor who’s approaching from anywhere. Nest doorbells offer smart features like motion detection, live video streaming, and two-way audio—but what if you want alerts from two doors using just one indoor chime?

Connecting two Nest doorbells to a single chime is not only possible but also practical. It reduces clutter, saves on hardware costs, and gives you centralized notification control. Whether you’re using Nest Hello, Nest Doorbell (wired), or newer models, this setup lets both devices trigger the same chime when someone presses the button or triggers motion alerts (if your chime supports it).

In this guide, you’ll learn everything you need to safely and effectively connect two Nest doorbells to one chime. We’ll cover wiring basics, app configuration, power requirements, and troubleshooting tips—all in plain, easy-to-follow language. No electrical degree required!

What You’ll Need Before Starting

Before diving into installation, gather these tools and materials:

• Two Nest doorbells (wired models only—battery versions can’t be hardwired to a shared chime)
• A compatible indoor chime box (mechanical or digital; see compatibility notes below)
• Low-voltage doorbell transformer (16–24V AC, 10–40VA recommended)
• Wire strippers and screwdrivers
• Electrical tape or wire nuts
• Voltage tester (optional but recommended)
• Smartphone with the Google Home or Nest app installed
• Wi-Fi network with strong signal at both door locations

Pro Tip: If you’re unsure about your existing transformer’s specs, check the label inside your chime box or consult an electrician. Undersized transformers are a common cause of failure in multi-doorbell setups.

Understanding Chime Compatibility

Not every doorbell chime works with two Nest devices. Here’s what to look for:

Mechanical Chimes

Traditional mechanical chimes use solenoids to strike metal bars. Most Nest doorbells work well with these, but only if they support dual-stroke operation. Some older models may only ring once per press, which could cause confusion if both doorbells are pressed in quick succession.

Digital/ Electronic Chimes

These play recorded sounds and often support multiple tones. Many modern digital chimes (like the Nest Chime Connector or third-party options such as Ring Chime Pro) can differentiate between doorbells by playing unique sounds—but for a single shared chime, you’ll want one that rings the same tone for both.

Important: Avoid using chimes labeled “smart” or “Wi-Fi enabled” unless they explicitly support wired doorbell integration. Some only work with their brand’s ecosystem.

Nest Chime Connector (Optional but Helpful)

Google offers a Nest Chime Connector that plugs into your existing mechanical chime and enables smart features like custom tones and volume control via the app. While not required for basic dual-doorbell setups, it enhances functionality and simplifies wiring.

Step 1: Turn Off Power and Assess Your Current Setup

Safety first! Before touching any wires:

1. Go to your home’s main electrical panel.
2. Locate the circuit breaker for your doorbell (often labeled “Doorbell,” “HVAC,” or “Lighting”).
3. Turn it OFF.
4. Use a non-contact voltage tester at the chime box to confirm power is off.

Once safe, remove the cover of your indoor chime box. You should see:
– A transformer wire (usually red or black)
– Front door wire (often labeled “Front”)
– Rear/side door wire (labeled “Rear” or “Trans”)

If you only have one doorbell currently installed, you may only see two wires. That’s okay—we’ll add the second.

Step 2: Check Transformer Capacity

Your transformer must supply enough power for both doorbells. Nest recommends:

– Minimum: 16V AC, 10VA
– Ideal: 18–24V AC, 20–40VA

To calculate total load:
> Each Nest doorbell draws ~10–15VA under normal operation. Two units = ~20–30VA.

If your current transformer is rated below 20VA, consider upgrading. Overloading can cause weak rings, failed activations, or damage to the doorbells.

Example: If your label says “16V 10VA,” it’s insufficient. Replace it with a 24V 30VA transformer (available at hardware stores for ~$15–$25).

Step 3: Run Wiring to the Second Door

This is the most hands-on part. You’ll need to run low-voltage wire from your chime box to the second door location.

Option A: Existing Wiring

If you already have a second doorbell wired (even if unused), you can repurpose those wires. Label them clearly at both ends.

Option B: New Wire Installation

If no wire exists:
– Use 18/2 or 18/4 low-voltage doorbell wire.
– Route it through walls, attics, or basements—avoid sharp bends or pinching.
– Secure with staples or clips every 3–4 feet.
– Leave slack at both ends for connections.

Safety Note: Never run doorbell wire inside the same conduit as high-voltage lines. Keep it at least 6 inches away.

Once wired, strip ~½ inch of insulation from each wire end.

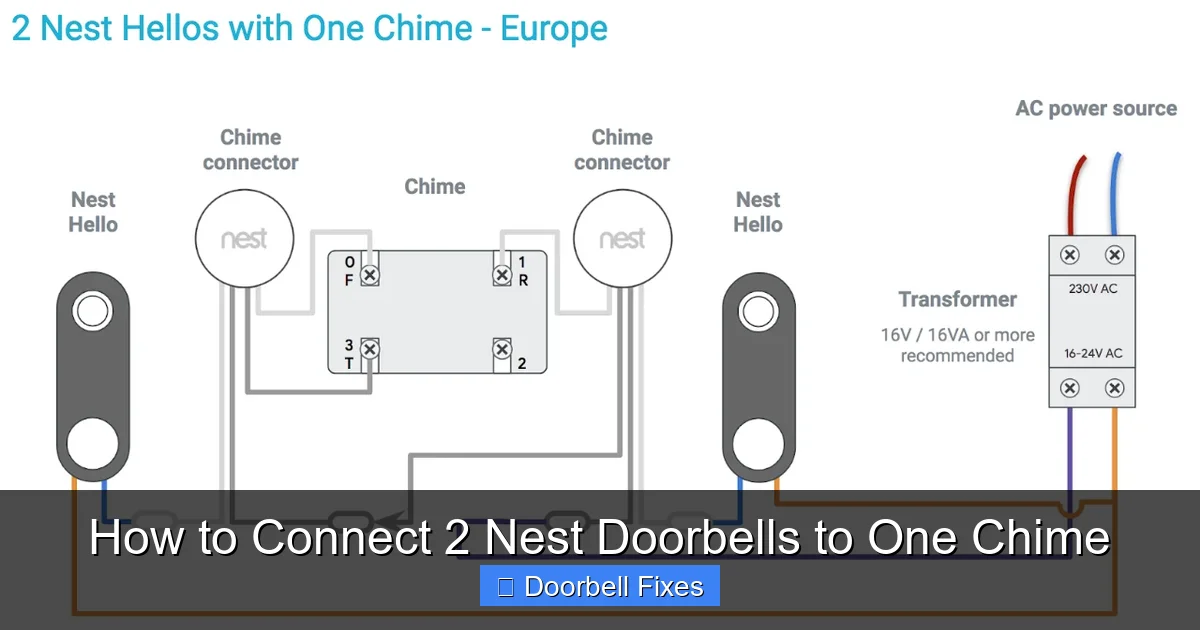

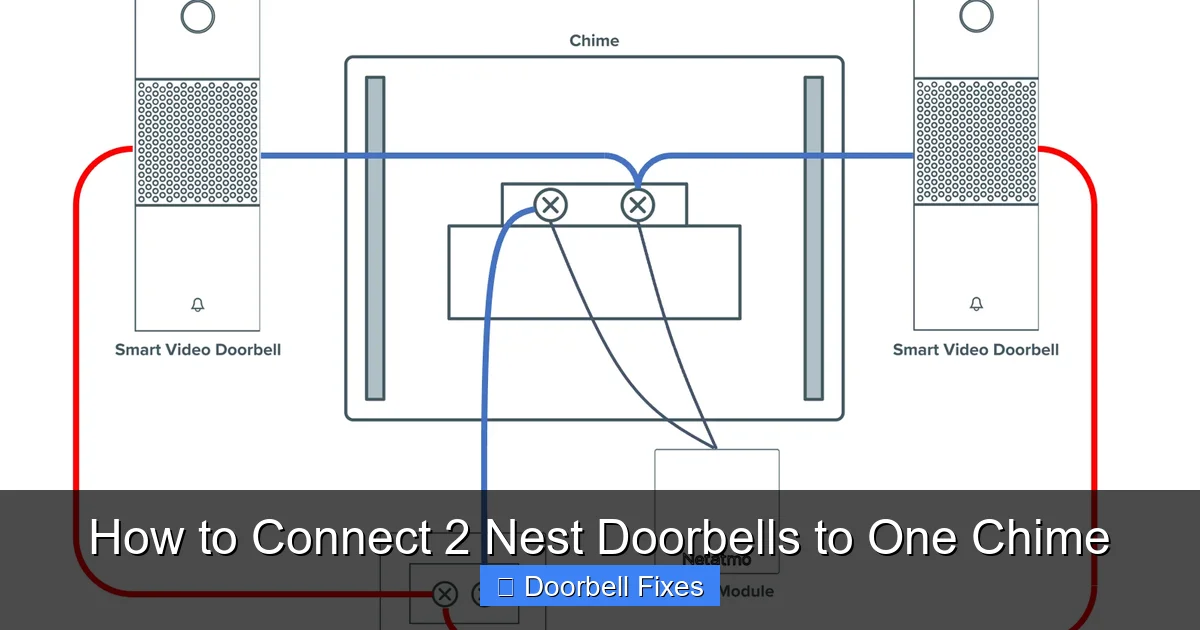

Step 4: Connect Wires at the Chime Box

Now, connect both doorbell circuits to the same chime terminals.

Most chime boxes have three terminals:
– “Front” – for primary doorbell
– “Rear” – for secondary doorbell
– “Trans” – connects to transformer

Here’s how to wire two Nest doorbells:

1. Connect the transformer wire to the “Trans” terminal.
2. Take the wire from Doorbell #1 and connect it to the “Front” terminal.
3. Take the wire from Doorbell #2 and connect it to the “Rear” terminal.

Why this works: Mechanical chimes are designed to ring when either terminal receives power. Both doorbells complete the circuit independently, triggering the same chime mechanism.

If your chime box has only two terminals (common in older homes), you can splice the two doorbell wires together using a wire nut and connect the bundle to the “Front” terminal. The “Rear” terminal remains unused.

Step 5: Install the Nest Doorbells

With wiring complete, mount each Nest doorbell:

At Each Door Location

1. Remove the old doorbell (if present).
2. Attach the Nest mounting bracket using the provided screws.
3. Connect the two wires to the Nest doorbell’s terminals (polarity doesn’t matter).
4. Snap the doorbell onto the bracket.
5. Secure with the anti-theft screw.

Tip: Angle the doorbell slightly toward the walkway for better motion detection.

Step 6: Set Up Both Doorbells in the App

Now it’s time to configure everything digitally.

Download and Open the App

Use the Google Home app (for newer Nest doorbells) or the Nest app (for older models like Nest Hello). Both are available on iOS and Android.

Add the First Doorbell

1. Tap “+” > “Set up device” > “New device.”
2. Scan the QR code on the back of the doorbell.
3. Follow prompts to connect to Wi-Fi, name the device (e.g., “Front Door”), and test the chime.

Add the Second Doorbell

Repeat the process:

1. Go back to “+” > “Set up device.”
2. Scan the second doorbell’s QR code.
3. Assign a distinct name (e.g., “Back Door”).
4. Complete setup and test.

Note: Both doorbells will now appear in your app. When either is pressed, the indoor chime should ring.

Step 7: Test the System

Don’t skip this step!

1. Press the front doorbell → chime should ring.
2. Press the back doorbell → same chime should ring.
3. Test motion alerts (walk in front of each camera).
4. Verify live view and two-way audio in the app.

If one doorbell doesn’t trigger the chime, double-check wiring at the chime box and doorbell terminals.

Troubleshooting Common Issues

Even with careful installation, problems can arise. Here’s how to fix the most common ones:

Chime Doesn’t Ring at All

– ✅ Confirm power is restored at the breaker.
– ✅ Test transformer voltage with a multimeter (should read 16–24V AC).
– ✅ Check wire connections—loose wires are the #1 culprit.
– ✅ Ensure both doorbells are receiving power (LED should glow when idle).

Only One Doorbell Rings

– ✅ Verify the non-working doorbell is properly wired to its terminal.
– ✅ Swap wires temporarily—if the problem follows the wire, the issue is at the doorbell or wiring. If it stays, the chime terminal may be faulty.

Chime Rings Weakly or Intermittently

– ✅ Likely a weak transformer—upgrade to 24V 30VA.
– ✅ Corroded or frayed wires? Replace them.
– ✅ Too much resistance in long wire runs? Use thicker gauge wire (16/2 instead of 18/2).

App Shows “Offline” or “Poor Connection”

– ✅ Check Wi-Fi signal strength at both doors (use a Wi-Fi analyzer app).
– ✅ Move your router or add a mesh extender near the weaker door.
– ✅ Restart the doorbell by removing it from the bracket for 10 seconds.

False Motion Alerts

– ✅ Adjust motion zones in the app to exclude trees, cars, or busy streets.
– ✅ Lower sensitivity settings during windy days.

Safety and Best Practices

Working with electricity—even low voltage—requires caution:

• Always turn off power before handling wires.
• Never work on live circuits.
• Use wire nuts or terminal screws—never leave bare wires exposed.
• Label all wires during disassembly to avoid confusion.
• If you’re uncomfortable with wiring, hire a licensed electrician. It’s a small cost for peace of mind and code compliance.

Additionally, follow Nest’s guidelines:
– Don’t daisy-chain more than two doorbells without verifying transformer capacity.
– Avoid using extension cords or adapters for power.
– Keep firmware updated via the app for optimal performance.

Alternative Solutions

If wiring two doorbells to one chime feels too complex, consider these alternatives:

Use Nest Chime Connector

Plug this into your existing mechanical chime. It enables app-based chime control and works with multiple doorbells without rewiring the chime box.

Go Wireless with Battery Doorbells + Chime Speaker

Nest Doorbell (battery) models don’t connect to physical chimes but can trigger Google Nest Speakers or Displays to announce visitors. Pair two battery doorbells with a Nest Hub Max or Nest Audio for voice alerts throughout your home.

Install Separate Chimes

Some homes use dual chime boxes—one for each door. While this avoids shared wiring, it means managing two sound sources.

Conclusion: Enjoy Smart Monitoring from Every Entry

Connecting two Nest doorbells to one chime is a smart, cost-effective way to enhance home security and convenience. By following this guide—from checking transformer capacity to testing the final setup—you’ve created a unified system that alerts you no matter which door someone approaches.

Remember: proper wiring, adequate power, and careful app configuration are the keys to success. And if you hit a snag, the troubleshooting section above will help you get back on track quickly.

With both doorbells active and your chime working reliably, you’ll never miss a delivery, guest, or unexpected visitor again. Welcome to the future of smart home entry—where two doors are better than one, but one chime is all you need.
