This guide walks you through every step of connecting your Nest Doorbell, from unboxing to live streaming. Whether you’re replacing an old doorbell or installing a new one, we’ll help you get it up and running fast with clear instructions and helpful tips.
Key Takeaways
- Check compatibility first: Not all homes support Nest Doorbells—verify your doorbell wiring and chime type before buying.
- Use the Google Home app: The official app guides you through setup, Wi-Fi connection, and device pairing.
- Ensure strong Wi-Fi signal: Place your router close to the door or use a Wi-Fi extender for reliable video streaming.
- Turn off power safely: Always shut off electricity at the breaker before removing your old doorbell.
- Test after installation: Confirm motion detection, live view, and notifications work properly once connected.
- Update firmware regularly: Keep your Nest Doorbell updated for the latest features and security patches.
- Use a transformer if needed: Low voltage? Install a compatible transformer to avoid power issues.
How to Connect a Nest Doorbell: A Complete Step-by-Step Guide
So, you’ve just unboxed your new Nest Doorbell—congratulations! Whether it’s the wired Nest Doorbell (battery or wired) or the newer Nest Doorbell (wired), getting it connected doesn’t have to be stressful. In this guide, we’ll walk you through the entire process, from checking your home’s compatibility to enjoying live video feeds and motion alerts.
By the end of this article, you’ll know exactly how to connect a Nest Doorbell, troubleshoot common issues, and keep it running smoothly. We’ll keep things simple, friendly, and practical—no tech jargon overload. Let’s get started!
What You’ll Need Before You Begin

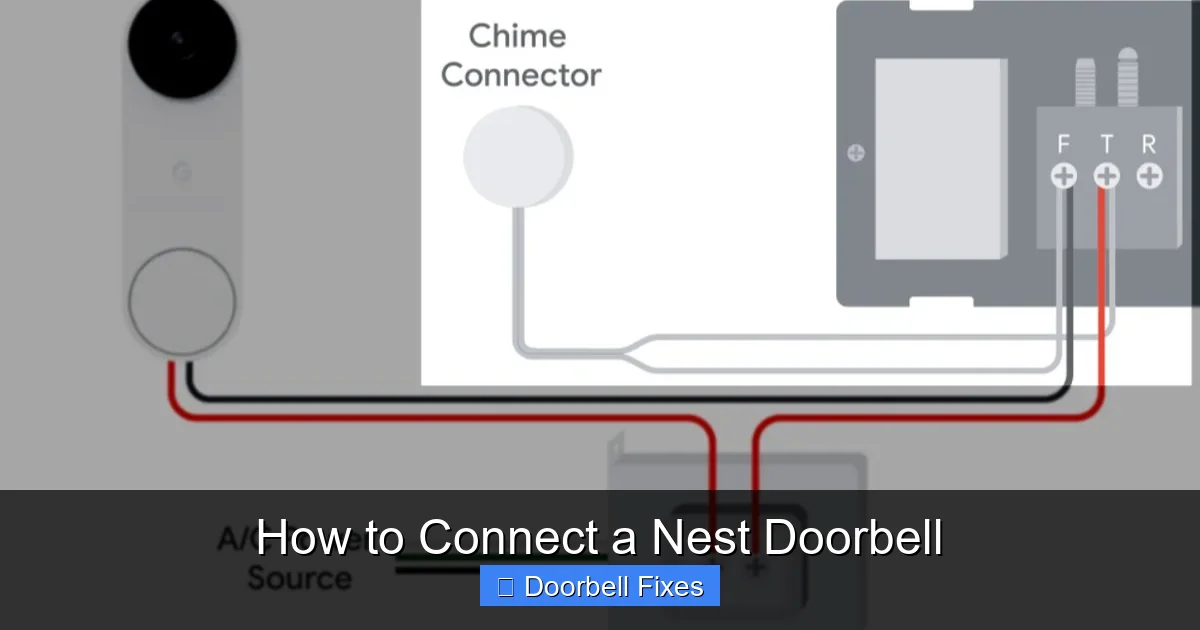

Visual guide about How to Connect a Nest Doorbell
Image source: techgenuinely.com
Before diving into the installation, make sure you have everything ready. Rushing in without the right tools or info can lead to frustration—or worse, a non-working doorbell.
Here’s your checklist:
- Nest Doorbell (wired or battery) – Make sure it’s the right model for your setup.
- Smartphone or tablet – With the Google Home app installed (iOS or Android).
- Wi-Fi network – 2.4 GHz or 5 GHz (Nest supports both, but 2.4 GHz is better for range).
- Screwdriver – Usually a Phillips head for mounting and wiring.
- Drill (optional) – Only if you need to make new holes for mounting.
- Wire strippers (for wired models) – To prepare existing doorbell wires.
- Voltage tester (recommended) – To confirm power is off before working.
- Compatible chime or transformer (if needed) – We’ll cover this in detail below.
Having these items ready will save you time and prevent mid-installation trips to the hardware store.
Step 1: Check Compatibility
Not every home is ready for a Nest Doorbell right out of the box. Before you start unscrewing anything, take a moment to check if your current setup supports it.
Wired vs. Battery Nest Doorbell
Google offers two main types:
- Nest Doorbell (battery): Runs on rechargeable batteries. Great for homes without existing doorbell wiring or if you prefer a cleaner look.
- Nest Doorbell (wired): Connects directly to your home’s doorbell wiring. Requires a constant power source and compatible chime.
If you’re unsure which one you have, check the box or product listing. The wired version usually comes with a connector cable and mounting plate designed for direct wiring.
Check Your Existing Doorbell Wiring
For wired Nest Doorbells, your home must have low-voltage doorbell wiring (typically 16–24 volts AC). Most older homes do, but newer builds or homes with smart chimes might use different systems.
To check:
- Turn off power at the breaker.
- Remove your old doorbell button.
- Look for two thin wires (usually white and red or black).
- Use a multimeter to test voltage between the wires. You should see 16V–24V AC.
If you don’t have wires or the voltage is too low, you may need to install a new transformer or consider the battery model.
Chime Compatibility
The Nest Doorbell (wired) works with most mechanical chimes (the kind that make a “ding-dong” sound). However, some digital or electronic chimes may not be compatible.
Google provides a compatibility checker on their support site. Enter your chime brand and model to confirm. If your chime isn’t compatible, you can either replace it or use the Nest Doorbell (battery) instead.
Step 2: Download the Google Home App
The Google Home app is your control center for all Nest devices. It’s free, user-friendly, and essential for setup.
Install the App
Go to the App Store (iOS) or Google Play Store (Android) and search for “Google Home.” Download and install it.
Sign In or Create a Google Account
You’ll need a Google account to use the app. If you don’t have one, create it during setup. Make sure you’re signed in before proceeding.
Enable Permissions
The app will ask for access to your location, camera, and microphone. Allow these so it can scan QR codes, detect your Wi-Fi network, and send notifications.
Step 3: Prepare Your Wi-Fi Network
A strong Wi-Fi connection is crucial for smooth video streaming and reliable alerts. Nest Doorbells need a stable internet connection to function properly.
Check Signal Strength
Stand near your front door with your phone and check the Wi-Fi signal. If it’s weak (one or two bars), consider:
- Moving your router closer to the door.
- Using a Wi-Fi extender or mesh network (like Google Nest Wi-Fi).
- Switching to the 2.4 GHz band (better range, though slower than 5 GHz).
Nest recommends a minimum download speed of 2 Mbps for HD video. You can test your speed using apps like Speedtest by Ookla.
Note Your Wi-Fi Details
Have your Wi-Fi network name (SSID) and password ready. The app will ask for these during setup. Avoid special characters in your password if possible—they can sometimes cause connection issues.
Step 4: Turn Off Power (For Wired Models)
Safety first! If you’re installing a wired Nest Doorbell, you must turn off the power to avoid electric shock.
Locate Your Breaker Box
Find your home’s electrical panel. Look for a breaker labeled “doorbell,” “chime,” or “front door.” If you can’t find it, turn off the main breaker to be safe.
Test the Power
After turning off the breaker, press your old doorbell button. If the chime doesn’t sound, the power is off. For extra safety, use a non-contact voltage tester on the wires to confirm no current is flowing.
Never skip this step—even low-voltage systems can be dangerous if mishandled.
Step 5: Remove Your Old Doorbell
Now it’s time to take down the old unit.
Unscrew the Faceplate
Use a screwdriver to remove the screws holding your current doorbell in place. Gently pull the button away from the wall.
Disconnect the Wires
You’ll see two wires connected to terminals. Loosen the screws and carefully pull the wires free. Don’t let them fall back into the wall—use electrical tape to secure them to the wall or a stick.
Cap the Wires (Optional)
If you’re not reusing the wires immediately, twist wire nuts onto the ends to prevent short circuits.
Step 6: Install the Nest Doorbell Mounting Plate
The Nest Doorbell comes with a mounting plate that holds the device securely.
Position the Plate
Hold the plate against the wall where you want the doorbell. Make sure it’s level and at a comfortable height (usually 48 inches from the ground).
Mark the Screw Holes
Use a pencil to mark where the screws will go. If the holes don’t align with your old doorbell, you may need to drill new ones.
Drill and Secure
Drill pilot holes if needed, then screw the plate into place using the provided screws. For brick or concrete walls, use wall anchors.
Connect the Wires (Wired Models Only)
If you’re installing a wired Nest Doorbell:
- Strip about 1/4 inch of insulation from each wire.
- Insert the wires into the connector clips on the back of the mounting plate.
- Push the connector into the plate until it clicks.
The Nest Doorbell (wired) uses a special connector that makes wiring foolproof—no need to match wire colors.
Step 7: Attach the Nest Doorbell
Now for the fun part—putting your new doorbell on the wall.
Align and Slide
Hold the Nest Doorbell so the pins on the back align with the slots on the mounting plate. Gently slide it down until it clicks into place.
Secure with Screw (Optional)
Some models include a security screw to prevent theft. If yours has one, use a screwdriver to tighten it at the bottom.
Step 8: Power On and Connect to Wi-Fi
With the doorbell mounted, it’s time to bring it to life.
Turn Power Back On (Wired Models)
Go back to your breaker box and turn the power back on. The Nest Doorbell should light up with a green or white ring.
Open the Google Home App
Launch the app and tap the “+” icon in the top-left corner. Select “Set up device” > “New device.”
Scan the QR Code
The app will ask to scan a QR code on the back of your doorbell or in the box. Point your phone’s camera at it. If it doesn’t scan, you can enter the code manually.
Follow the On-Screen Prompts
The app will guide you through:
- Connecting to your Wi-Fi network.
- Entering your password.
- Choosing a location (e.g., “Front Door”).
- Setting up motion and sound alerts.
Make sure your phone is connected to the same Wi-Fi network you want the doorbell to use.
Wait for Setup to Complete
The doorbell will download firmware updates and sync with your account. This can take 2–5 minutes. Don’t unplug or move the device during this time.
Step 9: Test Your Nest Doorbell
Once setup is complete, it’s time to test everything.
Check Live View
Open the Google Home app and tap your doorbell. You should see a live video feed. If the screen is black or says “offline,” check your Wi-Fi connection.
Test Motion Detection
Walk in front of the doorbell. You should receive a notification on your phone saying “Motion detected at Front Door.”
Ring the Doorbell
Press the button on the doorbell. Your phone should get a notification, and if you have a Nest Chime or compatible mechanical chime, it should ring.
Adjust Settings
In the app, go to your doorbell’s settings to customize:
- Motion zones (so it only alerts you for activity near the door).
- Notification frequency (instant, every 5 minutes, etc.).
- Video quality (HD, enhanced, etc.).
- Privacy settings (turn off recording when you’re home).
Troubleshooting Common Issues
Even with careful setup, problems can happen. Here’s how to fix the most common ones.
Doorbell Won’t Connect to Wi-Fi
- Make sure you’re using 2.4 GHz or 5 GHz (Nest supports both).
- Move your router closer or use a Wi-Fi extender.
- Restart your router and try again.
- Forget the network on your phone and reconnect.
No Power or Won’t Turn On (Wired Models)
- Double-check that the breaker is on.
- Test the voltage at the wires (should be 16V–24V AC).
- Ensure the connector is fully inserted into the mounting plate.
- If voltage is low, install a compatible transformer (16V–24V, 10–30VA).
Chime Doesn’t Ring
- Confirm your chime is compatible (check Google’s list).
- For mechanical chimes, make sure the wires are connected properly.
- If using a digital chime, consider switching to the battery model or replacing the chime.
Video is Laggy or Buffering
- Check your internet speed (need at least 2 Mbps).
- Reduce video quality in the app settings.
- Move your router or add a Wi-Fi extender.
- Ensure no other devices are hogging bandwidth.
Notifications Not Working
- Check app permissions (allow notifications).
- Make sure “Do Not Disturb” is off on your phone.
- Verify motion zones are set correctly.
- Restart the doorbell by removing and reattaching it.
Tips for Long-Term Success
Once your Nest Doorbell is working, keep it running smoothly with these tips:
- Update firmware regularly: The app will notify you when updates are available. Install them promptly for security and performance.
- Clean the lens monthly: Use a soft, dry cloth to wipe dust and smudges for clear video.
- Check battery (if applicable): The battery model lasts about 1–2 months. Charge it via USB when the app alerts you.
- Use Activity Zones: Set zones to ignore motion from streets or trees, reducing false alerts.
- Enable Familiar Face Alerts (if available): Let the doorbell recognize family and friends for personalized notifications.
Conclusion
Connecting a Nest Doorbell is easier than it looks—especially when you follow a clear, step-by-step plan. From checking compatibility to testing live video, each step ensures your smart doorbell works reliably and keeps your home secure.
Remember: safety first (turn off the power!), use the Google Home app, and don’t skip the Wi-Fi check. With a little patience, you’ll have a fully functional Nest Doorbell that alerts you to visitors, packages, and motion—all from your phone.
Whether you chose the wired or battery model, you’ve made a smart investment in home security. Now sit back, relax, and enjoy peace of mind knowing your front door is always in view.
