Connecting a wire to your Ring Doorbell ensures reliable power and better performance. This guide walks you through the entire process—from checking compatibility to securing the connection—so you can install your doorbell with confidence.
Key Takeaways
- Check compatibility first: Not all Ring Doorbells support hardwired installation. Verify your model before starting.
- Turn off power at the breaker: Safety is critical. Always shut off electricity to avoid shocks or damage.
- Use the right tools: A voltage tester, screwdriver, and wire strippers make the job easier and safer.
- Proper wire stripping matters: Expose just 1/4 inch of copper to ensure a solid connection without short circuits.
- Secure the transformer: Your doorbell transformer should supply 8–24V AC for optimal performance.
- Test before finalizing: Power up and test the doorbell before reassembling everything.
- Use the mounting bracket correctly: It holds the wires in place and prevents strain on the connections.
How to Connect a Wire to Ring Doorbell: A Complete Step-by-Step Guide
If you’re tired of constantly charging your Ring Doorbell or dealing with weak Wi-Fi signals due to low battery, hardwiring it might be the perfect solution. Connecting a wire to your Ring Doorbell gives it a constant power source, improves video quality, and reduces maintenance. Whether you’re replacing an old doorbell or installing a new one, this guide will walk you through the entire process—safely and effectively.
In this comprehensive how-to, you’ll learn how to connect a wire to Ring Doorbell, including checking compatibility, turning off power, preparing wires, mounting the device, and testing the connection. We’ll also cover common mistakes, troubleshooting tips, and safety precautions to ensure a smooth installation.
By the end of this guide, you’ll have a hardwired Ring Doorbell that works reliably, day and night—no more battery anxiety.
Why Hardwire Your Ring Doorbell?
Before diving into the installation, it’s important to understand why hardwiring is beneficial. Ring Doorbells come in two main types: battery-powered and hardwired (or hybrid). While battery models are easy to install, they require regular charging—every 6 to 12 months, depending on usage. Hardwired models, on the other hand, draw power directly from your home’s electrical system.
Here are the top reasons to connect a wire to Ring Doorbell:
- Continuous power: No more worrying about dead batteries during important moments.
- Better video quality: Hardwired doorbells can support higher resolution and features like color night vision.
- Reliable connectivity: A steady power source helps maintain a strong Wi-Fi connection.
- Smart features unlocked: Some advanced features, like 24/7 background recording, require hardwired power.
- Long-term convenience: Once installed, you won’t need to remove the doorbell for charging.
However, hardwiring isn’t for everyone. If your home doesn’t have existing doorbell wiring or you rent and can’t modify walls, a battery model might be better. But if you have the wiring in place, hardwiring is a smart upgrade.
Check Your Ring Doorbell Model
Not all Ring Doorbells support hardwired installation. Before you begin, confirm that your model is compatible. Here’s a quick breakdown:
- Ring Video Doorbell (1st–4th Gen): Supports hardwiring with the included adapter.
- Ring Video Doorbell Pro / Pro 2: Designed for hardwired installation only.
- Ring Video Doorbell Wired: Hardwired-only model, no battery option.
- Ring Video Doorbell Elite: Requires professional installation and PoE (Power over Ethernet).
If you have a battery-only model like the Ring Video Doorbell (2nd Gen) without the hardwiring kit, you’ll need to purchase the Ring Doorbell Wire Kit (sold separately). This kit includes a mounting bracket with wire terminals and a power adapter.
To check your model, open the Ring app, go to Devices, select your doorbell, and look under Device Health or General Settings. The model name will be listed there.
Gather Your Tools and Materials
Before starting, make sure you have everything you need. Rushing out mid-installation can be frustrating and unsafe.
Here’s a checklist of tools and materials:
- Ring Doorbell (compatible model)
- Existing doorbell wiring (or new low-voltage wires)
- Voltage tester (non-contact type recommended)
- Screwdriver (Phillips and flathead)
- Wire strippers
- Electrical tape
- Ladder (if your doorbell is high up)
- Drill and bits (if mounting on brick or concrete)
- Wall anchors (if needed)
- Optional: Fish tape (for running new wires)
If your existing wires are damaged or too short, you may need to replace them. Use 18- or 20-gauge low-voltage doorbell wire, available at most hardware stores.
Turn Off the Power
This step cannot be stressed enough: always turn off the power before working with electrical wiring.
Even though doorbell circuits are low voltage (typically 8–24V), they are still connected to your home’s electrical system. A shock is unlikely, but it’s better to be safe.
Follow these steps:
Locate Your Circuit Breaker
Go to your main electrical panel (usually in the basement, garage, or utility closet). Look for a breaker labeled “doorbell,” “chime,” or “HVAC.” If there’s no label, you may need to test each one.
Turn Off the Correct Breaker
Switch off the breaker that controls your doorbell. To confirm it’s off, go to your doorbell and press the button. The chime should not sound.
Use a Voltage Tester
For extra safety, use a non-contact voltage tester near the doorbell wires. Touch the tester to the wire terminals—if it beeps or lights up, power is still on. Double-check your breaker.
Never assume the power is off. Always test.
Remove the Old Doorbell (If Applicable)
If you’re replacing an existing doorbell, you’ll need to remove it first.
Unscrew the Faceplate
Use a screwdriver to remove the screws holding the old doorbell to the wall. Gently pull the device away from the wall.
Disconnect the Wires
You’ll see two wires connected to the back—usually black and white, or red and white. Loosen the terminal screws and carefully pull the wires free.
Tip: Take a photo of the wiring before disconnecting. This helps if you need to reference it later.
Tuck the Wires Into the Wall
Don’t let the wires fall back into the wall. Use electrical tape to loosely tape them to the wall or hold them with your hand while you work.
Prepare the Wires
Now it’s time to prepare the wires for your Ring Doorbell.
Strip the Wire Ends
Use wire strippers to remove about 1/4 inch (6 mm) of insulation from each wire. Be careful not to cut the copper strands inside.
Why 1/4 inch? Too little exposed wire won’t make a solid connection. Too much can cause short circuits if the bare copper touches the doorbell casing.
Twist the Strands
If the wires are stranded (multiple thin copper threads), gently twist them together with your fingers. This keeps them from fraying when inserted into the terminal.
Check Wire Length
The wires should extend at least 2–3 inches from the wall. If they’re too short, you may need to fish new wires through the wall using a fish tape.
Install the Ring Doorbell Mounting Bracket
The mounting bracket holds your Ring Doorbell securely and provides terminals for the wires.
Position the Bracket
Hold the bracket against the wall where you want to install the doorbell. Make sure it’s level using a spirit level. Mark the screw holes with a pencil.
Tip: The doorbell should be about 48 inches (122 cm) from the ground for optimal motion detection.
Drill Pilot Holes
If mounting on wood, you can screw directly. For brick, stucco, or concrete, drill pilot holes and insert wall anchors.
Secure the Bracket
Use the provided screws to attach the bracket to the wall. Make sure it’s tight and doesn’t wobble.

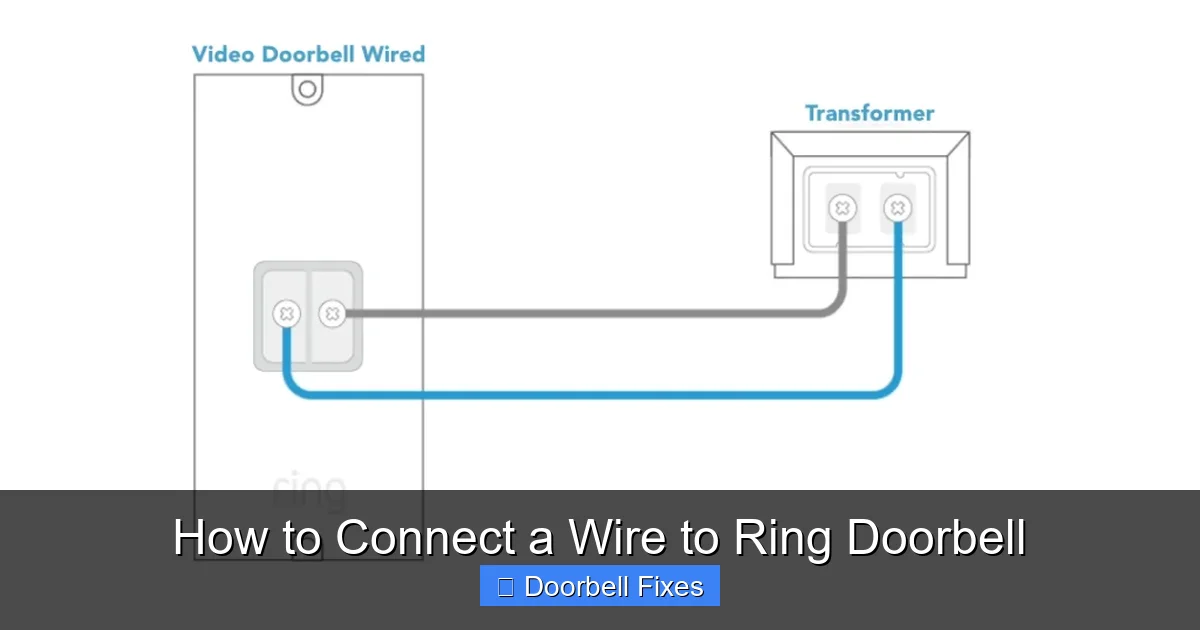

Connect the Wires to the Bracket
On the back of the bracket, you’ll see two terminal screws labeled “Front” and “Trans.” These correspond to the two wires from your wall.
– Connect one wire to “Front”
– Connect the other to “Trans”
It doesn’t matter which wire goes where—Ring Doorbells are not polarity-sensitive.
Loosen the screws, insert the stripped wire ends, and tighten the screws securely. Give the wires a gentle tug to ensure they’re held firmly.
Attach the Ring Doorbell
Now it’s time to mount the actual doorbell.
Align the Doorbell with the Bracket
Hold the Ring Doorbell against the bracket. The hooks on the back of the device should slide into the slots on the bracket.
Slide Down to Lock
Gently press the doorbell down until it clicks into place. You should feel it lock securely.
Secure with Set Screw (If Applicable)
Some models include a small set screw on the bottom of the doorbell. Use the provided Allen wrench to tighten it. This prevents theft and keeps the doorbell firmly attached.
Restore Power and Test
With everything connected, it’s time to test your work.
Turn the Power Back On
Go to your circuit breaker and switch the doorbell breaker back on.
Wait for the Doorbell to Boot
The Ring Doorbell will take 30–60 seconds to power up. You’ll see lights on the front—usually a spinning white light during setup.
Open the Ring App
Launch the Ring app on your phone. If this is a new installation, follow the on-screen setup instructions. If it’s an existing device, go to Devices > select your doorbell > Device Health.
Check Power Status
In the app, look for the power source indicator. It should show “Hardwired” or “Wired.” If it still says “Battery,” the connection may not be secure.
Test the Doorbell
Press the doorbell button. The chime should sound (if you have a Ring Chime or connected mechanical chime), and you should receive a notification on your phone.
Check Video and Audio
Open a live view in the app. Make sure the video is clear, audio works, and motion detection is responsive.
Troubleshooting Common Issues
Even with careful installation, problems can occur. Here’s how to fix the most common issues.
Doorbell Won’t Power On
- Check the breaker: Make sure power is restored.
- Test the wires: Use a multimeter to check for voltage (should be 8–24V AC).
- Inspect connections: Ensure wires are tightly secured in the bracket terminals.
- Try a different transformer: If voltage is too low, your transformer may be faulty.
Intermittent Power or Rebooting
- Voltage too low: A weak transformer can cause instability. Upgrade to a 16V or 24V transformer.
- Loose wires: Re-tighten terminal screws.
- Wire damage: Check for frayed or corroded wires.
No Chime Sound
- Mechanical chime not compatible: Some older chimes don’t work with Ring. Use a Ring Chime or Chime Pro.
- Wiring issue: Ensure the “Trans” wire is connected to the transformer side.
- Volume too low: Adjust chime volume in the Ring app.
Poor Video Quality or Lag
- Wi-Fi signal weak: Move your router closer or use a Wi-Fi extender.
- Power fluctuation: Ensure stable voltage from the transformer.
- Outdated firmware: Update the doorbell via the Ring app.
Doorbell Falls Off or Wobbles
- Bracket not secure: Re-tighten mounting screws.
- Set screw missing: Install the anti-theft screw.
- Wall surface uneven: Use spacers or shims behind the bracket.
Safety Tips and Best Practices
Working with electricity—even low voltage—requires caution. Follow these safety guidelines:
- Always turn off power: Never assume the circuit is dead.
- Use insulated tools: Reduces risk of shock.
- Wear safety glasses: Protects eyes when drilling.
- Don’t overload circuits: Doorbell transformers are designed for low power—don’t connect other devices.
- Keep wires organized: Use cable ties or clips to prevent tangling.
- Follow local codes: Some areas require permits for electrical work.
If you’re unsure about any step, consult a licensed electrician. It’s better to pay for professional help than risk damage or injury.
When to Call a Professional
While most homeowners can install a Ring Doorbell themselves, some situations call for expert help:
- You don’t have existing doorbell wiring
- You need to run new wires through walls
- Your electrical panel is hard to access
- You’re uncomfortable working with electricity
- Your home has complex wiring or old infrastructure
Ring offers professional installation services in many areas. You can schedule an appointment through the Ring app or website.
Final Thoughts
Connecting a wire to Ring Doorbell is a smart upgrade that enhances reliability, performance, and convenience. With the right tools, careful preparation, and attention to safety, most people can complete the installation in under an hour.
Remember: always turn off the power, double-check your connections, and test thoroughly. If something doesn’t work, don’t panic—most issues are fixable with a little troubleshooting.
Once your Ring Doorbell is hardwired, you’ll enjoy uninterrupted power, better video, and peace of mind knowing your home is protected 24/7.
Take your time, follow the steps, and soon you’ll have a doorbell that works as hard as you do.
