How to Connect Doorbell to Chime

This guide walks you through how to connect doorbell to chime for both wired and wireless systems. You’ll learn essential tools, safety steps, and troubleshooting tips to ensure your doorbell rings clearly every time.

Key Takeaways

• Know your doorbell type: Wired doorbells need a transformer and chime unit, while wireless models use batteries and radio signals.
• Turn off power first: Always shut off electricity at the breaker before working on wired doorbells to avoid shocks.
• Match voltage requirements: Ensure your doorbell transformer outputs 8–24 volts AC to match your chime and button.
• Test connections gently: After wiring, restore power briefly to test the chime before securing everything in place.
• Use proper tools: A voltage tester, screwdrivers, wire strippers, and electrical tape are essential for safe installation.
• Troubleshoot common issues: No sound? Check wires, batteries, or signal interference for wireless models.
• Upgrade when needed: Modern smart chimes offer better range, volume control, and smartphone alerts.

How to Connect Doorbell to Chime: A Complete Step-by-Step Guide

So, you’ve got a doorbell button, but nothing happens when you press it? Or maybe you just installed a new chime unit and aren’t sure how to wire it up? Don’t worry—you’re not alone. Learning how to connect doorbell to chime is one of the most common home improvement tasks, and with the right guidance, it’s totally doable, even if you’ve never picked up a screwdriver before.

In this guide, we’ll walk you through everything you need to know—from identifying your doorbell type to testing your final setup. Whether you’re dealing with an old wired system or a sleek new wireless model, we’ve got you covered. By the end, your doorbell will ring loud and clear every time someone comes knocking.

Understanding Your Doorbell System

Before you start twisting wires or drilling holes, it’s crucial to understand what kind of doorbell system you’re working with. Not all doorbells are created equal, and the method for connecting them to a chime varies significantly between types.

Wired Doorbells

Traditional wired doorbells use low-voltage electrical wiring to connect the button (at the front door) to the chime unit (usually inside the house, near the entrance). These systems rely on a transformer that steps down your home’s 120V power to a safer 8–24 volts AC. The transformer is typically located in your basement, garage, or near your electrical panel.

Wired systems are reliable and don’t require battery changes, but they do require some basic electrical knowledge and tools. If you’re comfortable working with wires and turning off your home’s power, this is a solid, long-term solution.

Wireless Doorbells

Wireless doorbells use radio frequency (RF) signals to communicate between the doorbell button and the chime unit. The button runs on batteries, and the chime plugs into a wall outlet or uses its own power source. These systems are easy to install—no wiring needed—and are perfect for renters or homes where running new wires isn’t practical.

However, wireless models can be affected by signal interference (from Wi-Fi routers, microwaves, or thick walls) and require occasional battery replacements. Still, modern wireless doorbells often include features like multiple chime tones, volume control, and even smartphone notifications.

Smart Doorbells

Smart doorbells (like Ring, Nest, or Arlo) combine video, audio, and internet connectivity. Many smart models still use a chime unit for indoor sound, while also sending alerts to your phone. Some require a wired connection for power, while others are battery-powered.

If you’re installing a smart doorbell, you may still need to connect it to an existing chime—or disable the chime if you only want phone alerts. Always check the manufacturer’s instructions, as setup varies by brand.

Gathering Your Tools and Materials

Before you begin, make sure you have the right tools on hand. Having everything ready will save you time and frustration.

Essential Tools

• Screwdrivers: Both flathead and Phillips head—you’ll need them for removing covers and securing wires.
• Voltage tester: A non-contact voltage tester is crucial for confirming that power is off before you touch any wires.
• Wire strippers: For removing insulation from wire ends (usually ¼ inch is enough).
• Electrical tape: To insulate exposed wire connections.
• Needle-nose pliers: Helpful for bending wire ends and tightening terminal screws.
• Drill and bits (optional): Only needed if you’re mounting a new chime or running new wires.

Materials You May Need

• Doorbell transformer (if replacing or upgrading)
• Doorbell chime unit (if installing new)
• Doorbell button (if replacing)
• Low-voltage wire (if extending or replacing existing wiring)
• Wire nuts or terminal connectors
• Batteries (for wireless or smart doorbells)

Pro tip: If you’re unsure about your current transformer’s voltage, check the label on the unit or use a multimeter to test it. Most standard doorbells run on 16V, but some older systems may use 8V or 24V.

Safety First: Turning Off the Power

This step cannot be stressed enough: always turn off the power before working on a wired doorbell system. Even though doorbells use low voltage, the transformer is connected to your home’s main electrical supply, which can be dangerous if mishandled.

Step 1: Locate the Circuit Breaker

Go to your home’s electrical panel (breaker box) and look for the circuit that controls your doorbell. It may be labeled “Doorbell,” “Chime,” or “Front Door.” If it’s not labeled, you may need to test circuits by turning them off one at a time and checking if the doorbell stops working.

Step 2: Turn Off the Breaker

Switch the correct breaker to the “OFF” position. Use a non-contact voltage tester at the doorbell button or chime terminals to confirm that power is truly off. The tester should not light up or beep.

Step 3: Lock Out (Optional but Recommended)

If you’re working alone, consider placing a note on the breaker box or using a lockout tag to prevent someone else from accidentally turning the power back on while you’re working.

Remember: Safety isn’t optional. Taking a few extra minutes to confirm the power is off can prevent serious injury.

How to Connect a Wired Doorbell to a Chime

Now that you’re safe and prepared, let’s get into the actual wiring process. This section covers how to connect a traditional wired doorbell to a chime unit.

Step 1: Remove the Old Chime Cover

Most chime units are mounted on the wall near your front door. Use a screwdriver to remove the cover. Inside, you’ll see two or three terminals labeled “Front,” “Trans,” and sometimes “Rear” (for a second doorbell button).

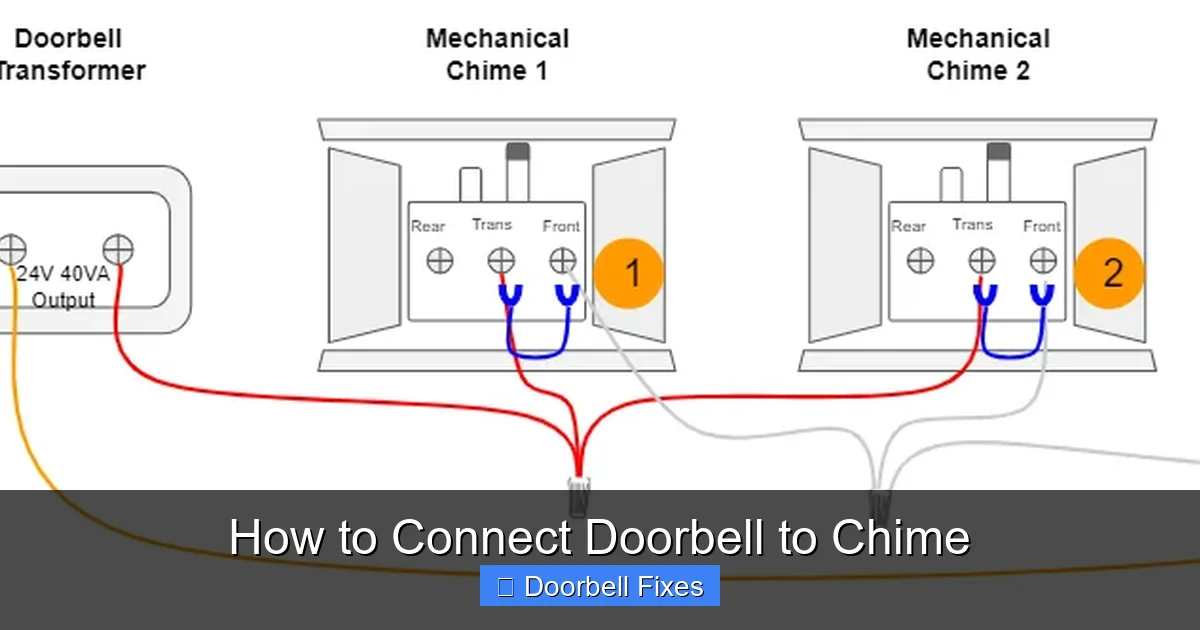

Step 2: Identify the Wires

You should see two wires connected to the terminals:

• Front terminal: Connects to the doorbell button at the front door.
• Trans terminal: Connects to the transformer (usually via a wire running to your basement or garage).

If you have a rear doorbell, there will be a third wire for that button.

Step 3: Disconnect the Wires

Loosen the terminal screws and carefully remove the wires. Note which wire goes where—take a photo if it helps. Label them with tape if needed.

Step 4: Prepare the New Chime (If Replacing)

If you’re installing a new chime unit, mount it to the wall using the provided screws. Make sure it’s level and secure. Then, strip about ¼ inch of insulation from the ends of the wires using wire strippers.

Step 5: Connect the Wires

Attach the wires to the correct terminals:

• Connect the wire from the doorbell button to the “Front” terminal.
• Connect the wire from the transformer to the “Trans” terminal.

Tighten the screws securely. If the wires are loose, wrap them clockwise around the screw before tightening to ensure a solid connection.

Step 6: Secure and Insulate

If any wire ends are exposed, cover them with electrical tape or use wire nuts. Make sure no bare metal is touching other wires or metal parts of the chime box.

Step 7: Replace the Cover

Snap or screw the chime cover back into place. Make sure it’s flush and secure.

How to Connect a Wireless Doorbell to a Chime

Wireless doorbells are much easier to install since there’s no wiring involved. However, proper setup is still important to ensure reliable performance.

Step 1: Install Batteries in the Button

Open the doorbell button (usually by sliding or unscrewing the back) and insert the required batteries (typically AA or AAA). Make sure they’re inserted with the correct polarity (+ and –).

Step 2: Plug in the Chime Unit

Insert the chime receiver into a nearby wall outlet. Some models come with a mounting bracket if you prefer to place it on a shelf or table.

Step 3: Sync the Button and Chime

Most wireless doorbells require a syncing process:

• Press and hold the sync button on the chime unit (usually on the side or back).
• Within 10–15 seconds, press and hold the button on the doorbell until you hear a chime or see a light flash.
• Release both buttons. The units should now be paired.

Refer to your user manual for specific instructions, as steps vary by brand.

Step 4: Test the System

Press the doorbell button and listen for the chime. If it doesn’t work, try moving the chime closer to the button to rule out signal issues.

Step 5: Mount the Button

Use the included screws or adhesive pad to mount the doorbell button at your desired height (usually 48 inches from the ground). Make sure it’s secure and weatherproof if installed outdoors.

How to Connect a Smart Doorbell to a Chime

Smart doorbells add complexity because they often require both power and internet connectivity. However, many still use a physical chime for indoor sound.

Step 1: Check Compatibility

Not all smart doorbells work with existing chimes. For example, Ring doorbells can work with mechanical chimes if the voltage is correct, but may require a Ring Chime Pro for electronic chimes. Check your doorbell’s compatibility chart before proceeding.

Step 2: Install the Doorbell

Follow the manufacturer’s instructions to mount the smart doorbell. This usually involves removing the old button, connecting wires to the new unit, and securing it with screws.

Step 3: Connect to Wi-Fi

Use the companion app (like Ring or Google Home) to connect the doorbell to your home Wi-Fi network. This enables video streaming, motion alerts, and two-way audio.

Step 4: Enable or Disable the Chime

In the app, you can usually choose whether the doorbell triggers the physical chime, sends a phone notification, or both. If you want the chime to ring, make sure it’s enabled in the settings.

Step 5: Test the System

Press the button and verify that the chime rings and you receive a notification on your phone. Adjust volume and sensitivity settings as needed.

Troubleshooting Common Issues

Even with careful installation, problems can arise. Here’s how to fix the most common issues when connecting your doorbell to a chime.

Doorbell Button Pressed but No Sound

• Check power: For wired systems, ensure the breaker is on and the transformer is working. Use a multimeter to test voltage at the chime terminals.
• Inspect wires: Loose or corroded wires can break the circuit. Re-tighten connections and clean any corrosion with sandpaper.
• Test the button: Remove the button and touch the two wires together. If the chime rings, the button is faulty and needs replacement.
• Battery check: For wireless or smart doorbells, replace the batteries and re-sync the units.

Chime Rings Weakly or Intermittently

• Low voltage: A transformer outputting less than 8V can cause weak sound. Replace it with a 16V transformer if needed.
• Faulty chime unit: Over time, chime solenoids can wear out. Replace the chime if it’s old or damaged.
• Signal interference: For wireless models, move the chime away from Wi-Fi routers, cordless phones, or metal objects.

Chime Rings Without Being Pressed

• Short circuit: A frayed wire or loose connection can cause a false trigger. Inspect all wiring and secure connections.
• Moisture: Water in the button or wiring can cause unintended activation. Replace the button and seal connections with silicone.
• Faulty transformer: A failing transformer can send erratic signals. Test and replace if necessary.

Smart Doorbell Not Connecting to Chime

• App settings: Ensure the chime is enabled in the doorbell app.
• Voltage mismatch: Some smart doorbells require a specific voltage to work with mechanical chimes. Use a compatible transformer or a plug-in chime adapter.
• Wi-Fi issues: Poor signal can delay notifications. Move your router closer or use a Wi-Fi extender.

Upgrading Your Doorbell System

If your current setup is outdated or unreliable, consider upgrading to a modern system. Here are a few options:

Replace an Old Mechanical Chime

Mechanical chimes with solenoids are prone to wear. Upgrade to an electronic chime with multiple tones, volume control, and LED indicators. These are easy to install and often more reliable.

Switch to Wireless

If you’re tired of dealing with wires, a wireless system offers flexibility and easy installation. Look for models with long battery life (2+ years) and strong signal range (up to 1,000 feet).

Go Smart

Smart doorbells offer the best of both worlds: local chime sound and remote alerts. They’re ideal for monitoring packages, deterring porch pirates, and communicating with visitors when you’re not home.

Final Tips for Success

• Label your wires: Before disconnecting anything, label each wire with tape so you know where it goes.
• Work in daylight: Natural light makes it easier to see small wires and terminals.
• Take photos: Snap pictures of your setup before and during installation for reference.
• Don’t force connections: If a wire won’t fit or a screw won’t tighten, double-check the terminal size and wire gauge.
• Test frequently: After each major step, restore power briefly to test the system before moving on.

Conclusion

Connecting a doorbell to a chime might seem intimidating at first, but with the right tools, safety precautions, and step-by-step guidance, it’s a manageable task for any homeowner. Whether you’re working with a classic wired system, a convenient wireless model, or a high-tech smart doorbell, the key is to take your time, follow the instructions, and test your work.

Remember: how to connect doorbell to chime isn’t just about making noise—it’s about safety, convenience, and peace of mind. A working doorbell ensures you never miss a visitor, delivery, or unexpected guest. So grab your tools, turn off the power, and get started. Your home—and your guests—will thank you.
