Connecting a doorbell transformer may seem tricky, but it’s a manageable DIY project with the right guidance. This guide walks you through every step—from locating the transformer to testing your doorbell—so you can get it working safely and efficiently.
Key Takeaways
- Safety first: Always turn off power at the breaker before working on electrical components to avoid shocks or injury.
- Locate the transformer: Most doorbell transformers are found in the basement, attic, garage, or near the main electrical panel.
- Check voltage compatibility: Ensure the transformer matches your doorbell’s voltage requirement (usually 16V or 24V).
- Use proper wiring: Low-voltage wires should be connected securely to avoid loose connections and malfunctions.
- Test after installation: Always test the doorbell after connecting the transformer to confirm it’s working properly.
- Call a pro if unsure: If you’re uncomfortable with electrical work, hire a licensed electrician for safety and compliance.
- Upgrade when needed: Older homes may need a new transformer if the existing one is damaged or underpowered.
How to Connect Doorbell Transformer: A Complete Step-by-Step Guide
Is your doorbell not ringing? Or maybe you’re installing a new smart doorbell and need to hook up the transformer? Don’t worry—you’re not alone. Many homeowners face doorbell issues, and often, the culprit is a faulty or improperly connected doorbell transformer. The good news? Learning how to connect a doorbell transformer is easier than you think, especially with this detailed, beginner-friendly guide.
In this article, you’ll learn everything you need to know about connecting a doorbell transformer safely and correctly. We’ll cover what a doorbell transformer does, how to find it, how to choose the right one, and—most importantly—how to wire it step by step. Whether you’re fixing an old doorbell or setting up a new one, this guide will help you get it done without calling an electrician.
What Is a Doorbell Transformer?
A doorbell transformer is a small electrical device that converts standard household voltage (120V) into a lower, safer voltage (usually 16V or 24V) used by doorbells. Most doorbells don’t run directly on your home’s main power supply because that would be dangerous and overpower the chime mechanism. Instead, they rely on this low-voltage transformer to deliver just the right amount of power.

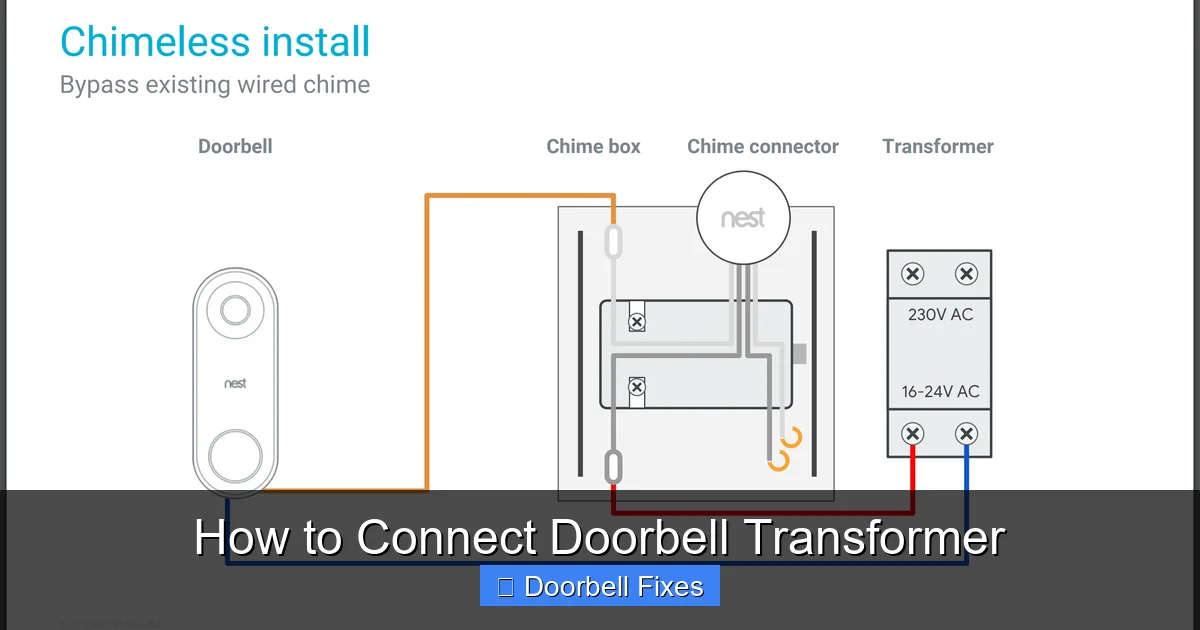

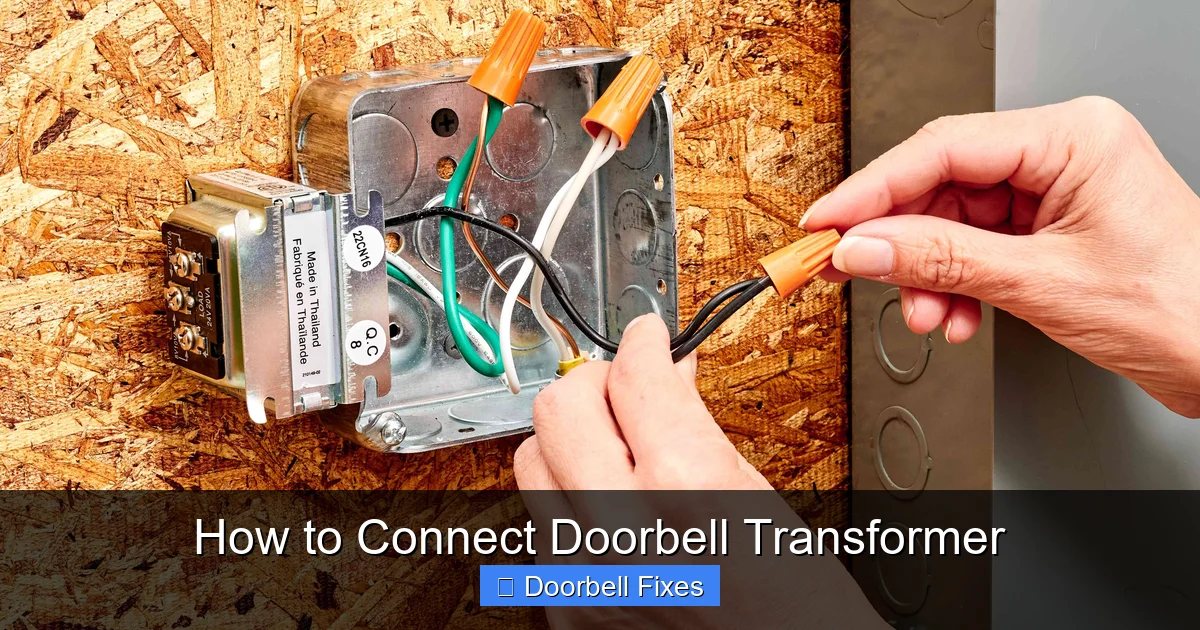

Visual guide about How to Connect Doorbell Transformer
Image source: i1.wp.com
Think of the transformer as the “middleman” between your home’s electrical system and your doorbell. It steps down the voltage so your doorbell can operate safely and efficiently. Without a working transformer, your doorbell won’t ring—no matter how many times you press the button.
Why You Might Need to Connect or Replace a Doorbell Transformer
There are several reasons you might need to connect or replace your doorbell transformer:
- Doorbell not working: If your doorbell is completely silent, the transformer could be dead or disconnected.
- Installing a new doorbell: Smart doorbells like Ring or Nest often require a compatible transformer with enough power.
- Upgrading an old system: Older transformers may not provide enough voltage for modern doorbells, especially video doorbells with cameras and Wi-Fi.
- Damaged wiring or transformer: Over time, transformers can burn out or wires can fray, especially in damp areas like basements or garages.
If you’ve tried replacing the doorbell button or chime and it still doesn’t work, the transformer is the next logical place to check.
Tools and Materials You’ll Need
Before you start, gather these tools and materials. Having everything ready will make the process smoother and safer.
- Screwdrivers: Phillips and flathead screwdrivers for removing covers and tightening terminals.
- Voltage tester: A non-contact voltage tester to confirm power is off.
- Wire strippers: To remove insulation from low-voltage wires.
- Electrical tape: For insulating connections (optional, but recommended).
- Replacement transformer: If your current one is faulty, buy a compatible 16V or 24V transformer (check your doorbell’s specs).
- Wire nuts: For securing wire connections (if needed).
- Safety gloves and goggles: Always protect yourself when working with electricity.
Most of these items can be found at your local hardware store or online. A basic doorbell transformer costs between $10 and $25, depending on the brand and voltage.
Step 1: Turn Off the Power
Safety is the most important part of any electrical project. Before touching any wires, you must turn off the power to the circuit that supplies the doorbell transformer.
Locate Your Electrical Panel
Go to your home’s main electrical panel (also called the breaker box). It’s usually in the basement, garage, or utility closet. Open the panel door to see the circuit breakers.
Find the Doorbell Circuit
Look for a breaker labeled “doorbell,” “chime,” or “low voltage.” If there’s no label, you may need to test each breaker. Turn off one breaker at a time and test your doorbell. When it stops working, you’ve found the right one.
Turn Off the Breaker
Flip the correct breaker to the “OFF” position. For extra safety, use a non-contact voltage tester near the transformer to confirm no power is flowing.
Pro Tip: Place a piece of tape over the breaker switch to prevent someone from accidentally turning it back on while you’re working.
Step 2: Locate the Doorbell Transformer
The transformer is typically mounted near your electrical panel, but it can also be hidden in other locations. Here are the most common places to check:
- Basement: Look near the furnace, water heater, or along basement walls.
- Attic: Some homes run wires through the attic, so the transformer may be tucked away up there.
- Garage: Especially in newer homes, the transformer is often mounted on a garage wall near the doorbell wires.
- Inside the doorbell chime box: In some older systems, the transformer is built into the chime unit.
The transformer looks like a small metal box (about the size of a deck of cards) with two wires coming out of it. One wire connects to the household power (120V), and the other connects to the doorbell circuit (low voltage).
If you can’t find it, follow the doorbell wires from the chime back toward the electrical panel. The transformer will be where those wires meet the main power source.
Step 3: Test the Existing Transformer
Before replacing the transformer, test it to confirm it’s the problem. A multimeter is the best tool for this, but if you don’t have one, you can do a simple visual check.
Visual Inspection
Look for signs of damage: burn marks, melted plastic, or a burnt smell. These indicate the transformer has failed and needs replacement.
Use a Multimeter
If the transformer looks okay, test its output voltage:
- Set your multimeter to AC voltage (usually marked as “V~”).
- Touch one probe to each of the low-voltage terminals on the transformer (the two screws where the doorbell wires connect).
- You should see a reading close to 16V or 24V, depending on your system.
If the reading is 0V or very low, the transformer is dead and needs to be replaced.
Note: Never test the high-voltage side (the wires connected to the breaker) unless you’re experienced with electrical work. That side carries 120V and can be dangerous.
Step 4: Remove the Old Transformer
Once you’ve confirmed the transformer is faulty, it’s time to remove it. Follow these steps carefully.
Disconnect the Low-Voltage Wires
Use a screwdriver to loosen the terminal screws on the transformer. Carefully pull the two low-voltage wires (usually white and red or black) free. These wires run to your doorbell button and chime.
Disconnect the High-Voltage Wires
Next, remove the wires connected to the household power. These are usually black (hot) and white (neutral). Loosen the terminal screws and gently pull the wires out.
Important: Even though the power is off, treat these wires as if they’re live. Avoid touching both wires at the same time.
Unmount the Transformer
Most transformers are mounted with screws or clips. Use a screwdriver to remove the mounting hardware and take the old transformer down.
Step 5: Install the New Transformer
Now it’s time to install the new transformer. Make sure it matches the voltage and wattage of your doorbell system. Most standard doorbells use a 16V, 10VA or 15VA transformer. Smart doorbells may need 24V or higher wattage—check your doorbell’s manual.
Mount the New Transformer
Position the new transformer in the same location as the old one. Use screws to secure it to the electrical box or wall. Make sure it’s stable and won’t wobble.
Connect the High-Voltage Wires
Connect the black (hot) and white (neutral) wires from your home’s electrical system to the corresponding terminals on the new transformer. Tighten the screws securely.
Tip: If the wires are too short, you can use wire nuts to extend them—but only if you’re confident in your wiring skills. Otherwise, consult an electrician.
Connect the Low-Voltage Wires
Attach the two low-voltage wires (from the doorbell button and chime) to the remaining terminals on the transformer. It doesn’t matter which wire goes where—doorbell circuits are not polarity-sensitive.
Strip about 1/2 inch of insulation from the wire ends if needed, then wrap them around the terminal screws and tighten.
Secure and Insulate
Once all wires are connected, gently tuck them into the electrical box. Use electrical tape to cover exposed connections if desired, though it’s not always necessary with screw terminals.
Step 6: Restore Power and Test
You’re almost done! Now it’s time to turn the power back on and test your doorbell.
Turn On the Breaker
Go back to your electrical panel and flip the breaker back to the “ON” position. Listen for a click and check that other lights or outlets on the same circuit are working.
Test the Doorbell
Press the doorbell button. You should hear the chime ring clearly. If it works, congratulations—you’ve successfully connected your doorbell transformer!
If the doorbell doesn’t ring, double-check your connections. Make sure all wires are tight and the transformer is properly mounted. Also, verify that the breaker is fully on.
Troubleshooting Common Issues
Even with careful installation, problems can occur. Here’s how to fix the most common issues:
Doorbell Still Doesn’t Work
- Check the button: A faulty doorbell button can prevent the chime from ringing. Try shorting the two low-voltage wires together—if the chime rings, the button is the problem.
- Inspect the chime: The chime unit itself may be broken. Listen for a faint click when you press the button. If you hear a click but no ring, the chime might need replacement.
- Verify voltage: Use a multimeter to check the voltage at the chime terminals. It should match the transformer’s output.
Transformer Hums or Gets Hot
A slight hum is normal, but if the transformer is loud or hot to the touch, it may be overloaded or defective. This can happen if your doorbell draws more power than the transformer can handle—common with smart doorbells.
Solution: Upgrade to a higher-wattage transformer (e.g., 20VA or 30VA) or use a doorbell with a built-in power adapter.
Intermittent Ringing
If the doorbell rings sometimes but not always, you likely have a loose connection. Check all wire terminals and tighten them. Also, inspect the wires for corrosion or damage, especially in humid areas.
No Power to Transformer
If the transformer isn’t getting power, the issue might be with the breaker or wiring. Use a voltage tester to check if the high-voltage terminals have 120V. If not, there may be a wiring fault or a tripped breaker you missed.
Safety Tips and Best Practices
Working with electricity always carries risks. Follow these safety tips to protect yourself and your home:
- Always turn off the power: Never assume the breaker is off—test it with a voltage tester.
- Wear safety gear: Gloves and goggles can prevent injuries from sparks or debris.
- Don’t overload the transformer: Match the transformer’s wattage to your doorbell’s requirements.
- Keep wires organized: Label wires if needed to avoid confusion during reinstallation.
- Call a professional if unsure: If you’re not confident in your electrical skills, hire a licensed electrician. It’s better to be safe than sorry.
When to Call an Electrician
While connecting a doorbell transformer is a DIY-friendly task, there are times when you should call a professional:
- You can’t locate the transformer after checking common areas.
- The wiring looks damaged or outdated (e.g., cloth-covered wires).
- You’re installing a high-power smart doorbell and need to upgrade the electrical circuit.
- You feel uncomfortable working with electricity.
An electrician can ensure the job is done safely and up to code, especially in older homes with complex wiring.
Conclusion
Learning how to connect a doorbell transformer is a valuable skill that can save you time and money. With the right tools, a bit of patience, and this step-by-step guide, you can troubleshoot and fix most doorbell issues on your own.
Remember: safety comes first. Always turn off the power, test your connections, and don’t hesitate to ask for help if needed. Whether you’re fixing an old doorbell or setting up a new smart system, a properly connected transformer is the key to reliable performance.
Now that you know how to connect a doorbell transformer, you can enjoy a working doorbell—and the peace of mind that comes with tackling home repairs like a pro.
