This guide walks you through how to connect a doorbell transformer safely and effectively, whether you’re replacing an old one or installing a new system. You’ll learn about tools, wiring, voltage checks, and common troubleshooting tips to ensure your doorbell works reliably.
Key Takeaways
- Safety first: Always turn off power at the circuit breaker before working on electrical components to prevent shocks or damage.
- Check voltage requirements: Most doorbells need 16–24 volts AC; use a multimeter to confirm your transformer matches your doorbell’s specs.
- Locate the transformer: It’s usually near your main electrical panel, inside the doorbell chime box, or in the attic or basement.
- Use proper wiring: Low-voltage doorbell wire (18–22 gauge) is essential—avoid using standard household electrical wire.
- Test after installation: Always test the doorbell after connecting the transformer to ensure it rings properly and doesn’t overheat.
- Call a pro if unsure: If you’re uncomfortable with electrical work, hire a licensed electrician to avoid hazards.
How to Connect Doorbell Transformer: A Complete DIY Guide
Is your doorbell silent, weak, or flickering? One of the most common culprits is a faulty or improperly connected doorbell transformer. Whether you’re replacing an old unit or installing a new smart doorbell, knowing how to connect a doorbell transformer is a valuable skill for any homeowner. This guide will walk you through the entire process—safely, clearly, and step by step.
By the end of this article, you’ll understand what a doorbell transformer does, how to locate it, how to choose the right replacement, and how to wire it correctly. We’ll also cover troubleshooting tips and safety precautions to keep you protected. No electrical experience? No problem. With the right tools and guidance, this project is totally doable.
What Is a Doorbell Transformer and Why Is It Important?
A doorbell transformer is a small electrical device that steps down your home’s standard 120-volt household current to a safer, lower voltage—typically 16 to 24 volts AC—that your doorbell system needs to operate. Without it, your doorbell wouldn’t work at all.

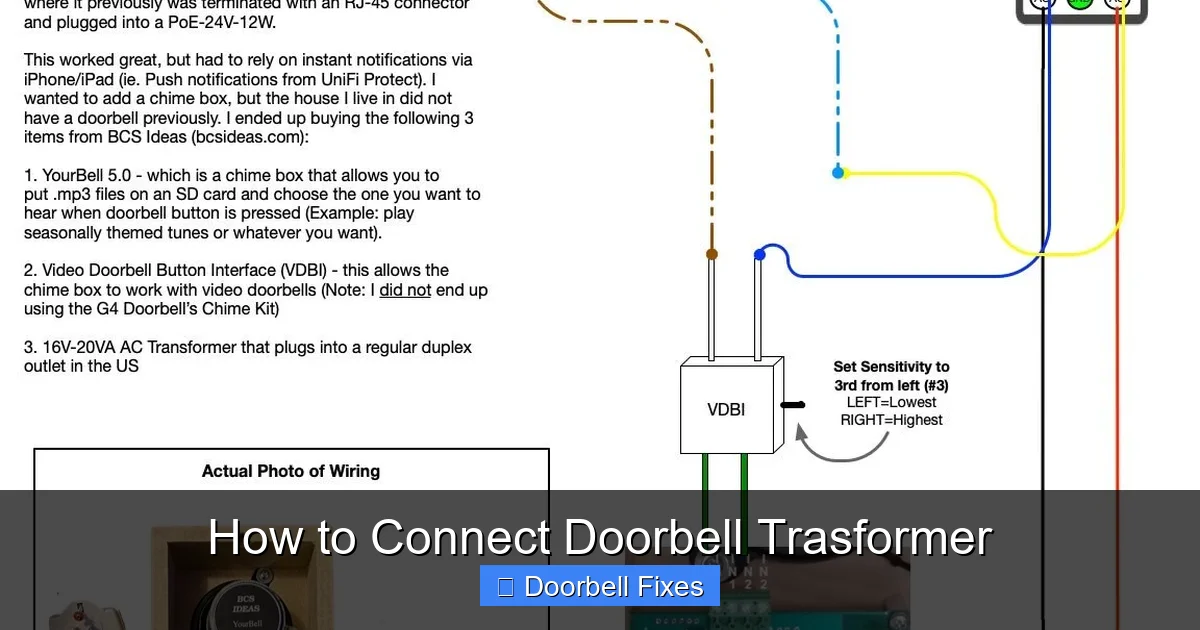

Visual guide about How to Connect Doorbell Trasformer
Image source: img.community.ui.com
Think of it like a power adapter for your doorbell. Just as your phone charger converts wall power to a level your phone can use, the transformer converts high-voltage electricity into the low-voltage power your doorbell chime and button require. Most modern doorbells, including video doorbells like Ring or Nest, rely on this low-voltage supply to function properly.
If your doorbell is dead, intermittent, or the chime sounds weak, the transformer is often the first thing to check. A failing transformer can’t deliver consistent power, leading to poor performance or complete failure. Replacing or reconnecting it correctly can restore your doorbell to full working order.
Tools and Materials You’ll Need
Before you begin, gather these essential tools and materials. Having everything ready will make the process smoother and safer.
- Non-contact voltage tester: To confirm power is off.
- Screwdrivers (flathead and Phillips): For removing covers and terminals.
- Multimeter: To test voltage and confirm the transformer is working.
- Wire strippers: To prepare low-voltage wires.
- Electrical tape: For insulating connections.
- Low-voltage doorbell wire (18–22 gauge): If you need to extend or replace wires.
- Replacement transformer (if needed): Match voltage and wattage to your doorbell’s requirements.
- Safety gloves and goggles: For personal protection.
Most of these items are available at hardware stores or online. If you’re replacing the transformer, check your doorbell’s manual or the label on the old transformer for the correct voltage (usually 16V or 24V) and wattage (typically 10–30VA).
Step 1: Turn Off the Power
Safety is the most important part of any electrical project. Before touching any wires or components, you must turn off the power at the source.
Locate the Correct Circuit Breaker
The doorbell transformer is usually connected to a dedicated circuit or a general lighting circuit. Look for a breaker labeled “doorbell,” “chime,” or “front door.” If there’s no label, you may need to test breakers one by one.
Turn Off the Breaker
Switch the breaker to the “OFF” position. Use a non-contact voltage tester to double-check that power is off at the transformer location. Touch the tester to the wires—if it doesn’t beep or light up, power is safely off.
Label the Breaker (Optional but Helpful)
If the breaker isn’t labeled, mark it with a piece of tape and a note like “Doorbell – Do Not Turn On.” This prevents someone from accidentally restoring power while you’re working.
Never assume power is off. Always test with a voltage tester. Even low-voltage systems can carry a shock if mishandled.
Step 2: Locate the Doorbell Transformer
The transformer is often hidden, so knowing where to look saves time and frustration. Here are the most common locations:
- Inside the doorbell chime box: Open the chime unit on your wall—many transformers are mounted inside or directly behind it.
- Near the main electrical panel: Look for a small, rectangular box with wires leading to it, often mounted on the side of the panel or nearby wall.
- In the attic or basement: Some homes have the transformer tucked away in a utility space, connected to the chime wires.
- Behind a light switch or outlet: In older homes, the transformer may be wired into a junction box behind a switch near the front door.
Once you find it, inspect the transformer. It should be a small metal or plastic box with two sets of wires: one pair connected to the 120V household circuit (usually black and white), and another pair (often red and white) leading to the doorbell button and chime.
Step 3: Test the Existing Transformer
Before replacing the transformer, test it to confirm it’s faulty. A working transformer should output the correct voltage when the doorbell is not pressed.
Set Up Your Multimeter
Turn your multimeter to the AC voltage setting (usually marked “V~”). Set it to a range higher than 24V (e.g., 200V AC).
Test the Output Voltage
Carefully touch the multimeter probes to the low-voltage terminals (the red and white wires going to the doorbell). With the doorbell button not pressed, you should see a reading close to the transformer’s rated voltage (e.g., 16V or 24V).
If the reading is zero, very low (like 2–3V), or fluctuating, the transformer is likely bad and needs replacement.
Check for Overheating or Burn Marks
Feel the transformer (carefully—don’t touch wires). If it’s hot to the touch or has burn marks, smoke residue, or a burnt smell, it’s definitely faulty and should be replaced immediately.
Never ignore signs of overheating—this can be a fire hazard.
Step 4: Remove the Old Transformer
Once you’ve confirmed the transformer is bad, it’s time to remove it. Follow these steps carefully.
Disconnect the Low-Voltage Wires
Use a screwdriver to loosen the terminal screws holding the red and white wires from the doorbell circuit. Gently pull the wires free. Label them if needed (e.g., “to chime” and “to button”) to avoid confusion later.
Disconnect the High-Voltage Wires
Next, disconnect the black (hot) and white (neutral) wires connected to the 120V household circuit. These are usually secured with wire nuts or terminal screws. Loosen them and remove the wires.
Unmount the Transformer
Most transformers are mounted with screws to a junction box or the electrical panel. Remove the mounting screws and carefully pull the transformer out.
Dispose of the old transformer properly. Many hardware stores accept old electrical components for recycling.
Step 5: Install the New Transformer
Now it’s time to install the replacement. Make sure the new transformer matches the voltage and wattage of the old one (e.g., 16V 10VA or 24V 20VA).
Mount the New Transformer
Position the new transformer in the same location as the old one. Secure it with screws to a junction box or mounting bracket. Ensure it’s stable and won’t move around.
Connect the High-Voltage Wires
Connect the black wire from the transformer to the black (hot) wire from the household circuit. Twist them together and secure with a wire nut. Repeat with the white (neutral) wires.
Double-check that the connections are tight and insulated. Loose connections can cause arcing or overheating.
Connect the Low-Voltage Wires
Attach the red and white wires from the doorbell circuit to the corresponding terminals on the new transformer. Tighten the terminal screws securely.
Use electrical tape to wrap the connections for extra insulation, especially in damp areas like basements.
Step 6: Restore Power and Test the System
With everything connected, it’s time to test your work.
Turn the Power Back On
Go to the circuit breaker and switch it back to “ON.” Listen for any unusual sounds (like buzzing or clicking) from the transformer.
Test the Doorbell
Press the doorbell button. The chime should ring clearly and consistently. If it doesn’t, double-check all connections and ensure the button and chime are properly wired.
Use the Multimeter Again
Test the output voltage at the transformer terminals. It should match the rated voltage (e.g., 16V). If it’s significantly lower, there may be a wiring issue or a weak connection.
If the doorbell works but sounds weak, the transformer may be underpowered. Consider upgrading to a higher-wattage model (e.g., 20VA instead of 10VA).
Step 7: Secure and Clean Up
Once everything is working, finish the job neatly.
Tuck Wires Safely
Neatly tuck all wires back into the junction box or chime housing. Avoid pinching or bending wires sharply.
Replace Covers
Reattach the chime cover or electrical box plate. Make sure no wires are exposed.
Label the Breaker (If Needed)
Update the breaker label if you changed it earlier. This helps future DIYers or electricians.
Troubleshooting Common Issues
Even with careful installation, problems can arise. Here’s how to fix the most common issues.
Doorbell Doesn’t Ring at All
- Check that power is on at the breaker.
- Test the transformer output with a multimeter.
- Inspect the doorbell button for dirt or corrosion—clean it with rubbing alcohol.
- Verify all wire connections are tight and correct.
Chime Sounds Weak or Flickers
- The transformer may be underpowered. Upgrade to a higher-wattage model.
- Long wire runs can cause voltage drop. Use thicker wire (18-gauge) for runs over 50 feet.
- Check for loose connections at the chime or button.
Transformer Gets Hot
- This could mean it’s overloaded or faulty. Turn off power immediately.
- Ensure the transformer matches your doorbell’s power requirements.
- Replace with a higher-quality or higher-wattage transformer if needed.
No Power to Transformer
- Confirm the breaker is on and hasn’t tripped.
- Test the high-voltage input wires with a multimeter.
- Check for a blown fuse in older systems (rare but possible).
Safety Tips and Best Practices
Working with electricity always carries risk. Follow these tips to stay safe.
- Always turn off power at the breaker. Never rely on a switch alone.
- Use a voltage tester. Confirm power is off before touching wires.
- Wear safety gear. Gloves and goggles protect against shocks and debris.
- Don’t overload the transformer. Match the wattage to your doorbell’s needs.
- Keep wires organized. Label them if necessary to avoid confusion.
- Call a professional if unsure. If you’re uncomfortable, hire a licensed electrician.
When to Call an Electrician
While connecting a doorbell transformer is a manageable DIY task, some situations call for professional help.
- You can’t locate the transformer.
- The wiring looks damaged or outdated.
- You’re not confident working with electrical systems.
- The breaker keeps tripping after installation.
- You’re installing a high-power smart doorbell with advanced features.
An electrician can ensure the job is done safely and up to code, especially in older homes with complex wiring.
Conclusion
Learning how to connect a doorbell transformer empowers you to fix one of the most common doorbell problems without calling a technician. With the right tools, safety precautions, and step-by-step guidance, you can replace or reconnect your transformer confidently.
Remember: always turn off the power, test the transformer, use proper wiring, and double-check your connections. A working doorbell isn’t just convenient—it’s a key part of home security and curb appeal.
Whether you’re upgrading to a video doorbell or just restoring a silent chime, this guide gives you everything you need to succeed. Stay safe, take your time, and enjoy the satisfaction of a job well done.
