How to Connect Nutone Doorbell: A Complete Step-by-Step Guide
Installing or replacing a Nutone doorbell might seem intimidating if you’ve never worked with home wiring before. But with the right tools, a bit of patience, and this detailed guide, you can connect your Nutone doorbell safely and correctly—no electrician required (unless you’re unsure, of course!).
In this guide, you’ll learn everything from checking your existing doorbell system to testing your newly connected Nutone doorbell. We’ll cover compatibility, wiring basics, step-by-step installation, and troubleshooting common issues. Whether you’re upgrading from an old mechanical chime or installing a brand-new Nutone model, this guide has you covered.
Let’s get started!
What You’ll Need Before Starting
Before you touch a single wire, gather the right tools and materials. Having everything ready will make the process smoother and safer.

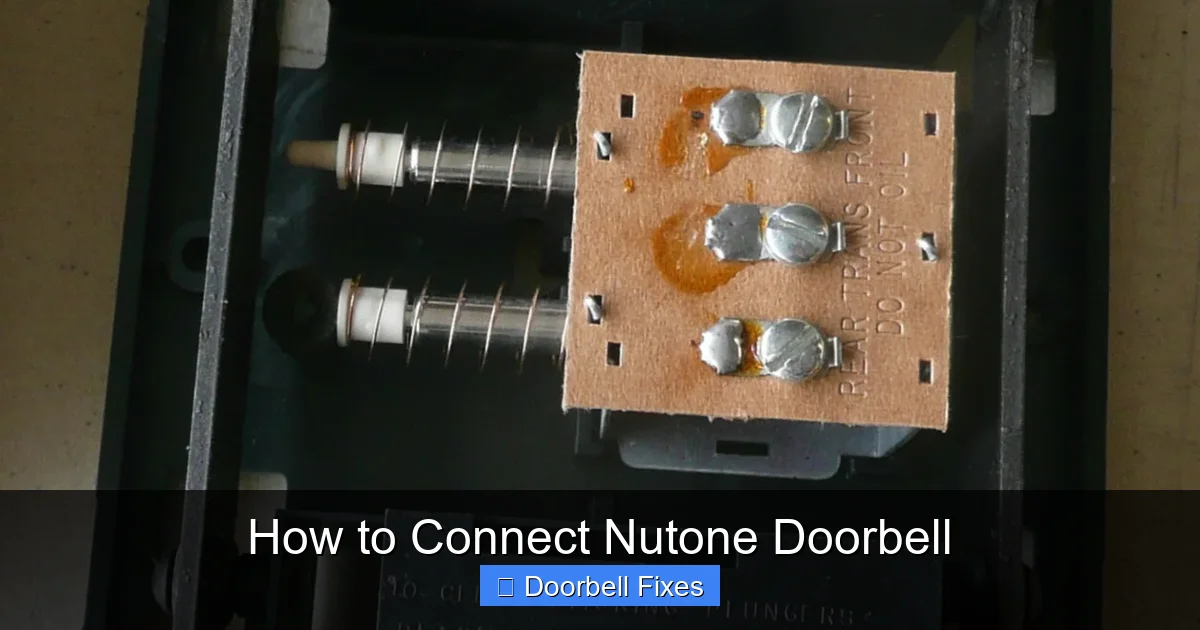

Visual guide about How to Connect Nutone Doorbell
Image source: tankbig.com
- Nutone doorbell kit: Includes the button, chime unit, and mounting hardware.
- Screwdrivers: Phillips and flathead for removing covers and tightening terminals.
- Wire strippers: To expose fresh copper on old or damaged wires.
- Voltage tester or multimeter: Essential for checking if power is off and measuring voltage.
- Electrical tape: For insulating connections.
- Wire nuts (if needed): For securing loose wire ends.
- Pencil and notepad: To label wires during removal.
- Ladder (if needed): For reaching high-mounted chimes or transformers.
Pro Tip: If your Nutone doorbell is wireless, you won’t need to worry about wiring the button—but you’ll still need to connect the chime unit to power. This guide focuses on wired models, which are more common in older homes.
Step 1: Turn Off the Power
Safety first! Working with live electrical wires can be dangerous. Even low-voltage doorbell systems can give you a shock or damage your equipment.
Locate Your Electrical Panel
Go to your home’s main breaker box. Look for a labeled circuit breaker marked “doorbell,” “chime,” or “low voltage.” If you don’t see one, check your home’s electrical diagram or look for a breaker that controls the front door area.
Turn Off the Breaker
Switch the breaker to the “OFF” position. Use a non-contact voltage tester to double-check that power is off at the doorbell button and chime location. Simply touch the tester near the wires—if it beeps or lights up, power is still on.
Important: Never assume the power is off just because the breaker is switched. Always test with a voltage tester.
Step 2: Remove the Old Doorbell (If Applicable)
If you’re replacing an existing doorbell, you’ll need to remove the old unit before installing the Nutone model.
Remove the Doorbell Button
Unscrew the button from the wall. Gently pull it away to expose the two wires connected to the back. These are typically labeled “Front” and “Trans” (transformer) or just two bare copper wires.
Label the Wires
Before disconnecting anything, label the wires with tape or a marker. For example, write “Front” on one wire and “Trans” on the other. This ensures you reconnect them correctly later.
Disconnect the Wires
Loosen the terminal screws or remove wire nuts to free the wires. Set the old button aside.
Remove the Old Chime Unit
Go inside to where the chime is mounted—usually in a hallway or basement. Unscrew the cover and remove it. You’ll see two or more wires connected to terminals labeled “Front,” “Rear,” and “Trans.”
Label these wires too. Most homes have a front doorbell only, so you’ll likely see “Front” and “Trans” wires. If you have a rear doorbell, there will be a “Rear” wire as well.
Carefully disconnect the wires and remove the old chime unit.
Pro Tip: Take a photo of the wiring before disconnecting anything. This serves as a visual reference if you get confused later.
Step 3: Check Your Transformer and Voltage
The transformer converts your home’s 120V power to the low voltage (usually 16V) needed for the doorbell. If it’s faulty or incompatible, your Nutone doorbell won’t work.
Locate the Transformer
The transformer is usually mounted near your electrical panel, in the basement, or inside a junction box. It looks like a small metal box with wires coming out.
Test the Voltage
Set your multimeter to AC voltage (V~). Touch the probes to the two low-voltage wires (usually red and white) coming from the transformer.
- If the reading is between 16V and 24V, your transformer is good.
- If it’s below 12V or shows 0V, the transformer may be faulty and needs replacement.
Note: Most Nutone doorbells are designed for 16V systems. Using a 12V transformer may cause weak or inconsistent ringing.
Replace the Transformer (If Needed)
If your transformer is underpowered or broken, replace it with a compatible 16V, 10–30VA transformer. Turn off the main breaker, disconnect the old transformer, and install the new one following the manufacturer’s instructions.
Step 4: Prepare the Wires
Now that the old system is removed and the transformer is confirmed working, it’s time to prepare the wires for your new Nutone doorbell.
Inspect the Wires
Check the wires at both the button location and the chime location. Look for fraying, corrosion, or damage. If the insulation is cracked or the copper is green, trim the ends and strip about 1/2 inch of insulation using wire strippers.
Ensure Proper Length
The wires should be long enough to reach the terminals on the new doorbell and chime. If they’re too short, you may need to splice in extensions using wire nuts and additional low-voltage wire.
Pro Tip: Use the same gauge wire (usually 18 or 20 AWG) for any extensions to maintain proper voltage flow.
Step 5: Install the Nutone Doorbell Button
The doorbell button is the part you press outside. It’s simple to install, but proper wiring is key.
Connect the Wires to the Button
Take the two labeled wires (“Front” and “Trans”) from the wall. Loosen the terminal screws on the back of the Nutone button. Insert one wire under each screw and tighten securely.
It doesn’t matter which wire goes to which terminal—doorbell circuits are not polarized. But keep them separate to avoid shorting.
Mount the Button
Hold the button against the wall and mark the screw holes. Drill pilot holes if needed, then secure the button with screws. Make sure it’s level and flush with the wall.
Pro Tip: If mounting on brick or stucco, use wall anchors to ensure a secure fit.
Step 6: Install the Nutone Chime Unit
The chime unit is the indoor part that makes the sound when the button is pressed. This is where most of the wiring happens.
Mount the Chime Unit
Hold the Nutone chime against the wall where the old one was. Mark the screw holes and secure it with screws. Make sure it’s level and accessible.

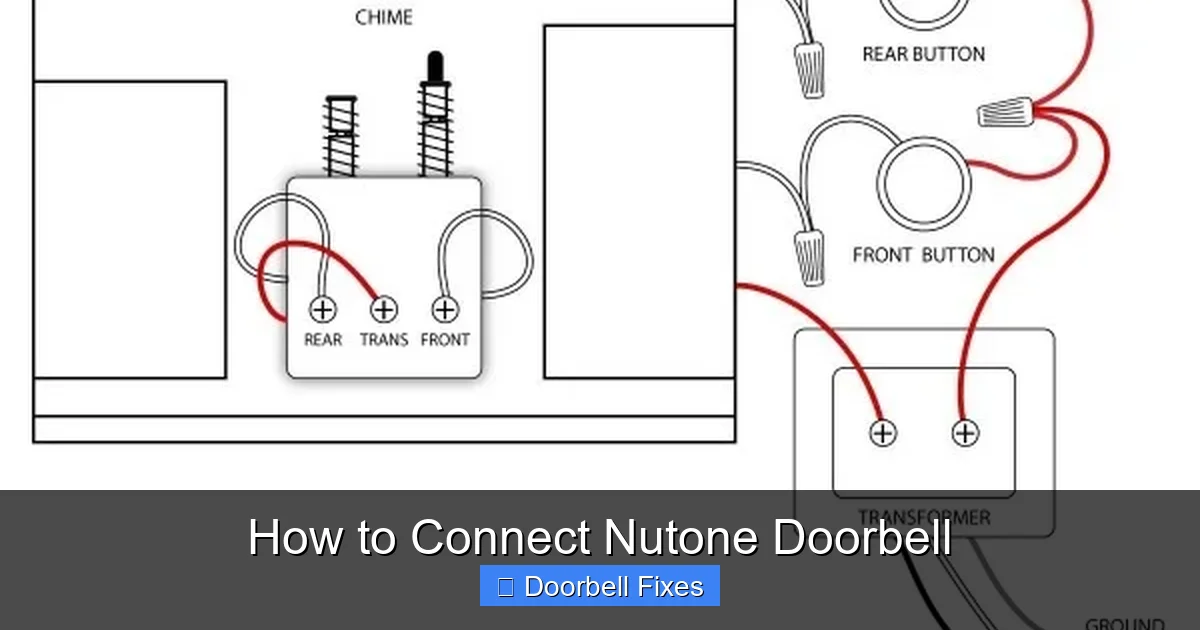

Connect the Wires
Refer to your labels or photo. Connect the wires to the correct terminals:
- Front: Connects to the front doorbell button.
- Rear: Connects to a rear doorbell button (if you have one).
- Trans: Connects to the transformer (power source).
Loosen the terminal screws, insert the wires, and tighten. Ensure no bare copper is exposed outside the terminal.
Important: If you only have a front doorbell, leave the “Rear” terminal empty. Some Nutone chimes have a “Rear” terminal that must be capped or ignored.
Secure Loose Wires
If any wires are too long, coil them neatly inside the chime housing. Use electrical tape or wire ties to keep them from touching each other or the terminals.
Step 7: Restore Power and Test
You’re almost done! Now it’s time to turn the power back on and test your new Nutone doorbell.
Turn On the Breaker
Go back to the electrical panel and switch the breaker back to “ON.”
Test the Doorbell
Press the doorbell button outside. Listen for a clear, consistent chime inside. If it rings normally, congratulations—you’ve successfully connected your Nutone doorbell!
If it doesn’t ring, or if the sound is weak or intermittent, move to the troubleshooting section below.
Troubleshooting Common Issues
Even with careful installation, problems can occur. Here’s how to fix the most common issues.
Doorbell Doesn’t Ring at All
- Check power: Use a multimeter to confirm the transformer is outputting 16V.
- Inspect connections: Make sure all wires are securely connected at the button and chime.
- Test the button: Remove the button and touch the two wires together. If the chime rings, the button is faulty.
- Check for loose wires: A loose “Trans” wire can cut power to the entire system.
Doorbell Rings Weakly or Intermittently
- Low voltage: Test the transformer. If it’s below 14V, replace it.
- Loose connections: Tighten all terminal screws and wire nuts.
- Corroded wires: Clean or replace damaged wires.
- Faulty chime: The internal mechanism may be worn. Try a different chime unit if available.
Doorbell Rings Without Being Pressed
- Short circuit: Check for exposed wires touching each other at the button or chime.
- Moisture: If the button is outdoors, rain or humidity may cause a false trigger. Seal the button with silicone caulk.
- Faulty button: Replace the button if it’s old or damaged.
Only One Chime Sound (Instead of Two)
- Rear terminal issue: Some Nutone chimes require a jumper wire between “Front” and “Rear” terminals for dual-tone sound. Check your model’s manual.
- Incorrect wiring: Ensure the “Front” wire is connected to the correct terminal.
Safety Tips and Best Practices
Working with electricity requires caution. Follow these tips to stay safe and ensure a long-lasting installation.
- Always turn off power: Never work on doorbell wiring with the breaker on.
- Use insulated tools: Prevents accidental shocks.
- Don’t overload the transformer: Adding too many doorbells or smart devices can exceed its capacity.
- Label everything: Saves time and reduces errors.
- Keep wires organized: Prevents shorts and makes future repairs easier.
- Consult the manual: Nutone models vary. Always refer to the included instructions.
Upgrading to a Smart Nutone Doorbell
If you’re installing a smart Nutone doorbell (like the Nutone Digital Door Chime with Camera), the process is similar—but with a few extras.
- Wi-Fi setup: Connect the chime to your home network using the Nutone app.
- Power requirements: Smart models may need a higher-voltage transformer (check specs).
- App configuration: Set up notifications, motion alerts, and chime sounds via the app.
Even with smart features, the wiring basics remain the same. Just ensure your transformer can handle the extra load.
When to Call a Professional
While most homeowners can install a Nutone doorbell, some situations call for an expert.
- You’re unsure about wiring or electrical safety.
- The transformer is hard to reach or requires main panel work.
- You find damaged or outdated wiring in your walls.
- The doorbell still doesn’t work after troubleshooting.
A licensed electrician can diagnose complex issues and ensure your system meets local codes.
Conclusion
Connecting a Nutone doorbell is a straightforward DIY project that can improve your home’s functionality and curb appeal. By following this guide—turning off power, labeling wires, testing voltage, and securing connections—you’ll have a reliable doorbell system in no time.
Remember, safety is the most important step. Take your time, double-check your work, and don’t hesitate to ask for help if needed. With the right approach, your Nutone doorbell will ring clearly for years to come.
