Upgrading your wired doorbell to a smart Ring system is easier than you think. This guide walks you through every step—from checking compatibility to final setup—so you can enjoy video alerts, two-way talk, and remote access. No electrician needed—just follow along and get your Ring working in under an hour.
Key Takeaways
- Check compatibility first: Not all wired doorbells work with Ring. Use the Ring compatibility tool or check voltage (8–24V AC) before buying.
- Turn off power at the breaker: Safety is critical. Always shut off electricity to the doorbell circuit before touching wires.
- Use the Ring Doorbell Chime Kit: This adapter ensures your existing chime works with the Ring device and prevents damage from low voltage.
- Follow the Ring app setup: The app guides you through Wi-Fi connection, device pairing, and chime configuration—no guesswork needed.
- Test everything after install: Ring the doorbell, check the live view, and verify chime sound to ensure full functionality.
- Keep wires neat and secure: Use wire nuts and electrical tape to prevent loose connections that could cause malfunctions.
- Troubleshoot common issues: No power? Chime not working? We cover fixes for voltage problems, Wi-Fi drops, and sync errors.
How to Connect Ring to Wired Doorbell: A Complete Step-by-Step Guide
Upgrading your old wired doorbell to a smart Ring doorbell is one of the easiest ways to boost your home security. With live video, motion alerts, and two-way audio, Ring lets you see and speak to visitors from anywhere—even when you’re not home. But if you already have a wired doorbell, you might be wondering: Can I connect Ring to it? The answer is yes—and it’s simpler than you think.
In this guide, we’ll walk you through the entire process of connecting your Ring doorbell to an existing wired doorbell system. You’ll learn how to check compatibility, gather the right tools, safely install the device, and troubleshoot common issues. Whether you’re installing a Ring Video Doorbell Pro, Ring Video Doorbell (2nd or 3rd Gen), or another wired-compatible model, this guide has you covered.
By the end, you’ll have a fully functional smart doorbell that works with your home’s existing wiring and chime—no electrician required. Let’s get started.
Why Upgrade to a Ring Wired Doorbell?

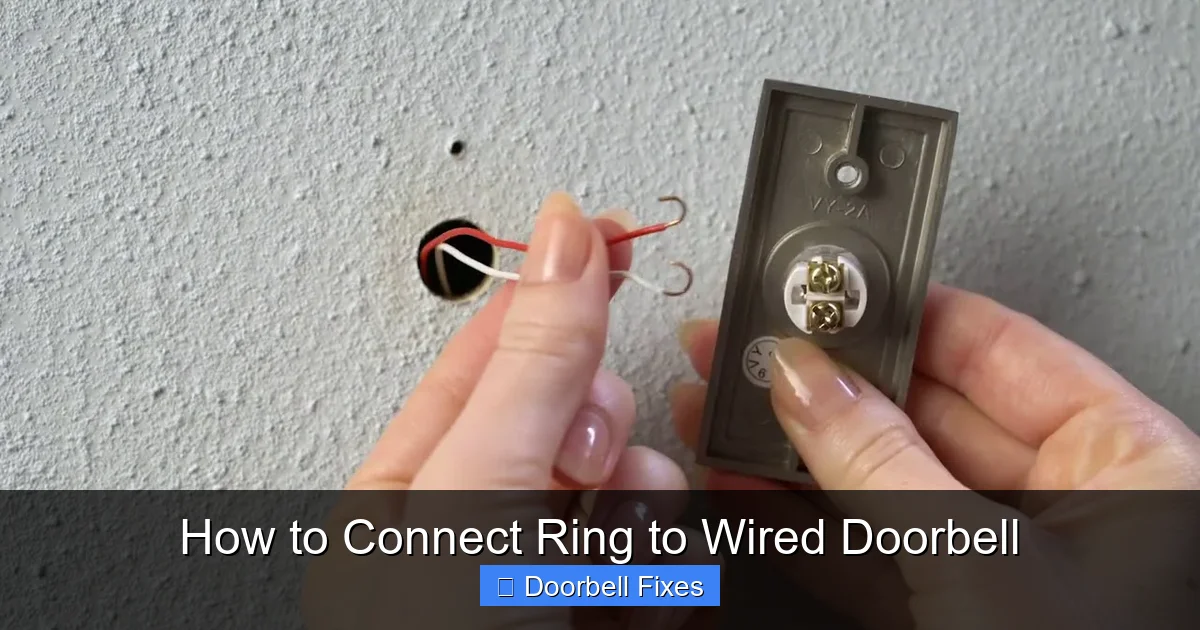

Visual guide about How to Connect Ring to Wired Doorbell
Image source: images.hometheaterreview.com
Before we dive into the installation, let’s talk about why connecting Ring to your wired doorbell is worth the effort.
First, you keep your existing doorbell chime. Unlike battery-powered models, wired Ring doorbells use your home’s electrical system for power, so you don’t have to worry about recharging or replacing batteries. That means your indoor chime will still ring when someone presses the button—just like before.
Second, wired Ring models offer better performance. They support advanced features like pre-roll video (showing what happened before the button was pressed), higher video quality, and more reliable connectivity. Models like the Ring Video Doorbell Pro also support dual-band Wi-Fi and customizable motion zones.
Third, it’s a cost-effective smart upgrade. If you already have a doorbell transformer and wiring in place, you save money compared to installing a completely new system. Plus, you avoid the hassle of running new wires or drilling into brick or stone.
Finally, it’s safer and more reliable. Wired connections are less prone to signal drops than battery-powered devices, especially in extreme weather. And since the power comes from your home’s electrical system, you won’t get caught off guard by a dead battery.
What You’ll Need Before You Start
Before you begin, make sure you have the right tools and equipment. Here’s a checklist:
- Compatible Ring doorbell: Models like Ring Video Doorbell (2nd Gen), Ring Video Doorbell 3, Ring Video Doorbell Pro, or Ring Video Doorbell Pro 2 work with wired setups.
- Ring Doorbell Chime Kit (included with most models): This small adapter connects to your existing chime and ensures it works with the Ring device.
- Screwdriver (Phillips and flathead): For removing the old doorbell and mounting the new one.
- Voltage tester (non-contact): To confirm the power is off before touching wires.
- Wire strippers (optional): In case you need to trim or re-strip wires.
- Electrical tape and wire nuts: For securing connections.
- Smartphone with the Ring app installed: Available for iOS and Android.
- Wi-Fi network (2.4 GHz recommended): Ring doorbells require a stable internet connection.
Most of these items come with your Ring doorbell or are common household tools. If you’re missing anything, a quick trip to the hardware store will cover it.
Step 1: Check Compatibility with Your Existing Doorbell
Not every wired doorbell system works with Ring. Before you buy or install, you need to confirm compatibility. Here’s how:
Check the Voltage
Ring wired doorbells require a voltage between 8 and 24 volts AC. Most older doorbells run on 16V, which is perfect. But some very old systems might use higher voltages (like 24V), which are still compatible. However, if your system uses DC power or is below 8V, it won’t work.
To check the voltage:
- Locate your doorbell transformer. It’s usually found in your basement, utility closet, or near your electrical panel.
- Look for a small metal box with wires running to your doorbell. It often has labels like “16V” or “24V.”
- If you can’t find it, use a multimeter to test the voltage at the doorbell wires (with power on). Set the multimeter to AC voltage and touch the probes to the two doorbell wires.
If the reading is between 8V and 24V AC, you’re good to go. If it’s outside that range, you may need to upgrade your transformer.
Use the Ring Compatibility Tool
Ring offers a free online tool to check if your doorbell is compatible. Visit the Ring website and enter your doorbell brand and model. The tool will tell you if it works with Ring and whether you need any additional accessories.
Even if your doorbell isn’t listed, as long as it uses standard low-voltage wiring and a mechanical chime (not a digital one), it should work with the Ring Chime Kit.
Check Your Chime Type
Ring works best with mechanical chimes—the kind that use a physical striker to hit a metal bar. These are common in older homes.
If you have a digital chime (one that plays recorded sounds), it may not work with Ring unless it’s specifically listed as compatible. In that case, you can still use the Ring Chime (a separate indoor speaker) or upgrade to a mechanical chime.
Step 2: Turn Off the Power
Safety first! Before touching any wires, you must turn off the power to your doorbell.
Locate the Circuit Breaker
Doorbell circuits are usually on a dedicated breaker labeled “Doorbell,” “Chime,” or “Transformer.” If you can’t find it, turn off the main breaker to be safe.
Test the Wires
After turning off the breaker, go to your doorbell and press the button. The chime should not ring. Then, use a non-contact voltage tester to touch the two doorbell wires. If the tester doesn’t beep or light up, the power is off.
Never skip this step. Even low-voltage systems can cause shocks or damage your Ring device if live.
Step 3: Remove the Old Doorbell
Now that the power is off, it’s time to remove your existing doorbell.
Unscrew the Faceplate
Use a screwdriver to remove the screws holding the old doorbell to the wall. Gently pull the faceplate away from the wall.
Disconnect the Wires
You’ll see two wires connected to terminals (usually labeled “Front” and “Trans”). Loosen the screws and pull the wires free. Don’t let them fall back into the wall.
Label the Wires (Optional but Helpful)
If you’re worried about mixing them up, label the wires with tape—“Front” and “Trans”—so you know which goes where later.
Set the Old Doorbell Aside
You won’t need it anymore, but keep it in case you ever want to revert.
Step 4: Install the Ring Doorbell Chime Kit
The Ring Chime Kit is a small adapter that connects to your existing chime inside your home. It ensures the chime rings when the Ring doorbell is pressed and protects the system from voltage spikes.
Locate Your Indoor Chime
Your chime is usually mounted on a wall near the front door, often in a hallway or living room. It’s a small box with wires connected to it.
Remove the Chime Cover
Unscrew the cover to expose the wiring inside. You’ll see two or more wires connected to terminals.
Connect the Chime Kit
The Ring Chime Kit has two wires with spade connectors. Here’s how to connect them:
- Identify the two terminals on your chime that connect to the doorbell wires (usually labeled “Front” and “Trans”).
- Disconnect those two wires from the chime.
- Connect the Ring Chime Kit wires to the same terminals. It doesn’t matter which wire goes where—the kit is polarity-free.
- Reconnect the original doorbell wires to the other side of the Chime Kit (the kit has pass-through terminals).
- Secure all connections and replace the chime cover.
The Chime Kit acts as a bridge between your doorbell and chime, allowing the Ring to trigger the sound safely.
Step 5: Mount the Ring Doorbell
Now it’s time to install the Ring device outside.
Position the Mounting Bracket
Hold the Ring mounting bracket against the wall where you want the doorbell. Make sure it’s level and at a comfortable height (about 48 inches from the ground is ideal).
Use a pencil to mark the screw holes.
Drill Pilot Holes (If Needed)
If you’re mounting into brick, stucco, or concrete, drill pilot holes and use wall anchors. For wood or siding, you can screw directly in.
Secure the Bracket
Attach the bracket with the provided screws. Make sure it’s tight and level.
Connect the Wires
Take the two doorbell wires and connect them to the terminals on the back of the Ring doorbell. Again, polarity doesn’t matter—just make sure both wires are securely attached.
Attach the Doorbell
Slide the Ring doorbell onto the mounting bracket until it clicks into place. Some models have a security screw to prevent theft—install it now.
Step 6: Restore Power and Test
Now that everything is connected, it’s time to turn the power back on.
Turn On the Breaker
Go back to your electrical panel and flip the breaker back on.
Wait for the Ring to Power Up
The Ring doorbell will light up and start initializing. This can take 30–60 seconds.
Test the Doorbell
Press the button on the Ring doorbell. You should hear the chime inside your home. If it doesn’t ring, double-check the Chime Kit connections.
Check the Ring App
Open the Ring app on your phone. The device should appear as “Ready to Set Up.” If not, make sure it’s powered and within Wi-Fi range.
Step 7: Complete Setup in the Ring App
The Ring app guides you through the final setup steps.
Open the Ring App
If you don’t have it, download it from the App Store or Google Play.
Tap “Set Up a Device”
Select “Doorbells” and choose your model.
Scan the QR Code
Use your phone’s camera to scan the QR code on the back of the Ring doorbell or in the app.
Connect to Wi-Fi
Choose your home Wi-Fi network and enter the password. Ring works best on 2.4 GHz networks. If you only have 5 GHz, some models support it—check your device specs.
Name Your Doorbell
Give it a name like “Front Door” or “Main Entrance” so you can identify it easily.
Test Live View
Tap “Live View” in the app to see the camera feed. You should see a clear image of your doorstep.
Adjust Settings
Customize motion zones, alerts, and chime settings. You can also enable features like pre-roll video or people-only mode.
Troubleshooting Common Issues
Even with careful installation, you might run into problems. Here’s how to fix the most common ones.
Chime Doesn’t Ring
- Check that the Chime Kit is properly connected to the chime box.
- Ensure the original doorbell wires are reconnected to the Chime Kit.
- Verify the breaker is on and the transformer is working.
- Try pressing the doorbell button multiple times—sometimes it takes a few tries to sync.
No Power to the Ring Doorbell
- Double-check that the breaker is on.
- Use a multimeter to test voltage at the doorbell wires (should be 8–24V AC).
- If voltage is low, your transformer may be failing—consider replacing it.
- Ensure wires are tightly connected and not loose.
Wi-Fi Connection Problems
- Move your router closer or use a Wi-Fi extender.
- Ensure you’re connecting to 2.4 GHz (most Ring models don’t support 5 GHz).
- Restart your router and the Ring device.
- Check for interference from other devices (microwaves, cordless phones).
Video Quality Is Poor
- Clean the camera lens with a soft cloth.
- Adjust the angle of the doorbell for a better view.
- Ensure strong Wi-Fi signal at the doorbell location.
- Update the Ring app and device firmware.
Doorbell Doesn’t Respond in the App
- Restart the Ring device by removing it from the bracket and reattaching it.
- Reconnect to Wi-Fi in the app.
- Check for app updates.
- Contact Ring support if the issue persists.
Tips for a Smooth Installation
- Take photos before disconnecting wires. This helps you remember how everything was connected.
- Use wire nuts to secure loose wires. Even if they’re not connected, cap them to prevent shorts.
- Install during daylight. It’s easier to see what you’re doing.
- Have a helper. One person can hold the doorbell while the other connects wires.
- Test before final mounting. Temporarily connect the doorbell and test it before screwing it in place.
Conclusion
Connecting Ring to a wired doorbell is a smart, safe, and straightforward upgrade that brings modern security to your home. By following this guide, you’ve learned how to check compatibility, install the Chime Kit, mount the device, and troubleshoot issues—all without calling an electrician.
With your Ring doorbell now connected, you can enjoy real-time alerts, crystal-clear video, and peace of mind knowing who’s at your door—even when you’re miles away. Whether it’s a delivery person, a neighbor, or an unexpected visitor, you’ll always be in the know.
So go ahead—ring that doorbell, test the chime, and start enjoying the benefits of a smarter home. Your future self will thank you.
