This guide walks you through how to connect a wired Ring Video Doorbell with clear, beginner-friendly instructions. You’ll learn about wiring, power requirements, app setup, and how to troubleshoot common issues for a smooth installation.
Key Takeaways
- Check compatibility first: Ensure your existing doorbell wiring and transformer meet Ring’s voltage requirements (16–24V AC).
- Turn off power safely: Always shut off the circuit breaker before handling wires to prevent electrical shock.
- Use the right tools: A voltage tester, screwdriver, and wire strippers make installation faster and safer.
- Follow the Ring app guide: The app provides real-time feedback and step-by-step help during setup.
- Test before finalizing: Power on and test the doorbell before securing it to the wall to avoid rework.
- Enable smart features: Once connected, customize motion zones, alerts, and chimes in the app.
- Troubleshoot common issues: If the doorbell doesn’t power on, check wiring, voltage, and Wi-Fi signal strength.
How to Connect Wired Ring Video Doorbell: A Complete Step-by-Step Guide
So, you’ve decided to upgrade your home security with a wired Ring Video Doorbell—great choice! Unlike battery-powered models, the wired version connects directly to your existing doorbell wiring, giving you continuous power and reliable performance. No more worrying about dead batteries or frequent recharging.
But if you’re new to smart doorbells or DIY home tech, the idea of wiring might feel intimidating. Don’t worry—this guide will walk you through how to connect a wired Ring Video Doorbell safely and correctly, even if you’ve never touched a screwdriver before.
By the end of this guide, you’ll know exactly how to:
– Check if your home is compatible
– Turn off power safely
– Remove your old doorbell
– Install the new Ring device
– Connect it to the Ring app
– Troubleshoot common problems
Let’s get started!
What You’ll Need Before You Begin
Before diving into the installation, gather these tools and materials. Having everything ready will save time and reduce frustration.
- Wired Ring Video Doorbell (such as Ring Video Doorbell Wired or Ring Video Doorbell Pro)
- Smartphone or tablet with the Ring app installed (available on iOS and Android)
- Screwdriver (usually a Phillips head)
- Wire strippers (if your wires aren’t already stripped)
- Voltage tester (to confirm power is off and check voltage)
- Drill and drill bits (optional, only if you need to make new mounting holes)
- Level (to ensure the doorbell is straight)
- Pencil (for marking screw positions)
- Electrical tape (for securing loose wires)
Pro tip: If your existing doorbell wires are too short or damaged, you may need to extend them with 18- or 20-gauge doorbell wire. Most hardware stores carry this.
Step 1: Check Compatibility and Power Requirements
Not all homes are ready for a wired Ring doorbell. Before you start, make sure your setup meets Ring’s requirements.
Check Your Existing Doorbell System
Most traditional doorbells use low-voltage AC power from a transformer, usually located near your electrical panel, furnace, or in the basement. Ring wired doorbells require:
– A transformer that outputs 16 to 24 volts AC
– At least 30VA (volt-amperes) of power
If your current doorbell works, there’s a good chance it meets these specs—but it’s best to verify.
How to Test Voltage
1. Turn off the power to your doorbell at the circuit breaker.
2. Remove the old doorbell from the wall.
3. Use a voltage tester or multimeter to check the voltage across the two wires.
4. If the reading is between 16V and 24V AC, you’re good to go.
5. If it’s below 16V, your transformer may be too weak. You’ll need to upgrade it.
⚠️ Warning: Never test voltage with the power on unless you’re experienced with electrical work. Always turn off the breaker first.
Check Wi-Fi Signal Strength
Your Ring doorbell needs a stable Wi-Fi connection to stream video and send alerts. Use your phone to check the signal strength at the doorbell location.
– If the signal is weak, consider installing a Wi-Fi extender or mesh network.
– Ring recommends a minimum of 2 Mbps upload speed for smooth video.
Step 2: Turn Off the Power
Safety first! Working with electricity can be dangerous if you’re not careful.
Locate the Circuit Breaker
Find the breaker that controls your doorbell. It’s often labeled “doorbell,” “chime,” or “front door.” If you’re unsure, turn off the main breaker to be safe.
Test That Power Is Off
Even after turning off the breaker, use your voltage tester to double-check that no current is flowing to the wires. Touch the probes to the two doorbell wires—if the tester doesn’t light up or beep, you’re safe to proceed.
Label the Wires (Optional but Helpful)
If your old doorbell has two wires, they’re usually interchangeable. But if you want to be extra careful, label them with tape (e.g., “Front” and “Trans”) so you know which goes where.
Step 3: Remove the Old Doorbell
Now it’s time to take down your existing doorbell.
Unscrew the Old Unit
Use your screwdriver to remove the screws holding the old doorbell to the wall. Gently pull it away from the wall—don’t yank it, as the wires may be tight.
Disconnect the Wires
Loosen the terminal screws on the back of the old doorbell and pull the wires free. If the wires are short, you may need to gently pull them out from the wall.
Secure the Wires
To prevent them from slipping back into the wall, twist the bare ends together or wrap them with electrical tape. You can also use a small piece of wire to tie them to the wall plate.
Step 4: Prepare the Ring Doorbell
Now let’s get your new Ring doorbell ready for installation.
Unbox and Inspect
Open the Ring package and make sure all parts are included:
– Ring Video Doorbell (wired model)
– Mounting bracket
– Screws and anchors
– Wire nuts (for connecting wires)
– Security screw and tool
– Quick start guide
Download and Open the Ring App
If you haven’t already, download the Ring app from the App Store or Google Play. Create an account or log in.
The app will guide you through setup, so keep your phone nearby.
Charge Your Phone
The setup process can take 10–15 minutes and uses your phone’s camera and Bluetooth. Make sure your phone has at least 50% battery.
Step 5: Install the Mounting Bracket
The mounting bracket holds the doorbell securely to the wall.
Position the Bracket
Hold the bracket against the wall where you want to install the doorbell. Use a level to make sure it’s straight.
Most Ring doorbells should be installed about 48 inches from the ground for optimal motion detection.
Mark the Screw Holes
Use a pencil to mark where the screws will go. If you’re drilling new holes, use a drill bit slightly smaller than the screws for a tight fit.
Drill and Secure
Drill pilot holes if needed, then screw the bracket into place. Use wall anchors if you’re mounting into drywall or brick.
Feed the Wires Through
Thread the two doorbell wires through the center hole in the bracket. This keeps them neat and out of the way.
Step 6: Connect the Wires to the Ring Doorbell
This is the most important step—getting the wiring right ensures your doorbell powers on and works properly.
Strip the Wire Ends (If Needed)
If the wire ends aren’t already stripped, use wire strippers to remove about 1/4 inch of insulation. You need bare copper to make a good connection.
Connect to the Terminal Screws
On the back of the Ring doorbell, you’ll see two terminal screws labeled “Front” and “Trans.” It doesn’t matter which wire goes where—both will work.
1. Loosen the screws slightly.
2. Insert one wire under each screw.
3. Tighten the screws to secure the wires.
Make sure the wires are snug and not loose. A loose connection can cause power issues.
Use Wire Nuts (Optional)
If the wires are too short or you want extra security, twist them together with a wire nut before connecting to the doorbell. This is common in older homes.

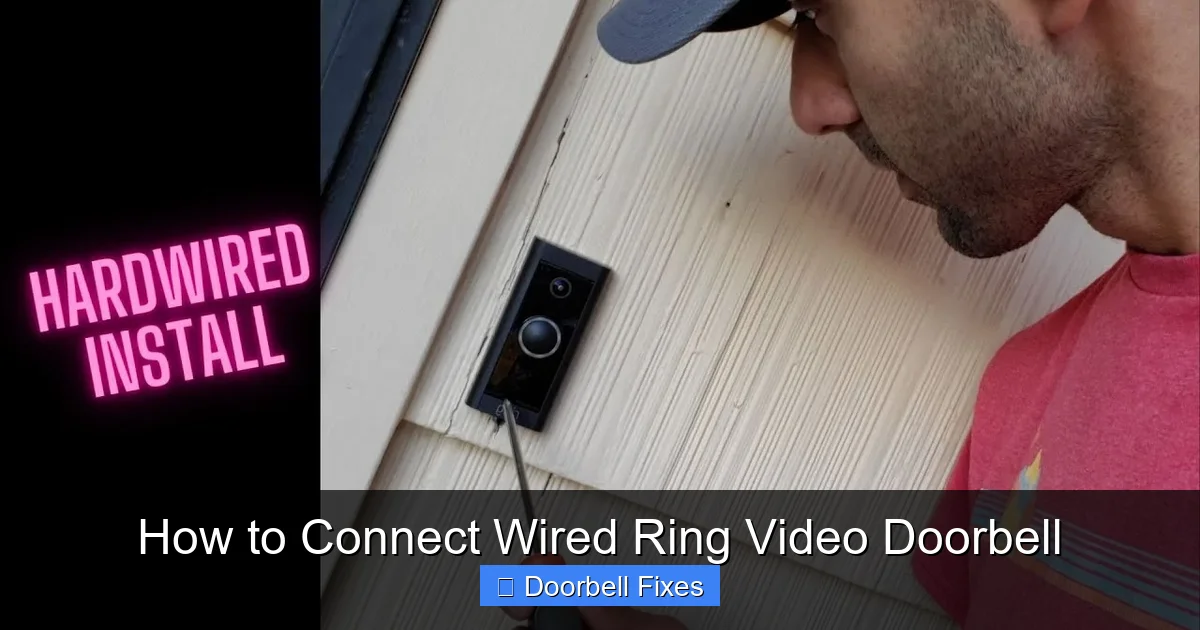

Step 7: Attach the Doorbell to the Bracket
Now it’s time to mount the Ring doorbell.
Align and Slide
Hold the doorbell so the wires feed through the back. Align the slots on the doorbell with the tabs on the bracket, then slide it down until it clicks into place.
Secure with the Security Screw
Use the included security screw and tool to fasten the doorbell to the bracket. This prevents theft and keeps it stable.
Step 8: Turn the Power Back On
With the doorbell installed, it’s time to restore power.
Flip the Breaker
Go back to your electrical panel and turn the doorbell circuit back on.
Wait for the Light
Within a few seconds, you should see a light on the front of the Ring doorbell. A solid white light means it’s powering up.
If nothing happens, double-check your wiring and voltage.
Step 9: Set Up the Ring App
Now let’s connect your doorbell to your phone and Wi-Fi.
Open the Ring App
Launch the app and tap “Set Up a Device.” Select “Doorbells” and then choose your model (e.g., “Ring Video Doorbell Wired”).
Scan the QR Code
Use your phone’s camera to scan the QR code on the back of the doorbell or inside the app. This links the device to your account.
Follow the On-Screen Prompts
The app will guide you through:
– Naming your doorbell (e.g., “Front Door”)
– Connecting to your Wi-Fi network
– Setting up motion zones
– Enabling notifications
Make sure your phone is connected to the same Wi-Fi network you want the doorbell to use.
Test the Connection
Once setup is complete, the app will confirm the connection. You should see a live video feed from your doorbell.
Step 10: Customize Your Settings
Now that your doorbell is connected, personalize it to fit your lifestyle.
Adjust Motion Zones
In the app, go to Device Settings > Motion Settings. Draw zones to focus on areas like your walkway or driveway. This reduces false alerts from passing cars or trees.
Set Up Chimes
If you have a Ring Chime or Chime Pro, link it to your doorbell so you hear alerts inside your home.
Enable Smart Alerts
Turn on person detection, package alerts, and rich notifications to get more useful alerts.
Share Access
Invite family members to the app so they can see live video and receive alerts too.
Troubleshooting Common Issues
Even with careful installation, problems can happen. Here’s how to fix the most common ones.
Doorbell Won’t Power On
– Check that the breaker is on.
– Test the voltage at the wires—should be 16–24V AC.
– Ensure wires are securely connected and not loose.
– Try swapping the wires (though polarity doesn’t matter, a loose connection might).
No Video or Poor Quality
– Check your Wi-Fi signal strength at the doorbell location.
– Move your router closer or add a Wi-Fi extender.
– Restart your router and the doorbell (turn power off for 10 seconds).
App Says “Offline”
– Make sure the doorbell is powered and the light is on.
– Reconnect to Wi-Fi in the app.
– Update the Ring app and firmware.
False Motion Alerts
– Adjust motion zones to exclude busy streets or trees.
– Lower motion sensitivity in the app.
– Clean the lens—dirt or spider webs can trigger alerts.
Doorbell Rings but No Video
– Check if the doorbell button is stuck.
– Ensure the app is updated.
– Reboot the doorbell by turning power off and on.
Final Tips for a Smooth Experience
– Keep the lens clean: Wipe it monthly with a soft, dry cloth to maintain video quality.
– Update firmware: Ring regularly releases updates—keep your app and device updated.
– Use a strong Wi-Fi password: This prevents unauthorized access.
– Check battery backup (if applicable): Some models have a small backup battery—replace it every 2–3 years.
Conclusion
Congratulations! You’ve successfully learned how to connect a wired Ring Video Doorbell. From checking compatibility to final app setup, you’ve completed a smart home upgrade that enhances security and convenience.
Remember, the key to a smooth installation is preparation and safety. Always turn off the power, test your voltage, and follow the app’s guidance. If you run into issues, the troubleshooting tips above will help you get back on track.
Now enjoy peace of mind knowing you can see, hear, and speak to anyone at your door—from anywhere in the world.
Welcome to the future of home security!
