How to Disable Doorbell Transformer

This guide walks you through how to disable a doorbell transformer safely and correctly. You’ll learn where to find it, how to cut power, and how to disconnect it without risking shock or damage.

Key Takeaways

• Turn off the circuit breaker first: Always shut off power at the main electrical panel before working on the transformer to prevent electric shock.
• Locate the transformer correctly: Most doorbell transformers are hidden inside walls, near the chime, or in the basement, attic, or garage.
• Use a voltage tester: Confirm the power is off by testing wires with a non-contact voltage tester before touching anything.
• Disconnect wires carefully: Label and cap loose wires to avoid short circuits and make future reinstallation easier.
• Cap or remove the transformer: Once disconnected, either cap the wires or remove the transformer entirely if you no longer need the doorbell.
• Consider professional help: If you’re unsure about electrical work, hire a licensed electrician to avoid hazards.
• Test after completion: Turn the power back on and verify the doorbell no longer works to confirm success.

How to Disable Doorbell Transformer: A Complete Step-by-Step Guide

If you’ve decided to remove or replace your doorbell, one of the most important steps is disabling the doorbell transformer. This small but crucial device steps down your home’s standard 120-volt electrical supply to a safer 8–24 volts used by most doorbells. While it may seem like a simple task, working with electrical components requires caution and precision.

In this guide, you’ll learn exactly how to disable a doorbell transformer safely, whether you’re removing the doorbell permanently, upgrading to a wireless model, or troubleshooting electrical issues. We’ll walk you through locating the transformer, shutting off power, disconnecting wires, and securing the setup to prevent future problems. By the end, you’ll feel confident handling this common home improvement task—without risking shock or damaging your electrical system.

Why You Might Need to Disable a Doorbell Transformer

Before diving into the steps, it’s helpful to understand why someone would want to disable a doorbell transformer in the first place. Here are the most common reasons:

• Replacing an old doorbell: If your current doorbell is outdated or malfunctioning, you may be installing a new wired or wireless model that doesn’t require the existing transformer.
• Switching to a battery-powered doorbell: Many modern smart doorbells run on batteries and don’t need a transformer. Disabling the old one prevents unnecessary power draw.
• Renovating or remodeling: During home renovations, you might remove the doorbell entirely or relocate it, requiring the transformer to be disabled or moved.
• Electrical safety concerns: A faulty transformer can overheat or cause short circuits. Disabling it eliminates potential fire or shock hazards.
• Aesthetic or noise reasons: Some people find the constant low hum of an active transformer annoying, especially if it’s located near a bedroom or quiet space.

No matter your reason, the process remains largely the same. The key is to proceed methodically and prioritize safety at every step.

Tools and Materials You’ll Need

Before starting, gather the following tools and materials to ensure a smooth and safe process:

• Non-contact voltage tester: This is essential for confirming that power is off before touching any wires.
• Screwdrivers (Phillips and flathead): You’ll need these to remove covers, access junction boxes, and loosen terminal screws.
• Wire strippers (optional): Useful if you need to trim or re-strip wires.
• Electrical tape: For insulating exposed wires.
• Wire nuts (wire caps): To safely cap off disconnected wires.
• Flashlight or work light: Many transformers are in dark areas like basements or attics.
• Safety gloves and goggles: Protect yourself from accidental shocks or debris.
• Labeling tape or marker: Helps you remember which wire goes where if you plan to reinstall later.

Having these items on hand will save time and reduce frustration during the process.

Step 1: Turn Off the Power at the Circuit Breaker

The very first—and most critical—step in disabling a doorbell transformer is cutting off the electrical supply. Even though doorbell systems use low voltage, the transformer itself is connected to your home’s main 120-volt circuit. Working on live wires can result in serious injury or death.

Locate Your Electrical Panel

Your home’s main electrical panel (also called a breaker box or fuse box) is usually found in the basement, garage, utility room, or outside near the meter. Open the panel door to view the circuit breakers.

Identify the Doorbell Circuit

Look for a breaker labeled “doorbell,” “chime,” or “low voltage.” If there’s no label, you may need to do a little detective work. Turn off breakers one by one and test the doorbell until it stops working. Alternatively, use a circuit tracer tool if you have one.

Switch Off the Breaker

Once you’ve identified the correct breaker, flip it to the “OFF” position. For extra safety, turn off the main breaker as well, especially if you’re unsure which circuit controls the doorbell.

Verify Power Is Off

Use your non-contact voltage tester to check the breaker itself and any nearby outlets. The tester should not beep or light up. This confirms that power is truly off before you begin working.

Step 2: Locate the Doorbell Transformer

Now that the power is off, it’s time to find the transformer. This can be tricky because transformers are often hidden in inconspicuous places.

Common Locations

Most doorbell transformers are installed in one of these spots:

• Inside the doorbell chime box: Open the chime unit (usually on the wall near the front door) and look for a small black or gray box with wires connected to it.
• In the basement or crawlspace: Near the furnace, water heater, or electrical panel. Look for a small device mounted on a junction box or electrical conduit.
• In the attic: Especially in older homes, transformers may be tucked away near the ceiling joists.
• Inside a wall cavity: Sometimes buried behind drywall, accessible only through an electrical box or by removing a baseboard.
• Near the doorbell button: Rare, but possible—especially in newer installations.

How to Identify the Transformer

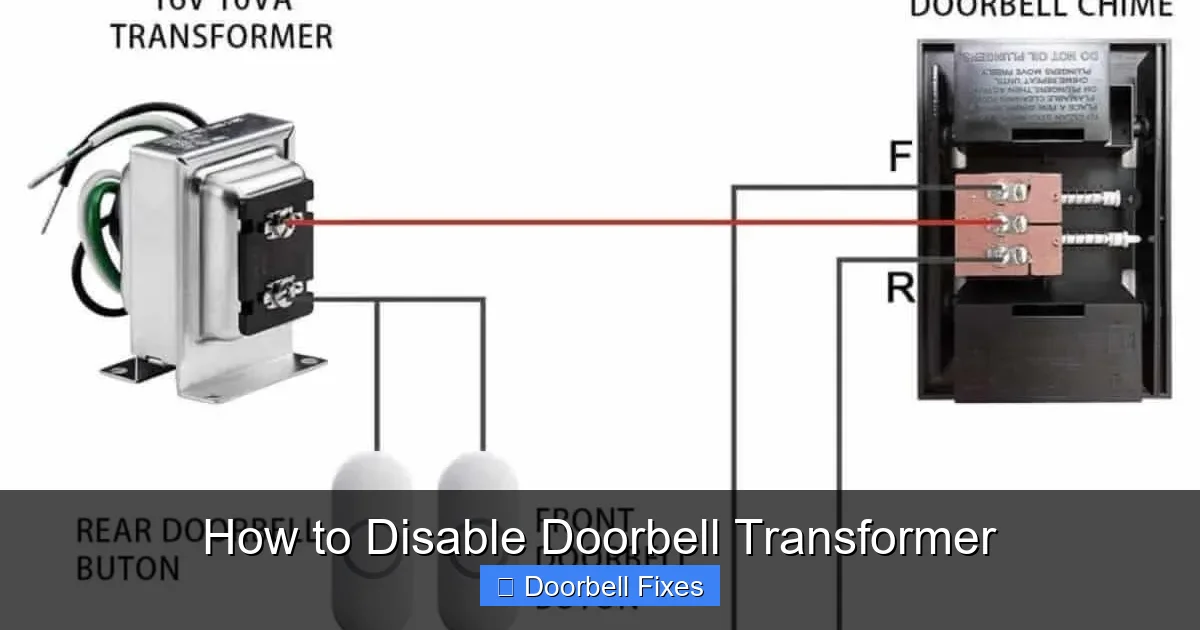

A doorbell transformer is typically a small, rectangular or cylindrical device about the size of a deck of cards. It has two sets of wires:

• Primary side (high voltage): Two black or black and white wires connected to 120V household power.
• Secondary side (low voltage): Two smaller wires (often red and white) that run to the doorbell button and chime.

It may also have a label indicating output voltage (e.g., “16V 10VA”) and input voltage (“120V”).

Tips for Finding a Hidden Transformer

If you can’t locate it, try these methods:

• Follow the wires: Trace the low-voltage wires from the doorbell button or chime back to their source.
• Use a tone generator: A professional tool that sends a signal through the wire, helping you trace its path.
• Check electrical blueprints: If available, your home’s wiring diagram may show transformer locations.
• Ask previous owners or electricians: They may have records or remember where it was installed.

Step 3: Confirm Power Is Off at the Transformer

Even though you turned off the breaker, it’s smart to double-check that no electricity is reaching the transformer.

Use a Voltage Tester

Touch the non-contact voltage tester to the wires on the primary side (the ones connected to household power). The tester should remain silent and dark. If it beeps or lights up, the power is still on—do not proceed. Recheck your breaker or consult an electrician.

Test Both Sides

Also test the low-voltage side (secondary wires) to ensure no residual current is present. While unlikely, it’s better to be safe.

Step 4: Disconnect the Wires

With power confirmed off, you can now safely disconnect the transformer.

Remove the Transformer Cover (If Applicable)

Some transformers are housed in a plastic or metal cover. Use a screwdriver to remove any screws and open the cover.

Label the Wires

Before disconnecting anything, label the wires with tape and a marker. For example:

• “Primary – Black”
• “Primary – White”
• “Secondary – Red”
• “Secondary – White”

This makes reinstallation or future troubleshooting much easier.

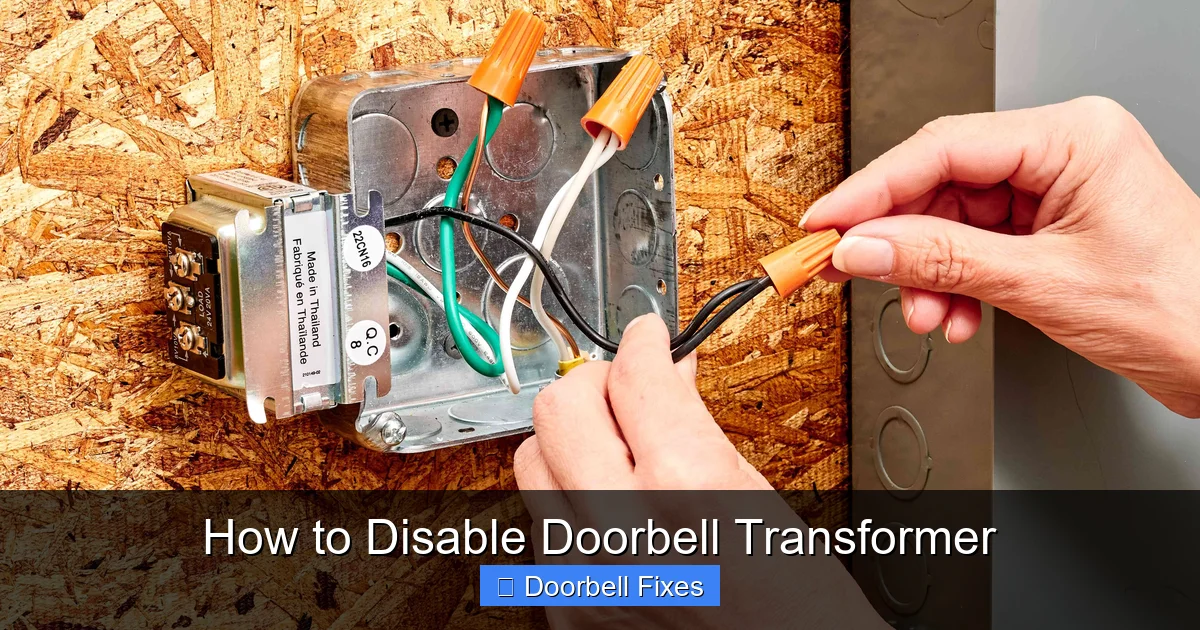

Loosen the Terminal Screws

Use a screwdriver to loosen the screws on the transformer terminals. Carefully pull the wires free. Be gentle—older wires can be brittle.

Cap the Wires

Once disconnected, immediately cap each wire with a wire nut and wrap it with electrical tape. This prevents accidental contact and short circuits.

• Twist the wire nut clockwise onto the exposed wire ends.
• Ensure no bare wire is visible.
• Wrap the base of the wire nut with electrical tape for extra security.

Step 5: Remove or Secure the Transformer

Now that the wires are disconnected, decide what to do with the transformer itself.

Option 1: Remove the Transformer Entirely

If you no longer need the doorbell system, you can remove the transformer:

• Unscrew the mounting bracket or nails holding it in place.
• Pull the transformer out of the junction box or wall.
• Patch any holes in the wall or ceiling if necessary.

Option 2: Leave It In Place (But Disabled)

If you might reinstall a doorbell later, leave the transformer in place but disconnected. Secure it out of the way with a zip tie or tape, and make sure all wires are capped.

Option 3: Replace with a New Transformer

If you’re upgrading to a new doorbell, install the new transformer now. Follow the manufacturer’s instructions and reconnect the wires to the correct terminals.

Step 6: Restore Power and Test

Once everything is disconnected and secured, it’s time to restore power and verify the job is complete.

Turn the Breaker Back On

Go to the electrical panel and flip the breaker back to the “ON” position.

Test the Doorbell

Press the doorbell button. If you’ve done everything correctly, nothing should happen—no sound, no lights, no response.

Check for Residual Power

Use your voltage tester again to confirm no electricity is flowing to the transformer or doorbell wires.

Troubleshooting Common Issues

Even with careful work, problems can arise. Here’s how to handle common issues:

The Doorbell Still Works After Disabling

This means power is still reaching the system. Possible causes:

• The wrong breaker was turned off.
• The transformer is connected to a different circuit.
• There’s a backup power source (e.g., battery in a smart doorbell).

Solution: Recheck the breaker labels and use a circuit tracer to find the correct one.

You Can’t Find the Transformer

If you’ve searched everywhere and still can’t locate it:

• It may be buried deep inside a wall.
• It could be integrated into the chime unit.
• The doorbell might be battery-powered, meaning no transformer exists.

Solution: Consult an electrician or consider whether a transformer is even present.

Wires Are Damaged or Brittle

Older homes may have deteriorated wiring.

• Trim the damaged section with wire strippers.
• Strip about ½ inch of insulation from the end.
• Cap the wire securely.

If the damage is extensive, consider replacing the entire wire run.

Transformer Is Hot or Humming

If the transformer feels warm or makes a loud hum even after power is off, it may be faulty.

• Do not touch it.
• Turn off the main breaker immediately.
• Call an electrician—this could indicate a serious electrical issue.

Safety Tips and Best Practices

Working with electricity demands respect. Follow these safety guidelines:

• Never work on live wires: Always turn off power and test before touching anything.
• Wear protective gear: Gloves and goggles can prevent injuries.
• Work in a dry area: Avoid damp basements or wet conditions.
• Don’t rush: Take your time to avoid mistakes.
• When in doubt, call a pro: If you’re unsure about any step, hire a licensed electrician.

When to Call a Professional

While disabling a doorbell transformer is manageable for many DIYers, some situations call for expert help:

• You can’t locate the transformer after thorough searching.
• The wiring is old, frayed, or improperly installed.
• You’re uncomfortable working with electrical systems.
• The breaker panel is outdated or difficult to access.
• You suspect a larger electrical issue (e.g., short circuit, overheating).

A licensed electrician can safely disable the transformer and ensure your home’s electrical system remains up to code.

Conclusion

Disabling a doorbell transformer is a straightforward task when approached with care and the right tools. By turning off the power, locating the transformer, disconnecting the wires, and capping them securely, you can safely remove or deactivate your doorbell system. Whether you’re upgrading to a smart doorbell, renovating, or simply eliminating an unwanted noise, this guide gives you the confidence to get the job done right.

Remember: safety comes first. Always verify that power is off, use proper tools, and don’t hesitate to seek professional help if needed. With these steps, you’ll have a clean, safe, and functional electrical setup—without the buzz of an active doorbell transformer.
