Disconnecting a Broan wired doorbell is a straightforward DIY task when done safely and methodically. This guide walks you through turning off power, removing the chime unit, and safely detaching wires—perfect for upgrades or repairs.
Key Takeaways
- Safety first: Always turn off the circuit breaker before working on any wired doorbell to prevent electrical shock.
- Identify your system: Broan doorbells typically include a transformer, chime unit, and doorbell button—knowing these components helps in disconnection.
- Label wires: Take photos or use tape labels when removing wires to avoid confusion during reinstallation or replacement.
- Use the right tools: A screwdriver, voltage tester, and needle-nose pliers make the job easier and safer.
- Cap exposed wires: After disconnection, secure loose wires with wire nuts to prevent short circuits or hazards.
- Test before restoring power: Double-check all connections and ensure no bare wires are exposed before turning the breaker back on.
- Consider professional help: If you’re unsure about electrical work, consult a licensed electrician to avoid risks.
How to Disconnect Broan Wired Doorbell: A Complete Step-by-Step Guide
If you’re planning to replace, upgrade, or simply remove your Broan wired doorbell, knowing how to disconnect it safely is essential. Whether you’re switching to a smart doorbell, fixing a faulty chime, or renovating your entryway, this comprehensive guide will walk you through the entire process—from turning off the power to safely capping wires. With clear instructions, practical tips, and safety reminders, you’ll be able to handle this DIY project confidently.
Broan wired doorbells are common in many homes and are known for their reliability. However, like any electrical device, they may eventually need maintenance or replacement. The good news? Disconnecting a Broan wired doorbell is a manageable task for most homeowners with basic tools and a little patience. This guide is designed for beginners and intermediate DIYers alike, ensuring you complete the job without risking electrical hazards or damaging your home’s wiring.
In this guide, you’ll learn how to locate your doorbell’s electrical components, safely shut off power, remove the chime unit and button, disconnect wiring, and prepare the system for future use. We’ll also cover troubleshooting tips and answer common questions to help you avoid mistakes. By the end, you’ll have a clear understanding of the process and the confidence to tackle similar projects in the future.
Understanding Your Broan Wired Doorbell System

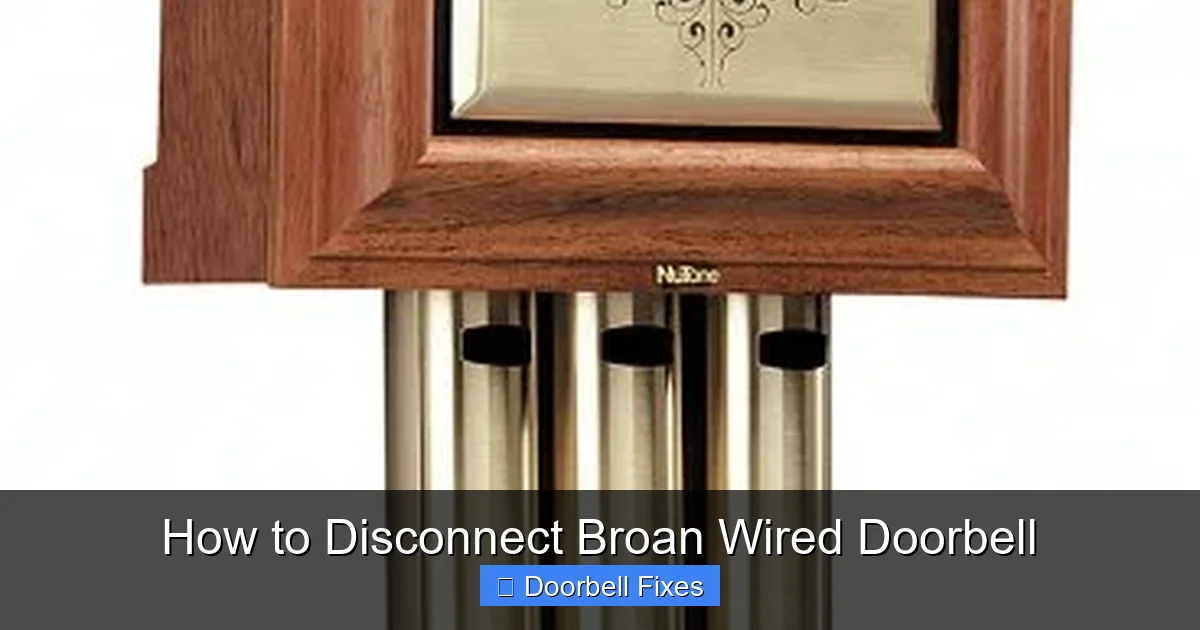

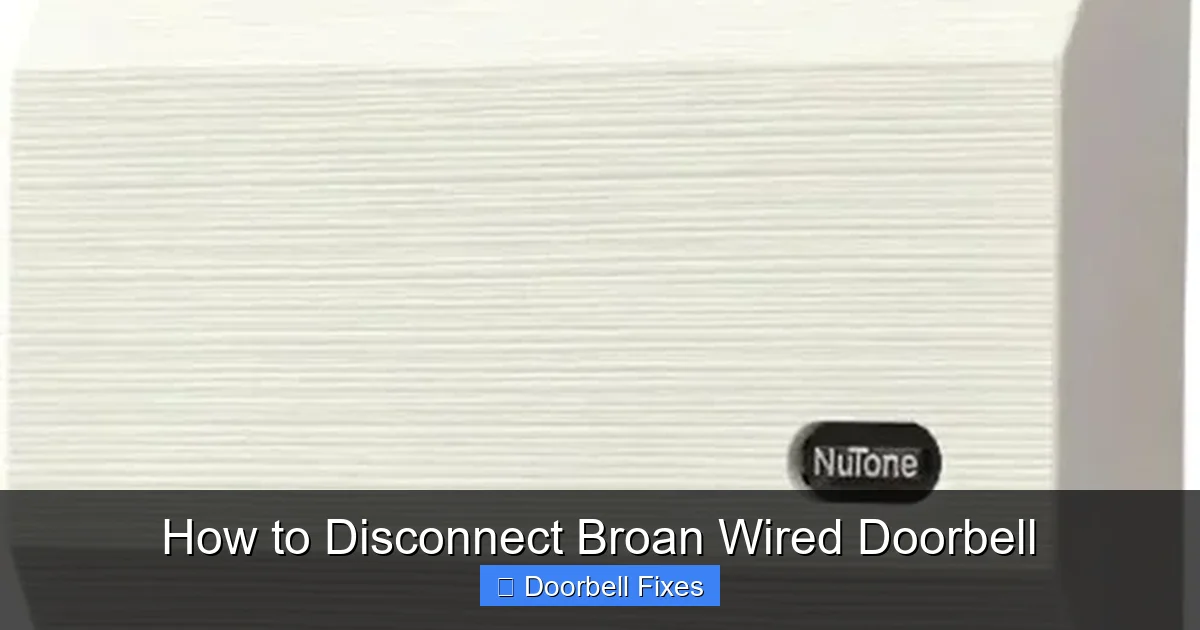

Visual guide about How to Disconnect Broan Wired Doorbell
Image source: i.ebayimg.com
Before you begin disconnecting your Broan doorbell, it’s important to understand how the system works. A typical wired doorbell setup includes three main components: the doorbell button, the chime unit (also called the bell or ringer), and the transformer. These parts work together to create the familiar “ding-dong” sound when someone presses the button.
The doorbell button is mounted near your front door and contains a simple switch. When pressed, it completes a low-voltage circuit, sending a signal to the chime unit inside your home. The chime unit receives this signal and produces the sound. The transformer, usually located near your electrical panel or in the basement, steps down your home’s standard 120-volt current to a safer 8–24 volts, which powers the doorbell system.
Broan doorbells are often integrated into older homes and may use mechanical chimes with physical hammers and bells, though some models include electronic chimes with digital sounds. Regardless of the type, the disconnection process remains largely the same. Knowing where each component is located will help you work efficiently and avoid confusion.
Locating the Chime Unit
The chime unit is typically mounted on a wall inside your home, often in a hallway, living room, or near the front door. It’s usually housed in a rectangular plastic or metal box about the size of a small picture frame. Look for a device with two or more terminals labeled “Front,” “Rear,” or “Trans.” These labels indicate where the wires connect.
If you’re unsure where your chime is located, try pressing the doorbell button and listen carefully. The sound will help you pinpoint its position. Once found, check for a cover that can be removed—most Broan chimes have a front panel that snaps or screws off.
Finding the Transformer
The transformer is the heart of your doorbell’s power supply. It’s usually tucked away in a junction box near your main electrical panel, inside a closet, or in the basement. It looks like a small metal box with wires coming in and out. Some transformers are mounted directly to electrical boxes, while others hang from wires.
To locate it, trace the wires from the chime unit back toward your electrical system. The transformer will be where the low-voltage doorbell wires connect to the household wiring. If you can’t find it, consult your home’s electrical diagram or consider using a voltage tester to trace the circuit.
Identifying the Doorbell Button
The doorbell button is the easiest component to find—it’s mounted on the exterior wall near your front door. It’s usually a small rectangular or round plastic piece with a light inside (on newer models). When you press it, you should hear the chime inside.
Broan buttons are typically wired with two thin wires that run through the wall to the chime unit. These wires are low-voltage and safe to handle once power is off, but always confirm the circuit is dead before touching them.
Safety First: Preparing to Disconnect Your Doorbell
Electrical safety is the most critical part of disconnecting a wired doorbell. Even though doorbell systems use low voltage, they are still connected to your home’s electrical circuit. Mistakes can lead to shocks, short circuits, or damage to your wiring. Follow these safety steps before touching any components.
Turn Off the Power at the Circuit Breaker
The first and most important step is to turn off the power. Locate your home’s main electrical panel (breaker box) and find the circuit that controls the doorbell. This may be labeled “Doorbell,” “Chime,” or “Low Voltage.” If it’s not labeled, you may need to test circuits by turning them off one at a time and checking if the doorbell stops working.
Once you’ve identified the correct breaker, switch it to the “Off” position. For extra safety, use a non-contact voltage tester at the chime unit to confirm no electricity is flowing. Simply touch the tester near the wires—if it beeps or lights up, power is still on.
Gather the Right Tools
Having the right tools on hand will make the job smoother and safer. Here’s what you’ll need:
– Flathead and Phillips screwdrivers
– Needle-nose pliers
– Non-contact voltage tester
– Wire strippers (optional, for future use)
– Electrical tape
– Wire nuts (also called wire connectors)
– Labels or masking tape
– Smartphone or camera (to take reference photos)
Keep your tools organized and within reach. Working in a well-lit area will also help you see small components and wire colors clearly.
Take Reference Photos
Before disconnecting anything, take clear photos of the chime unit and wiring setup. Capture close-ups of the terminals, wire colors, and how everything is connected. These photos will serve as a reference if you plan to reinstall the doorbell later or install a new one.
Labeling wires with tape and a marker is another smart move. For example, write “Front” on the wire going to the front door button and “Trans” on the wire connected to the transformer. This prevents confusion when it’s time to reconnect or replace components.
Step-by-Step: Disconnecting the Broan Wired Doorbell
Now that you’ve prepared safely, it’s time to disconnect your Broan doorbell. Follow these steps in order to ensure a smooth and hazard-free process.
Step 1: Remove the Chime Unit Cover
Start by removing the front cover of the chime unit. Most Broan models have a cover that snaps off or is held in place by one or two screws. Use a screwdriver to loosen any screws, or gently pry the cover off with your fingers or a flathead screwdriver.
Once the cover is off, you’ll see the internal mechanism and the wiring terminals. Take another photo at this stage to document the current setup.
Step 2: Identify and Label the Wires
Look at the terminals on the chime unit. You’ll typically see two or three wires connected:
– One wire from the front doorbell button (often labeled “Front”)
– One wire from a rear doorbell button, if you have one (labeled “Rear”)
– One wire from the transformer (labeled “Trans”)
Note the color of each wire—common colors include red, white, black, or yellow. Use your labels or tape to mark each wire with its corresponding terminal. This step is crucial if you plan to reinstall the doorbell or install a new one later.
Step 3: Disconnect the Wires from the Chime Unit
Using needle-nose pliers or your fingers, carefully loosen the terminal screws and remove each wire. Turn the screws counterclockwise until the wire can be pulled free. Be gentle—older wires can become brittle over time.
As you remove each wire, immediately cap it with a wire nut to prevent accidental contact. Twist the wire nut clockwise onto the exposed end until it’s secure. If the wire is frayed, trim it slightly with wire strippers before capping.
Step 4: Remove the Chime Unit from the Wall
With the wires disconnected, you can now remove the chime unit from the wall. Unscrew the mounting screws that hold the unit in place. Most Broan chimes are mounted with two screws at the top and bottom.
Gently pull the unit away from the wall. You may need to wiggle it slightly if it’s been in place for years. Be careful not to damage the wall or pull too hard on the wires still connected to the house.
Step 5: Disconnect the Doorbell Button
Next, move to the exterior doorbell button. Remove the screws holding it to the wall and gently pull it away. You’ll see two wires connected to the back.
Use your voltage tester to confirm no power is present, then disconnect the wires by loosening the terminal screws. Cap each wire with a wire nut and tuck them back into the wall cavity. If you’re not replacing the button, you can leave the wires inside the wall for future use.
Step 6: Locate and Disconnect the Transformer (Optional)
If you’re completely removing the doorbell system, you may want to disconnect the transformer. This step is optional and should only be done if you’re certain the transformer won’t be needed for other devices.
Turn off the main breaker again for extra safety. Open the electrical box where the transformer is mounted and disconnect the wires. Cap all exposed ends with wire nuts and secure the transformer in place or remove it entirely.
Note: Some smart doorbells require a transformer, so consider your future plans before removing it.
Post-Disconnection: What to Do Next
After disconnecting your Broan doorbell, you have several options depending on your goals.
Option 1: Install a New Doorbell
If you’re replacing the old doorbell with a new wired or wireless model, now is the time to install it. Follow the manufacturer’s instructions, using your reference photos and labels to reconnect wires correctly. Most new doorbells are compatible with existing wiring, making installation straightforward.
Option 2: Leave the System Inactive
If you’re not planning to install a new doorbell right away, make sure all wires are safely capped and tucked into the wall. This prevents accidental contact and keeps your home safe. You can always reconnect the system later.
Option 3: Upgrade to a Smart Doorbell
Many homeowners use this opportunity to upgrade to a smart doorbell like Ring, Nest, or Arlo. These devices often require a constant power source, so ensure your transformer provides adequate voltage (usually 16–24V). Some smart doorbells come with plug-in transformers if your existing one isn’t compatible.
Troubleshooting Common Issues
Even with careful planning, you might encounter problems during disconnection. Here are some common issues and how to solve them.
Doorbell Still Works After Turning Off Breaker
If the doorbell still rings after turning off the breaker, you may have turned off the wrong circuit. Return to the breaker box and test other circuits until the doorbell stops working. Use a voltage tester to confirm.
Wires Are Brittle or Damaged
Older homes may have brittle or frayed wires. If a wire breaks during disconnection, don’t panic. Simply trim the damaged section with wire strippers and cap the end. If the wire is too short to reconnect later, you may need to run new wiring—consider hiring an electrician for this.
Can’t Locate the Transformer
If you can’t find the transformer, check near the furnace, in the attic, or inside a closet. Some transformers are hidden behind walls or inside junction boxes. A voltage tester can help trace the circuit from the chime unit back to its source.
Chime Unit Won’t Come Off the Wall
If the chime unit is stuck, check for hidden screws or adhesive. Some older models are secured with glue or extra fasteners. Use a putty knife to gently pry it away, being careful not to damage the wall.
Final Tips for a Successful Disconnection
– Always double-check that power is off before touching wires.
– Keep wires organized and labeled to avoid confusion.
– Use wire nuts to cap all exposed ends—never leave bare wires.
– Take your time—rushing increases the risk of mistakes.
– If in doubt, consult a licensed electrician.
Conclusion
Disconnecting a Broan wired doorbell is a practical DIY project that can save you money and give you greater control over your home’s entry system. By following this guide, you’ve learned how to safely turn off power, identify components, remove the chime and button, and prepare for future upgrades. Whether you’re replacing the doorbell, installing a smart device, or simply removing it temporarily, these steps ensure a smooth and safe process.
Remember, electrical work always carries some risk, so prioritize safety at every stage. With the right tools, careful planning, and attention to detail, you can complete this task confidently and efficiently. Now that your Broan doorbell is disconnected, you’re ready to move forward with your next home improvement project.
