How to Extend Doorbell Wire

Extending doorbell wire is a common DIY task when relocating or upgrading your doorbell system. This guide walks you through the process safely, using the right tools and techniques to ensure reliable performance.

Key Takeaways

• Use low-voltage wire: Always use 18- or 20-gauge low-voltage wire designed for doorbells to ensure compatibility and safety.
• Turn off power first: Before working on any wiring, disconnect power at the transformer to prevent shocks or damage.
• Splice wires properly: Use wire nuts or solder and heat shrink tubing to create secure, insulated connections.
• Route wire neatly: Run the extended wire along baseboards, under carpets, or through walls to keep it hidden and protected.
• Test the system: After installation, test the doorbell to confirm it rings and the chime works correctly.
• Label connections: Mark wires at both ends to avoid confusion during future maintenance or upgrades.
• Consider wireless options: If running wire is too difficult, a wireless doorbell kit may be a simpler alternative.

How to Extend Doorbell Wire: A Complete DIY Guide

Upgrading your doorbell or moving it to a new location? You might need to extend doorbell wire to make the connection work. Whether you’re installing a video doorbell, relocating your chime, or simply replacing old wiring, extending the wire is a manageable task for most homeowners. With the right tools, safety precautions, and a bit of patience, you can do it yourself without calling an electrician.

This guide will walk you through every step—from planning your wire route to testing the final connection. We’ll cover the tools you need, how to safely splice wires, and tips for hiding the new cable. By the end, you’ll have a reliable, professional-looking doorbell system that works like new.

Why You Might Need to Extend Doorbell Wire

There are several common reasons homeowners need to extend their doorbell wiring:

• Installing a new doorbell: Modern video doorbells like Ring or Nest often require more power or a different wiring setup than older mechanical chimes.
• Relocating the chime: Moving the indoor chime unit to a different room may require longer wires.
• Replacing damaged wire: Old or chewed-through wires may need to be replaced entirely, requiring an extension.
• Adding a second doorbell: Installing a front and back doorbell means running wire to both locations.
• Upgrading wiring: Older homes may have thin or degraded wire that needs to be replaced with higher-quality cable.

No matter your reason, extending doorbell wire is a practical solution that improves functionality and safety.

Tools and Materials You’ll Need

Before you begin, gather all the necessary tools and materials. Having everything ready will make the job faster and safer.

Essential Tools

• Wire strippers: For removing insulation from the ends of wires.
• Needle-nose pliers: Helpful for bending and twisting wires.
• Screwdrivers: Phillips and flathead for removing doorbell and chime covers.
• Voltage tester: To confirm power is off before working.
• Drill and bits: For creating holes in walls or baseboards if needed.
• Fish tape or coat hanger: Useful for pulling wire through walls or under floors.
• Measuring tape: To measure the length of wire needed.

Materials

• Low-voltage doorbell wire: 18- or 20-gauge solid copper wire. Choose the gauge based on your doorbell’s power requirements—18-gauge for longer runs or higher-power devices.
• Wire nuts or solder and heat shrink tubing: For splicing wires securely.
• Electrical tape: For extra insulation.
• Cable staples or clips: To secure the wire along baseboards or under carpets.
• Wall plates or conduit (optional): For a cleaner, more professional look.

Safety First: Turn Off the Power

Doorbell systems run on low voltage (usually 16–24 volts), but it’s still important to turn off the power before working on the wires. This prevents accidental shocks and protects your doorbell components.

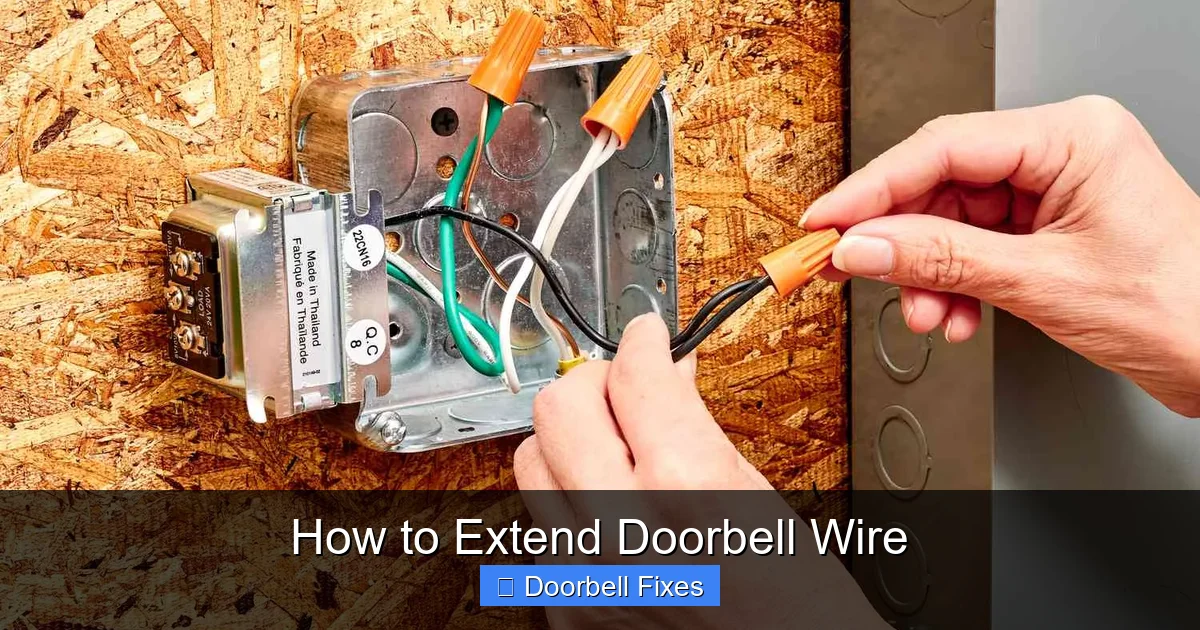

Locate the Transformer

The transformer steps down your home’s 120-volt power to the low voltage used by the doorbell. It’s usually located in one of these places:

• Near the doorbell chime inside the house
• In the basement or crawlspace
• Inside a junction box near the breaker panel
• Behind the doorbell button itself (less common)

Once you find it, look for a small switch or disconnect on the transformer. If there isn’t one, you may need to turn off the circuit breaker that powers the transformer.

Test the Wires

Use a non-contact voltage tester to check the wires at the doorbell button and chime. Touch the tester to the wire terminals—if it beeps or lights up, power is still on. Wait until the tester shows no voltage before proceeding.

Planning Your Wire Route

Before cutting any wire or drilling holes, plan the path your new wire will take. A well-thought-out route saves time and keeps your home looking neat.

Measure the Distance

Use a measuring tape to determine how much extra wire you’ll need. Add a few extra feet for slack and splicing. It’s better to have too much than not enough.

Choose the Best Path

Consider these options for running the wire:

• Along baseboards: Use cable clips to secure the wire. Paintable clips blend in with your trim.
• Under carpet: If you have carpet, you can tuck the wire underneath using a putty knife or flat tool.
• Through walls: For a hidden look, drill a small hole in the wall and use fish tape to pull the wire through. This works well between floors or behind trim.
• Inside conduit: For exposed areas like garages, use flexible conduit to protect the wire and give it a clean appearance.

Avoid running wire across doorways, under rugs that get moved, or in areas prone to moisture.

Removing the Old Doorbell Button and Chime

Now it’s time to disconnect the existing components so you can work on the wiring.

Remove the Doorbell Button

1. Unscrew the doorbell button from the wall.
2. Gently pull it away to expose the two wires connected to it.
3. Loosen the terminal screws and disconnect the wires. Note which wire goes where—usually, it doesn’t matter for doorbells, but labeling helps.

Remove the Chime Unit

1. Open the chime cover (usually held by screws or clips).
2. Locate the two wires connected to the chime terminals.
3. Disconnect them and label them if needed (e.g., “Front Door,” “Transformer”).

Preparing the New Wire

With the old components disconnected, you can now prepare the new wire for installation.

Cut the Wire to Length

Measure and cut the new low-voltage wire to the required length. Use wire strippers to remove about ½ inch of insulation from each end.

Strip the Ends

Carefully strip the insulation without nicking the copper strands. Clean, straight cuts ensure a solid connection.

Splicing the Wires Together

Now comes the critical step: connecting the old wire to the new extension. A poor splice can cause weak signals, intermittent ringing, or complete failure.

Twist the Wires Together

1. Hold the stripped ends of the old and new wires side by side.
2. Twist them together clockwise using needle-nose pliers. Make sure the connection is tight and secure.

Secure with Wire Nuts

1. Slide a wire nut over the twisted connection.
2. Twist the nut clockwise until it’s snug and the wires don’t pull apart.
3. For extra safety, wrap the connection with electrical tape.

Alternative: Soldering and Heat Shrink

For a more permanent and weather-resistant connection:
1. Solder the twisted wires together.
2. Slide a piece of heat shrink tubing over the splice.
3. Use a heat gun to shrink the tubing, creating a waterproof seal.

Insulate the Connection

Whether you use wire nuts or solder, make sure the splice is fully insulated. Exposed copper can cause shorts or corrosion over time.

Running the New Wire

With the splice complete, it’s time to route the new wire to its destination.

Feeding Wire Through Walls

If you’re running wire inside a wall:
1. Drill a small hole from the inside to the outside (or between rooms).
2. Attach the wire to a fish tape or straightened coat hanger.
3. Pull the wire through gently, avoiding kinks or sharp bends.

Securing the Wire

Use cable clips or staples to fasten the wire along baseboards, under carpets, or inside conduit. Space clips every 12–18 inches to prevent sagging.

Protecting the Wire

Avoid areas where the wire could be pinched, crushed, or exposed to moisture. If running wire outdoors, use weatherproof conduit and outdoor-rated wire.

Reconnecting the Doorbell and Chime

Once the wire is in place, reconnect everything and test the system.

Attach the New Wire to the Doorbell Button

1. Strip the end of the new wire if needed.
2. Connect it to the terminals on the doorbell button. Most buttons are not polarity-sensitive, so either wire can go to either terminal.
3. Secure the button back to the wall.

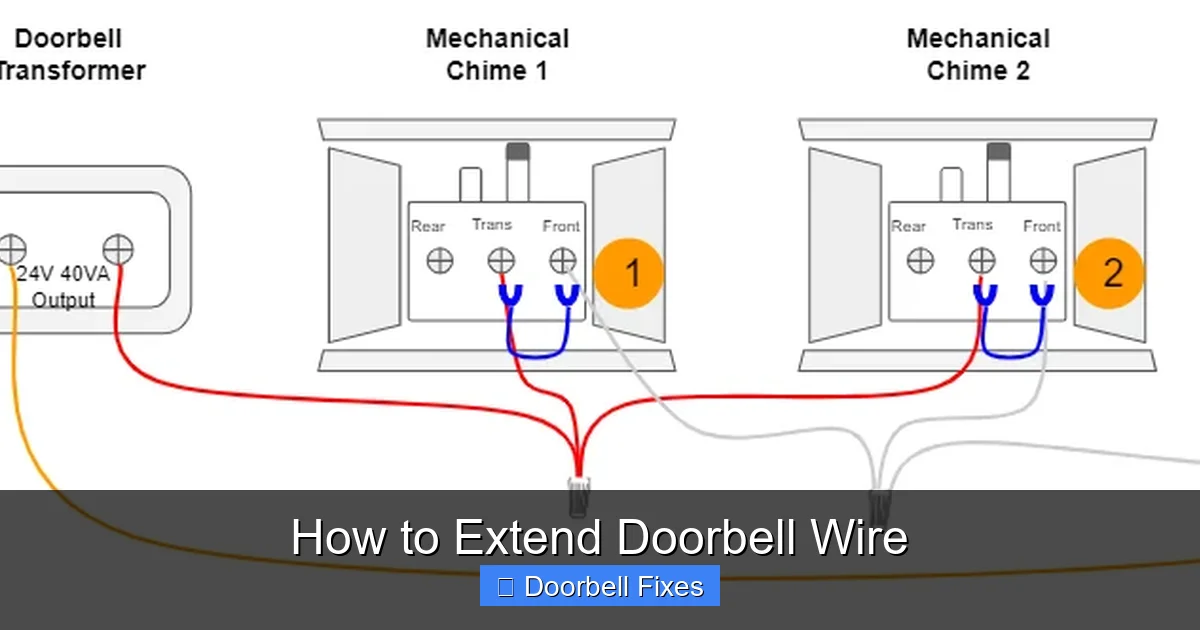

Connect to the Chime

1. Attach the other end of the new wire to the corresponding terminal on the chime unit.
2. Reconnect the transformer wire if it was disconnected.
3. Close the chime cover.

Testing the Doorbell

Before you call the job done, test the system to make sure everything works.

Turn the Power Back On

Restore power at the transformer or breaker panel.

Press the Button

Go to the doorbell and press the button. Listen for the chime inside. If it rings clearly, the connection is good.

Check for Issues

If the doorbell doesn’t work:

• Double-check all connections—loose wires are the most common issue.
• Ensure the splice is secure and insulated.
• Verify the transformer is providing power (use a multimeter if available).
• Test the doorbell button itself—it may be faulty.

Troubleshooting Common Problems

Even with careful work, issues can arise. Here’s how to fix the most common problems.

Doorbell Doesn’t Ring

• Cause: Loose or incorrect wiring.
• Solution: Recheck all connections at the button, chime, and transformer. Ensure wires are tightly secured.

Weak or Intermittent Sound

• Cause: Poor splice or undersized wire.
• Solution: Re-splice the wires using solder and heat shrink. Consider upgrading to 18-gauge wire for longer runs.

No Power to the Button

• Cause: Blown transformer or tripped breaker.
• Solution: Test the transformer output with a multimeter. Replace if it’s not delivering 16–24 volts.

Wire Gets Damaged Over Time

• Cause: Poor routing or lack of protection.
• Solution: Reroute the wire away from high-traffic areas. Use conduit or clips to protect it.

Tips for a Clean, Professional Finish

A little extra effort goes a long way in making your work look neat and last longer.

Hide the Wire

Use paintable cable clips, baseboard channels, or paint the wire to match your wall or trim.

Label Everything

Use small labels or colored tape to mark wires at both ends. This helps if you need to troubleshoot or upgrade later.

Use Conduit for Exposed Areas

In garages, basements, or outdoor installations, flexible conduit protects the wire and gives a finished look.

Keep Spare Wire

Save any leftover wire in a labeled bag. You might need it for future repairs.

When to Consider a Wireless Doorbell

If running wire seems too difficult—especially in older homes with plaster walls or multiple floors—a wireless doorbell might be a better option.

Benefits of Wireless

• No drilling or fishing wire
• Easy to install and relocate
• Works with video doorbells and smart home systems

Drawbacks

• Requires batteries (though some models are rechargeable)
• Signal interference in large homes
• May not support advanced features like continuous power for video recording

For many homeowners, a wired system is still more reliable. But if wire extension is too challenging, wireless is a great alternative.

Final Thoughts

Extending doorbell wire is a practical DIY project that can improve your home’s functionality and safety. With the right tools, careful planning, and attention to detail, you can complete the job in under an hour. Always prioritize safety by turning off the power and testing wires before working.

Remember to use quality low-voltage wire, make secure splices, and route the cable neatly. Test the system thoroughly and troubleshoot any issues right away. And if the job feels too complex, don’t hesitate to consult a professional.

By following this guide, you’ll have a reliable doorbell system that works perfectly—no matter where you’ve placed it.
