How to Extend Wired Doorbell

Extending a wired doorbell allows you to relocate or add a chime unit without replacing your entire system. This guide walks you through planning, wiring, and testing your extended setup safely and efficiently.

Key Takeaways

• Assess your current system: Check voltage, wire gauge, and chime compatibility before extending your doorbell.
• Use the right tools: A voltage tester, wire strippers, and low-voltage cable are essential for a safe installation.
• Plan the new wire route: Choose the shortest, safest path to avoid interference and damage.
• Maintain proper wire connections: Use wire nuts or terminal screws to ensure secure, low-resistance connections.
• Test before finalizing: Always test the doorbell after wiring to confirm functionality and troubleshoot issues early.
• Safety first: Turn off power at the breaker and use insulated tools to prevent electrical shock.
• Consider professional help: If you’re unsure about electrical work, consult a licensed electrician.

How to Extend Wired Doorbell: A Complete Step-by-Step Guide

If your home’s front door is far from the main living area, or you’ve recently renovated and moved rooms around, you might find that your wired doorbell isn’t as effective as it used to be. Maybe the chime is too quiet, or it’s in a spot where no one can hear it. Extending your wired doorbell is a practical solution that lets you place the chime where it’s most useful—without having to install an entirely new system.

In this guide, you’ll learn exactly how to extend a wired doorbell safely and effectively. Whether you want to add a second chime in a bedroom, move the existing unit to a more central location, or simply run wire through a new wall, we’ll walk you through every step. You’ll discover the tools you need, how to plan your wiring route, and how to test your setup to ensure it works perfectly.

Best of all, this project doesn’t require advanced electrical skills. With a little patience and attention to safety, most homeowners can complete it in a few hours. Let’s get started.

Why Extend Your Wired Doorbell?

Before diving into the how-to, it’s helpful to understand why extending your doorbell might be necessary. Wired doorbells are reliable, long-lasting, and don’t rely on batteries, but their range is limited by the original wiring. Here are a few common reasons people choose to extend their doorbell:

• Improved audibility: If your chime is in a basement or back room, guests might ring the bell and no one hears it. Extending the wire lets you place the chime in a central hallway or kitchen.
• Home renovations: Adding a sunroom, finishing a basement, or reconfiguring rooms can make the original chime location impractical.
• Multiple chimes: Some homeowners add a second chime in a master bedroom or home office so they never miss a visitor.
• Replacing damaged wire: Over time, doorbell wires can fray, corrode, or get chewed by pests. Extending gives you a chance to replace old wiring with new, durable cable.

Extending your doorbell is also more cost-effective than switching to a wireless or video doorbell system. You keep your existing transformer and chime, which means lower upfront costs and no ongoing subscription fees.

Tools and Materials You’ll Need

Before you begin, gather all the necessary tools and materials. Having everything ready will make the process smoother and safer.

Essential Tools

• Voltage tester: To confirm the power is off before working.
• Wire strippers: For removing insulation from doorbell wires.
• Screwdrivers: Flathead and Phillips, depending on your chime and transformer terminals.
• Drill and drill bits: For creating holes in walls or baseboards to run new wire.
• Fish tape or wire puller: Helps guide wire through walls or conduits.
• Measuring tape: To plan your wire route accurately.
• Pencil or marker: For marking drill points and wire lengths.

Materials

• Low-voltage doorbell wire: Typically 18- or 20-gauge stranded copper wire. Choose outdoor-rated wire if running through exterior walls or attics.
• Wire nuts or terminal connectors: For secure connections.
• Electrical tape: To insulate connections and protect wires.
• Wall plates or conduit (optional): For a cleaner, more professional look.
• Mounting hardware: Screws or anchors for securing the chime or transformer.

Safety Gear

• Insulated gloves: Protect against accidental shocks.
• Safety glasses: Prevent debris from entering your eyes while drilling.
• Work light: Especially useful if working in attics, basements, or crawl spaces.

Step 1: Turn Off the Power

Safety is the most important part of any electrical project. Even though doorbell systems use low voltage (typically 8–24 volts), they are still connected to your home’s electrical circuit via a transformer. That means there’s a risk of shock if you’re not careful.

Locate the Doorbell Transformer

The transformer steps down your home’s 120V power to a safe low voltage for the doorbell. It’s usually found in one of these places:

• Inside the doorbell chime unit
• In the basement near the electrical panel
• In the attic or crawl space
• Behind an outlet or light switch near the front door

Once you find it, trace the wires back to your home’s main electrical panel. The transformer will be connected to a circuit breaker.

Turn Off the Correct Breaker

Go to your electrical panel and turn off the breaker that powers the doorbell circuit. If you’re unsure which one it is, turn off the main breaker to be safe. Use a voltage tester at the chime or transformer to confirm the power is off.

Pro Tip: Label the breaker afterward so you (or future homeowners) know which one controls the doorbell.

Step 2: Assess Your Current Doorbell System

Before running new wire, take time to understand your existing setup. This will help you plan the extension and avoid compatibility issues.

Check the Voltage

Most wired doorbells operate at 16 volts, but some use 8, 12, or 24 volts. Check the label on your transformer or chime unit. If you’re adding a second chime, make sure it’s compatible with your system’s voltage.

Inspect the Wiring

Look at the current wire gauge and condition. Standard doorbell wire is 18- or 20-gauge. If the existing wire is damaged or undersized, this is a good opportunity to replace it entirely.

Determine the New Chime Location

Decide where you want the extended chime to go. Ideal spots include:

• Central hallway
• Kitchen
• Master bedroom
• Home office

Make sure the location is within range of your existing wiring and accessible for future maintenance.

Step 3: Plan the Wire Route

A well-planned route saves time and reduces the risk of damage to your walls or wiring.

Choose the Shortest Path

The shorter the wire run, the better. Longer distances can cause voltage drop, which may make the chime weak or inconsistent. Aim for under 100 feet if possible.

Avoid Interference

Keep doorbell wires away from:

• Power lines (120V)
• Fluorescent lights
• Microwave ovens
• Wi-Fi routers

These can cause interference or false ringing.

Use Existing Pathways

Look for ways to use existing holes, baseboards, or attic/crawl space access. This minimizes drilling and keeps your walls intact.

Drill Carefully

If you need to drill through walls, use a drill bit slightly larger than your wire diameter. Drill from the inside out to avoid damaging exterior siding.

Pro Tip: Use a stud finder to avoid drilling into wall studs or electrical wires.

Step 4: Run the New Doorbell Wire

Now it’s time to install the new wire. This step requires patience, especially if you’re running wire through walls.

Prepare the Wire

Cut a length of low-voltage wire that’s slightly longer than your planned route. Strip about ½ inch of insulation from each end using wire strippers.

Feed the Wire Through Walls

If running wire inside walls:

• Remove baseboards or trim if necessary.
• Use fish tape to guide the wire from one point to another.
• Have a helper feed the wire while you pull from the other end.

If running wire in an attic or crawl space:

• Lay the wire along joists or beams.
• Use cable ties or clips to secure it every few feet.
• Avoid sharp edges that could cut the insulation.

Leave Extra Length

Leave about 6–12 inches of extra wire at both ends. This gives you room to make connections and adjust if needed.

Step 5: Connect the New Wire to the Existing System

With the wire in place, it’s time to connect it to your doorbell circuit.

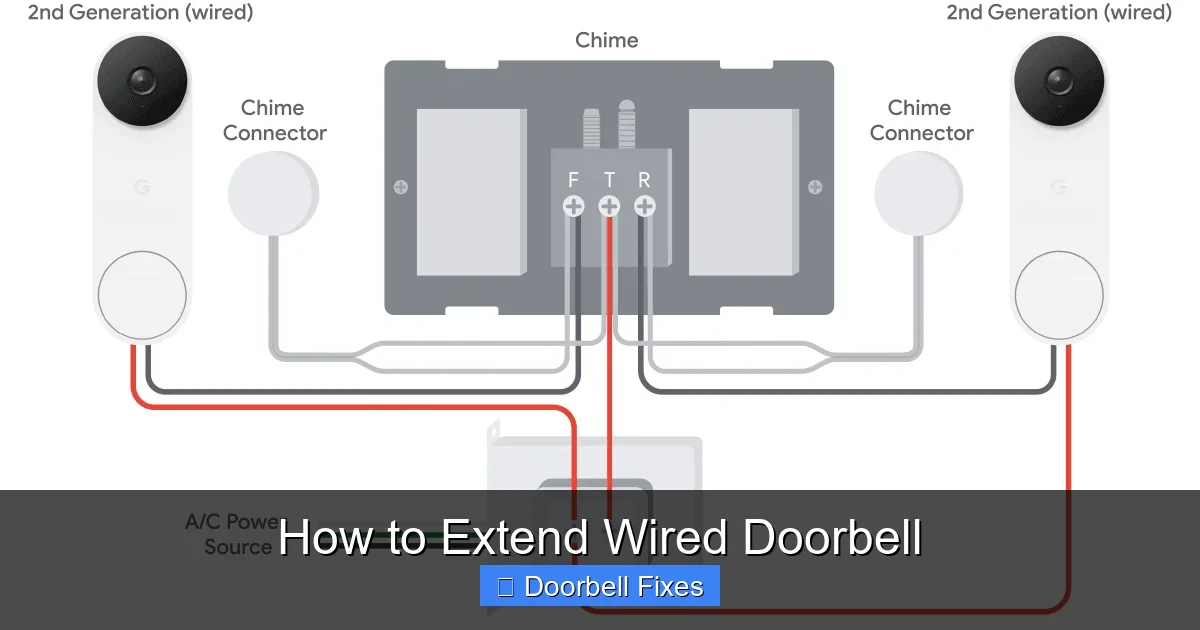

Identify the Terminal Types

Most chime units have screw terminals labeled “Front,” “Trans,” and “Rear.” The transformer connects to “Trans,” and the door button connects to “Front” or “Rear.”

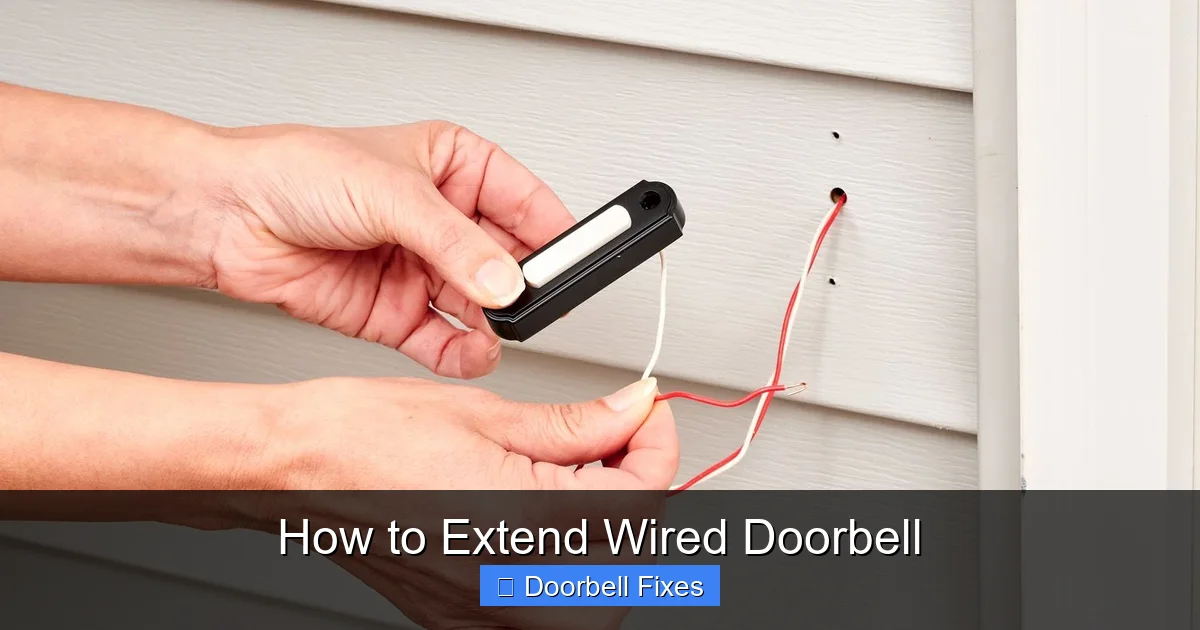

Connect the New Wire

If you’re adding a second chime:

• Run the new wire from the new chime location back to the existing chime unit.
• Connect the new wires to the same terminals as the original door button wires (usually “Front” and “Trans”).
• Use wire nuts or terminal screws to secure the connections.
• Wrap connections with electrical tape for extra insulation.

If you’re relocating the chime:

• Disconnect the old chime.
• Connect the new wire to the transformer and door button.
• Mount the chime in the new location.

Important: Never connect low-voltage doorbell wires to high-voltage outlets or switches.

Step 6: Test the Doorbell

Before closing up walls or finishing the installation, test your work.

Restore Power

Go back to the electrical panel and turn the breaker back on.

Press the Doorbell Button

Have someone press the doorbell while you listen at both chime locations (if applicable). The chime should ring clearly and consistently.

Check for Issues

If the chime doesn’t ring:

• Double-check all connections.
• Ensure the transformer is receiving power.
• Test the doorbell button with a multimeter.

If the chime is weak or intermittent:

• You may have a voltage drop due to long wire runs.
• Consider upgrading to a higher-voltage transformer or thicker wire.

Troubleshooting Common Issues

Even with careful planning, problems can arise. Here’s how to fix the most common issues when extending a wired doorbell.

Chime Doesn’t Ring

• Cause: Loose or incorrect wiring.
• Solution: Recheck all connections at the chime, transformer, and door button. Ensure wires are securely attached and not crossed.

Weak or Faint Sound

• Cause: Voltage drop from long wire runs or undersized wire.
• Solution: Use 18-gauge wire instead of 20-gauge, or install a 24V transformer if your chime supports it.

Chime Rings Randomly

• Cause: Interference from nearby electrical devices or faulty wiring.
• Solution: Reroute the wire away from power lines or appliances. Check for frayed or exposed wires.

Doorbell Button Gets Hot

• Cause: Short circuit or incorrect voltage.
• Solution: Turn off power immediately. Check for crossed wires or damaged insulation. Replace the button if necessary.

Transformer Hums or Overheats

• Cause: Overloaded circuit or faulty transformer.
• Solution: Ensure you’re not connecting too many chimes. Replace the transformer if it’s old or damaged.

Safety Tips and Best Practices

Even though doorbell systems are low voltage, safety should never be overlooked.

• Always turn off power: Confirm with a voltage tester before touching any wires.
• Use insulated tools: Prevents accidental shocks.
• Don’t overload the circuit: Most transformers support one or two chimes. Adding more may cause failure.
• Label your wires: Use tape or markers to identify “Front,” “Rear,” and “Trans” wires.
• Keep wires organized: Bundle and secure wires to prevent tangling or damage.
• Consult a professional if unsure: If you’re not confident in your electrical skills, hire a licensed electrician.

When to Call a Professional

While extending a wired doorbell is a DIY-friendly project, there are times when it’s best to call in an expert.

• You can’t locate the transformer.
• The electrical panel is outdated or difficult to access.
• You need to run wire through multiple walls or floors.
• You’re adding multiple chimes or integrating with a smart home system.
• You experience repeated electrical issues after installation.

A licensed electrician can ensure your installation meets local codes and operates safely.

Conclusion

Extending a wired doorbell is a smart, cost-effective way to improve your home’s functionality and convenience. By following this guide, you’ve learned how to assess your system, plan a safe wire route, install new wiring, and test your setup for reliable performance.

Remember, the key to success is preparation and safety. Turn off the power, use the right tools, and double-check every connection. With a little effort, you can enjoy a doorbell that works perfectly—no matter where you are in your home.

Whether you’re adding a second chime or relocating your existing one, this project enhances both comfort and security. And best of all, you did it yourself.

Now, go enjoy the peace of mind that comes with a doorbell that actually works when you need it.
