How to Figure Out If Doorbell Is Hardwired: A Complete Guide
So, you’re standing at your front door, pressing the button, and nothing happens. Or maybe you’re thinking about upgrading to a smart doorbell and wondering if your current setup can support it. The first question you need to answer is: Is my doorbell hardwired? Figuring this out is essential for safety, compatibility, and planning any future installations.
Many homeowners assume all doorbells are the same, but the truth is, there are two main types: hardwired and wireless. Hardwired doorbells are connected directly to your home’s electrical system via low-voltage wiring, while wireless models run on batteries and connect to a chime unit through radio signals. Knowing which type you have will help you troubleshoot issues, replace components, or install new technology without risking damage or injury.
In this comprehensive guide, we’ll walk you through how to figure out if your doorbell is hardwired using simple, safe, and effective methods. Whether you’re a DIY enthusiast or just curious about your home’s wiring, this step-by-step tutorial will give you the confidence to inspect your doorbell system like a pro. We’ll cover everything from safety precautions to identifying key components, interpreting wiring, and troubleshooting common confusion points.
Why It Matters: Hardwired vs. Wireless Doorbells
Before diving into the inspection process, it’s important to understand the difference between hardwired and wireless doorbells—and why it matters.

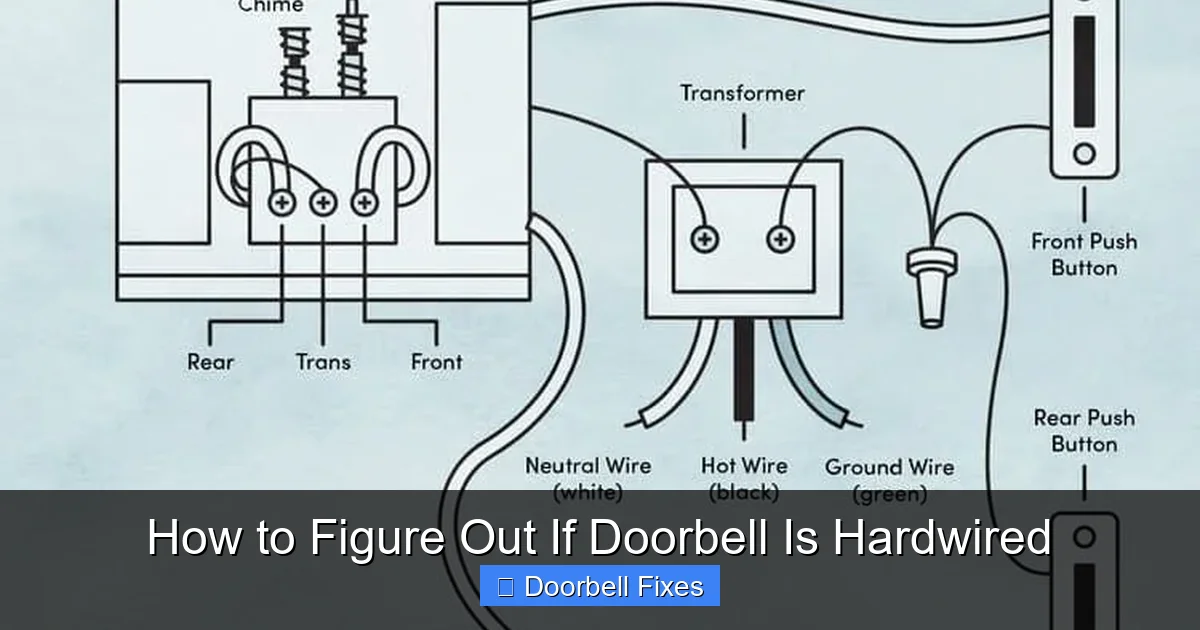

Visual guide about How to Figure Out If Doorbell Is Hardwired
Image source: diysmarthomehub.com
Hardwired doorbells are connected to your home’s electrical system through a low-voltage transformer. They typically use 16–24 volts of electricity and rely on wires running from the doorbell button to the chime unit and back to the transformer. These systems are reliable, don’t require battery changes, and are ideal for powering smart doorbells with features like video streaming, motion detection, and two-way audio.
Wireless doorbells, on the other hand, use batteries to power the button and transmit a signal to a separate chime unit. They’re easy to install and don’t require any wiring, making them a popular choice for renters or older homes without existing doorbell wiring. However, they need regular battery replacements and may not support advanced smart features.
Knowing which type you have helps you:
- Choose the right replacement or upgrade
- Avoid damaging your electrical system
- Ensure compatibility with smart home devices
- Plan for future installations safely
Safety First: Preparing to Inspect Your Doorbell
Before you touch any wires or remove any components, safety must be your top priority. Even though doorbell systems use low voltage, they are still connected to your home’s electrical circuit and can pose a shock hazard if mishandled.
Turn Off the Power
The first and most critical step is to turn off the power to your doorbell circuit. Here’s how:
- Locate your home’s main electrical panel (also called the breaker box).
- Look for a breaker labeled “Doorbell,” “Chime,” or “Front Door.” If you don’t see one, check for breakers controlling areas like the foyer, living room, or entryway.
- If you can’t identify the correct breaker, turn off the main breaker to cut power to the entire house. This is the safest option if you’re unsure.
- Use a non-contact voltage tester to confirm the power is off at the doorbell button and chime unit before proceeding.
Gather the Right Tools
You don’t need fancy equipment to figure out if your doorbell is hardwired, but having the right tools makes the job easier and safer. Here’s what to gather:
- Non-contact voltage tester (essential for confirming power is off)
- Screwdriver (Phillips and flathead)
- Flashlight (for better visibility in tight spaces)
- Work gloves (optional, but recommended for protection)
- Multimeter (optional, for advanced voltage testing)
Work in a Well-Lit Area
Good lighting is crucial when inspecting small components like wiring terminals and circuit boards. Use a flashlight or headlamp to illuminate dark spaces, especially inside the chime unit or behind the doorbell button.
Step 1: Inspect the Doorbell Button
The doorbell button is the most visible part of the system and the easiest place to start your investigation. Here’s how to check it for signs of hardwiring.
Remove the Button from the Wall
Most doorbell buttons are held in place by one or two screws. Use a screwdriver to carefully remove them. Gently pull the button away from the wall—don’t yank it, as this could damage the wiring.
Look for Wires
Once the button is detached, look behind it. If you see two thin wires (usually black, red, or white) connected to the back of the button, your doorbell is almost certainly hardwired. These wires carry low-voltage electricity from the transformer to the button and back to the chime.
If there are no wires at all, your doorbell is likely wireless. Wireless buttons are typically powered by a small battery (like a CR2032 coin cell) and transmit a signal to a receiver unit inside your home.
Check for a Battery Compartment
Some doorbell buttons look similar but are actually battery-powered. Look for a small latch or compartment on the back or side of the button. If you find one, it’s a strong indicator that your doorbell is wireless.
Pro Tip: Even if you see wires, don’t assume they’re live. Always use a voltage tester to confirm whether power is present—especially if you’re planning to replace or upgrade the button.
Step 2: Examine the Chime Unit
The chime unit (or doorbell box) is usually mounted inside your home, often in a hallway, entryway, or basement. It’s where the sound is produced when the button is pressed. Inspecting this unit is one of the most reliable ways to determine if your doorbell is hardwired.
Locate the Chime Box
Look for a rectangular or oval box on the wall, typically near the front door. It may have a decorative cover or be integrated into a light fixture. Some homes have multiple chimes (e.g., one upstairs and one downstairs), so check all possible locations.
Remove the Cover
Most chime units have a front cover that snaps or screws off. Use a screwdriver to remove any screws, then gently pull the cover away. Be careful not to damage any internal components.
Look for Wiring Terminals
Inside the chime unit, you should see a small circuit board or mechanical striker mechanism. Look for two or more screw terminals labeled “Front,” “Trans,” “Rear,” or similar. These terminals are where the wires from the doorbell button and transformer connect.
- If you see wires connected to these terminals, your doorbell is hardwired.
- If the unit is completely wireless, you’ll likely see a battery compartment and no wires at all.
Identify the Transformer Connection
The transformer is a small black or gray box that converts standard household voltage (120V) down to the low voltage (16–24V) needed for the doorbell. It’s usually wired directly into the chime unit or connected via a separate junction box.
Look for a pair of wires labeled “Trans” or “Transformer.” These wires run from the chime to the transformer, which is often located near your electrical panel, furnace, or in the attic.
Example: In a typical setup, you’ll see:
- One wire from the doorbell button to the “Front” terminal
- One wire from the transformer to the “Trans” terminal
- A common wire (often white) connecting the two
Step 3: Locate the Transformer
The transformer is the heart of a hardwired doorbell system. Without it, the doorbell can’t function. Finding it confirms that your system is hardwired and helps you understand how it’s powered.
Common Transformer Locations
Transformers are usually installed in one of these places:
- Near the electrical panel: Look for a small black box mounted on or near your breaker box. It may be labeled “Doorbell” or “Chime.”
- In the basement or crawlspace: Check near the furnace, water heater, or main electrical conduits.
- In the attic: Some builders install transformers in the attic for easier access.
- Inside the chime unit: In older homes, the transformer may be built directly into the chime box.
How to Identify a Transformer
A doorbell transformer looks like a small rectangular or cylindrical box with two wires coming out of it. It typically has a voltage rating printed on it, such as “16V 10VA” or “24V 20VA.” The “V” stands for volts, and the “VA” indicates the power capacity.
Use a flashlight to inspect dark areas. If you find a device that matches this description and is connected to your doorbell wiring, you’ve found the transformer—and confirmed your doorbell is hardwired.
Test the Transformer (Optional)
If you have a multimeter, you can test the transformer to ensure it’s working properly. Set the multimeter to measure AC voltage, then touch the probes to the two output wires. You should see a reading close to the labeled voltage (e.g., 16V).
Caution: Only attempt this if you’re comfortable working with electrical components and have confirmed the power is off at the breaker.
Step 4: Use a Voltage Tester
A non-contact voltage tester is a simple, safe tool that can help you confirm whether your doorbell is receiving power—and thus, whether it’s hardwired.
How to Use a Non-Contact Voltage Tester
Follow these steps:
- Turn the power back on at the breaker (only for testing—turn it off again when done).
- Hold the tip of the voltage tester near the wires at the doorbell button or chime unit.
- If the tester beeps or lights up, it means voltage is present—indicating a hardwired system.
- If there’s no response, the circuit may be dead, or the doorbell may be wireless.
This method is especially useful if you’re unsure whether the wires you see are actually connected to power. It’s a quick way to verify functionality without touching any components.
Step 5: Check for Wireless Indicators
If your inspection doesn’t reveal any wires, transformers, or terminals, your doorbell is likely wireless. Here’s how to confirm it.
Look for a Battery Compartment
As mentioned earlier, wireless doorbell buttons have a small compartment for a battery. Open it and check if a battery is installed. Common types include CR2032, AA, or AAA batteries.
Check the Chime Unit for Batteries
Some wireless systems also have a battery-powered chime unit. Look for a battery compartment on the back or bottom of the unit. If present, it’s a clear sign the system is wireless.
Test the Signal Range
Wireless doorbells have a limited range, usually 100–300 feet. If you can press the button from outside and hear the chime inside, but moving too far away breaks the connection, it’s wireless.
Look for Brand Labels
Many wireless doorbells are sold under brands like Ring, Google Nest, or Aiphone. Check the button or chime for a brand name or model number. A quick online search can confirm whether it’s wireless.
Troubleshooting Common Confusion Points
Even with careful inspection, some homeowners get confused. Here are a few common scenarios and how to resolve them.
“I See Wires, But the Doorbell Doesn’t Work”
Wires don’t always mean the system is functional. The transformer could be faulty, the wires could be disconnected, or the chime could be broken. Use a voltage tester to check for power at the button and chime. If there’s no voltage, the issue may be with the transformer or wiring.
“My Doorbell Has a Battery, But Also Wires”
Some smart doorbells (like the Ring Video Doorbell) are designed to be hardwired but include a battery as a backup. In this case, the wires provide primary power, and the battery kicks in during outages. Check the product manual to confirm.
“I Can’t Find the Transformer”
If you’ve checked all common locations and still can’t find the transformer, it may be hidden inside a wall, buried in insulation, or integrated into the chime. In such cases, consult an electrician or refer to your home’s wiring diagram.
“The Chime Unit Looks Old and Rusty”
Older mechanical chimes may have corroded terminals or broken springs. Even if wired, they may not function. Consider replacing the chime unit or upgrading to a modern electronic model.
When to Call a Professional
While most homeowners can safely inspect their doorbell system, there are times when it’s best to call a licensed electrician.
- You’re uncomfortable working with electrical components
- You can’t locate the transformer or breaker
- The wiring looks damaged or frayed
- You’re planning to install a smart doorbell and need wiring upgrades
- You suspect a short circuit or electrical fault
A professional can safely diagnose issues, repair wiring, and ensure your system meets current electrical codes.
Conclusion: You’ve Got This!
Figuring out if your doorbell is hardwired doesn’t have to be complicated. By following these steps—inspecting the button, checking the chime, locating the transformer, and using a voltage tester—you can confidently determine your doorbell type and make informed decisions about repairs or upgrades.
Remember: Safety first, always. Turn off the power, use the right tools, and don’t hesitate to call a professional if you’re unsure. Whether you’re replacing a broken button, installing a video doorbell, or just curious about your home’s wiring, knowing whether your system is hardwired is the first step toward a successful project.
Now that you know how to figure out if your doorbell is hardwired, you’re ready to tackle any doorbell challenge with confidence. Happy DIYing!
