Finding a doorbell transformer in an old house can be tricky, but it’s essential for fixing or upgrading your doorbell system. This guide walks you through safe, practical steps to locate the transformer—often hidden in basements, attics, or near electrical panels—and ensures your doorbell works reliably.
Key Takeaways
- Understand what a doorbell transformer does: It steps down household voltage (120V) to a safe 16-24V for your doorbell, making it a critical but often overlooked component.
- Common hiding spots include basements, attics, and near the electrical panel: In older homes, transformers are frequently tucked away in utility areas or behind walls near the chime unit.
- Turn off power before inspecting: Always shut off the circuit breaker to avoid electric shock when checking wiring or the transformer.
- Use a multimeter to test voltage: This tool confirms whether the transformer is working and helps diagnose doorbell problems.
- Look for low-voltage wires: Tracing the thin, bell-wire from the doorbell button to the chime can lead you directly to the transformer.
- Replace if damaged or outdated: Old transformers may fail over time; replacing them ensures consistent power and prevents future issues.
- Call a professional if unsure: If you can’t locate or safely test the transformer, hiring an electrician is the safest option.
How to Find a Doorbell Transformer in an Old House
If your doorbell isn’t working in an older home, the culprit is often a faulty or hard-to-find doorbell transformer. These small but essential devices convert standard household electricity into the low voltage needed to power your doorbell. In older homes, transformers are frequently hidden in unexpected places—behind walls, inside attics, or tucked near the main electrical panel. This guide will walk you through a safe, step-by-step process to locate your doorbell transformer, test it, and determine if it needs replacement.
Whether you’re troubleshooting a silent doorbell or planning to install a new smart doorbell, knowing where the transformer is located is the first step. We’ll cover common hiding spots, tools you’ll need, safety precautions, and how to test the transformer once found. By the end, you’ll have the confidence to handle this common home repair task—even if you’re not an electrician.
What Is a Doorbell Transformer and Why Does It Matter?

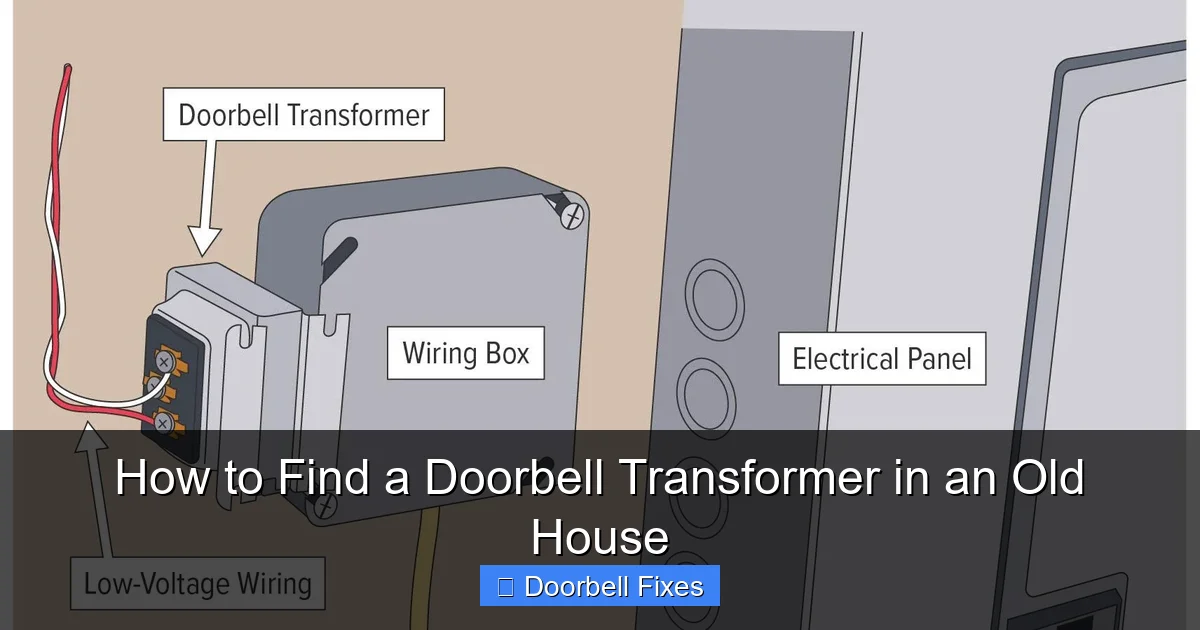

Visual guide about How to Find a Doorbell Transformer in an Old House
Image source: res.cloudinary.com
Before diving into the search, it’s important to understand what a doorbell transformer does. In simple terms, it’s a small electrical device that reduces the 120-volt power from your home’s electrical system down to 16–24 volts—the safe level required for most doorbells.
Without a working transformer, your doorbell won’t ring, even if the button and chime appear intact. In older homes, transformers were often installed during initial construction and may have been relocated or covered during renovations. Over time, they can degrade, become loose, or fail entirely.
Knowing how your doorbell system works helps you diagnose problems faster. The basic setup includes:
– A doorbell button (at the front door)
– A chime unit (inside the house)
– Low-voltage wiring connecting the two
– A transformer (hidden somewhere in the house)
The transformer is usually connected to a 120V circuit and outputs low-voltage power through the bell wire. If any part of this chain is broken—especially the transformer—your doorbell won’t function.
Tools You’ll Need to Find the Transformer
Before starting your search, gather these essential tools:
– Non-contact voltage tester: Helps detect live wires safely.
– Multimeter: Measures voltage to confirm if the transformer is working.
– Screwdrivers (flathead and Phillips): For removing outlet covers or access panels.
– Flashlight or headlamp: Old homes often have dimly lit areas like basements and attics.
– Electrical tape and wire nuts: In case you need to temporarily secure wires.
– Work gloves and safety glasses: Protect yourself from dust, debris, and accidental shocks.
Having the right tools on hand makes the process smoother and safer. Avoid using makeshift tools or skipping safety gear—electricity is no joke, even at low voltages.
Step 1: Turn Off the Power
Safety comes first. Before touching any wires or electrical components, turn off the power to the doorbell circuit.
Locate the Correct Circuit Breaker
Go to your home’s main electrical panel (usually in the basement, garage, or utility closet). Look for a breaker labeled “Doorbell,” “Chime,” or “Front Door.” If there’s no label, you may need to test breakers one by one.
To do this safely:
1. Have someone press the doorbell button while you listen for a click in the panel.
2. When the doorbell tries to ring (even if it doesn’t sound), the corresponding breaker will be the one that’s active.
3. Turn off that breaker.
Alternatively, use a non-contact voltage tester near the doorbell chime or button to confirm power is off before proceeding.
Double-Check with a Voltage Tester
Even after turning off the breaker, use your non-contact voltage tester on the doorbell wires to ensure no current is flowing. This extra step prevents accidental shocks.
Step 2: Start at the Doorbell Button
The easiest way to trace the system is to begin at the doorbell button and follow the wires inward.
Remove the Doorbell Button
Use a screwdriver to gently pry off the doorbell button from the exterior wall. You’ll see two thin wires connected to the back. These are the low-voltage wires that carry power from the transformer.
Take a photo of the wiring before disconnecting anything. This helps you reconnect it correctly later.
Trace the Wires into the Wall
Look for where the wires disappear into the wall. In older homes, they may run through the siding, under the trim, or into a small conduit. Follow the path of the wires as far as you can.
If the wires enter the wall near the front door, they likely run along the interior wall toward the basement, attic, or chime location.
Step 3: Locate the Doorbell Chime Unit
The chime is usually mounted on a wall inside the house, often in a hallway or entryway. It’s the box that makes the “ding-dong” sound when the button is pressed.
Remove the Chime Cover
Unscrew the cover of the chime unit to expose the internal wiring. You’ll typically see three terminals labeled “Front,” “Trans,” and “Rear” (if you have a rear doorbell).
The “Trans” terminal connects to the transformer via low-voltage wire. This is your best clue for finding the transformer’s location.
Follow the “Trans” Wire
Trace the wire connected to the “Trans” terminal. It should lead away from the chime and into the wall, ceiling, or baseboard. Use your flashlight to look for wire paths in tight spaces.
In many old homes, this wire runs through the wall cavity and emerges in the basement, attic, or near the electrical panel.
Step 4: Check Common Hiding Spots
Doorbell transformers in older homes are rarely out in the open. Here are the most common places to look:
Near the Electrical Panel
Many builders installed the transformer close to the main electrical panel for easy access. Look for a small, rectangular metal box (about the size of a deck of cards) mounted on the wall or inside the panel enclosure.
It may be labeled “Doorbell” or have a small toggle switch. The transformer will have two thick wires (120V) connected to a circuit and two thin wires (low-voltage) leading out.
In the Basement or Crawlspace
Basements are prime real estate for doorbell transformers. Check near the furnace, water heater, or along basement walls where utility lines run.
Look for a small box with wires entering and exiting. It might be tucked behind insulation or mounted on a joist.
In the Attic
If your home has an attic, the transformer could be up there—especially if the chime is on an upper floor. Attics in older homes often have exposed wiring, making it easier to spot.
Use caution: attics can be hot, cramped, and filled with insulation. Wear protective gear and avoid stepping between joists.
Behind the Doorbell Chime
In some cases, the transformer is mounted directly behind the chime unit, hidden inside the wall. This is less common but possible, especially in homes with finished walls.
To check, carefully remove the chime and shine a light into the wall cavity. You might see the transformer mounted on a stud or electrical box.
Inside an Electrical Outlet Box
Some older installations used a standard electrical outlet box to house the transformer. Look for an unused outlet near the chime or in a utility area.
The outlet may appear dead (no power), but it could contain the transformer with low-voltage wires running out the back.
Step 5: Use a Multimeter to Test the Transformer
Once you’ve located the transformer, it’s time to test it. A multimeter is the best tool for this job.
Set Up the Multimeter
Turn your multimeter to the AC voltage setting (usually marked “V~”). Set it to a range higher than 24V (e.g., 200V AC).
Test the Low-Voltage Output
1. Turn the power back on at the breaker (briefly).
2. Touch the multimeter probes to the two low-voltage terminals on the transformer (usually labeled “Common” and “Doorbell” or just two screw terminals).
3. A working transformer should read between 16V and 24V AC.
If the reading is 0V or significantly lower, the transformer is likely faulty.
Test the Input Voltage (Optional)
For advanced users: you can also test the 120V input side. Touch the probes to the two thicker wires connected to the house circuit. You should read around 120V AC.
Warning: Only do this if you’re comfortable working with high voltage. If unsure, turn off the power and call an electrician.
Step 6: Replace a Faulty Transformer
If your transformer is dead or underperforming, it’s time to replace it. Fortunately, this is a straightforward DIY task.
Buy the Right Replacement
Most doorbells use a 16V or 24V transformer with 10–30 VA (volt-ampere) rating. Check the label on your old transformer or consult your doorbell’s manual.
You can find replacements at hardware stores or online. Popular brands include Nutone, Heath Zenith, and DoorBird.
Install the New Transformer
1. Turn off the power at the breaker.
2. Disconnect the old transformer’s wires (take a photo first).
3. Mount the new transformer in the same location using screws.
4. Connect the 120V wires to the circuit (black to black, white to white, ground to ground).
5. Connect the low-voltage wires to the doorbell system.
6. Secure all connections with wire nuts and electrical tape.
7. Turn the power back on and test the doorbell.
Mounting Tips
– Use a metal electrical box if required by local code.
– Keep the transformer accessible for future maintenance.
– Avoid placing it near heat sources like furnaces.
Troubleshooting Common Issues
Even after finding the transformer, you might still have doorbell problems. Here’s how to troubleshoot:
Doorbell Still Doesn’t Ring
– Check the button: Dirt or corrosion can prevent contact. Clean the contacts with sandpaper.
– Inspect the chime: Old chimes can wear out. Listen for a faint click—if you hear it but no sound, the chime may need replacement.
– Test the wiring: Broken or frayed wires can interrupt the circuit. Use a continuity tester to check for breaks.
Transformer Hums or Gets Hot
This indicates a short circuit or overload. Turn off the power immediately and check for loose wires or damaged components.
Low Voltage Reading
If the multimeter shows less than 16V, the transformer may be failing or undersized for your doorbell. Replace it with a higher-rated model if needed.
No Power to Transformer
Double-check the circuit breaker. Some homes have a dedicated doorbell fuse instead of a breaker. Look for a small fuse in the panel labeled “Doorbell.”
Safety Tips When Working with Electrical Systems
Older homes can have outdated wiring, so safety is critical.
– Never work on live circuits: Always turn off the power and verify with a tester.
– Wear protective gear: Gloves and safety glasses prevent injuries from debris and sparks.
– Don’t force connections: If wires are brittle or damaged, replace them.
– Know your limits: If you’re uncomfortable with electrical work, hire a licensed electrician.
Remember: even low-voltage systems can cause shocks or damage components if mishandled.
When to Call a Professional
While finding and replacing a doorbell transformer is manageable for most homeowners, some situations call for expert help:
– You can’t locate the transformer after a thorough search.
– The wiring is damaged, frayed, or runs through inaccessible walls.
– You’re unsure about electrical safety or local codes.
– The doorbell system involves multiple chimes or complex wiring.
A professional electrician has the tools and experience to safely diagnose and fix the issue—often in under an hour.
Conclusion
Finding a doorbell transformer in an old house doesn’t have to be a mystery. By starting at the doorbell button, tracing the wires, and checking common hiding spots like the basement, attic, or near the electrical panel, you can locate the transformer with confidence. Testing it with a multimeter ensures it’s working properly, and replacing a faulty unit is a simple fix that restores your doorbell’s function.
Remember to prioritize safety—turn off the power, use the right tools, and don’t hesitate to call a professional if needed. With this guide, you’re equipped to handle one of the most common doorbell issues in older homes. Whether you’re fixing a silent chime or upgrading to a smart doorbell, knowing where your transformer is located is the key to success.
