How to Find Doorbell Chime Box

Finding your doorbell chime box is easier than you think. This guide walks you through locating it behind walls, in basements, or attics—even if your doorbell isn’t working. With simple tools and smart tips, you’ll fix chime problems fast.

Key Takeaways

• Know the basics: The chime box connects your doorbell button to the sound unit inside your home—usually near the front door.
• Check common locations first: Look in basements, utility closets, garages, or behind the doorbell button itself.
• Use a voltage tester: Safely confirm if power is reaching the chime box before handling wires.
• Follow wiring paths: Doorbell wires often run along baseboards, under floors, or through walls—trace them visually or with a stud finder.
• Label wires during removal: Prevent confusion when reconnecting by marking wires with tape or labels.
• Test after reassembly: Always press the doorbell button to ensure the chime works before finishing up.
• Call a pro if unsure: If you can’t locate the chime or feel uncomfortable with electrical work, hire a licensed electrician.

How to Find Doorbell Chime Box: A Complete Step-by-Step Guide

If your doorbell isn’t ringing—or you’re installing a new smart doorbell—you’ll need to find the doorbell chime box. This small but essential device translates the signal from your doorbell button into that familiar “ding-dong” sound. But where is it hiding? Don’t worry. Most chime boxes are tucked away in plain sight, often in basements, closets, or behind walls near your front entrance.

In this guide, we’ll walk you through exactly how to find your doorbell chime box—even if you’ve never touched a wire in your life. Whether you’re troubleshooting a silent doorbell, upgrading to a wireless system, or just curious about your home’s wiring, these steps will help you locate, access, and understand your chime box safely and efficiently.

By the end, you’ll know where to look, what tools to use, and how to avoid common mistakes. Let’s get started!

What Is a Doorbell Chime Box?

Before we dive into locating it, let’s clarify what a doorbell chime box actually does. Think of it as the brain of your doorbell system. When someone presses the button outside, it sends a low-voltage electrical signal through thin wires to the chime box inside your home. The chime box then activates solenoids or electronic circuits that produce the ringing sound.

Most traditional chime boxes are rectangular, about the size of a small paperback book, and mounted on a wall or inside a junction box. They typically have two or more terminal screws labeled “Front,” “Trans,” and “Rear” (if you have a second doorbell). Modern digital or smart chimes may look different—some are sleek plastic units with LED displays—but they still serve the same core function.

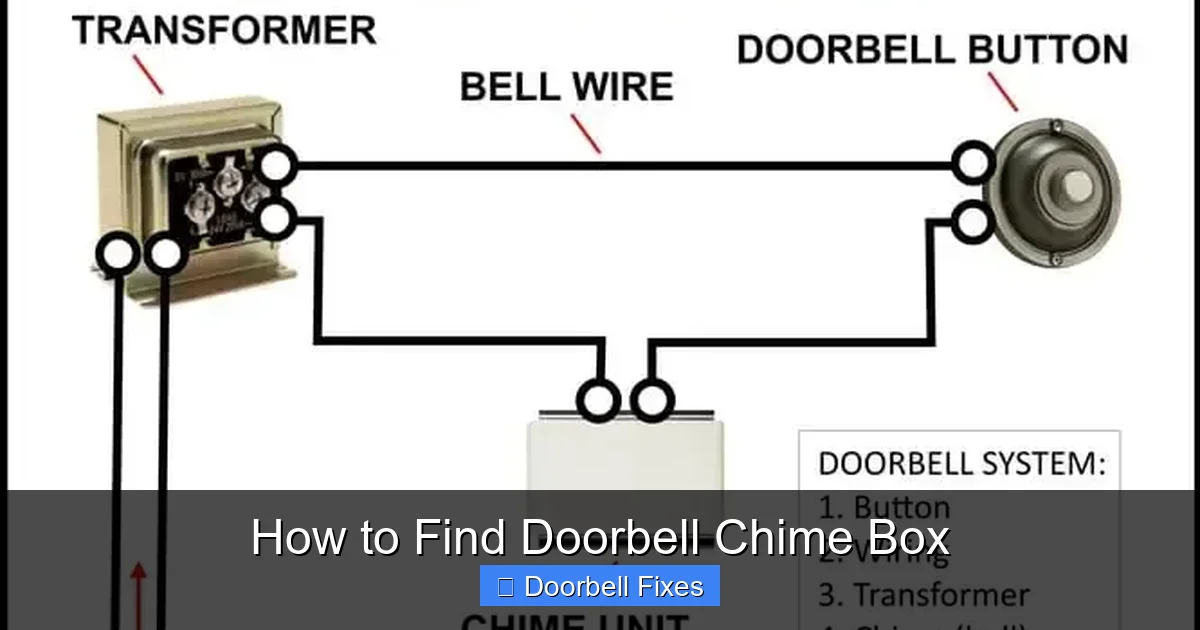

Understanding this helps because it tells you the chime box must be electrically connected to both the doorbell button and the transformer (which steps down your home’s 120V power to a safe 8–24V for the doorbell). That connection gives us clues about where to search.

Why You Might Need to Find Your Chime Box

There are several common reasons homeowners need to locate their doorbell chime box:

– Your doorbell stopped working and you suspect a faulty chime unit.
– You’re installing a new video doorbell (like Ring or Nest) and need to connect it to existing wiring.
– You want to replace an old mechanical chime with a modern electronic one.
– You’re adding a second doorbell or chime location.
– You’re troubleshooting inconsistent ringing or weak sound.

In all these cases, knowing exactly where the chime box is saves time, reduces frustration, and prevents accidental damage to walls or wiring.

Tools You’ll Need

You don’t need a full electrician’s toolkit—just a few basics:

– Non-contact voltage tester (essential for safety)
– Screwdriver (flathead and Phillips)
– Flashlight or headlamp
– Stud finder (optional but helpful)
– Wire labels or colored tape
– Multimeter (optional, for advanced testing)
– Ladder (if checking high walls or attics)

Most of these are household items. The voltage tester is the most important—it lets you check if wires are live without touching them.

Step 1: Start Near the Doorbell Button

The easiest place to begin your search is right where the doorbell button is installed—usually beside your front (or back) door.

Look for Visible Wiring

Gently remove the doorbell button from the wall using a screwdriver. Behind it, you should see two thin wires (often white and red or black) connected to terminal screws. These wires carry the low-voltage signal from the transformer to the chime box and back.

If you see these wires, great! That means your system is wired (not wireless), and the chime box is somewhere along the path those wires take into your home.

Trace the Wire Path

Follow the wires visually as they disappear into the wall, under the siding, or along the trim. In many homes, doorbell wires run horizontally along the baseboard, then vertically down into the basement or crawlspace. In newer constructions, they may be bundled with other low-voltage cables (like thermostat wires) inside conduit.

Tip: If the wires vanish into the wall, don’t panic. Use a stud finder with a “wire detection” mode (many modern ones have this) to help trace their general direction.

Step 2: Check Common Hiding Spots

Doorbell chime boxes are rarely placed randomly. Electricians and builders follow predictable patterns. Here are the most likely locations—check them in this order:

Basement or Crawlspace

This is the #1 spot. In homes with basements, the chime box is often mounted on a wall near the furnace, water heater, or electrical panel. Why? Because that’s where the transformer is usually located—and the chime box needs to be close to it.

Look for a small rectangular box with wires entering it. It may be painted the same color as the wall, so scan carefully.

Utility Closet or Laundry Room

If you don’t have a basement, check closets near the front of the house—especially those housing HVAC equipment. The chime box might be tucked behind a shelf or mounted high on the wall.

Garage

In attached garages, especially in newer homes, the chime box is sometimes installed near the garage door opener or electrical outlets. Look near the interior door leading into the house.

Attic

Less common, but possible—especially in homes without basements. If your front door is on an upper floor, the wires might run up into the attic. Use a flashlight and move slowly; attics can be hot, cramped, and dusty.

Behind the Doorbell Button (Rare but Possible)

In some older homes, the chime mechanism was built directly into the doorbell button housing. If your button feels heavy or has a metal plate behind it, this could be the case. However, this is uncommon in homes built after the 1980s.

Step 3: Use Sound to Locate the Chime

If your doorbell still makes a sound (even faintly), you can use audio clues to find the chime box.

Ask Someone to Press the Button

Have a friend or family member stand outside and press the doorbell repeatedly while you walk through your home listening closely.

Listen for the “Click”

Mechanical chimes make a distinct “click” sound when the solenoid engages—even if the bell doesn’t ring. This click is often louder and sharper than the actual chime, making it easier to pinpoint.

Follow the sound like a detective. Move room by room, pausing to listen. The chime box is usually within 10–15 feet of where the sound is loudest.

Tip: Close windows and turn off fans or TVs to reduce background noise.

Step 4: Check the Electrical Panel Area

The doorbell transformer—the device that converts household voltage to safe low voltage—is almost always near your main electrical panel. And since the chime box connects directly to the transformer, it’s often nearby.

Locate Your Breaker Box

Go to your home’s main electrical panel (usually in the basement, garage, or utility room). Look around the area for a small, rectangular metal or plastic box labeled “Doorbell” or “Bell.” This is the transformer.

Follow the Wires from the Transformer

The transformer will have two wires coming out—one going to the doorbell button, and one to the chime box. Trace the wire that doesn’t go toward the front door. That’s your chime box connection.

In many cases, the chime box is mounted right next to or just above the transformer for easy access.

Step 5: Use a Voltage Tester for Confirmation

Once you think you’ve found the chime box, confirm it’s the right one—and that it’s safe to work on.

Turn Off Power (Optional but Recommended)

While doorbell systems use low voltage (and are generally safe), it’s smart to turn off the circuit at the breaker panel if you can identify it. Look for a labeled “Doorbell” or “Low Voltage” breaker. If unsure, leave it on—but proceed with caution.

Test for Voltage

Use a non-contact voltage tester. With the doorbell button pressed, hold the tester near the wires at the chime box. It should beep or light up, indicating current flow. If it doesn’t, the issue might be elsewhere (like a broken wire or dead transformer).

Never touch bare wires with your fingers—even low voltage can cause a shock if you have sensitive skin or heart conditions.

Step 6: Remove and Inspect the Chime Box

Once located, you’ll likely need to remove the chime box to repair, replace, or rewire it.

Unscrew the Cover

Most chime boxes have a front cover held by two screws. Remove them carefully and set them aside.

Label the Wires

Before disconnecting anything, label each wire with tape or a marker. Note which terminal it’s connected to (e.g., “Front,” “Trans”). This prevents mix-ups when reinstalling.

Take a Photo

Snap a quick picture of the wiring setup. This serves as a visual reference if labels fall off or you get distracted.

Gently Pull the Unit Out

Most chime boxes are mounted on metal electrical boxes or directly to wall studs. Wiggle it slightly to loosen, then pull it forward to access the back.

Troubleshooting: What If You Can’t Find It?

Still no luck? Don’t give up. Try these advanced strategies:

Use a Tone Generator and Probe Kit

These inexpensive tools (under $30) send an audio signal through the doorbell wire. You attach the generator to the wire at the doorbell button, then use the probe to “listen” for the tone inside walls or along baseboards. It’s like a metal detector for wires.

Check for Wireless Systems

Some modern doorbells (like Ring Battery models) are completely wireless. In this case, there is no chime box—just a plug-in chime receiver you place anywhere in your home. If your doorbell runs on batteries and has a separate indoor chime, you don’t need to find a traditional chime box.

Consult Building Plans or Previous Owners

If you have access to your home’s original blueprints or can contact the previous owner, ask about the doorbell layout. Builders sometimes note low-voltage wiring paths.

Call a Professional

If you’ve tried everything and still can’t locate the chime box—or if you’re uncomfortable working with wires—hire a licensed electrician. They have specialized tools (like thermal cameras and wire tracers) and can find hidden components quickly and safely.

Safety Tips to Remember

– Always assume wires could be live—even if the doorbell isn’t working.
– Never work on doorbell wiring during rain or wet conditions.
– Keep children and pets away from work areas.
– If you smell burning or see scorch marks near the chime box, turn off power immediately and call an electrician.
– Wear safety glasses when removing wall plates or working in tight spaces.

Final Thoughts

Finding your doorbell chime box doesn’t have to be a mystery. With a systematic approach—starting near the button, checking common locations, using sound and tools, and verifying with a voltage tester—you’ll locate it in most cases within 15–30 minutes.

Remember: the chime box is the heart of your doorbell system. Once you find it, you’re halfway to fixing any issue—from silent rings to faulty wiring. And now that you know where it is, future upgrades or repairs will be much easier.

So grab your flashlight, label those wires, and take control of your doorbell today. Your home’s security and convenience are worth the effort!
