How to Find the Doorbell Transformer in Your House
Is your doorbell not ringing? Or maybe it’s been acting up—chiming weakly, not working at all, or making strange noises? Before you assume the chime unit is broken or the button is faulty, there’s one crucial component you should check first: the doorbell transformer.
The transformer is the unsung hero of your doorbell system. It quietly converts the standard 120-volt electricity from your home’s wiring into the low-voltage power (usually 16 to 24 volts) that your doorbell needs to function. Without a working transformer, your doorbell simply won’t get the juice it needs—no matter how many times you press the button.
But here’s the catch: the transformer is often hidden away in an out-of-the-way spot, making it tricky to find if you’ve never looked for it before. Don’t worry—you don’t need to be an electrician to track it down. In this complete guide, we’ll walk you through how to find the doorbell transformer in your house using simple, safe, and effective methods.
By the end of this guide, you’ll know exactly where to look, what to look for, and how to test whether your transformer is working. Whether you’re troubleshooting a broken doorbell or just want to understand your home’s electrical setup better, this step-by-step guide has you covered.
What Is a Doorbell Transformer?
Before we dive into finding it, let’s make sure we understand what we’re looking for. A doorbell transformer is a small electrical device that steps down the voltage from your home’s main power supply to a safer, lower level suitable for your doorbell system.

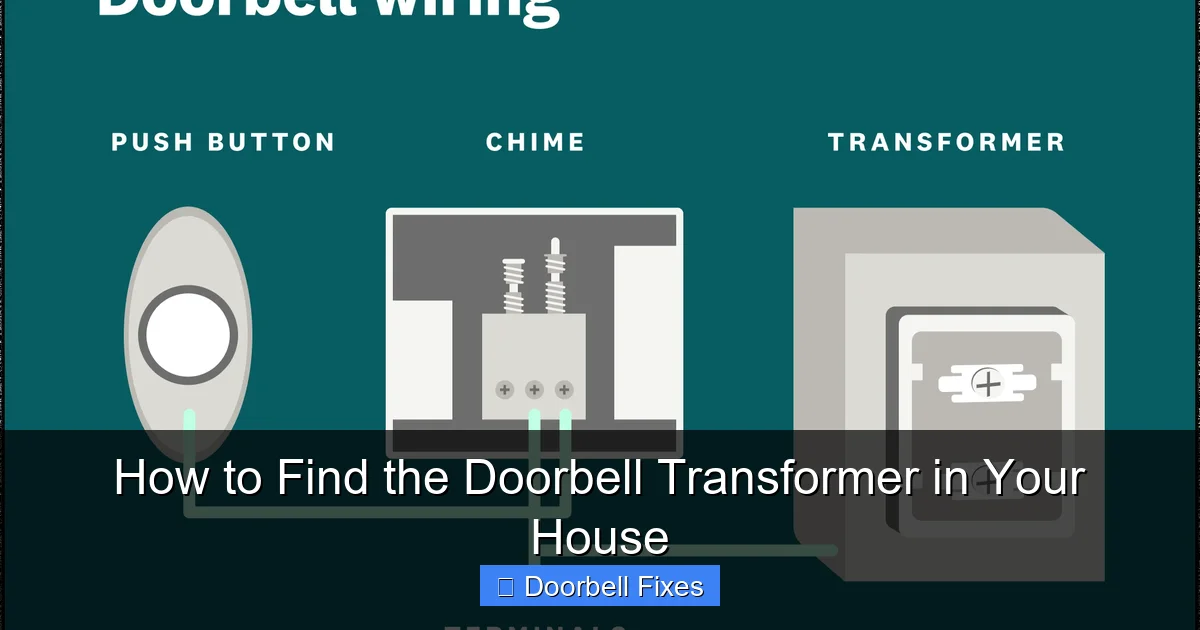

Visual guide about How to Find the Doorbell Transformer in Your House
Image source: media.angi.com
Most homes in the U.S. use 120 volts of alternating current (AC) for lighting and outlets. But doorbells only need about 16 to 24 volts. The transformer takes that high voltage and reduces it to the right amount. It’s usually mounted inside a junction box or clipped to a metal electrical box, and it has two wires leading out—one going to the doorbell button and one to the chime unit.
Transformers are typically small—about the size of a deck of cards—and made of metal or plastic. They’re often black or gray and may have a small label indicating the voltage output (like “16V” or “24V”). Some newer models are even built into the doorbell chime itself, but most older homes have a separate, standalone transformer.
Understanding this helps because when your doorbell stops working, the transformer is one of the first things to check. If it’s failed, no amount of button pressing will get your chime to ring.
Why You Might Need to Find the Transformer
There are several reasons you might need to locate your doorbell transformer:
- Your doorbell isn’t working: No sound, weak chime, or intermittent ringing could mean the transformer is dead or underpowered.
- You’re installing a new doorbell: Smart doorbells like Ring or Nest often require a compatible transformer with enough voltage and amperage.
- You’re replacing an old chime: Some chime units need a specific voltage, and you’ll need to verify the transformer matches.
- You’re troubleshooting electrical issues: Flickering lights near the doorbell or tripped breakers could point to a faulty transformer.
- You’re doing home renovations: If you’re rewiring or remodeling, knowing where the transformer is helps avoid accidental damage.
In short, whether you’re fixing, upgrading, or just curious, knowing how to find the doorbell transformer is a useful skill for any homeowner.
Step 1: Turn Off the Power (Safety First!)
Before you start poking around electrical components, safety must come first. Even though doorbell transformers work with low voltage, they’re still connected to your home’s main electrical system. That means there’s a risk of electric shock if you’re not careful.
How to Safely Shut Off Power
Follow these steps to ensure you’re working safely:
- Locate your main electrical panel (breaker box): This is usually in the basement, garage, utility closet, or outside near the front of the house.
- Identify the breaker for the doorbell circuit: Look for a label like “Doorbell,” “Front Door,” or “Chime.” If there’s no label, you may need to test breakers one by one (more on that below).
- Turn off the breaker: Flip the switch to the “OFF” position. Use a flashlight if the panel is dark.
- Test the power: Go to your doorbell button and press it. If the chime doesn’t ring, the power is off. You can also use a non-contact voltage tester near the wires to confirm.
Pro Tip: If you can’t find a labeled breaker, turn off the main breaker to cut power to the entire house. It’s overkill, but it guarantees safety.
Never work on electrical components with the power on. Even low-voltage systems can cause injury or damage if mishandled.
Step 2: Start Your Search in Common Locations
Now that the power is off, it’s time to hunt for the transformer. Most doorbell transformers are installed in predictable spots. Start your search in these common locations:
1. Near the Main Electrical Panel
This is the most common location. Electricians often mount the transformer on or near the breaker box because it’s easy to access and close to the main power source.
Look for a small black or gray box clipped to the side of the panel, inside a junction box, or mounted on a nearby wall. It may be tucked behind other wires or components, so take your time.
2. In the Basement or Crawlspace
If you have a basement, check near the furnace, water heater, or laundry area. These utility zones often house electrical components. The transformer might be mounted on a wooden stud, inside a metal junction box, or even zip-tied to a pipe.
Use a flashlight and look for a small device with two wires coming out. It might be labeled “Transformer” or have a voltage rating printed on it.
3. In the Attic
In some homes, especially older ones, the transformer is installed in the attic. This is less common but still possible. Check near the access hatch or along the eaves where wires run from the exterior walls.
Be cautious in the attic—watch your step, wear gloves, and avoid stepping on insulation or fragile materials.
4. Inside a Utility or Coat Closet
Some builders install the transformer in a closet near the front door. This keeps it close to the doorbell wiring but out of sight. Open closets near your entryway and look behind shelves or on the wall near the ceiling.
5. Behind the Doorbell Chime Unit
In rare cases, the transformer is built into the chime itself. This is more common with newer smart doorbells. If you remove the chime cover and see a small circuit board with a transformer-like component, that might be it.
However, most traditional chimes don’t include the transformer—so don’t assume it’s there unless you see clear labeling.
Step 3: Trace the Doorbell Wires
If you can’t find the transformer in the usual spots, it’s time to follow the wires. Doorbell systems use low-voltage wiring that runs from the transformer to the doorbell button and chime. By tracing these wires, you can work your way back to the source.
How to Trace the Wires
- Remove the doorbell button: Unscrew the button from the wall and gently pull it away. You’ll see two thin wires connected to the back.
- Note the wire path: Look where the wires disappear into the wall. They usually run through the wall cavity toward the interior of the house.
- Go to the chime unit: Locate your doorbell chime (usually inside the house, near the front door). Remove the cover and look at the wiring.
- Identify the transformer wires: The chime will have at least two wires: one from the button and one from the transformer. The transformer wires are usually labeled “T” or “Transformer.”
- Follow the wires back: Gently pull on the transformer wires to see where they lead. They may run along baseboards, through walls, or into a junction box.
Pro Tip: Use a flashlight and a helper. One person can gently tug on the wires while the other watches for movement in walls or ceilings.
If the wires disappear into a wall, you may need to check adjacent rooms or use a stud finder with a wire detection mode to locate hidden cables.
Step 4: Use a Multimeter to Test the Transformer
Once you’ve located the transformer, the next step is to test whether it’s working. A multimeter is a simple tool that measures voltage, and it’s essential for diagnosing electrical issues.
How to Test the Transformer
- Turn the power back on: Go to your breaker panel and flip the doorbell circuit back on.
- Set your multimeter: Turn the dial to measure AC voltage (usually marked “V~” or “ACV”). Set it to a range higher than 24V (like 200V).
- Touch the probes to the transformer terminals: Place the red probe on one wire and the black probe on the other. Be careful not to touch the metal tips.
- Read the display: A working transformer should show 16 to 24 volts AC. If it reads 0V or a very low number, the transformer is likely dead.
What the readings mean:
- 16–24V AC: Transformer is working correctly.
- 0V or near 0V: Transformer is faulty or not receiving power.
- Voltage below 16V: Transformer may be underpowered or failing.
If the transformer is dead, you’ll need to replace it. Most hardware stores carry universal doorbell transformers that are easy to install.
Step 5: Check for Hidden or Unusual Locations
Sometimes, the transformer is in a spot you’d never expect. Here are a few unusual places to check:
Inside a Light Fixture Junction Box
In some homes, the transformer is mounted inside a ceiling light fixture box near the front door. This is especially common in older homes with limited space.
Behind a Baseboard or Trim
Rarely, transformers are hidden behind baseboards or crown molding. If you suspect this, carefully remove a section of trim and look inside the wall cavity.
In a Garage or Shed
If your front door is near a garage, the transformer might be installed there. Check near the garage door opener or electrical outlets.
Inside a False Wall or Access Panel
Some homes have access panels for plumbing or electrical work. The transformer could be tucked away behind one of these.
If you’re still stuck, consider using a tone generator and probe (also called a wire tracer). This tool sends a signal through the doorbell wires, and the probe beeps when it detects the signal—helping you follow the wire path even through walls.
Troubleshooting Common Issues
Even after finding the transformer, you might run into problems. Here’s how to handle common issues:
Transformer Is Working, But Doorbell Still Doesn’t Ring
If the transformer shows proper voltage but the doorbell still doesn’t work, the issue might be:
- A faulty doorbell button: Test the button with a multimeter or replace it.
- A broken chime unit: Listen for a click when you press the button. No click? The chime might be dead.
- Loose or corroded wires: Check all connections and tighten or clean them.
- Incorrect voltage: Some smart doorbells need 24V, but your transformer only puts out 16V. Upgrade if needed.
Transformer Is Hot or Smells Burnt
This is a red flag. A hot or burning-smelling transformer could be overloaded or shorted. Turn off the power immediately and replace the transformer. Do not ignore this—it could be a fire hazard.
No Power to the Transformer
If the multimeter reads 0V, the transformer isn’t getting power. Check:
- The breaker is on and not tripped.
- The wiring from the breaker to the transformer is intact.
- There’s no blown fuse in the transformer (some models have internal fuses).
If all else fails, consult an electrician.
When to Call a Professional
While finding and testing a doorbell transformer is usually a DIY-friendly task, there are times when you should call a licensed electrician:
- You can’t locate the transformer after a thorough search.
- You’re uncomfortable working with electricity.
- The wiring looks damaged, frayed, or outdated.
- You suspect a larger electrical issue (like faulty wiring or overloaded circuits).
- You’re installing a high-power smart doorbell that requires a 24V/20VA transformer.
An electrician has the tools and expertise to safely locate, test, and replace transformers—and can ensure your doorbell system meets code.
Conclusion
Finding the doorbell transformer in your house doesn’t have to be a frustrating guessing game. With a little patience and the right approach, you can track it down in most homes within 15 to 30 minutes.
Start by turning off the power, then check common locations like the electrical panel, basement, or utility closet. If that doesn’t work, trace the doorbell wires from the button or chime back to their source. Once you find the transformer, use a multimeter to test its output and confirm it’s working properly.
Remember: safety comes first. Always shut off the breaker before handling any electrical components, and don’t hesitate to call a professional if you’re unsure.
Now that you know how to find the doorbell transformer in your house, you’re equipped to troubleshoot doorbell issues like a pro. Whether you’re fixing a broken chime or upgrading to a smart doorbell, this knowledge will save you time, money, and frustration.
So grab your flashlight, multimeter, and a helper if needed—and go find that transformer!
