Fishing doorbell wire through walls, floors, or ceilings might sound tricky, but with the right tools and techniques, it’s a DIY-friendly project. This guide walks you through every step—from planning your route to securing the wire—so you can install or replace your doorbell without damaging your home.
Key Takeaways
- Plan your wire route carefully: Always map out the shortest, safest path from your doorbell button to the chime, avoiding electrical wires and structural hazards.
- Use the right tools: A fish tape, flexible drill bit, and wire lubricant make the job faster and reduce the risk of damage.
- Turn off power when needed: While doorbell wires are low-voltage, turn off power to nearby outlets or circuits if drilling near electrical wiring.
- Work slowly and patiently: Rushing can lead to broken wires, damaged walls, or frustration—take your time for a clean, professional result.
- Test the wire before finishing: Always check continuity with a multimeter or doorbell tester before patching walls or installing fixtures.
- Label both ends: Mark the wire at both ends to avoid confusion during installation, especially if running multiple wires.
- Use protective conduit in exposed areas: If the wire runs through unfinished spaces like basements or attics, use conduit to prevent damage.
How to Fish Doorbell Wire: A Complete Step-by-Step Guide
So, you’ve decided to install a new doorbell or replace an old, faulty one—great choice! But now you’re staring at your wall, wondering how on earth you’re supposed to get that thin, low-voltage wire from the front door to the chime unit inside. Don’t worry. You’re not alone. Fishing doorbell wire is one of the most common—and often intimidating—tasks in home improvement. The good news? With a little patience, the right tools, and this guide, you’ll have that wire snaking through your walls like a pro in no time.
In this comprehensive how-to, we’ll walk you through everything you need to know about fishing doorbell wire—safely, efficiently, and without tearing your house apart. Whether you’re working on drywall, plaster, wood framing, or even concrete, we’ve got tips and tricks to help you succeed. By the end, you’ll not only understand the process but feel confident tackling similar wiring projects in the future.
Let’s dive in.
What Is Doorbell Wire and Why Does It Need “Fishing”?

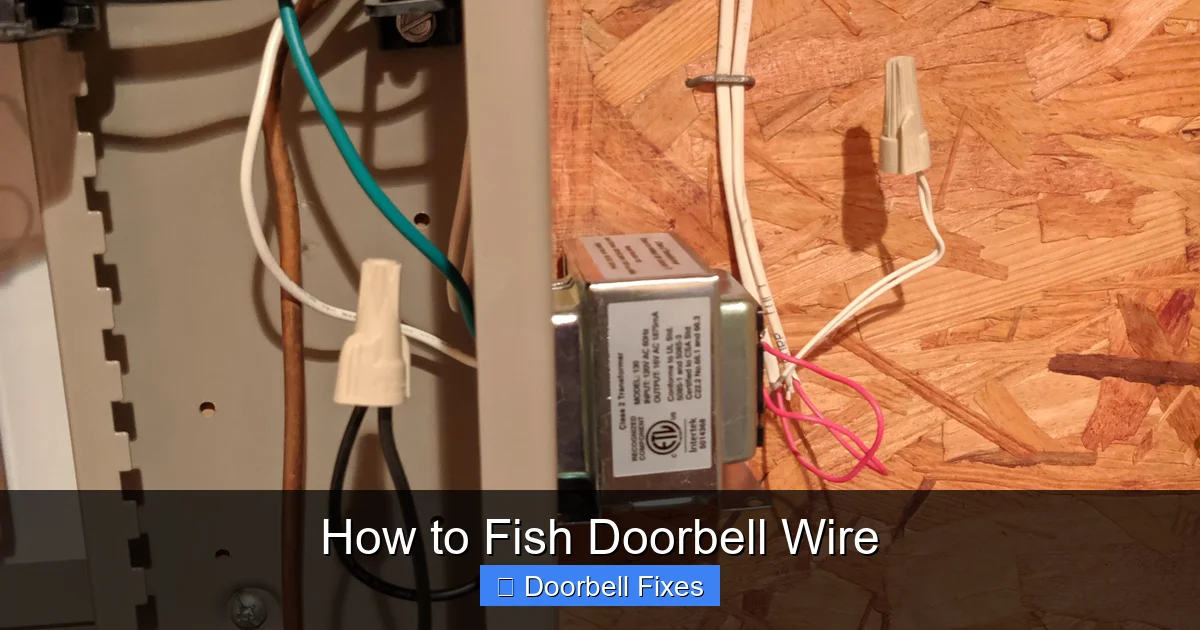

Visual guide about How to Fish Doorbell Wire
Image source: i.redd.it
Before we get into the how, let’s clarify the what. Doorbell wire is a low-voltage cable (typically 18- or 20-gauge) used to connect your doorbell button (the part you press outside) to the chime unit inside your home. It carries a small electrical current—usually 16 to 24 volts—from a transformer (often located near your furnace or electrical panel) to power the chime when the button is pressed.
So why “fish” the wire? Because unlike high-voltage electrical wiring, doorbell wire is thin, flexible, and not meant to be stapled or exposed. It’s usually run inside walls, under floors, or through attics and basements—hidden from view. “Fishing” refers to the process of pulling this wire through enclosed spaces using tools like fish tapes, rods, or string.
Think of it like threading a needle—but instead of thread, you’re guiding a wire through the hidden pathways of your home. It’s a delicate operation that requires planning, precision, and a bit of finesse.
Tools and Materials You’ll Need
Before you start, gather your supplies. Having the right tools on hand will save you time, frustration, and trips to the hardware store.
Essential Tools
- Fish tape: A flexible, retractable metal or fiberglass strip used to pull wire through walls. Look for one at least 25 feet long.
- Flexible drill bit (also called a flex bit or auger bit): Used to drill through wall studs, floor joists, or ceilings. A 12- to 24-inch bit works well.
- Drill: A standard cordless drill with adjustable speed.
- Wire lubricant (optional but helpful): A slippery gel or spray that reduces friction when pulling wire through tight spaces.
- Tape measure: To measure distances and plan your route.
- Pencil or chalk: For marking drill points and wire paths.
- Stud finder: To locate wall studs and avoid drilling into them unnecessarily.
- Screwdrivers: For removing outlet covers, switch plates, or access panels.
- Flashlight or headlamp: For visibility in dark spaces like attics or crawl spaces.
- Electrical tape: To secure wire to the fish tape or label ends.
- Wire strippers: For preparing the wire ends when connecting to the doorbell and chime.
- Multimeter or doorbell tester: To test continuity and ensure the wire is working before finishing.
Materials
- Doorbell wire: 18- or 20-gauge, 2-conductor (usually red and white) low-voltage wire. Buy 10–20% more than you think you’ll need.
- Wire nuts or terminal screws: For connecting the wire to the doorbell and chime.
- Conduit (optional): Plastic or metal tubing to protect the wire in exposed areas like basements.
- Drywall saw or hole saw (if needed): For creating access holes in drywall or plaster.
- Patch materials: Spackle, joint compound, or drywall patches if you need to repair small holes.
Step 1: Plan Your Wire Route
The most important step in fishing doorbell wire is planning. A well-thought-out route saves time, reduces damage, and prevents frustration.
Identify the Start and End Points
First, decide where your doorbell button will go (usually near the front door, at eye level) and where the chime unit will be installed (often in a central hallway or living area). Mark these locations with a pencil.
Find the Shortest, Safest Path
Look for the most direct route between the two points. Common paths include:
- From the door frame, up into the wall cavity, across the attic, and down to the chime location.
- Through the basement or crawl space, running under the floor.
- Through interior walls, especially if the chime is on the same floor as the door.
Avoid running the wire near electrical wires, plumbing, or HVAC ducts unless absolutely necessary. If you must cross electrical wires, do so at a 90-degree angle to reduce interference.
Use a Stud Finder
Scan the walls to locate studs, joists, and other obstructions. You’ll want to drill through the center of studs or between them—never through the edge, where nails or screws might damage the wire.
Check for Obstacles
Look for fire blocks (wood blocks between studs), insulation, or metal plates that might block your path. If you hit a fire block, you may need to drill through it or find an alternate route.
Create Access Points
You’ll need small holes to feed the wire in and out. These can be:
- Behind the doorbell button mounting plate.
- Behind the chime unit.
- Inside electrical outlet boxes (if running through walls).
- In the attic or basement for vertical runs.
Use a drywall saw to cut a small access hole (about 2–3 inches) if needed. Always patch these later.
Step 2: Prepare the Wire and Tools
Before you start fishing, get your wire and tools ready.
Cut the Wire to Length
Measure the distance from the doorbell to the chime, adding 10–20% extra for slack. Cut the wire with wire strippers, leaving plenty of length at both ends.
Strip the Ends
Use wire strippers to remove about 1/2 inch of insulation from each end of the wire. This will make it easier to connect to the doorbell and chime later.
Attach the Wire to the Fish Tape
Fold the stripped end of the wire back on itself to create a loop. Hook this loop onto the end of the fish tape. Secure it tightly with electrical tape, wrapping it several times to prevent slipping.
Apply Wire Lubricant (Optional)
If you’re running the wire through a long or tight space, apply a small amount of wire lubricant to the wire. This reduces friction and makes pulling easier. Don’t overdo it—a little goes a long way.
Step 3: Start Fishing the Wire
Now comes the fun part—actually getting the wire through the wall.
Begin at the Doorbell Location
Insert the fish tape into the wall cavity from the doorbell side. Push it gently, feeling for resistance. If you hit a stud, you may need to drill a small hole through it.
Drill Through Studs (If Needed)
Use your flexible drill bit to drill a hole through the center of any studs in your path. Drill from the same side you’re feeding the fish tape. Keep the hole as small as possible to minimize damage.
Guide the Fish Tape to the Destination
Continue feeding the fish tape toward the chime location. If you’re working in an attic or basement, you can often feed it down through the wall cavity. In tight spaces, you may need to use a glow rod or flexible rod to help guide it.
Retrieve the Fish Tape
Once the fish tape reaches the chime location (or an access point), carefully pull it out. The wire should follow behind it. If the wire gets stuck, don’t yank—gently wiggle the fish tape or apply more lubricant.
Pull the Wire Through
Once the wire is through, disconnect it from the fish tape. Leave a few inches of slack at both ends for connections.
Step 4: Test the Wire
Before you secure anything or patch the walls, test the wire to make sure it’s working.
Use a Multimeter
Set your multimeter to continuity or resistance mode. Touch one probe to each wire end. If the meter beeps or shows low resistance, the wire is intact.
Use a Doorbell Tester
Some hardware stores sell inexpensive doorbell testers that plug into the wire ends and light up if the circuit is complete.
Connect Temporarily
If you have the doorbell and chime ready, connect the wire temporarily to test the full system. Press the button—does the chime ring? If yes, you’re good to go.
Step 5: Secure and Protect the Wire
Once the wire is in place and tested, it’s time to secure it and protect it from damage.
Use Staples or Clips (Sparingly)
In exposed areas like basements or attics, use plastic wire clips or staples to secure the wire to studs or joists. Don’t over-tighten—leave a little slack to prevent strain.
Use Conduit in High-Traffic Areas
If the wire runs through a garage, workshop, or other area where it might get bumped or damaged, run it through plastic conduit for protection.
Label the Ends
Use a piece of tape and a marker to label each wire end (e.g., “Doorbell” and “Chime”). This prevents confusion during installation.
Step 6: Install the Doorbell and Chime
Now that the wire is in place, it’s time to connect everything.
Connect the Doorbell Button
Remove the mounting plate from the doorbell button. Connect the two wires to the terminals (usually labeled “Front” and “Trans”). It doesn’t matter which wire goes where—doorbell circuits are not polarity-sensitive.
Mount the Button
Secure the button to the wall using screws. Make sure it’s level and tightly fastened.
Connect the Chime Unit
Open the chime unit and connect the wires to the appropriate terminals (again, usually “Front” and “Trans”). Some chimes have multiple terminals for additional buttons—follow the manufacturer’s instructions.
Mount the Chime
Secure the chime to the wall or place it on a shelf. Plug in the transformer if it’s not hardwired.
Test Again
Press the doorbell button. The chime should ring. If not, double-check your connections and test the wire again.
Step 7: Patch and Finish
Once everything is working, clean up and repair any damage.
Patch Small Holes
Use spackle or joint compound to fill any small access holes. Sand smooth and touch up with paint if needed.
Replace Outlet Covers
If you removed any electrical outlet or switch plates, reinstall them.
Clean Up
Dispose of scraps, put away tools, and admire your handiwork.
Troubleshooting Common Problems
Even with careful planning, things can go wrong. Here’s how to fix common issues.
Wire Won’t Pull Through
If the wire gets stuck:
- Stop pulling immediately—you might break the wire.
- Apply wire lubricant to the section that’s stuck.
- Gently wiggle the fish tape or wire to loosen it.
- If needed, create a second access point to pull from the other side.
No Continuity When Testing
If the multimeter shows no connection:
- Check that the wire is properly attached to the fish tape.
- Look for kinks, cuts, or breaks in the wire.
- Re-fish the wire if necessary.
Doorbell Doesn’t Ring
If the button doesn’t work:
- Check all connections at the button and chime.
- Test the transformer—it should output 16–24 volts.
- Ensure the chime is powered (plugged in or connected to the transformer).
- Try a different doorbell button to rule out a faulty unit.
Interference or Weak Sound
If the chime sounds weak or intermittent:
- Make sure the wire isn’t running parallel to electrical wires.
- Check for loose connections.
- Use a higher-gauge wire (e.g., 18-gauge instead of 20) for longer runs.
Safety Tips and Best Practices
Fishing doorbell wire is generally safe, but a few precautions go a long way.
- Turn off power to nearby circuits if drilling near electrical outlets or switches.
- Wear safety glasses when drilling or cutting drywall.
- Use a dust mask when working in dusty areas like attics or basements.
- Never force the fish tape—gentle pressure prevents damage.
- Keep children and pets away from work areas.
- Label everything clearly to avoid confusion later.
When to Call a Professional
While fishing doorbell wire is a DIY-friendly task, there are times when it’s best to call an electrician:
- You’re uncomfortable working with walls or drilling.
- The wire must cross major structural elements or concrete.
- You suspect existing wiring or plumbing in the path.
- You’re installing a smart doorbell with complex wiring or Wi-Fi setup.
Don’t hesitate to seek help if the project feels overwhelming. Safety and peace of mind are worth the cost.
Conclusion
Fishing doorbell wire might seem like a daunting task, but with the right approach, it’s entirely manageable for most homeowners. By planning your route, using the proper tools, and working patiently, you can run that wire cleanly and safely—without damaging your walls or your sanity.
Remember: take your time, test as you go, and don’t be afraid to ask for help if needed. Once your doorbell is installed and working, you’ll have not only a functional upgrade but also the satisfaction of a job well done.
Whether you’re replacing an old doorbell or installing a new one from scratch, this guide has given you everything you need to fish doorbell wire like a pro. Now go press that button and enjoy the chime!
