This guide walks you through how to fit a Ring Doorbell Pro safely and correctly, from checking compatibility to final setup. Whether you’re replacing an old doorbell or installing one for the first time, we’ve got you covered with clear, easy-to-follow instructions.
Key Takeaways
- Check compatibility first: Ensure your existing doorbell wiring and transformer meet Ring’s requirements (16–24V AC, 30VA or higher) before starting.
- Turn off power at the breaker: Safety is critical—always shut off electricity to the doorbell circuit before handling wires.
- Use the mounting bracket correctly: The Pro requires a specific bracket for secure attachment; angle it if needed for better motion detection.
- Connect wires to terminals properly: Loose or reversed wiring can prevent the doorbell from powering on—double-check connections.
- Complete setup via the Ring app: Use the app to connect to Wi-Fi, test the chime, and customize motion settings.
- Test and troubleshoot: After installation, verify video quality, motion alerts, and chime function to ensure everything works.
- Consider a Pro Power Kit: If your chime doesn’t ring, the included Pro Power Kit helps stabilize voltage and enables digital chime compatibility.
How to Fit a Ring Doorbell Pro: A Complete Step-by-Step Guide
So, you’ve decided to upgrade your home security with the Ring Doorbell Pro—a smart, wired doorbell that offers 1080p HD video, advanced motion detection, two-way talk, and seamless integration with other Ring devices. But now comes the big question: How do you actually fit a Ring Doorbell Pro?
Don’t worry—you don’t need to be an electrician or a tech wizard. With the right tools, a bit of patience, and this detailed guide, you can install your Ring Doorbell Pro safely and correctly in under an hour. Whether you’re replacing an old mechanical doorbell or installing a new one, we’ll walk you through every step—from checking compatibility to final testing.
In this guide, you’ll learn:
– How to prepare for installation
– What tools and materials you’ll need
– Step-by-step wiring and mounting instructions
– How to set up the Ring app and connect your doorbell
– Troubleshooting common issues
– Tips for optimal performance
Let’s get started!
What Is the Ring Doorbell Pro?
Visual guide about How to Fit a Ring Doorbell Pro
Image source: storables.com
Before we dive into the installation, let’s quickly cover what the Ring Doorbell Pro is and why it’s a popular choice for homeowners.
The Ring Doorbell Pro is a hardwired smart doorbell that connects directly to your existing doorbell wiring. Unlike battery-powered models, it draws continuous power from your home’s electrical system, ensuring it never runs out of juice. It features:
– 1080p HD video with night vision
– Advanced motion detection with customizable zones
– Two-way audio for talking to visitors
– Pre-Roll feature that captures 4 seconds of video before motion is detected
– Compatibility with Alexa for voice alerts and live view
– Works with Ring Chime or Ring Chime Pro for indoor alerts
Because it’s wired, the Pro offers more reliable performance and faster response times than battery models. However, it does require proper electrical setup—which is why knowing how to fit a Ring Doorbell Pro correctly is so important.
Tools and Materials You’ll Need
Before you begin, gather these tools and materials. Most are common household items, but a few are specific to this installation.
Essential Tools
- Screwdriver set (Phillips and flathead)
- Voltage tester (non-contact type recommended)
- Wire strippers (if you need to trim or re-strip wires)
- Drill and drill bits (if mounting to brick, concrete, or hard surfaces)
- Level (to ensure the doorbell is straight)
- Pencil or marker (for marking drill holes)
- Safety gloves and glasses (optional but recommended)
Included in the Box
- Ring Doorbell Pro unit
- Mounting bracket (with angle options)
- Screws and anchors
- Pro Power Kit (for digital chime compatibility)
- Wire nuts
- Installation guide and QR code for app setup
Optional but Helpful
- Smartphone or tablet with the Ring app installed
- Ladder (if your doorbell is high up)
- Cable clips or conduit (to tidy up loose wires)
- Extra wire (if your existing wires are too short)
Having everything ready will save you time and prevent mid-installation trips to the hardware store.
Step 1: Check Compatibility and Power Requirements
One of the most common mistakes people make when learning how to fit a Ring Doorbell Pro is skipping the compatibility check. The Pro is not a universal fit—it requires specific electrical conditions to work properly.
Check Your Existing Doorbell System
The Ring Doorbell Pro needs:
– A hardwired doorbell system (not wireless or battery-only)
– A transformer that outputs 16–24 volts AC
– At least 30VA (volt-amperes) of power
Most older homes have transformers that meet these requirements, but it’s worth verifying.
How to Test Your Transformer
1. Turn off the power to your doorbell at the circuit breaker.
2. Remove your existing doorbell button.
3. Use a multimeter or voltage tester to check the voltage across the two wires.
4. If the reading is between 16V and 24V AC, you’re good to go.
5. If it’s below 16V, your transformer may be underpowered, and the Ring Doorbell Pro might not work reliably.
Tip: If your voltage is too low, you may need to upgrade your transformer. Ring sells a compatible 16V 30VA transformer, or you can purchase one from an electrical supply store.
Check Your Chime Box
The Ring Doorbell Pro works with both mechanical and digital chimes, but if you have a digital chime (like those from Ring, SkyBell, or newer models), you’ll need to use the included Pro Power Kit to prevent damage and ensure the chime rings properly.
If you’re unsure what type of chime you have, open the chime box (after turning off power) and look for labels or model numbers. Mechanical chimes usually have physical strikers and coils, while digital ones have circuit boards and no moving parts.
Step 2: Turn Off the Power
Safety first! Before touching any wires, you must turn off the power to your doorbell circuit.
Locate Your Circuit Breaker
– Go to your main electrical panel (usually in the basement, garage, or utility closet).
– Look for the breaker labeled “Doorbell,” “Chime,” or something similar. If there’s no label, you may need to test breakers one by one.
– Turn off the correct breaker.
Double-Check the Power Is Off
– Use a non-contact voltage tester at the doorbell location.
– Touch the tester to the wires—if it beeps or lights up, the power is still on.
– If the tester doesn’t react, the power is off and it’s safe to proceed.
Never skip this step. Even low-voltage doorbell wires can cause a shock or damage your device if mishandled.
Step 3: Remove Your Old Doorbell
Now that the power is off, it’s time to remove your existing doorbell button.
Unscrew the Old Button
– Use a screwdriver to remove the two screws holding the old doorbell in place.
– Gently pull the button away from the wall.
– You should see two wires connected to the back.
Disconnect the Wires
– Loosen the terminal screws or remove the wire nuts.
– Carefully pull the wires free.
– If the wires are short or damaged, you may need to strip back the insulation to expose fresh wire (about 1/4 inch).
Tip: Take a photo of the wiring before disconnecting. This can help if you need to troubleshoot later.
Tuck the Wires Safely
– Push the wires back into the wall slightly so they don’t fall in.
– Use electrical tape to secure them temporarily if needed.
Step 4: Install the Mounting Bracket
The Ring Doorbell Pro uses a specific mounting bracket that ensures a secure fit and allows for angle adjustments.
Choose the Right Bracket Angle
The bracket comes with three angle options: 0°, 10°, and 20°. Use the 0° bracket if your doorbell is already facing straight ahead. If your door is set back or you want better coverage of your walkway, use the 10° or 20° bracket to angle the camera outward.
Mark the Drill Holes
– Hold the bracket against the wall where you want to install the doorbell.
– Use a level to make sure it’s straight.
– Mark the screw holes with a pencil.
Drill Pilot Holes (If Needed)
– If you’re mounting to wood, you can often screw directly in.
– For brick, concrete, or stucco, drill pilot holes using a masonry bit.
– Insert wall anchors if required.
Secure the Bracket
– Align the bracket with the holes.
– Use the provided screws to attach it firmly to the wall.
– Make sure it’s tight and doesn’t wobble.
Step 5: Connect the Wires to the Ring Doorbell Pro
Now it’s time to connect your home’s doorbell wires to the Ring Doorbell Pro.
Prepare the Wires
– Strip about 1/4 inch of insulation from the ends of both wires if needed.
– Twist the exposed copper strands to prevent fraying.
Attach the Wires to the Terminals
– The Ring Doorbell Pro has two terminal screws labeled “Front” and “Trans.”
– It doesn’t matter which wire goes where—the Pro is polarity-independent.
– Loosen the screws, insert one wire under each screw, and tighten securely.
– Give the wires a gentle tug to ensure they’re locked in place.
Important: Do not let the bare wire ends touch each other. This can cause a short circuit.
Tuck Excess Wire
– Gently push any extra wire back into the wall.
– This keeps the doorbell flush against the bracket and prevents strain on the connections.
Step 6: Attach the Doorbell to the Bracket
With the wires connected, it’s time to mount the Ring Doorbell Pro.
Align the Doorbell
– Hold the doorbell so the mounting tabs on the back align with the slots on the bracket.
– Slide the doorbell down until it clicks into place.
Secure with the Security Screw
– Use the included security screw and screwdriver (or a small flathead) to fasten the doorbell to the bracket.
– This prevents theft and ensures a stable connection.

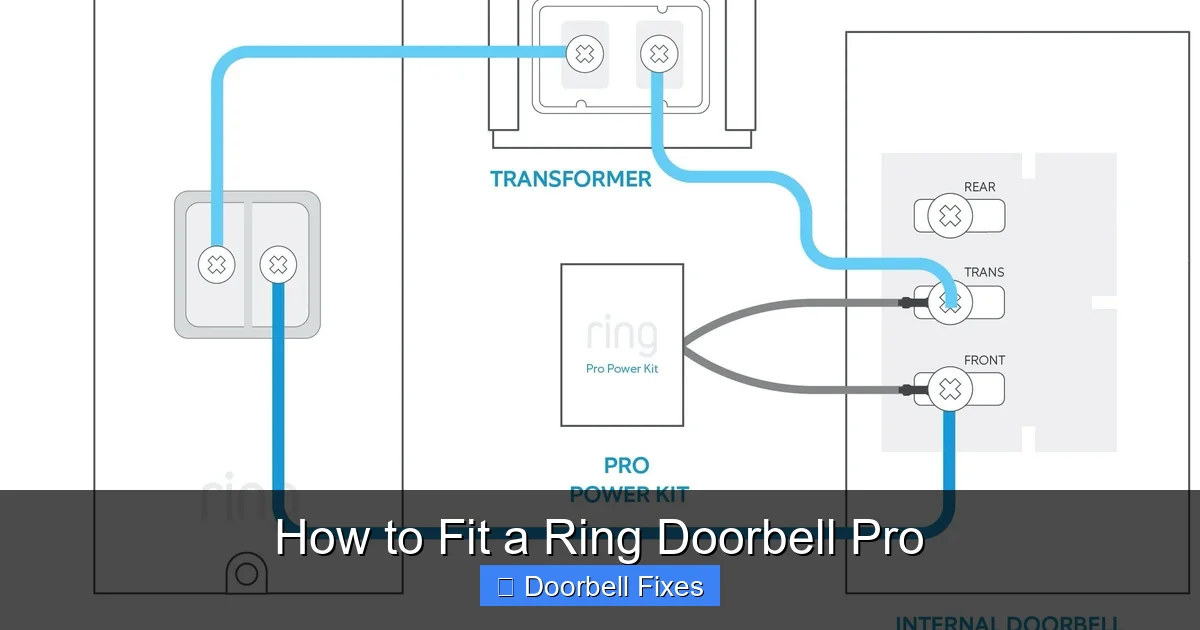

Step 7: Install the Pro Power Kit (If Needed)
If you have a digital chime or your chime doesn’t ring after installation, you’ll need to install the Pro Power Kit inside your chime box.
Why Use the Pro Power Kit?
The Pro draws more power than traditional doorbells. Without the kit, digital chimes may not ring, or the doorbell may not get enough power to function properly.
How to Install the Pro Power Kit
1. Turn off power at the breaker.
2. Open your chime box.
3. Locate the two wires connected to the chime terminals.
4. Disconnect them and connect them to the Pro Power Kit’s input terminals.
5. Connect the two output wires from the kit back to the chime.
6. Secure the kit inside the chime box with the provided adhesive pad or screws.
7. Close the chime box and restore power.
The Pro Power Kit acts as a buffer, ensuring consistent voltage and protecting your chime.
Step 8: Restore Power and Test the Doorbell
Now that everything is connected, it’s time to turn the power back on and test your installation.
Turn the Breaker Back On
– Go to your electrical panel and flip the doorbell breaker to the “on” position.
Check for Power
– The Ring Doorbell Pro should light up with a solid white LED.
– If it doesn’t, double-check your wiring and transformer voltage.
Test the Chime
– Press the button on the doorbell.
– You should hear your indoor chime ring.
– If it doesn’t, revisit the Pro Power Kit installation.
Step 9: Set Up the Ring App
The final step is to connect your doorbell to your Wi-Fi network and customize settings using the Ring app.
Download the Ring App
– Available for free on iOS and Android.
– Create a Ring account if you don’t already have one.
Add Your Device
1. Open the app and tap “Set Up a Device.”
2. Select “Doorbells” and then “Ring Doorbell Pro.”
3. Scan the QR code on the back of your doorbell or enter the serial number manually.
4. Follow the on-screen prompts to connect to your Wi-Fi network.
Tip: Use a 2.4 GHz Wi-Fi network for best results. The Pro doesn’t support 5 GHz.
Customize Settings
Once connected, you can:
– Set up motion zones
– Adjust motion sensitivity
– Enable Pre-Roll
– Link to Alexa or other smart home devices
– Set up notifications and alerts
Troubleshooting Common Installation Issues
Even with careful installation, you might run into a few hiccups. Here’s how to fix the most common problems.
Doorbell Won’t Power On
– Check that the breaker is on.
– Verify wire connections are tight.
– Test transformer voltage—should be 16–24V AC.
– Ensure the Pro Power Kit is installed if using a digital chime.
Chime Doesn’t Ring
– Confirm the Pro Power Kit is properly installed.
– Check that the chime wires are connected to the correct terminals.
– Test with a mechanical chime if possible.
Poor Wi-Fi Connection
– Move your router closer or use a Wi-Fi extender.
– Avoid installing the doorbell near metal surfaces or thick walls.
– Consider upgrading to a Ring Chime Pro, which acts as a Wi-Fi extender.
Blurry or Dark Video
– Clean the lens with a soft, dry cloth.
– Adjust the angle of the mounting bracket for better lighting.
– Ensure the doorbell isn’t facing direct sunlight or bright porch lights at night.
Motion Alerts Not Working
– Open the Ring app and check motion settings.
– Make sure motion zones are enabled and properly configured.
– Adjust sensitivity if alerts are too frequent or too rare.
Tips for a Professional-Looking Installation
Now that your Ring Doorbell Pro is working, here are a few finishing touches to make it look clean and professional.
Hide Excess Wires
– Use cable clips or conduit to secure loose wires along the wall.
– Tuck wires into the wall if possible (requires minor drywall work).
Paint the Mounting Plate (Optional)
– If the white bracket clashes with your wall color, you can paint it to match.
– Use exterior-grade paint and let it dry completely before reinstalling.
Label Your Breaker
– If your breaker wasn’t labeled, now’s the time to mark it “Doorbell” for future reference.
Test Regularly
– Periodically check video quality, motion alerts, and chime function.
– Update the Ring app and firmware when prompted.
Conclusion
Congratulations! You’ve successfully learned how to fit a Ring Doorbell Pro from start to finish. By following this guide, you’ve not only installed a powerful security device but also gained valuable DIY skills.
Remember, the key to a smooth installation is preparation: check compatibility, turn off the power, use the right tools, and follow each step carefully. With the Ring Doorbell Pro in place, you’ll enjoy peace of mind knowing you can see, hear, and speak to anyone at your door—even when you’re not home.
Whether you’re a first-time installer or upgrading from an older model, the Ring Doorbell Pro is a smart investment in home security. And now, you’ve got the confidence to install it like a pro.
Stay safe, stay connected, and enjoy your new smart doorbell!
