How to Fit a Wired Doorbell

This guide walks you through how to fit a wired doorbell from start to finish, covering tools, safety, wiring, and testing. Whether you’re replacing an old unit or installing a new one, you’ll get clear, easy-to-follow instructions.

Key Takeaways

• Turn off the power first: Always switch off the electricity at the consumer unit before working on any wiring to prevent shocks or damage.
• Use the right tools: A voltage tester, screwdrivers, wire strippers, and a drill are essential for a safe and tidy installation.
• Check compatibility: Ensure your new doorbell matches your existing transformer voltage (usually 8–24V AC).
• Route wires neatly: Conceal low-voltage wires along skirting boards or through walls to keep your home looking clean.
• Test before finalising: Always test the doorbell after wiring but before mounting the chime unit to catch issues early.
• Label wires if needed: If disconnecting multiple wires, label them to avoid confusion during reconnection.
• Call a pro if unsure: If you’re not confident working with electricity, hire a qualified electrician for safety.

How to Fit a Wired Doorbell: A Complete Step-by-Step Guide

So, you’ve decided to install or replace a wired doorbell. Great choice! Wired doorbells are reliable, don’t rely on batteries, and often come with better sound quality and range than wireless models. But if you’ve never done it before, the idea of dealing with electrical wiring might feel a bit intimidating.

Don’t worry — this guide will walk you through how to fit a wired doorbell safely and correctly, whether you’re replacing an old unit or installing one from scratch. We’ll cover everything from tools and safety to wiring, mounting, and troubleshooting. By the end, you’ll have a fully working doorbell and the confidence to tackle similar home improvement tasks.

Let’s get started.

What You’ll Need Before You Begin

Before touching any wires, gather all the tools and materials you’ll need. Having everything ready saves time and reduces the risk of mistakes.

Essential Tools

• Screwdrivers: Both flathead and Phillips head — you’ll need these for removing faceplates and securing terminals.
• Voltage tester (non-contact): This is crucial for confirming the power is off. Never skip this step.
• Wire strippers: To remove insulation from the ends of the wires without damaging the copper inside.
• Drill and drill bits: For making pilot holes if you’re mounting the chime unit or button on a new surface.
• Pencil and tape measure: For marking drill points and ensuring accurate placement.
• Electrical tape: Useful for insulating wire ends or bundling cables.
• Spirit level: Helps keep your doorbell button and chime unit straight.

Materials

• Wired doorbell kit: Includes the doorbell button, chime unit, and sometimes a transformer. Make sure it’s compatible with your home’s voltage.
• Low-voltage bell wire (if needed): Usually 18–22 AWG. You may already have this in the wall from a previous installation.
• Wall plugs and screws: For mounting the chime unit and button, especially if attaching to brick or concrete.
• Cable clips or conduit (optional): To neatly secure and hide wires along skirting boards or baseboards.

Safety Gear

• Safety glasses: Protect your eyes when drilling.
• Work gloves: Help prevent cuts from sharp edges or wire ends.

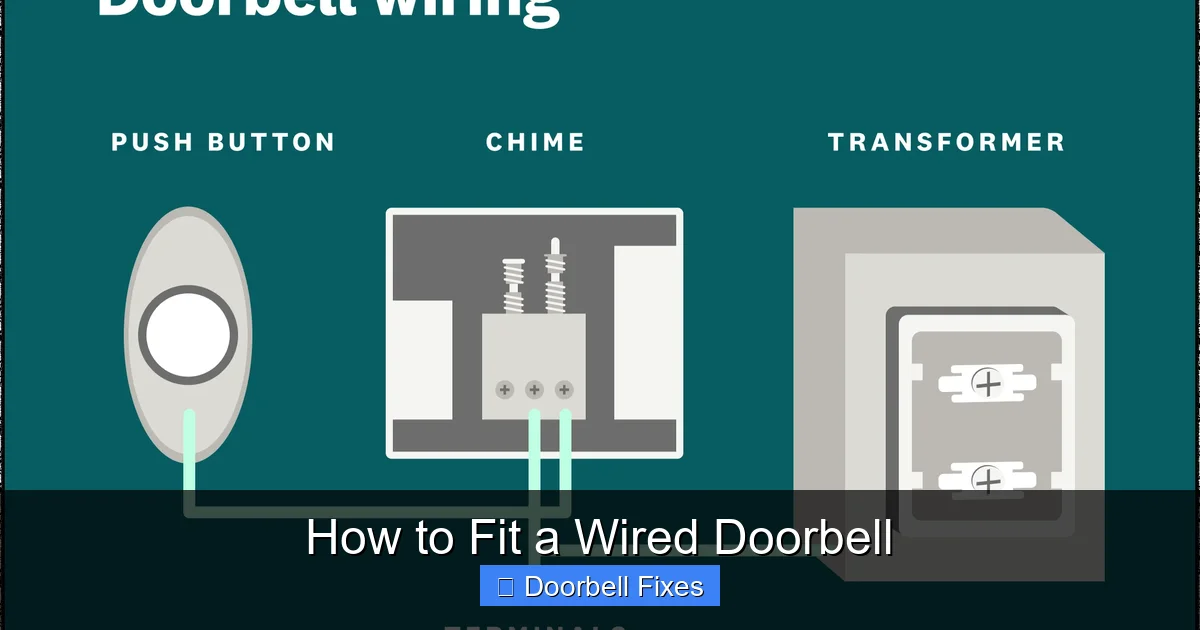

Understanding How a Wired Doorbell Works

Before diving into the installation, it helps to understand the basics of how a wired doorbell system functions.

A standard wired doorbell consists of three main components:

• The doorbell button: Located outside your door. When pressed, it completes a low-voltage circuit.
• The chime unit: Inside your home, usually in a hallway or living area. It rings when the circuit is completed.
• The transformer: Converts your home’s mains electricity (230V in the UK, 120V in the US) down to a safe low voltage (typically 8–24V AC) for the doorbell system.

The transformer is usually hidden in a ceiling rose, light fixture, or near your consumer unit (fuse box). It’s connected to the mains supply and powers the entire doorbell circuit.

When you press the button, electricity flows through the wires to the chime, activating a solenoid or electronic sound module that produces the ringing sound.

Knowing this helps you troubleshoot later and ensures you’re working with the right voltage — never connect a low-voltage doorbell directly to mains power!

Step 1: Turn Off the Power

This is the most important step. Even though doorbells use low voltage, the transformer is connected to your home’s mains electricity. Working on live circuits can result in electric shock, fire, or damage to your doorbell.

Locate the Circuit Breaker

Go to your consumer unit (fuse box) and find the breaker that controls the lighting or doorbell circuit. If you’re unsure which one it is, turn off the main power switch to be safe — better to be cautious.

Test for Power

Use a non-contact voltage tester to check the wires at the existing doorbell button and chime unit. Touch the tester to the wire terminals or exposed conductors. If it beeps or lights up, power is still on — go back and turn off the correct breaker.

Lock Out (Optional but Recommended)

If you live with others, consider putting a lock or tag on the breaker to prevent someone from accidentally turning the power back on while you’re working.

Step 2: Remove the Old Doorbell (If Applicable)

If you’re replacing an existing doorbell, start by removing the old components.

Remove the Doorbell Button

Unscrew the faceplate of the outdoor button. Carefully pull it away from the wall. You’ll see two wires connected to terminals — usually labeled “Front” and “Trans” or just two screws.

Take a photo of the wiring before disconnecting anything. This will help you reconnect the new button correctly.

Loosen the terminal screws and remove the wires. If the wires are short, you may need to gently pull them out from the wall.

Remove the Chime Unit

Go inside to the location of the chime box. Unscrew the cover and remove it. Inside, you’ll see several wires — typically two from the doorbell button and two from the transformer.

Again, take a photo of the wiring layout. Label the wires with tape if needed (e.g., “Front,” “Trans,” “Rear” if you have a second button).

Disconnect the wires by loosening the terminal screws. Carefully remove the chime unit from the wall.

Inspect the Wiring

Check the condition of the existing bell wire. If it’s frayed, brittle, or damaged, you may need to run new wire. If it’s in good shape, you can reuse it.

Also, note the gauge (thickness) of the wire — most doorbells use 18 or 20 AWG. Your new doorbell should work fine with this.

Step 3: Check Transformer Compatibility

Before installing the new doorbell, verify that your transformer provides the correct voltage.

Most modern wired doorbells require 8–24V AC. Check the label on your existing transformer or the specifications of your new doorbell kit.

If your transformer is old or outputs the wrong voltage (e.g., 6V or 30V), you may need to replace it. A mismatched transformer can cause the doorbell to not work, sound weak, or overheat.

How to Test the Transformer

With the power off, disconnect one wire from the transformer terminal at the chime unit. Turn the power back on briefly and use a multimeter set to AC voltage. Touch the probes to the two transformer wires.

If the reading is within the range specified by your doorbell (e.g., 16V), you’re good to go. If not, replace the transformer with a compatible one.

Step 4: Install the New Doorbell Button

Now it’s time to install the new outdoor button.

Choose the Location

Pick a spot near your front door — usually at eye level or slightly lower. Avoid placing it in direct sunlight or where it might get soaked by rain. Most buttons are weather-resistant, but extra protection helps longevity.

Mark and Drill

Hold the new button against the wall and use a pencil to mark the screw holes. Use a spirit level to ensure it’s straight.

Drill pilot holes if needed, especially for brick or concrete. Insert wall plugs if required.

Connect the Wires

Strip about 1 cm of insulation from the ends of the two wires coming from the wall. Twist the exposed copper strands to prevent fraying.

Attach the wires to the terminals on the back of the button. Most buttons are not polarity-sensitive, so it doesn’t matter which wire goes where. Tighten the screws securely.

Mount the Button

Align the button with the screw holes and secure it with screws. Make sure it’s flush against the wall and doesn’t wobble.

Step 5: Run or Reuse the Wiring (If Needed)

If you’re installing a doorbell in a new location or the existing wires are damaged, you may need to run new wire.

Plan the Route

The wire should run from the button location, through the wall or along the skirting board, to the chime unit. Try to keep it hidden and protected.

Use Existing Conduit or Drill New Holes

If there’s an existing conduit or hole from the old installation, feed the new wire through it. If not, drill a small hole through the wall or baseboard.

Use a fish tape or stiff wire to pull the bell wire through tight spaces.

Secure the Wire

Use cable clips to attach the wire to skirting boards or baseboards. Keep it neat and avoid sharp bends.

If running wire through walls, ensure it’s not pinched by drywall or nails.

Step 6: Install the Chime Unit

Now move inside to install the chime box.

Choose the Location

Pick a central location where the sound will be heard — usually a hallway or living room. Avoid placing it behind furniture or in a closet.

Mark and Drill

Hold the chime unit against the wall and mark the screw holes. Use a spirit level to keep it straight.

Drill pilot holes and insert wall plugs if needed.

Connect the Wires

You’ll typically have three wires to connect:

• Front: From the front doorbell button.
• Trans: From the transformer.
• Rear (optional): If you have a second button (e.g., at a back door).

Refer to the photo you took earlier or the wiring diagram in your doorbell manual.

Strip the wire ends and connect them to the correct terminals. Tighten the screws firmly.

Mount the Chime Unit

Align the unit with the screw holes and secure it with screws. Make sure it’s level and stable.

Step 7: Test the Doorbell

Before celebrating, test the system.

Turn the Power Back On

Go to your consumer unit and switch the breaker back on.

Press the Button

Go outside and press the doorbell button. Listen for the chime inside.

If it rings — great! You’ve successfully fitted your wired doorbell.

If not, don’t panic. Move to the troubleshooting section below.

Troubleshooting Common Issues

Even with careful installation, problems can occur. Here’s how to fix the most common ones.

Doorbell Doesn’t Ring

• Check the power: Use a voltage tester to confirm the transformer is outputting the correct voltage.
• Inspect connections: Make sure all wires are securely connected and not loose or shorted.
• Test the button: Use a multimeter to check for continuity when the button is pressed. If no continuity, the button may be faulty.
• Check the chime unit: If the button works but the chime doesn’t ring, the chime unit may be defective.

Weak or Intermittent Sound

• Low voltage: The transformer may be underpowered or failing. Replace it with a higher-rated one if needed.
• Loose wires: Vibration or movement can loosen connections over time. Re-tighten all terminals.
• Long wire runs: If the wire is very long, voltage drop can occur. Use thicker wire (e.g., 16 AWG) or a higher-voltage transformer.

Doorbell Rings Continuously

• Short circuit: A wire may be touching metal or another wire. Check for exposed conductors or pinched wires.
• Faulty button: The button may be stuck or damaged. Replace it.
• Moisture: Water ingress can cause a short. Ensure the button is properly sealed and not exposed to rain.

No Power to the Transformer

• Tripped breaker: Check your consumer unit and reset the breaker.
• Blown fuse: Some transformers have internal fuses. Replace if necessary.
• Wiring fault: A break in the mains wiring to the transformer could be the issue. This may require an electrician.

Tips for a Professional Finish

A well-installed doorbell doesn’t just work — it looks good too.

Hide the Wires

Use cable raceways, conduit, or paintable wire covers to conceal low-voltage wires along skirting boards. This gives a clean, tidy appearance.

Label Everything

If you have multiple doorbells (e.g., front and back), label the wires at the chime unit to avoid confusion later.

Use a Back Box (Optional)

For a more professional look, install a recessed back box for the chime unit. This hides the wiring and gives a flush finish.

Test Regularly

Every few months, press the button to ensure it’s still working. This catches issues early.

When to Call a Professional

While fitting a wired doorbell is a DIY-friendly task, there are times when it’s best to call an electrician:

• You’re unsure about electrical safety.
• The wiring is old, damaged, or inaccessible.
• You need to replace the transformer and aren’t confident working near mains voltage.
• The doorbell still doesn’t work after troubleshooting.

Safety always comes first. If in doubt, get help.

Conclusion

Fitting a wired doorbell might seem complex at first, but with the right tools, preparation, and care, it’s a manageable project for most homeowners. You’ve now learned how to fit a wired doorbell from start to finish — including safety, wiring, installation, and troubleshooting.

Remember to always turn off the power, test connections, and double-check compatibility. A well-installed doorbell not only adds convenience but also enhances your home’s security and curb appeal.

Take your time, follow the steps, and don’t hesitate to seek help if needed. Soon, you’ll have a reliable, hardwired doorbell that works perfectly — every time.
