How to Get the Back Off a Ring Doorbell

This guide walks you through how to get the back off a Ring Doorbell safely and correctly. Whether you’re replacing batteries, adjusting the mount, or troubleshooting, we’ve got you covered with clear steps and expert tips.

Key Takeaways

Use the right security screwdriver: Most Ring Doorbells use a tamper-resistant Torx screw (T6 or T8) to secure the back plate. A standard screwdriver won’t work.
Power off before removing: Always disconnect power at the breaker or remove batteries to avoid electrical shock or damage.
Handle wires carefully: If hardwired, gently disconnect the wire connectors before fully removing the back.
Keep screws organized: Use a magnetic tray or tape to prevent losing small screws during disassembly.
Check for model-specific steps: Ring Doorbell (2nd Gen), Ring Doorbell 3, 4, Pro, and Wired have slightly different back plate designs.
Reassemble in reverse order: Once your task is complete, reattach the back securely to maintain weatherproofing and functionality.
Test after reassembly: Always test the doorbell’s motion detection, video, and chime to ensure everything works properly.

If you’ve ever needed to replace the battery, adjust the mounting angle, or troubleshoot your Ring Doorbell, you’ve probably wondered: How do I get the back off a Ring Doorbell? It’s not as simple as prying it open—there are specific steps and tools required to do it safely and correctly.

In this comprehensive guide, we’ll walk you through the entire process of removing the back cover of your Ring Doorbell. Whether you own a Ring Doorbell (2nd Gen), Ring Doorbell 3, 4, Pro, or Wired model, we’ll cover the tools you need, step-by-step instructions, safety tips, and troubleshooting advice. By the end, you’ll be confident in handling your device like a pro.

Let’s get started!

Why You Might Need to Remove the Back

Visual guide about How to Get the Back Off a Ring Doorbell

Image source: thehousetech.com

Before diving into the steps, it’s helpful to understand why you’d want to remove the back of your Ring Doorbell in the first place. Here are the most common reasons:

Battery replacement: Most Ring Doorbells (except hardwired-only models) use rechargeable lithium-ion batteries. Over time, these batteries lose capacity and need replacing.
Recharging the battery: If your battery is low, you may need to remove it to charge it indoors with the provided USB cable.
Adjusting the mounting bracket: Sometimes, you may need to reposition the doorbell for better motion detection or video angle.
Hardwiring installation: If you’re switching from battery to hardwired power, you’ll need to access the wiring terminals behind the doorbell.
Troubleshooting connectivity or hardware issues: In rare cases, internal components may need inspection or reset.
Cleaning or maintenance: Dust and debris can accumulate behind the doorbell, affecting performance.

No matter your reason, the process of removing the back is similar across most models—but there are important differences to note.

Tools You’ll Need

Before you begin, gather the right tools. Using the wrong equipment can damage your doorbell or void the warranty.

Here’s what you’ll need:

Tamper-resistant Torx screwdriver (T6 or T8): This is the most important tool. Ring uses security screws with a small pin in the center to prevent tampering. A standard Torx bit won’t fit. You can find these at hardware stores or online (search “T6 security Torx” or “T8 security Torx”).
Small flathead screwdriver or plastic prying tool: Useful for gently separating the back plate from the front if it’s stuck.
Magnetic screw tray or tape: Keeps tiny screws from getting lost.
Soft cloth or microfiber towel: Protects the doorbell’s surface from scratches.
Optional: Needle-nose pliers: Helpful for disconnecting wire connectors if hardwired.

Pro Tip: If you don’t own a security Torx screwdriver, consider buying a multi-bit kit. It’s useful for other home repairs too.

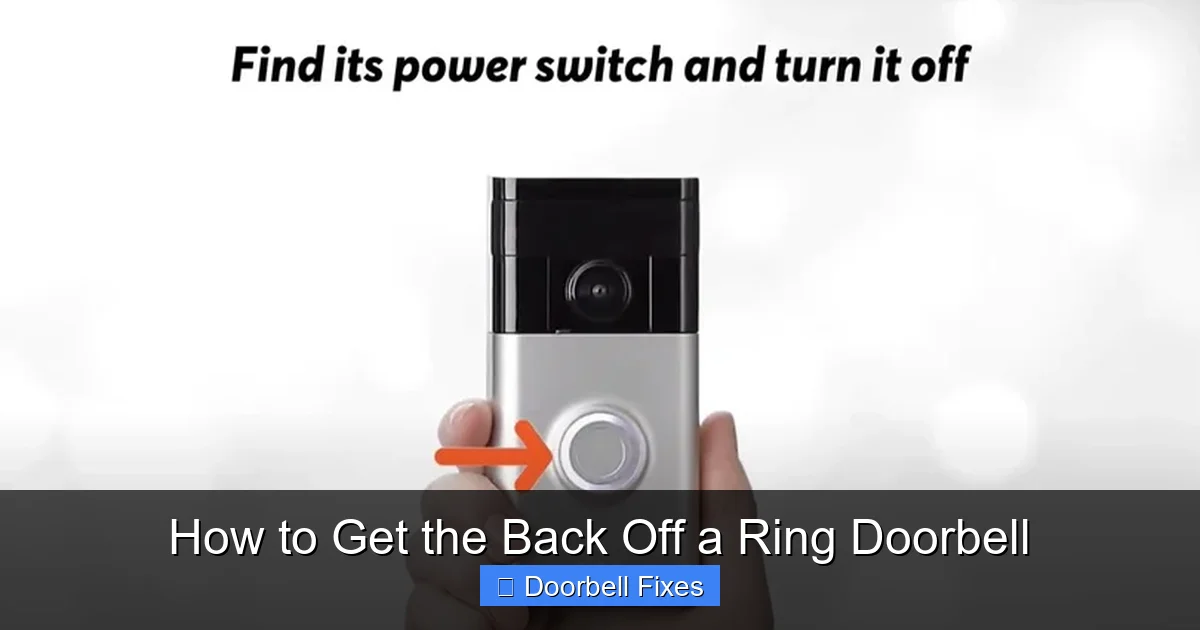

Safety First: Power Down Your Doorbell

Before touching any part of your Ring Doorbell, especially if it’s hardwired, you must disconnect power. This prevents electrical shock and protects the device.

If Your Doorbell Is Hardwired

Turn off the power at the breaker: Go to your home’s electrical panel and locate the circuit that powers your doorbell. Flip the breaker to the “off” position. Use a voltage tester to confirm no power is flowing.
Wait 30 seconds: This ensures any residual charge dissipates.
Proceed with removal: Now it’s safe to handle the wiring.

If Your Doorbell Runs on Battery

Remove the battery: If the battery is already low, you may need to remove it anyway. But even if it’s charged, take it out to avoid accidental short circuits.
Wait a few minutes: This gives the device time to fully power down.

Note: Some models (like the Ring Doorbell Wired) don’t have removable batteries. In that case, turning off the breaker is essential.

Step-by-Step: Removing the Back of Your Ring Doorbell

Now that you’re prepared, let’s go through the actual removal process. We’ll cover the most common models, but the steps are very similar.

Step 1: Locate the Security Screws

Flip your Ring Doorbell over so the back is facing up. You’ll see one or two small screws near the bottom edge of the device. These are tamper-resistant Torx screws—usually T6 or T8, depending on the model.

Ring Doorbell (2nd Gen): One T6 security screw at the bottom.
Ring Doorbell 3/4: One T6 security screw at the bottom.
Ring Doorbell Pro: Two T8 security screws at the bottom.
Ring Doorbell Wired: One T6 security screw at the bottom.

Tip: If you can’t see the screw, check for a small indentation or cover. Some models have a rubber plug that hides the screw.

Step 2: Remove the Security Screws

Insert your tamper-resistant Torx screwdriver into the screw head. Turn it counterclockwise to loosen.

Apply steady pressure: These screws can be tight, especially if they’ve been in place for a while.
Don’t force it: If it won’t budge, double-check that you’re using the correct bit size. Forcing it can strip the screw.
Store screws safely: Place them in a magnetic tray or tape them to a piece of paper labeled “Ring Doorbell screws.”

Once the screw(s) are removed, set them aside.

Step 3: Gently Separate the Back Plate

With the screws removed, the back plate should loosen—but it may still be held in place by clips or the wiring.

Wiggle the doorbell slightly: Gently rock the front of the doorbell back and forth to release the clips.
Use a plastic prying tool: If it’s stuck, insert a thin plastic tool (like a guitar pick or spudger) between the front and back near the bottom. Slowly work your way around the edges.
Avoid metal tools: Metal can scratch or damage the casing.

Caution: Don’t pull too hard. The back plate is connected to the front by internal wiring (in hardwired models) or the battery connector.

Step 4: Disconnect Wires (If Hardwired)

If your Ring Doorbell is hardwired, you’ll see two small wire connectors attached to the back plate.

Identify the connectors: They’re usually labeled “Front” and “Trans” or “+” and “–”.
Gently pull them apart: Use your fingers or needle-nose pliers to disconnect them. Do not yank—these are delicate.
Note the wire colors: Most doorbell wires are low-voltage (16–24V AC), but it’s good to remember which wire goes where for reinstallation.

Pro Tip: Take a photo of the wiring before disconnecting. This serves as a reference when reassembling.

Step 5: Remove the Back Plate Completely

Once the screws are out and wires are disconnected (if applicable), you can carefully lift the back plate away from the front.

Hold the front securely: Support the main body of the doorbell to prevent dropping it.
Set the back plate aside: Place it on a soft surface to avoid scratches.

Now you have full access to the battery compartment, mounting bracket, or wiring terminals—depending on your goal.

Model-Specific Notes

While the general process is the same, there are slight differences between Ring Doorbell models. Here’s what to watch for:

Ring Doorbell (2nd Gen)

Uses a single T6 security screw.
Battery is removable and rechargeable.
Back plate clips into place—gentle prying is needed.

Ring Doorbell 3 and 4

Also uses a T6 security screw.
Improved battery life and quick-release design.
Back plate may feel tighter due to weather sealing.

Ring Doorbell Pro

Uses two T8 security screws.
Hardwired only—no battery.
Wires are connected via screw terminals, not push-in connectors.
Requires more careful handling of wiring.

Ring Doorbell Wired

Uses a T6 security screw.
No battery—powered entirely by wiring.
Back plate removal gives access to wiring terminals.

Always refer to your model’s user manual if you’re unsure. You can find it on the Ring support website.

What to Do After Removing the Back

Now that the back is off, you can perform your intended task. Here are common next steps:

Replacing the Battery

Remove the old battery: Slide it out of the compartment.
Insert the new battery: Make sure it’s oriented correctly (match the + and – symbols).
Press it in firmly: Ensure it clicks into place.

Tip: Use only Ring-approved replacement batteries. Third-party batteries may not fit or could damage the device.

Recharging the Battery

Disconnect the battery: Remove it from the doorbell.
Connect the USB cable: Plug it into the battery’s micro-USB or USB-C port.
Charge indoors: Use a wall adapter or computer USB port. A full charge takes 5–10 hours.
Reinsert when charged: Once fully charged, place it back in the doorbell.

Adjusting the Mounting Bracket

Loosen the bracket screws: Use a standard screwdriver to adjust the angle.
Reposition the doorbell: Tilt it up, down, or sideways for better coverage.
Tighten the screws: Don’t overtighten—this can crack the plastic.

Hardwiring Installation

Connect the wires: Attach the doorbell wires to the terminals on the back plate.
Secure with screws: Tighten gently to avoid stripping.
Test before reassembly: Turn the breaker back on and check if the doorbell powers up.

Reassembling Your Ring Doorbell

Once you’ve completed your task, it’s time to put everything back together. Follow these steps in reverse order.

Step 1: Reconnect Wires (If Applicable)

Plug the wire connectors back in.
Ensure they’re fully seated and secure.

Step 2: Align the Back Plate

Position the back plate over the front.
Make sure the screw holes line up.
Gently press the clips into place.

Step 3: Reinsert the Security Screws

Insert the screw(s) and tighten clockwise.
Don’t overtighten—this can strip the threads.
Use moderate pressure until snug.

Step 4: Restore Power

If hardwired, turn the breaker back on.
If battery-powered, ensure the battery is inserted and charged.

Step 5: Test the Doorbell

Press the button to test the chime.
Check the live view in the Ring app.
Walk in front to test motion detection.

If everything works, you’re all set!

Troubleshooting Common Issues

Even with careful handling, problems can arise. Here’s how to fix the most common ones.

The Back Plate Won’t Come Off

Check for hidden screws: Some models have a rubber plug covering the screw. Remove it first.
Use a hairdryer: Gently heat the edges with a hairdryer on low to soften adhesive or expand the plastic slightly.
Be patient: Wiggle and pry slowly. Forcing it can break the clips.

Screw Is Stripped

Use a rubber band: Place a wide rubber band over the screw head and press the screwdriver into it. The rubber adds grip.
Try a screw extractor: Available at hardware stores, these tools grip stripped screws.
Contact Ring Support: If all else fails, Ring may offer repair or replacement under warranty.

Doorbell Won’t Power On After Reassembly

Check the battery: Ensure it’s charged and properly inserted.
Verify wiring: Make sure hardwired connections are secure.
Reset the device: Hold the setup button for 20 seconds to reset.
Update the app: Sometimes a software glitch causes issues.

Video or Audio Quality Is Poor

Clean the lens: Use a microfiber cloth to wipe the camera.
Check Wi-Fi signal: Weak signal can cause lag or dropouts.
Reposition the doorbell: Move it closer to your router or use a Wi-Fi extender.

Maintenance Tips to Avoid Frequent Removal

To minimize how often you need to remove the back, follow these maintenance tips:

Charge the battery regularly: Don’t wait until it dies completely.
Keep the doorbell clean: Wipe the exterior monthly to prevent dirt buildup.
Check for firmware updates: Ring releases updates that improve performance and battery life.
Use a weatherproof cover: Protects the device from rain and snow, reducing internal moisture.
Monitor battery health: In the Ring app, check the battery status under Device Health.

Conclusion

Removing the back of your Ring Doorbell might seem intimidating at first, but with the right tools and careful steps, it’s a straightforward task. Whether you’re replacing a battery, adjusting the mount, or troubleshooting, knowing how to get the back off a Ring Doorbell gives you greater control over your smart home security.

Remember to always power down the device, use a tamper-resistant Torx screwdriver, and handle wires with care. Keep screws organized, test after reassembly, and don’t hesitate to consult Ring’s support if you run into trouble.

With this guide, you’re equipped to maintain your Ring Doorbell like a pro—ensuring it stays functional, secure, and reliable for years to come.
