Hard wiring your Ring Doorbell Camera ensures consistent power and better performance than battery-only operation. This guide walks you through every step—from checking compatibility to final testing—so you can install it safely and correctly.
Key Takeaways
- Check compatibility first: Not all Ring models support hard wiring—verify your model before starting.
- Turn off power at the breaker: Safety is critical—always shut off electricity before working with doorbell wiring.
- Use the right tools: A voltage tester, screwdriver, wire strippers, and drill (if needed) make the job easier and safer.
- Follow wiring color codes: Match transformer wires (usually red and white) to the correct terminals on your Ring device.
- Test voltage before connecting: Ensure your doorbell transformer outputs 8–24V AC for safe, reliable operation.
- Secure all connections: Loose wires can cause power loss or damage—use wire nuts and electrical tape.
- Complete setup in the Ring app: Finalize installation by syncing your device and adjusting settings for optimal performance.
How to Hard Wire a Ring Doorbell Camera
If you’re tired of constantly recharging your Ring Doorbell Camera or dealing with spotty performance due to low battery, hard wiring is the solution. Hard wiring your Ring doorbell connects it directly to your home’s electrical system, providing continuous power and eliminating the need for frequent battery swaps. This not only improves reliability but also ensures features like live view, motion alerts, and two-way audio work seamlessly—even during peak usage.
In this comprehensive guide, we’ll walk you through the entire process of hard wiring a Ring Doorbell Camera. Whether you’re replacing an old doorbell or installing a new one, we’ll cover everything from checking compatibility and gathering tools to safely connecting wires and testing your setup. By the end, you’ll have a professionally installed, hard-wired Ring doorbell that keeps your home secure 24/7.
We’ll also share practical tips, common pitfalls to avoid, and troubleshooting advice so you can complete the job with confidence—even if you’re not an experienced DIYer. Let’s get started!
Why Hard Wire Your Ring Doorbell Camera?

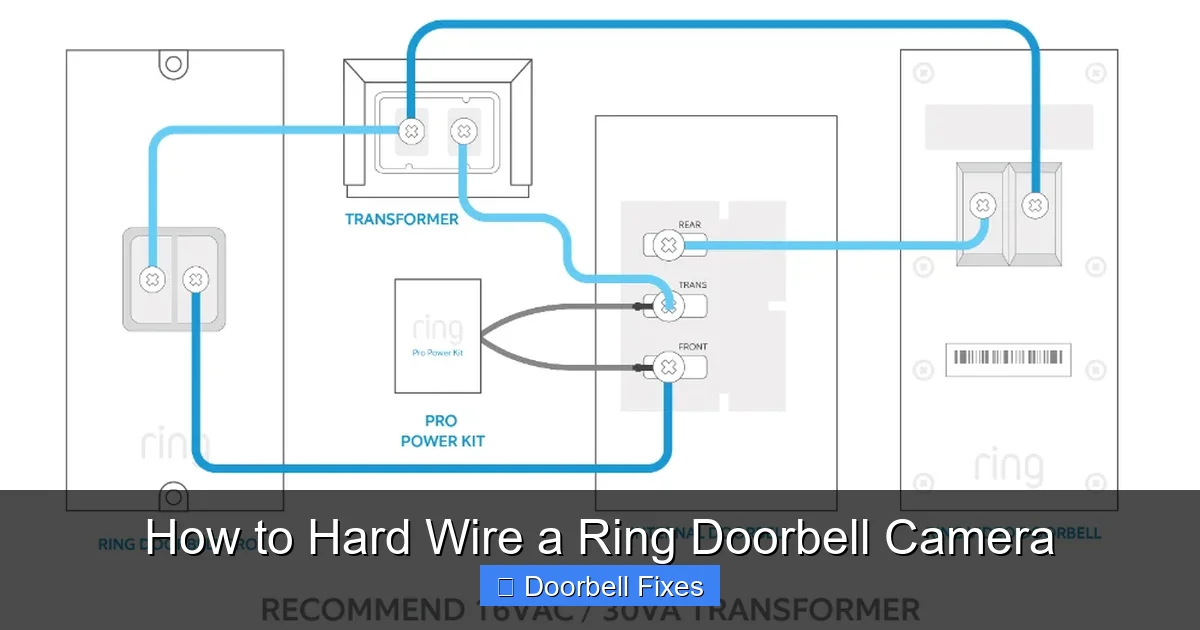

Visual guide about How to Hard Wire a Ring Doorbell Camera
Image source: i.ytimg.com
Before diving into the installation, it’s important to understand why hard wiring is worth the effort. While Ring doorbells can run on rechargeable batteries, relying solely on battery power comes with limitations.
First, battery-powered models require regular recharging—typically every 3 to 6 months, depending on usage. If you have high traffic at your door or live in a cold climate (which drains batteries faster), you might find yourself charging the battery every few weeks. This can be inconvenient and may lead to missed alerts if the battery dies unexpectedly.
Second, hard-wired Ring doorbells offer more consistent performance. With a constant power source, features like live streaming, motion detection, and night vision work more reliably. You’ll also avoid the “low battery” warnings that can disrupt your security routine.
Additionally, hard wiring enables compatibility with Ring’s optional Ring Chime Pro, which boosts Wi-Fi signal strength and provides louder chimes. This is especially helpful in larger homes or areas with weak Wi-Fi coverage.
Finally, hard-wired installations look cleaner and more permanent. There’s no visible battery compartment or charging port, giving your entryway a sleek, integrated appearance.
In short, hard wiring your Ring Doorbell Camera improves reliability, performance, and aesthetics—making it a smart upgrade for any homeowner.
Check Compatibility: Is Your Ring Model Hard-Wire Ready?
Not all Ring doorbell models support hard wiring. Before you begin, confirm that your specific model is compatible. Here’s a quick breakdown:
- Ring Video Doorbell (1st Gen): Supports hard wiring.
- Ring Video Doorbell 2: Supports hard wiring.
- Ring Video Doorbell 3 / 3 Plus: Supports hard wiring.
- Ring Video Doorbell 4: Supports hard wiring.
- Ring Video Doorbell Wired: Designed for hard wiring only (no battery).
- Ring Video Doorbell Pro / Pro 2: Hard-wired only.
- Ring Video Doorbell Elite: Hard-wired only (requires Ethernet).
If you have a battery-only model like the Ring Video Doorbell (2nd Gen) without hard-wire capability, you cannot hard wire it. However, most newer models—especially those with “Wired” or “Pro” in the name—are built for direct electrical connection.
To double-check, look at the back of your Ring device. If it has two small screw terminals labeled “Front” and “Trans,” it supports hard wiring. If it only has a single battery compartment, it’s battery-only.
Also, ensure your existing doorbell system has a working transformer. Most homes built after the 1980s have a low-voltage transformer that powers the doorbell. If you’re unsure, proceed to the next section to test it.
Gather the Right Tools and Materials
Having the right tools on hand will make your installation smoother and safer. Here’s what you’ll need:
- Screwdriver (Phillips and flathead): For removing the old doorbell and mounting the Ring.
- Voltage tester (non-contact or multimeter): To check if power is off and verify transformer output.
- Wire strippers: To expose fresh wire ends for connection.
- Electrical tape: For insulating connections.
- Wire nuts (small, usually yellow or red): To secure wire connections.
- Drill and drill bits (optional): If you need to make new mounting holes or run wires.
- Level: To ensure your doorbell is straight.
- Pencil or marker: For marking drill points.
- Safety gloves and glasses: Recommended for protection.
You’ll also need access to your home’s circuit breaker panel and the existing doorbell wiring. If your doorbell wires are frayed, too short, or damaged, you may need to replace them with 18- or 20-gauge low-voltage wire.
Pro tip: Take a photo of your current doorbell setup before disconnecting anything. This will help you remember how the wires were connected and make troubleshooting easier.
Turn Off Power at the Breaker
Safety is the most important part of this project. Before touching any wires, you must turn off the power to your doorbell circuit.
Locate the Doorbell Circuit
Most doorbells are powered by a low-voltage transformer connected to a 120V circuit in your electrical panel. This circuit is often labeled “Doorbell,” “Chime,” or “HVAC.” If you can’t find a labeled breaker, turn off the main breaker to be safe—but this will cut power to your entire home.
Alternatively, you can test the wires with a non-contact voltage tester. If the tester beeps or lights up when near the wires, power is still on.
Turn Off the Breaker
Once you’ve identified the correct breaker, switch it to the “Off” position. For extra safety, place a piece of tape over the breaker switch with a note like “Do Not Turn On – Working on Doorbell.”
Test the Wires
Even after turning off the breaker, always test the wires at the doorbell location. Use a non-contact voltage tester or a multimeter set to AC voltage. Touch the probes to the two doorbell wires. If the tester shows 0V or doesn’t beep, the power is off. If it shows voltage, double-check your breaker or try another one.
Never skip this step—electrical shocks can be dangerous, even at low voltages.
Remove the Old Doorbell
Now that the power is off, it’s time to remove your existing doorbell.
Unscrew the Faceplate
Use a screwdriver to remove the screws holding the old doorbell to the wall. Gently pull the faceplate away from the wall. You should see two wires connected to the back.
Disconnect the Wires
Loosen the screws holding the wires in place and carefully remove them. If the wires are connected with wire nuts, unscrew the nuts and separate the wires. Label them if possible (e.g., “Front” and “Trans”) to avoid confusion later.
Inspect the Wiring
Check the condition of the wires. Are they frayed, corroded, or too short? If so, you may need to strip back the insulation or replace the wires entirely. Healthy wires should be copper-colored and flexible.
If your wires are too short to reach the new Ring mounting plate, you can extend them using wire nuts and additional low-voltage wire. Just make sure all connections are secure and insulated.
Test Your Doorbell Transformer
Your Ring doorbell needs a transformer that outputs between 8 and 24 volts AC. Most standard doorbell transformers provide 16V AC, which is ideal. But it’s important to verify this before connecting your Ring.
Locate the Transformer
The transformer is usually found in your basement, attic, garage, or near your furnace. It’s a small metal box with two wires coming out (going to the doorbell) and two wires connected to a 120V circuit.
Test the Voltage
Set your multimeter to AC voltage (V~). Touch one probe to each of the low-voltage wires (the ones going to the doorbell). The reading should be between 8 and 24 volts. If it’s below 8V, your transformer may be too weak. If it’s above 24V, it could damage your Ring doorbell.
If your transformer is incompatible, you’ll need to replace it with a 16V, 10–30VA transformer, which you can find at most hardware stores.
Check for Existing Chime
If you have a mechanical or digital chime inside your home, make sure it’s compatible with your Ring doorbell. Most Ring models work with standard chimes, but some digital chimes may require a resistor (included with your Ring) to prevent flickering or malfunction.
Install the Ring Doorbell Mounting Plate
With the old doorbell removed and wires tested, it’s time to install the Ring mounting plate.
Position the Mounting Plate
Hold the Ring mounting plate against the wall where you want to install the doorbell. Use a level to ensure it’s straight. Mark the screw holes with a pencil.
Drill Pilot Holes (if needed)
If you’re mounting into wood or need to secure the plate more firmly, drill pilot holes at the marked spots. Use a drill bit slightly smaller than your screws to prevent splitting.
Secure the Plate
Align the mounting plate with the holes and screw it into place. Don’t overtighten—this can crack the plate or damage the wall.
Route the Wires
Feed the two doorbell wires through the center hole in the mounting plate. Leave enough slack (about 6 inches) to work with when connecting to the Ring device.
Connect the Wires to the Ring Doorbell
Now comes the crucial step: connecting the wires to your Ring doorbell.
Identify the Terminals
On the back of your Ring doorbell, you’ll see two small screw terminals:
- Front: Connects to the wire from your front door button.
- Trans: Connects to the wire from the transformer (usually the other wire).
If you’re unsure which wire is which, it doesn’t matter—Ring doorbells are not polarity-sensitive. However, for consistency, match them as they were on the old doorbell.
Strip the Wire Ends
Use wire strippers to remove about 1/4 inch of insulation from each wire end. This exposes fresh copper for a solid connection.
Attach the Wires
Loosen the screws on the “Front” and “Trans” terminals. Insert one wire into each terminal and tighten the screws securely. Make sure no bare wire is exposed outside the terminal.
Pro tip: If the wires are thin or fragile, twist the exposed copper strands tightly before inserting them to prevent fraying.
Secure with Wire Nuts (Optional)
Some installers prefer to connect the wires to the Ring using wire nuts instead of the built-in terminals. This can provide extra security, especially in older homes with loose wiring. If you choose this method, connect the doorbell wires to short jumper wires, then connect those jumpers to the Ring terminals.
Attach the Ring Doorbell to the Mounting Plate
With the wires connected, it’s time to attach the Ring device.
Align the Device
Hold the Ring doorbell against the mounting plate, aligning the screw holes.
Secure with Screws
Insert the provided security screws into the bottom of the device and tighten them with a screwdriver. These screws prevent tampering and ensure the doorbell stays in place.
Check for Gaps
Make sure the doorbell sits flush against the wall with no gaps. If there’s a gap due to uneven siding or brick, you can use the included wedge or corner mount (sold separately) to angle the camera correctly.
Turn Power Back On and Test
You’re almost done! Now it’s time to restore power and test your installation.
Turn On the Breaker
Go back to your electrical panel and turn the doorbell breaker back on.
Wait for the Ring to Power Up
Your Ring doorbell should light up and begin initializing. This may take 30–60 seconds. You’ll see a solid white light, then it will flash blue as it connects to Wi-Fi.
Test the Doorbell
Press the doorbell button. You should hear the chime inside your home (if connected) and receive a notification on your phone via the Ring app.
Check Live View
Open the Ring app and tap “Live View” to ensure the camera is streaming properly. Test two-way audio by speaking through the app.
Verify Motion Detection
Walk in front of the doorbell to trigger motion alerts. Make sure notifications appear on your phone and that recordings are saved.
Complete Setup in the Ring App
Even if your doorbell is working, you’ll need to finalize the setup in the Ring app.
Open the Ring App
Launch the app on your smartphone and log in to your account.
Add a New Device
Tap the menu (three lines) > “Set Up a Device” > “Doorbells” > select your model.
Follow On-Screen Instructions
The app will guide you through connecting to Wi-Fi, naming your doorbell, and setting up motion zones. Make sure to enable “Hardwired Power” in the settings to optimize performance.
Adjust Settings
Customize motion sensitivity, notification preferences, and recording options. You can also link your doorbell to Alexa or Google Assistant for voice control.
Troubleshooting Common Issues
Even with careful installation, problems can arise. Here’s how to fix the most common issues:
Doorbell Won’t Power On
- Double-check that the breaker is on.
- Test the transformer voltage again—it should be 8–24V AC.
- Ensure wires are securely connected and not loose.
- Try reseating the Ring on the mounting plate.
Chime Doesn’t Ring
- Verify the chime is compatible with Ring.
- Install the included resistor if using a digital chime.
- Check that the “Front” and “Trans” wires are connected correctly.
Live View is Laggy or Disconnects
- Move your router closer or use a Wi-Fi extender.
- Upgrade to Ring Chime Pro for better signal.
- Ensure your Wi-Fi network is 2.4GHz (most Ring models don’t support 5GHz).
Motion Alerts Not Working
- Check motion zones in the app—adjust sensitivity and area.
- Make sure the doorbell is not facing direct sunlight or heat sources.
- Clean the camera lens if it’s dirty or foggy.
Battery Still Draining (on Battery + Hardwired Models)
- Ensure the hardwired connection is providing consistent power.
- Disable “Battery Saver” mode in the app if enabled.
- Check for firmware updates in the Ring app.
Safety Tips and Best Practices
To ensure a safe and successful installation, keep these tips in mind:
- Always turn off power at the breaker. Never assume the wires are dead.
- Use insulated tools. This reduces the risk of shock.
- Don’t overload the transformer. If you’re adding multiple devices, ensure the transformer has enough capacity (measured in VA).
- Keep connections dry. If installing outdoors, use weatherproof wire nuts or silicone sealant.
- Update firmware regularly. Ring releases updates to improve performance and security.
- Schedule periodic checks. Inspect wiring and connections every 6–12 months.
Conclusion
Hard wiring your Ring Doorbell Camera is a smart, long-term upgrade that enhances reliability, performance, and convenience. By following this step-by-step guide, you’ve safely connected your doorbell to your home’s electrical system, ensuring it stays powered and ready to protect your property 24/7.
From checking compatibility and testing your transformer to connecting wires and finalizing setup in the app, each step is designed to help you succeed—even if you’re a beginner. Remember to prioritize safety, use the right tools, and don’t hesitate to consult a licensed electrician if you’re unsure about any part of the process.
With your Ring doorbell now hard wired, you can enjoy uninterrupted live streaming, instant alerts, and peace of mind knowing your home is secure. Welcome to the future of smart home security!
