Hard wiring your Ring battery doorbell ensures constant power, improves performance, and eliminates frequent battery swaps. This guide walks you through the entire process safely and efficiently.
Key Takeaways
- Hard wiring provides continuous power: Eliminates the need for frequent battery replacements and ensures your doorbell never runs out of juice.
- Improved Wi-Fi connectivity: A powered doorbell maintains a stronger, more reliable connection to your home network.
- Use existing doorbell wiring: Most homes with a traditional doorbell already have low-voltage wires you can repurpose.
- Safety first: Always turn off power at the breaker before working with electrical wiring to prevent shocks or damage.
- Compatible transformers required: Your doorbell transformer must output 8–24V AC and at least 10VA (preferably 16–24V for best performance).
- Ring Chime Pro can help: If your transformer is incompatible, this device boosts signal and provides backup power.
- Test before finalizing: Always test the doorbell after installation to confirm it’s receiving power and functioning properly.
Introduction: Why Hard Wire Your Ring Battery Doorbell?
So you’ve got a Ring battery doorbell—great choice! It’s wireless, easy to install, and keeps your home secure. But let’s be honest: swapping batteries every few months gets old fast. That’s where hard wiring comes in.
Hard wiring your Ring battery doorbell means connecting it directly to your home’s existing doorbell wiring. This gives it constant power, so you never have to worry about dead batteries again. Plus, it improves Wi-Fi signal strength and ensures your doorbell stays online even during heavy use.
In this guide, we’ll walk you through every step of hard wiring your Ring battery doorbell—safely, correctly, and without breaking a sweat. Whether you’re a DIY newbie or a seasoned home improver, we’ve got you covered. You’ll learn how to check your wiring, install the doorbell, test the connection, and troubleshoot common issues.
By the end, your Ring doorbell will be powered 24/7, giving you peace of mind and a smarter, more reliable smart home setup.
What You’ll Need Before You Start

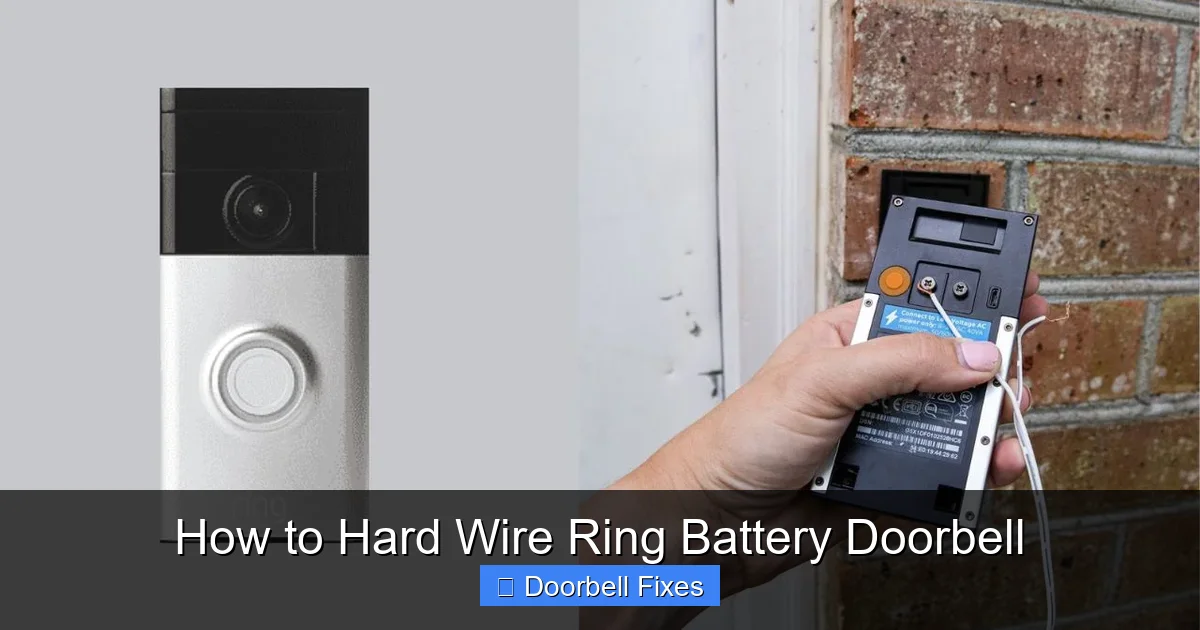

Visual guide about How to Hard Wire Ring Battery Doorbell
Image source: hellotech.com
Before you grab your screwdriver, make sure you have the right tools and materials. Here’s a checklist to get you started:
- Ring battery doorbell (compatible model): Most Ring battery doorbells can be hard wired, including the Ring Video Doorbell (2nd Gen), Ring Video Doorbell 3, 3 Plus, 4, and Ring Video Doorbell Pro (though the Pro is designed for hard wiring).
- Existing doorbell wiring: Most homes built before 2000 have low-voltage doorbell wires running from the chime to the front door.
- Screwdriver (Phillips and flathead): For removing old doorbell and mounting the new one.
- Voltage tester (non-contact): To confirm power is off before working.
- Wire strippers: To expose fresh wire ends if needed.
- Electrical tape: For securing wire connections.
- Drill and bits (optional): If you need to make new holes for mounting.
- Level: To ensure your doorbell is straight.
- Smartphone with Ring app: For setup and testing.
Having everything ready saves time and reduces frustration. Now, let’s get into the actual process.
Step 1: Turn Off the Power
Safety is non-negotiable when working with electricity—even low-voltage wiring can be dangerous if mishandled.
Locate Your Circuit Breaker
Go to your home’s main electrical panel (usually in the basement, garage, or utility closet). Look for the breaker labeled “Doorbell,” “Chime,” or “Front Door.” If you don’t see a label, you may need to test breakers one by one.
Turn Off the Correct Breaker
Switch the breaker to the “OFF” position. To double-check, go to your existing doorbell and press the button. If the chime doesn’t sound, power is off. If it still rings, try another breaker.
Use a Non-Contact Voltage Tester
Even with the breaker off, use a non-contact voltage tester near the doorbell wires to confirm there’s no live current. This extra step prevents accidental shocks.
Pro Tip: Take a photo of your breaker panel before turning anything off. This helps you remember which breaker controls the doorbell later.
Step 2: Remove Your Old Doorbell
Now that power is off, it’s time to remove the existing doorbell.
Unscrew the Faceplate
Use a screwdriver to remove the screws holding the old doorbell to the wall. Gently pull the doorbell away from the wall. You’ll see two wires connected to the back—these are your doorbell wires.
Disconnect the Wires
Loosen the terminal screws or release the wire connectors to free the wires. Don’t cut them—just disconnect them. Let the wires hang loosely inside the wall.
Inspect the Wires
Check the condition of the wires. If they’re frayed, corroded, or too short, you may need to strip the ends or extend them. Use wire strippers to remove about 1/4 inch of insulation from each wire end for a clean connection.
Note: If your old doorbell was wireless or didn’t use wires, you may need to run new wiring. This is more advanced and may require professional help.
Step 3: Check Your Doorbell Transformer
Your doorbell needs the right amount of power to work properly. That comes from the transformer—a small device that converts household voltage (120V) to low voltage (8–24V AC).
Locate the Transformer
The transformer is usually near your doorbell chime inside the house or in the basement/garage. It looks like a small metal box with wires coming out and is often mounted near your electrical panel.
Check the Voltage Rating
Look for a label on the transformer that shows the output voltage and VA (volt-ampere) rating. For Ring doorbells, you need:
- Voltage: 8–24V AC (16–24V is ideal)
- Power: At least 10VA (16VA or higher recommended)
If your transformer is below 8V or under 10VA, your Ring doorbell may not work reliably—or at all—when hard wired.
Test the Voltage (Optional but Recommended)
Use a multimeter to test the voltage across the transformer terminals. Set the multimeter to AC voltage, touch the probes to the two wires, and check the reading. If it’s within range, you’re good to go.
What if your transformer is incompatible? You have two options:
- Replace the transformer: Hire an electrician to install a compatible one (16V, 10–20VA).
- Use a Ring Chime Pro: This device plugs into an outlet near your chime, boosts Wi-Fi, and provides backup power. It can help if your transformer is weak or missing.
Step 4: Prepare the Ring Doorbell for Hard Wiring
Now it’s time to get your Ring doorbell ready for installation.
Charge the Battery (Temporarily)
Even though you’re hard wiring, the Ring doorbell still uses a rechargeable battery as a backup. Charge it fully using the USB cable before installation. This ensures the doorbell powers on during setup.
Remove the Battery Cover
On the back of the doorbell, slide or unscrew the battery cover to access the battery compartment.
Install the Jumper Wire (If Required)
Some Ring models (like the Ring Video Doorbell 3 Plus) require a jumper wire to enable hard wiring. This small wire connects two terminals inside the battery compartment, telling the doorbell to use external power.
Check your Ring model’s manual or the Ring app for instructions. If a jumper is needed, insert it as directed.
Important: Do not leave the battery in when hard wiring unless you’re using it as a backup. The battery can overheat if constantly charged. Ring recommends removing the battery when hard wired, but keeping it nearby for temporary use.

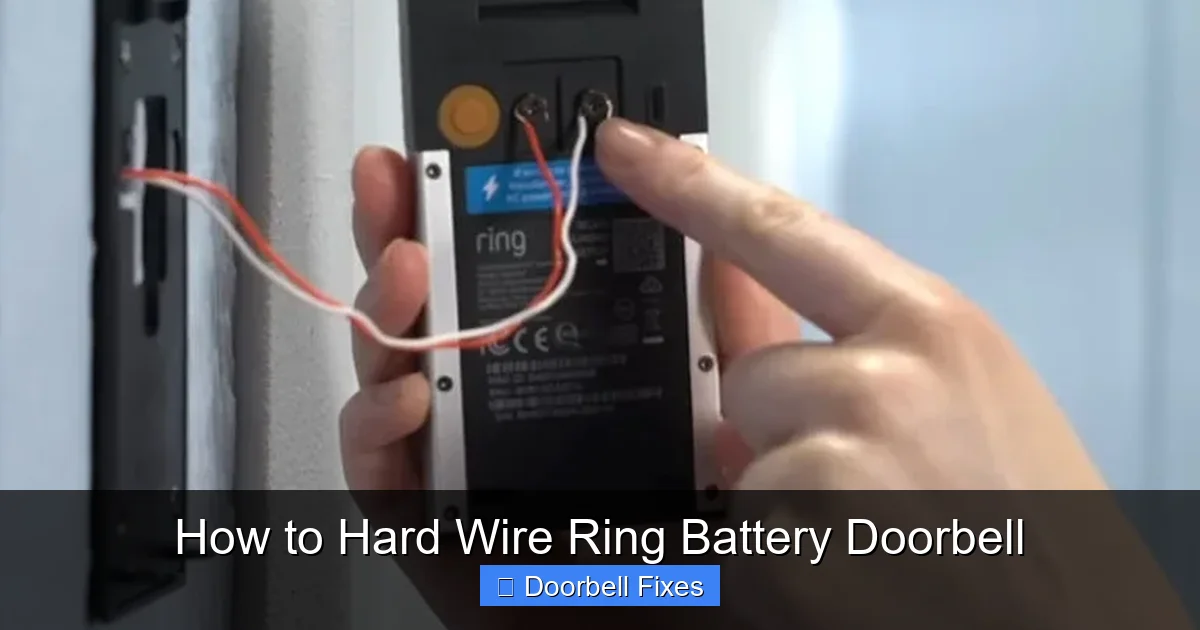

Step 5: Connect the Wires to the Ring Doorbell
Now for the main event—connecting your home’s wiring to the Ring doorbell.
Identify the Wire Terminals
On the back of the Ring doorbell, you’ll see two small terminals labeled “Front” and “Trans” (or similar). These connect to your doorbell wires.
Strip the Wire Ends (If Needed)
If the wire ends aren’t exposed, use wire strippers to remove about 1/4 inch of insulation. Twist the exposed copper strands to keep them neat.
Connect the Wires
Insert one wire into the “Front” terminal and the other into the “Trans” terminal. Tighten the screws to secure the wires. It doesn’t matter which wire goes where—Ring doorbells are not polarity-sensitive.
Secure with Electrical Tape (Optional)
For extra safety, wrap electrical tape around the wire connections to prevent them from loosening over time.
Pro Tip: If the wires are too short, use wire nuts or crimp connectors to extend them. Make sure all connections are tight and insulated.
Step 6: Mount the Ring Doorbell
With the wires connected, it’s time to mount the doorbell to your wall.
Position the Doorbell
Hold the doorbell against the wall where you want it installed. Make sure it’s level and at a comfortable height (usually 48 inches from the ground).
Mark the Screw Holes
Use a pencil to mark where the mounting screws will go. If you’re reusing old holes, make sure they align. If not, drill new pilot holes.
Secure the Mounting Bracket
Attach the included mounting bracket to the wall using the provided screws. Use a level to ensure it’s straight.
Attach the Doorbell
Slide the Ring doorbell onto the mounting bracket until it clicks into place. Give it a gentle tug to make sure it’s secure.
Adjust the Angle (Optional)
Some Ring models allow you to adjust the viewing angle. Tilt the doorbell slightly downward for better motion detection and video quality.
Step 7: Restore Power and Test the Doorbell
You’re almost done! Now it’s time to turn the power back on and test everything.
Turn the Breaker Back On
Return to your electrical panel and switch the doorbell breaker to “ON.”
Wait for the Doorbell to Power Up
The Ring doorbell should light up and begin initializing. This may take 30–60 seconds.
Open the Ring App
Launch the Ring app on your smartphone. If the doorbell is new, follow the setup prompts. If it’s an existing device, go to Device Settings > Power Settings and select “Hardwired.”
Check Power Status
In the app, go to Device Health. You should see “Hardwired” under Power Source. If it still says “Battery,” the wiring may not be connected properly.
Test the Doorbell
Press the doorbell button. The chime should sound (if connected), and you should receive a notification on your phone. Check the live view to ensure video and audio are working.
Pro Tip: Walk around your property to test motion detection. Adjust sensitivity in the app if needed.
Troubleshooting Common Issues
Even with careful installation, problems can happen. Here’s how to fix the most common ones.
Doorbell Won’t Power On
- Check the breaker: Make sure power is restored.
- Test the wires: Use a multimeter to confirm voltage at the doorbell terminals.
- Inspect connections: Ensure wires are tightly secured and not loose.
- Try the battery: Temporarily reinstall the battery to see if the doorbell powers on. If it does, the wiring may be the issue.
Weak or Intermittent Signal
- Check Wi-Fi strength: Use the Ring app’s Wi-Fi signal tool to test connectivity.
- Move the router: If possible, place your router closer to the doorbell.
- Use a Wi-Fi extender: Or consider the Ring Chime Pro, which acts as a Wi-Fi booster.
Chime Doesn’t Ring
- Check chime wiring: Ensure the wires are connected to the correct terminals inside the chime box.
- Test the chime: Temporarily connect the wires directly to see if it rings.
- Use Ring Chime: If your mechanical chime doesn’t work, pair a Ring Chime (sold separately) for wireless alerts.
Battery Drains Fast (Even When Hard Wired)
- Remove the battery: Ring recommends removing the battery when hard wired to prevent overcharging.
- Check for firmware updates: Outdated software can cause power issues.
- Reduce motion alerts: High activity can drain the battery quickly.
Video Quality Is Poor
- Clean the lens: Wipe the camera lens with a microfiber cloth.
- Adjust angle: Make sure the doorbell isn’t pointed at a bright light source.
- Check bandwidth: Multiple devices using Wi-Fi can slow down video streaming.
Maintenance Tips for Long-Term Performance
Once your Ring doorbell is hard wired, a little maintenance goes a long way.
- Clean the lens monthly: Dust and dirt can blur video quality.
- Check connections annually: Vibrations from door use can loosen wires over time.
- Update firmware regularly: Ring pushes updates through the app—keep your device current.
- Monitor device health: Use the Ring app to check battery, signal, and power status.
- Trim nearby foliage: Overgrown plants can block the camera or trigger false motion alerts.
Conclusion: Enjoy Continuous Power and Peace of Mind
Hard wiring your Ring battery doorbell is a smart upgrade that pays off in convenience, reliability, and performance. No more battery swaps, stronger Wi-Fi, and always-on security—what’s not to love?
By following this guide, you’ve safely connected your doorbell to your home’s wiring, tested the system, and learned how to troubleshoot common issues. Whether you’re protecting your front door or monitoring a side entrance, your Ring doorbell is now working at its best.
Remember: if you’re ever unsure about electrical work, don’t hesitate to call a licensed electrician. Safety always comes first.
Now go enjoy your smarter, more secure home—powered 24/7.
