Hardwiring your Google Nest Doorbell ensures constant power, eliminates battery drain, and improves performance. This guide walks you through every step—from checking compatibility to final setup—so you can install your doorbell safely and correctly.
Key Takeaways
- Check compatibility first: Not all doorbell transformers support Nest Doorbell hardwiring. You need a 16–24V AC transformer with at least 8VA of power.
- Turn off power at the breaker: Safety is critical. Always shut off electricity at the circuit breaker before working with wires.
- Use the right tools: A voltage tester, screwdriver, wire strippers, and drill (if needed) make installation smoother and safer.
- Follow Nest app guidance: The Google Home or Nest app provides real-time feedback during setup, helping you confirm a successful connection.
- Upgrade old wiring if needed: Frayed or undersized wires can cause power issues. Replace them with 18–22 AWG doorbell wire for best results.
- Test after installation: Always verify that the doorbell powers on, connects to Wi-Fi, and chimes properly before finishing.
- Call an electrician if unsure: If you’re uncomfortable with electrical work, hiring a professional prevents damage and ensures safety.
How to Hardwire Google Nest Doorbell
Upgrading to a Google Nest Doorbell is a smart move for home security, but relying on batteries can be frustrating. Battery-powered models need frequent recharging, especially in cold weather or with heavy use. That’s where hardwiring comes in. By connecting your Nest Doorbell directly to your home’s electrical system, you get uninterrupted power, better video quality, and fewer maintenance hassles.
In this complete guide, you’ll learn how to hardwire your Google Nest Doorbell safely and correctly. We’ll cover everything from checking your existing doorbell setup to final testing. Whether you’re replacing an old wired doorbell or installing one for the first time, this step-by-step walkthrough will help you get it right the first time. No guesswork. No frustration. Just a reliable, always-on smart doorbell.
Why Hardwire Your Google Nest Doorbell?
Before diving into the installation, it’s important to understand why hardwiring is worth the effort. The Google Nest Doorbell (wired) is designed to be powered by your home’s doorbell circuit. Unlike the battery version, it doesn’t rely on removable cells. This means:

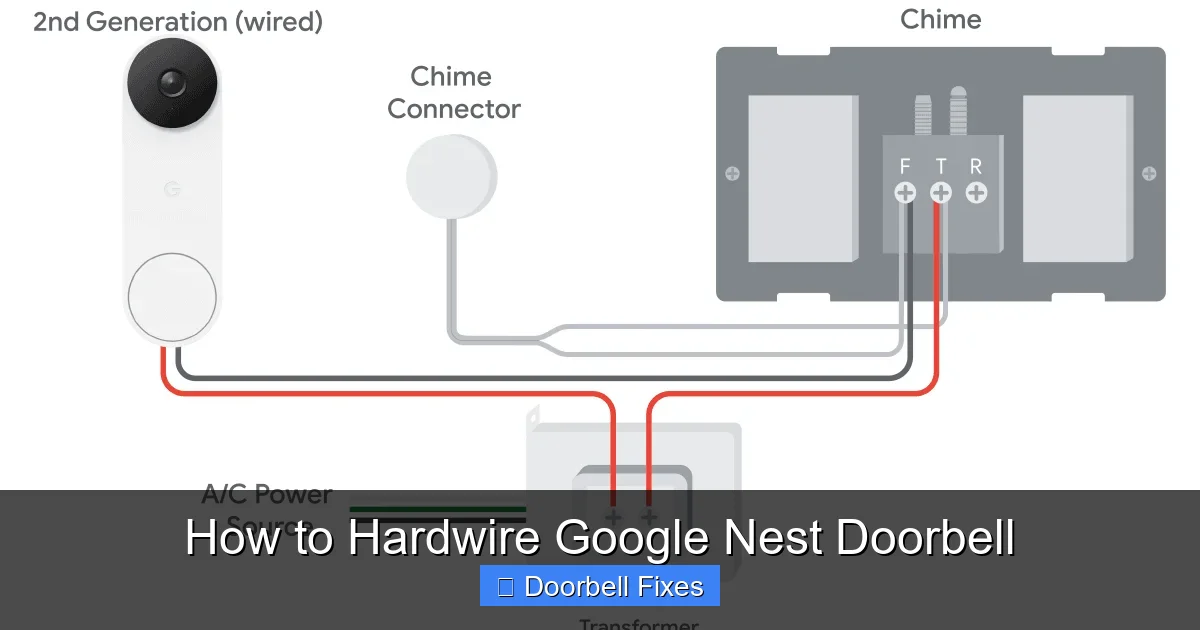

Visual guide about How to Hardwire Google Nest Doorbell
Image source: storage.googleapis.com
- No more charging: You’ll never have to take the doorbell off the wall to recharge it.
- Better performance: Continuous power allows for higher video resolution, faster alerts, and smoother live streaming.
- Reliable operation in extreme weather: Batteries drain faster in cold or hot climates. Hardwiring avoids this issue.
- Always-on features: Features like 24/7 video recording (with a Nest Aware subscription) require constant power.
If your home already has a wired doorbell, you’re in luck—hardwiring your Nest Doorbell is usually straightforward. But even if you don’t, adding wiring is possible with the right tools and planning.
What You’ll Need
Before starting, gather all the necessary tools and materials. Having everything ready saves time and reduces frustration.
Tools
- Screwdriver (Phillips and flathead)
- Voltage tester (non-contact or multimeter)
- Wire strippers
- Drill and drill bits (if mounting on brick, stucco, or concrete)
- Pencil or marker
- Level (to ensure the doorbell is straight)
- Safety goggles and gloves
Materials
- Google Nest Doorbell (wired model)
- Nest Doorbell mounting bracket (included)
- 18–22 AWG doorbell wire (if replacing old or adding new wiring)
- Wire nuts or electrical tape
- Wall anchors (if needed for mounting)
- Optional: Wire mold or conduit (for clean wire routing)
Optional but Helpful
- Smartphone with Google Home or Nest app installed
- Assistant device (like a Google Nest Hub) for testing chimes
- Helper (to hold the doorbell during installation)
Step 1: Check Your Existing Doorbell System
Not all doorbell systems are compatible with the Google Nest Doorbell. Before you start, you need to verify that your current setup can support it.
Locate Your Doorbell Transformer
The transformer steps down your home’s 120V electricity to a safer 16–24V for the doorbell. It’s usually found in one of these places:
- Near the doorbell chime inside the house
- In the basement or crawl space
- Inside the electrical panel (breaker box)
- Attached to a junction box near the door
Once you find it, check the label. It should list the voltage (V) and amperage (VA). For the Nest Doorbell, you need:
- Voltage: 16–24V AC
- Power: At least 8VA (volt-amperes)
If your transformer is 16V and 10VA, you’re good to go. If it’s 8V or 5VA, it’s too weak and needs upgrading.
Test the Voltage
Use a multimeter or voltage tester to confirm the output. Set the multimeter to AC voltage and touch the probes to the transformer’s output terminals. You should see 16–24V. If it’s lower, the transformer may be failing or undersized.
Check the Chime
Open your indoor doorbell chime. Look for two wires connected to terminals labeled “Front” and “Trans” or “Transformer.” These carry power from the transformer to the doorbell. If your chime is digital or smart (like a Nest Chime), make sure it’s compatible. Most modern chimes work fine, but very old mechanical chimes may need a resistor.
Step 2: Turn Off the Power
Safety first. Working with electricity is dangerous if you don’t take precautions.
Locate the Correct Circuit Breaker
Find the breaker that controls your doorbell. It’s often labeled “Doorbell,” “Chime,” or “Front Door.” If unsure, turn off breakers one by one and test the doorbell until it stops working.
Turn Off the Breaker
Switch the breaker to the “OFF” position. Use a non-contact voltage tester at the doorbell wires to confirm no power is flowing. Touch the tester to the wires—if it beeps or lights up, the power is still on. Double-check the breaker.
Lock Out the Breaker (Optional but Recommended)
If someone else might turn the power back on, use a breaker lock or tape a note to the panel saying “Do Not Turn On – Working on Doorbell.”
Step 3: Remove the Old Doorbell (If Applicable)
If you’re replacing an existing doorbell, you’ll need to remove it first.
Unscrew the Old Doorbell
Use a screwdriver to remove the mounting screws. Gently pull the doorbell away from the wall. You’ll see two wires connected to the back.
Label the Wires
Before disconnecting, label the wires with tape or a marker. For example, “Front” and “Trans.” This helps during reinstallation.
Disconnect the Wires
Loosen the terminal screws and remove the wires. If the wires are frayed or damaged, trim them back with wire strippers and strip about 1/2 inch of insulation.
Inspect the Mounting Area
Check the wall for damage or rot. If the old doorbell was loose, you may need to patch the wall or use longer screws and anchors.
Step 4: Prepare the Wiring
Good wiring is essential for reliable power. Take time to prepare the wires properly.
Strip the Wire Ends
Use wire strippers to remove about 1/2 inch of insulation from each wire. This exposes fresh copper for a solid connection.
Twist the Strands
If the wires are stranded (multiple thin wires), twist them gently with your fingers to keep them neat.
Check Wire Length
The wires should be long enough to reach the Nest Doorbell mounting bracket with a little slack. If they’re too short, you may need to extend them with additional wire and wire nuts.
Upgrade Old Wiring (If Needed)
If your existing wires are thin, brittle, or damaged, replace them. Run new 18–22 AWG doorbell wire from the chime to the door. This ensures consistent power delivery.
Step 5: Install the Mounting Bracket
The Nest Doorbell comes with a mounting bracket that holds the device securely and connects the wires.
Position the Bracket
Hold the bracket against the wall where you want to install the doorbell. Use a level to make sure it’s straight. Mark the screw holes with a pencil.
Drill Pilot Holes (If Needed)
If mounting on brick, stucco, or concrete, drill pilot holes using a masonry bit. Insert wall anchors for a secure fit.
Secure the Bracket
Align the bracket with the marks and screw it into place. Make sure it’s tight and level. The bracket has slots for the wires to pass through.
Route the Wires
Feed the two doorbell wires through the center hole in the bracket. Leave about 2–3 inches of wire sticking out.
Step 6: Connect the Wires to the Nest Doorbell
Now it’s time to connect the wires to the doorbell. The Nest Doorbell uses a simple two-wire system.
Identify the Wire Terminals
On the back of the Nest Doorbell, you’ll see two small terminals labeled “Front” and “Trans.” These correspond to the wires from your chime and transformer.
Connect the Wires
Loosen the terminal screws slightly. Insert one wire into the “Front” terminal and the other into the “Trans” terminal. Tighten the screws securely. It doesn’t matter which wire goes where—Nest Doorbell is polarity-independent.
Double-Check Connections
Give each wire a gentle tug to ensure it’s secure. Loose connections can cause power issues or intermittent operation.
Step 7: Attach the Doorbell to the Bracket
With the wires connected, it’s time to mount the doorbell.
Align the Doorbell
Hold the Nest Doorbell so the pins on the back align with the slots on the mounting bracket.
Slide It Into Place
Gently push the doorbell down until it clicks into place. You should feel it lock securely.
Secure with the Security Screw
Use the included security screw and screwdriver to fasten the doorbell to the bracket. This prevents theft or tampering.
Step 8: Restore Power and Test
Now that everything is connected, it’s time to power up and test the system.
Turn the Breaker Back On
Go to your electrical panel and switch the doorbell breaker to “ON.”
Wait for the Doorbell to Power Up
The Nest Doorbell will take a few seconds to start. You’ll see a light ring on the front. It may flash yellow or white as it boots up.
Check the Light Ring
- Solid white: Ready to set up.
- Blinking yellow: Updating firmware.
- Blinking red: Power issue or connection problem.
Open the Google Home or Nest App
Launch the app on your smartphone. If you haven’t set up the doorbell before, follow the on-screen prompts to add a new device.
Follow the Setup Wizard
The app will guide you through connecting to Wi-Fi, naming the doorbell, and setting up motion zones. It will also check the power connection.
Test the Doorbell
Press the button on the doorbell. You should hear a chime inside the house. If you have a Nest Chime or Google Nest Hub, it will also play a sound.
Check Live View
Open the live stream in the app. Make sure the video is clear and the audio works. Walk in front of the doorbell to test motion detection.
Troubleshooting Common Issues
Even with careful installation, problems can occur. Here’s how to fix the most common ones.
Doorbell Won’t Power On
- Check the breaker: Make sure power is restored.
- Test the transformer: Use a multimeter to confirm 16–24V output.
- Inspect connections: Ensure wires are tight and not loose.
- Try a different transformer: Borrow one from a friend or buy a new 16V 10VA transformer.
Chime Doesn’t Ring
- Check chime wiring: Make sure the “Front” and “Trans” wires are connected correctly.
- Test the chime: Bypass the doorbell by touching the two wires together. If the chime rings, the issue is with the doorbell or wiring.
- Add a resistor: Some mechanical chimes need a 3.9Ω resistor across the terminals to work with smart doorbells.
Video is Choppy or Disconnects
- Check Wi-Fi signal: The doorbell needs a strong 2.4GHz Wi-Fi connection. Move your router closer or use a Wi-Fi extender.
- Update firmware: Make sure the doorbell and app are up to date.
- Reduce interference: Keep the doorbell away from metal surfaces or large appliances.
Doorbell Overheats
- Ensure proper ventilation: Don’t cover the doorbell or mount it in direct sunlight.
- Check voltage: Too high a voltage (over 24V) can cause overheating. Replace the transformer if needed.
When to Call a Professional
While hardwiring a Nest Doorbell is manageable for many DIYers, some situations call for an electrician.
- You can’t locate the transformer or breaker.
- The existing wiring is damaged or missing.
- You’re uncomfortable working with electricity.
- Your home has aluminum wiring (requires special handling).
- You need to run new wires through walls or ceilings.
A licensed electrician can safely upgrade your transformer, run new wiring, and ensure everything meets local codes. It’s a small investment for peace of mind and long-term reliability.
Final Tips for Success
- Use the app: The Google Home or Nest app is your best friend during setup. It provides real-time feedback and troubleshooting tips.
- Keep wires neat: Use wire mold or conduit to hide and protect wires for a clean look.
- Test in different conditions: Check the doorbell at night, in rain, and during low-light to ensure consistent performance.
- Subscribe to Nest Aware: For 24/7 recording and advanced alerts, a Nest Aware subscription is worth considering.
- Regular maintenance: Clean the lens and check connections every few months.
Conclusion
Hardwiring your Google Nest Doorbell is a smart upgrade that delivers reliable power, better performance, and fewer hassles. By following this guide, you’ve learned how to check your system, prepare the wiring, install the doorbell, and troubleshoot common issues. Whether you’re replacing an old doorbell or installing one for the first time, hardwiring ensures your Nest Doorbell works when you need it most.
Remember: safety first, take your time, and don’t hesitate to call a professional if you’re unsure. With the right setup, your Nest Doorbell will provide years of dependable service, keeping your home secure and connected.
