Hardwiring your Ring Doorbell 2 with an existing doorbell ensures reliable power and eliminates battery changes, making it a smart upgrade for consistent performance. By connecting the Ring Doorbell 2 directly to your home’s existing doorbell wiring, you maintain continuous power while preserving your current chime functionality—no need for additional transformers or complex rewiring. This simple, step-by-step process enhances security and convenience, giving you uninterrupted access to live video, motion alerts, and two-way audio.
“`html
Key Takeaways
- Turn off power at the breaker before starting installation to ensure safety.
- Check voltage with a multimeter—Ring Doorbell 2 requires 8–24V AC.
- Use existing wires to connect the doorbell to your home’s electrical system.
- Install a diode if your chime isn’t compatible to prevent damage.
- Secure the mounting bracket tightly to prevent wobbling and ensure stability.
- Test the connection in the Ring app after setup to confirm functionality.
Why This Matters / Understanding the Problem
So, you’ve got a Ring Doorbell 2—awesome choice. It’s sleek, packed with features, and gives you peace of mind knowing you can see who’s at your door even when you’re halfway across the world. But here’s the catch: if you’re relying on batteries, you’re probably tired of constantly recharging or replacing them. That’s where hardwiring comes in.
Hardwiring your Ring Doorbell 2 to your existing doorbell setup means no more battery anxiety. You get continuous power, reliable performance, and fewer maintenance headaches. Plus, it just feels more permanent—like your smart doorbell was always meant to be part of your home’s wiring.
But let’s be real: the idea of messing with electrical wiring can be intimidating. I get it. I remember standing in my hallway, staring at the old doorbell chime, wondering if I’d accidentally fry my whole system. The good news? With the right tools and a little patience, how to hardwire Ring Doorbell 2 with existing doorbell is totally doable—even if you’re not an electrician.
This guide walks you through the process step by step, sharing what worked (and what didn’t) when I did it myself. No jargon, no fluff—just clear, practical advice to help you get your Ring Doorbell 2 powered up the right way.
What You Need
Before we dive in, let’s make sure you’ve got everything you need. Trust me, there’s nothing worse than getting halfway through and realizing you’re missing a key tool.

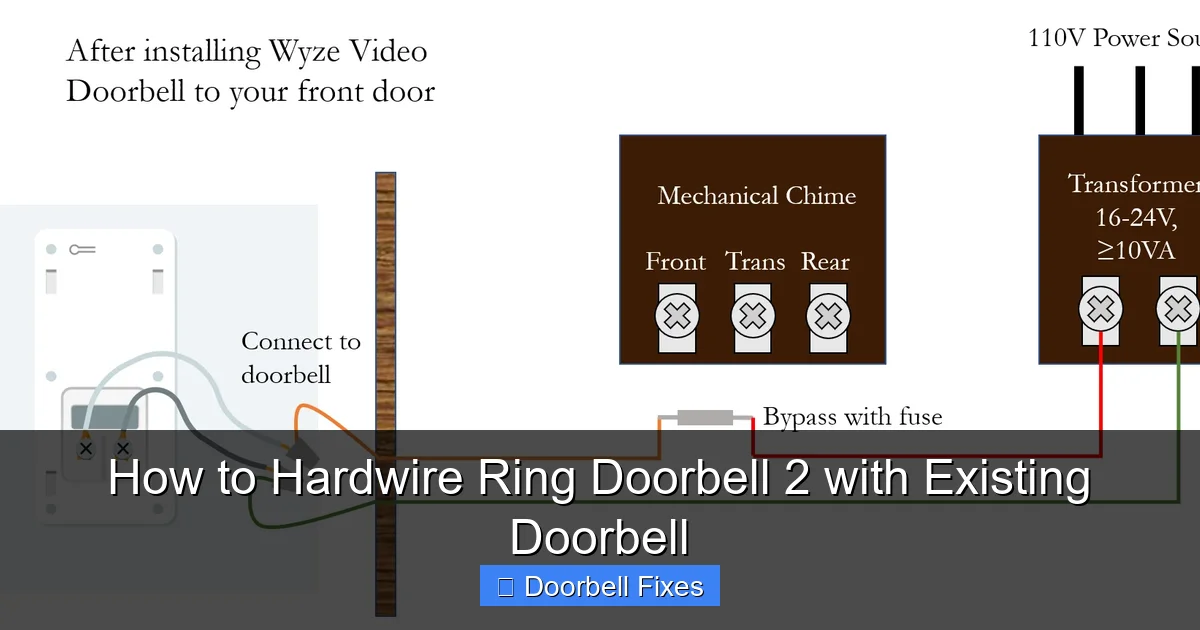

Visual guide about How to Hardwire Ring Doorbell 2 with Existing Doorbell
Image source: support.wyze.com
- Ring Doorbell 2 (obviously!)
- Existing doorbell transformer (most homes have one—usually near your breaker panel or furnace)
- Screwdriver set (Phillips and flathead)
- Voltage tester (non-contact type is safest)
- Wire strippers
- Electrical tape
- Optional but helpful: a helper (for holding things), a smartphone with the Ring app installed, and a small level
One thing to check upfront: your existing doorbell transformer should output between 8–24 volts AC. Most standard doorbells use 16V, which is perfect for the Ring Doorbell 2. If you’re unsure, look for a label on the transformer or use your voltage tester to confirm.
Also, make sure your current doorbell wires are long enough to reach the new mounting location. If not, you might need to extend them—but we’ll cover that later.
Step-by-Step Guide to How to Hardwire Ring Doorbell 2 with Existing Doorbell
Step 1: Turn Off Power and Remove the Old Doorbell
First things first—safety. Even though doorbell circuits are low voltage, it’s still smart to turn off the power at the breaker just in case. I learned this the hard way when I got a tiny shock from a mislabeled wire once. Not fun.
Once the power is off, remove your existing doorbell button. Usually, it’s held in place by two screws. Gently pull it away from the wall to expose the wires. Don’t yank them—just loosen the terminals and let the wires hang free.
Use your non-contact voltage tester to double-check that there’s no current. If the tester doesn’t beep or light up, you’re good to go. Now’s also a good time to snap a photo of how the wires were connected. It’ll save you confusion later.
Step 2: Prepare the Wires and Mounting Location
Next, inspect the wires. Are they frayed? Corroded? If so, trim about half an inch off the ends and strip about 1/4 inch of insulation using your wire strippers. You want clean, bare copper for a solid connection.
Now, decide where you want to mount your Ring Doorbell 2. It should be at about chest height (around 48 inches from the ground) and angled slightly toward the walkway so it captures visitors clearly. Use the included mounting bracket as a template—hold it up, mark the screw holes with a pencil, and use a level to make sure it’s straight.
If your existing wires don’t reach the new spot, don’t panic. You can extend them using 18- or 20-gauge low-voltage wire (available at any hardware store). Just splice them together with wire nuts and wrap the connections in electrical tape. Keep the total wire length under 100 feet to avoid voltage drop.
Step 3: Connect the Wires to the Ring Doorbell 2

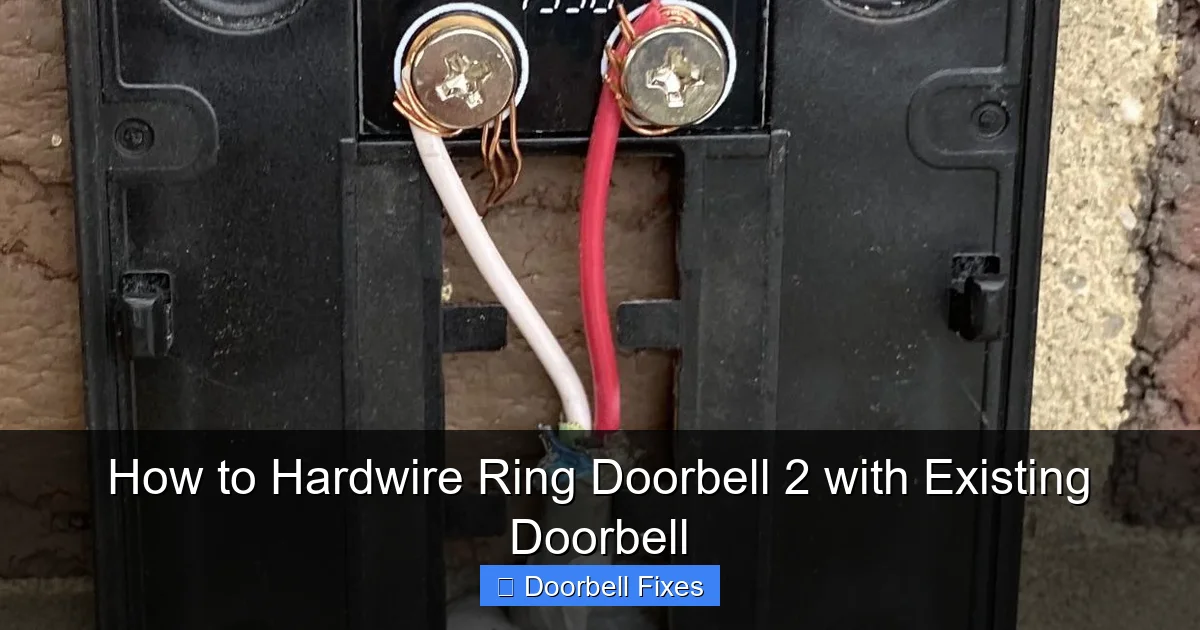

Now for the fun part—hooking up your Ring. The Ring Doorbell 2 comes with a mounting bracket that has two terminal screws labeled “Front” and “Trans.” These correspond to the two wires from your doorbell circuit.
Loosen the screws slightly, then insert one wire under each terminal. It doesn’t matter which wire goes where—Ring is designed to work either way. Tighten the screws securely so the wires won’t slip out.
Pro tip: If your wires are thin or fragile, twist the bare ends tightly before inserting them. This prevents fraying and ensures a solid connection.
Step 4: Mount the Doorbell and Secure the Bracket
Slide the Ring Doorbell 2 onto the mounting bracket. You’ll hear a click when it’s seated properly. Use the included security screw (and the little Allen wrench) to lock it in place. This prevents thieves from simply pulling it off the wall.
Make sure the unit is level and flush against the wall. If there’s a gap, you can use the included wedge or corner mount (depending on your wall angle) to adjust the viewing angle.
At this point, don’t turn the power back on yet—we need to test the setup first.
Step 5: Restore Power and Test the System
Go back to your breaker panel and flip the power back on. Head to your indoor doorbell chime—you should hear it ring briefly as the system powers up.
Now open the Ring app on your phone. If everything’s connected correctly, your doorbell should appear as “online” and show a live view. Try pressing the button (or have a friend do it) to see if the chime rings and you get a notification.
If the chime doesn’t ring or the app shows “offline,” double-check your wiring. Loose connections are the #1 culprit. Also, verify that your transformer is providing enough voltage—Ring recommends at least 16V for optimal performance.
Step 6: Fine-Tune Settings in the Ring App
Once everything’s working, take a few minutes to customize your settings. In the Ring app, you can adjust motion zones, set up alerts, enable two-way talk, and even integrate with Alexa or Google Assistant.
I personally love setting up “Motion Schedules” so I only get alerts during certain hours. It cuts down on false alarms from passing cars or squirrels (yes, really).
Also, make sure your Wi-Fi signal is strong at the doorbell location. If it’s weak, consider adding a Wi-Fi extender or mesh node nearby. A strong connection means smoother video and faster alerts.
Pro Tips & Common Mistakes to Avoid
After installing three Ring Doorbells in my own home (and helping a few friends with theirs), I’ve learned a few things the hard way.
Pro Tip: Always test your voltage before and after installation. A weak transformer might work for a basic doorbell but struggle with the Ring’s power demands. If your Ring keeps going offline or the video is choppy, your transformer might be underpowered.
Warning: Don’t skip the security screw! I once forgot it on a friend’s install, and within a week, someone tried to rip the doorbell off the wall. The screw won’t stop a determined thief, but it’ll deter casual opportunists.
Another common mistake? Assuming all doorbell wires are the same gauge. Older homes might have thinner wires that can’t handle extended runs. If you’re adding extra wire, match the gauge (usually 18 or 20) to avoid resistance issues.
And please—don’t overtighten the terminal screws. It’s tempting to crank them down, but you can actually strip the threads or damage the internal contacts. Snug is enough.
Lastly, if your existing chime is mechanical (with physical bells), it should work fine. But if you have a digital chime, check Ring’s compatibility list. Some models require a special “chime connector” module to prevent buzzing or failure to ring.
FAQs About How to Hardwire Ring Doorbell 2 with Existing Doorbell
Q: Can I hardwire my Ring Doorbell 2 if I don’t have an existing doorbell?
A: Technically yes, but you’ll need to install a transformer and run new wires—which is a much bigger project. Most people without an existing doorbell opt for the battery-powered version or a plug-in transformer kit instead.
Q: Will hardwiring void my Ring warranty?
A: Nope! Ring actually encourages hardwiring for better performance. Just make sure you follow their installation guidelines and don’t modify the device itself.
Q: My doorbell chime isn’t ringing after installation. What’s wrong?
A: First, check your wiring connections. Then verify your transformer voltage—it should be at least 16V. If you have a digital chime, you might need Ring’s Chime Connector (sold separately).
Q: Can I use the same wires for both power and data?
A: Yes! The two wires carry both power and communication signals. That’s why you only need the existing doorbell wires—no extra cables required.
Q: What if my wires are too short to reach the new location?
A: You can extend them using low-voltage wire and wire nuts. Just keep the total length reasonable (under 100 feet) and avoid sharp bends or pinches in the wire.
Q: Do I need an electrician to do this?
A: Not necessarily. If you’re comfortable with basic wiring and your setup is straightforward, you can DIY it. But if you’re unsure about your transformer, breaker panel, or have an older home with tricky wiring, calling a pro is never a bad idea.
Q: Will hardwiring affect my Wi-Fi signal?
A: No—the wiring only provides power. Your Ring Doorbell 2 still connects to Wi-Fi for video and alerts. Just make sure your router or extender covers the front door area well.
Final Thoughts
Hardwiring your Ring Doorbell 2 might seem daunting at first, but once you break it down into steps, it’s totally manageable. I went from nervous newbie to confident installer in under an hour—and you can too.
The key is preparation: gather your tools, double-check your voltage, and take your time with the wiring. Remember, how to hardwire Ring Doorbell 2 with existing doorbell isn’t about being an expert—it’s about following a process carefully and safely.
Once it’s done, you’ll wonder why you didn’t do it sooner. No more battery swaps, no more “low power” alerts—just reliable, always-on security right at your front door.
So grab your screwdriver, fire up the Ring app, and give it a try. Your future self (and your peace of mind) will thank you.
“`
