This guide walks you through how to hardwire Ring Doorbell 3 Plus for consistent power and better performance. You’ll learn the tools needed, wiring steps, and common pitfalls to avoid.
Key Takeaways
- Check compatibility first: Ensure your existing doorbell transformer provides 8–24V AC and at least 10VA to power the Ring Doorbell 3 Plus properly.
- Turn off power before starting: Always shut off the circuit breaker to avoid electrical shock when working with doorbell wiring.
- Use the right tools: A voltage tester, screwdriver, wire strippers, and drill are essential for a safe and secure installation.
- Follow the wiring sequence carefully: Connect the existing doorbell wires to the Ring mounting bracket terminals to maintain power flow.
- Test the system after installation: Verify the doorbell powers on and connects to the Ring app before finalizing the mount.
- Consider a chime kit if needed: If your mechanical chime isn’t compatible, use the included Ring Chime Connector to prevent damage.
- Seek professional help if unsure: If you’re uncomfortable with electrical work, hire a licensed electrician for safety.
How to Hardwire Ring Doorbell 3 Plus: A Complete Step-by-Step Guide
So, you’ve got your shiny new Ring Doorbell 3 Plus and you’re ready to upgrade your home security. But instead of relying on batteries that need frequent recharging, you want the reliability of a hardwired connection. Great choice! Hardwiring your Ring Doorbell 3 Plus ensures constant power, reduces maintenance, and improves performance—especially in extreme temperatures where battery life can suffer.
In this comprehensive guide, we’ll walk you through how to hardwire Ring Doorbell 3 Plus safely and correctly. Whether you’re replacing an old doorbell or installing one for the first time, this step-by-step tutorial covers everything from checking your electrical setup to testing the final connection. We’ll also share practical tips, troubleshooting advice, and important safety reminders so you can complete the job with confidence.
By the end of this guide, you’ll have a fully functional, hardwired Ring Doorbell 3 Plus that keeps your home secure 24/7—no more worrying about dead batteries or Wi-Fi dropouts during critical moments.
Why Hardwire Your Ring Doorbell 3 Plus?

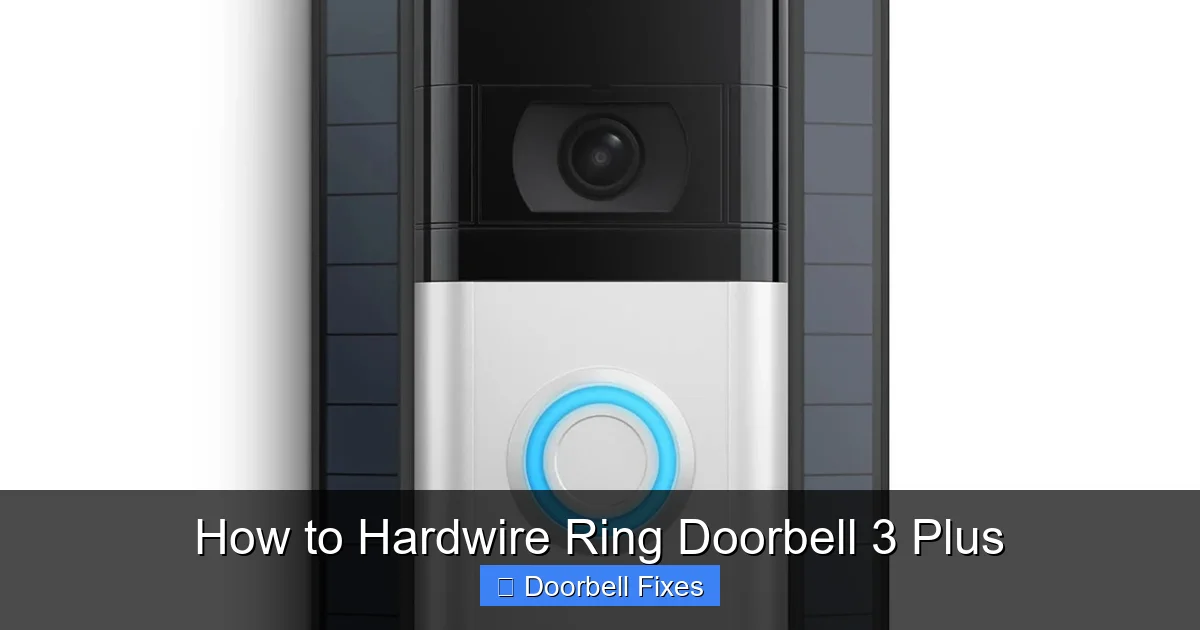

Visual guide about How to Hardwire Ring Doorbell 3 Plus
Image source: images.ctfassets.net
Before diving into the installation, it’s worth understanding why hardwiring is such a smart move. The Ring Doorbell 3 Plus is designed to work both as a battery-powered device and as a hardwired unit. While the battery option offers flexibility, hardwiring provides several key advantages:
- Continuous power: No more monthly battery swaps or unexpected shutdowns.
- Better performance: Features like live view, motion alerts, and two-way audio work more reliably with steady power.
- Extended lifespan: The internal battery lasts longer when it’s not being used as the primary power source.
- Ideal for extreme climates: Cold weather can drain batteries quickly; hardwiring eliminates this issue.
- Cleaner look: No visible charging cables or battery compartments.
That said, hardwiring isn’t just “plug and play.” It requires a compatible electrical setup and careful handling of low-voltage wiring. But don’t worry—we’ll guide you through every step.
What You’ll Need Before Starting
Before you begin, gather the right tools and materials. Having everything ready will make the process smoother and safer.
Tools Required
- Phillips and flathead screwdrivers
- Voltage tester (non-contact type recommended)
- Wire strippers
- Drill with drill bits (for mounting)
- Level (to ensure the doorbell is straight)
- Pencil or marker (for marking drill points)
- Safety gloves and glasses (optional but recommended)
Materials Included with Ring Doorbell 3 Plus
- Ring Doorbell 3 Plus unit
- Hardwiring mounting bracket
- Screws and wall anchors
- Wire nuts (for securing connections)
- Chime Connector (for mechanical chimes)
- User manual and quick start guide
Optional but Helpful Items
- Electrical tape
- Zip ties (for cable management)
- Smartphone or tablet with the Ring app installed
- Assistant (to help hold the doorbell during installation)
Step 1: Check Your Existing Doorbell Wiring and Transformer
Not all doorbell systems are created equal. Before you start disconnecting wires, you need to verify that your current setup can support the Ring Doorbell 3 Plus.
Locate Your Doorbell Transformer
The transformer is a small box that converts your home’s 120V AC power into the low-voltage (typically 8–24V AC) needed for doorbells. It’s usually found in one of these places:
- Near your electrical panel (breaker box)
- In the basement or crawl space
- Inside the attic
- Behind the existing doorbell chime
Once located, check the label on the transformer. It should list the output voltage (V) and power rating (VA). For the Ring Doorbell 3 Plus, you need:
- Voltage: Between 8V and 24V AC
- Power: At least 10VA (volt-amperes)
If your transformer is rated below 8V or less than 10VA, it won’t provide enough power. You’ll need to upgrade it—either by replacing it yourself (if you’re experienced) or hiring an electrician.
Test the Voltage
Even if the label says it’s compatible, always test the voltage at the doorbell wires to be sure.
- Turn off the power at the circuit breaker.
- Remove the existing doorbell button from the wall.
- Carefully separate the two wires.
- Turn the power back on.
- Use a multimeter or voltage tester to measure the voltage between the two wires.
If the reading is between 8V and 24V AC, you’re good to go. If it’s too low or too high, consult an electrician before proceeding.
Step 2: Turn Off the Power
Safety first! Even though doorbell systems use low voltage, they’re still connected to your home’s electrical circuit. A shock is unlikely, but it’s not worth the risk.
How to Safely Shut Off Power
- Go to your main electrical panel (breaker box).
- Locate the breaker labeled “doorbell,” “chime,” or “low voltage.” If there isn’t one, look for a breaker that controls the area near your doorbell.
- Flip the breaker to the OFF position.
- Use a non-contact voltage tester at the doorbell wires to confirm no power is flowing.
Pro tip: Place a piece of tape over the breaker switch with a note like “Do not turn on – working on doorbell.” This prevents someone else from accidentally restoring power while you’re working.
Step 3: Remove the Old Doorbell
Now that the power is off, it’s time to remove your existing doorbell button.
Unscrew the Old Button
- Use a screwdriver to remove the screws holding the old doorbell in place.
- Gently pull the button away from the wall.
- You’ll see two wires connected to the back. These are your doorbell wires.
Label the Wires (Optional but Helpful)
If the wires aren’t color-coded or you’re unsure which is which, label them with tape (e.g., “Front Door” or “Left/Right”). This helps avoid confusion during reinstallation.
Disconnect the Wires
Loosen the terminal screws on the old doorbell and carefully remove the wires. Don’t let them fall back into the wall—use tape to hold them in place if needed.
Step 4: Prepare the Ring Mounting Bracket
The Ring Doorbell 3 Plus comes with a special hardwiring mounting bracket designed to securely hold the device and connect the wires.
Attach the Bracket to the Wall
- Hold the mounting bracket against the wall where you want to install the doorbell. Use a level to ensure it’s straight.
- Mark the screw holes with a pencil.
- Drill pilot holes using a drill bit slightly smaller than the screws.
- Secure the bracket with the provided screws and wall anchors (if needed for brick, stucco, or concrete).
Connect the Wires to the Bracket
The mounting bracket has two terminal screws labeled “Front” and “Trans.” It doesn’t matter which wire goes where—the Ring doorbell is non-polarized.
- Strip about 1/4 inch of insulation from each doorbell wire using wire strippers.
- Loosen the terminal screws on the bracket.
- Insert one wire under each screw and tighten securely.
- Give the wires a gentle tug to ensure they’re firmly connected.
Secure Excess Wire
If there’s extra wire, tuck it neatly into the wall cavity or use zip ties to bundle it behind the bracket. Avoid pinching or bending the wires sharply.
Step 5: Install the Chime Connector (If Needed)
If you have a mechanical doorbell chime (the kind that makes a “ding-dong” sound), you may need to install the Ring Chime Connector to prevent damage from constant power flow.
Why Use the Chime Connector?
Hardwiring sends continuous power to the doorbell, which can overheat or burn out a traditional mechanical chime. The Chime Connector acts as a relay, only sending power when the doorbell is pressed.
How to Install the Chime Connector
- Turn off power at the breaker.
- Open your indoor chime unit (usually mounted on a wall near the front door).
- Locate the two wires connected to the “Front” terminal.
- Disconnect these wires.
- Connect one wire to the “Doorbell” terminal on the Chime Connector.
- Connect the other wire to the “Chime” terminal.
- Connect the two wires from the wall (leading to the doorbell) to the “Transformer” terminals on the connector.
- Secure the connector inside the chime box with tape or screws.
- Close the chime cover and restore power.
Note: If you have a digital or smart chime, the Chime Connector may not be necessary. Check the Ring compatibility list or consult the manual.
Step 6: Attach the Ring Doorbell 3 Plus
With the bracket and wiring in place, it’s time to mount the doorbell.
Align and Secure the Device
- Hold the Ring Doorbell 3 Plus against the mounting bracket.
- Slide it downward until it clicks into place.
- Use the included security screw and screwdriver to lock it in place. This prevents theft.
Check the Angle
The Ring Doorbell 3 Plus has a built-in level. Make sure the bubble is centered so the camera points straight ahead—not up at the sky or down at the ground.
Step 7: Restore Power and Test the System
Now for the moment of truth.
Turn the Power Back On
Go to your breaker box and flip the doorbell breaker back to the ON position.
Wait for the Doorbell to Power Up
The Ring Doorbell 3 Plus will take about 30–60 seconds to boot up. You’ll see a spinning blue light on the front.
Open the Ring App
- Launch the Ring app on your smartphone or tablet.
- Tap “Set Up a Device” and select “Doorbells.”
- Follow the on-screen instructions to connect to your Wi-Fi network.
- Once connected, the app will confirm the device is online and receiving power.
Test the Doorbell
- Press the button on the doorbell.
- Check if your indoor chime rings (if applicable).
- Verify that you receive a notification on your phone.
- Test two-way audio by speaking through the app.
- Check live view to ensure the camera is working.
If everything works, congratulations—you’ve successfully hardwired your Ring Doorbell 3 Plus!
Troubleshooting Common Issues
Even with careful installation, problems can arise. Here’s how to fix the most common ones.
Doorbell Won’t Power On
- Check the breaker: Make sure power is restored.
- Test voltage again: Use a multimeter to confirm 8–24V at the wires.
- Inspect connections: Ensure wires are tightly secured to the bracket.
- Try battery mode: Insert the battery to see if the device works at all.
Chime Doesn’t Ring
- Verify Chime Connector installation: Double-check wiring if using a mechanical chime.
- Check chime settings in the app: Ensure “Mechanical Chime” is selected under Device Settings.
- Test the chime manually: Tap the button on the chime unit to see if it’s functional.
Weak Wi-Fi Signal
- Reposition the doorbell: Move it closer to your router or use a Wi-Fi extender.
- Check for interference: Metal surfaces, thick walls, and electronic devices can block signals.
- Update firmware: Ensure the Ring app and device are running the latest software.
Doorbell Overheats or Shuts Down
- Check transformer rating: Ensure it’s not over 24V AC.
- Inspect for short circuits: Make sure wires aren’t touching each other or metal surfaces.
- Contact Ring Support: If the issue persists, the device may be faulty.
Safety Tips and Best Practices
Hardwiring a doorbell is generally safe, but a few precautions go a long way.
- Always turn off power before handling wires.
- Use insulated tools to reduce shock risk.
- Don’t work in wet conditions.
- If you’re unsure about electrical work, hire a professional.
- Keep children and pets away during installation.
- Dispose of old doorbell components responsibly.
Conclusion
Hardwiring your Ring Doorbell 3 Plus is a smart upgrade that delivers reliable power, better performance, and peace of mind. While the process involves a few technical steps—checking your transformer, handling low-voltage wiring, and configuring the chime—it’s well within reach for most DIYers.
By following this guide, you’ve learned how to hardwire Ring Doorbell 3 Plus safely and effectively. From verifying compatibility to testing the final connection, each step ensures your doorbell works flawlessly for years to come.
Remember: if at any point you feel uncomfortable or uncertain, don’t hesitate to call a licensed electrician. Your safety is more important than saving a few dollars.
Now that your Ring Doorbell 3 Plus is hardwired and online, you can enjoy 24/7 surveillance, instant alerts, and crystal-clear two-way communication—all without worrying about battery life. Welcome to the future of home security!
