How to Hook a Ring Doorbell Up - Doorbell Troubleshooting

This guide walks you through how to hook a Ring Doorbell up—from choosing the right model to final setup and testing. Whether you’re replacing an old doorbell or installing a new one, you’ll get clear, step-by-step instructions to ensure a secure and reliable connection.

Key Takeaways

Choose the Right Model: Select a Ring Doorbell that matches your home’s power setup—wired, battery, or solar.
Turn Off Power First: Always shut off electricity at the breaker before handling wires to prevent shocks or damage.
Use the Ring App: The app guides installation, connects your doorbell to Wi-Fi, and helps test functionality.
Ensure Strong Wi-Fi Signal: Place your router close or use a Wi-Fi extender for reliable video streaming and alerts.
Secure Mounting is Key: Use the included mounting bracket and screws to prevent theft or weather damage.
Test After Setup: Always test motion detection, live view, and two-way audio to confirm everything works.
Troubleshoot Common Issues: If your doorbell won’t connect, check power, Wi-Fi, or reset the device using the app.

How to Hook a Ring Doorbell Up: A Complete Step-by-Step Guide

So, you’ve decided to upgrade your front door with a Ring Doorbell. Smart, right? These devices don’t just let you see who’s at the door—they help keep your home safer, give you peace of mind, and even let you talk to delivery drivers without opening the door. But before you can enjoy all those features, you need to know how to hook a Ring Doorbell up properly.

Don’t worry—this isn’t rocket science. Whether you’re replacing an old wired doorbell or installing a brand-new battery-powered model, this guide will walk you through every step. We’ll cover everything from choosing the right Ring model to mounting, wiring (if needed), connecting to Wi-Fi, and troubleshooting common problems.

By the end of this guide, you’ll have a fully functional Ring Doorbell that’s securely installed and ready to protect your home. Let’s get started!

Step 1: Choose the Right Ring Doorbell Model

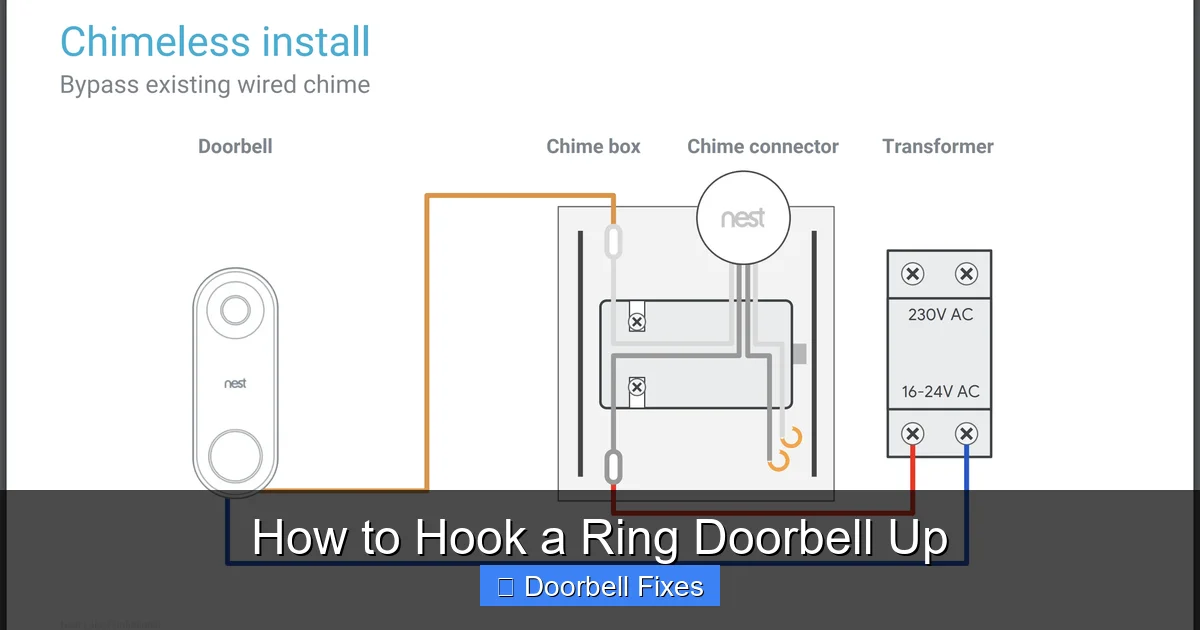

Visual guide about How to Hook a Ring Doorbell Up

Image source: storage.googleapis.com

Before you even think about installation, you need to pick the right Ring Doorbell for your home. Ring offers several models, and each works best in different situations.

Ring Video Doorbell (2nd Gen)

This is the most popular model. It’s battery-powered, so it’s great if you don’t have existing doorbell wiring. It offers 1080p HD video, two-way talk, and motion detection. You can also hardwire it if you have a transformer.

Ring Video Doorbell Wired

This model must be connected to existing doorbell wires. It doesn’t have a battery, so it’s ideal if you already have a wired doorbell setup. It’s more affordable than the battery version and doesn’t require charging.

Ring Video Doorbell Pro 2

A premium option with advanced features like 3D motion detection, bird’s-eye view, and enhanced audio. It requires wiring and a compatible transformer (16–24V). Best for tech-savvy users who want top-tier performance.

Ring Video Doorbell Elite

This model connects directly to your home’s Ethernet via Power over Ethernet (PoE). It’s perfect for homes with strong network infrastructure and offers the most reliable connection.

Ring Video Doorbell Solar

A battery-powered doorbell that comes with a solar panel charger. Great for sunny areas—just mount the panel where it gets sunlight, and it keeps your doorbell charged.

Pro Tip: Check your existing doorbell wiring before buying. If you have wires and a working transformer, a wired model might save you the hassle of charging batteries.

Step 2: Gather Your Tools and Materials

You don’t need a full toolbox, but having the right items on hand will make installation smoother.

What You’ll Need:

Your Ring Doorbell (and included mounting bracket)
Screwdriver (usually Phillips head)
Drill (if mounting on brick, concrete, or hard surfaces)
Masonry drill bits (if drilling into brick or stone)
Level (to keep the doorbell straight)
Smartphone with the Ring app installed
Wi-Fi network name and password
Optional: Wire strippers (if working with existing wires)
Optional: Voltage tester (to check if power is off)

Most Ring Doorbells come with screws, anchors, and a mounting bracket. But if you’re installing on brick or concrete, you’ll need anchors and possibly a drill.

Step 3: Turn Off the Power (For Wired Models)

If you’re installing a wired Ring Doorbell (like the Wired or Pro 2), safety comes first. You’ll be working with electrical wires, so you must turn off the power.

How to Safely Turn Off Power:

Go to your home’s electrical panel (breaker box).
Locate the breaker that controls your doorbell. It’s often labeled “doorbell,” “chime,” or “front door.” If not labeled, turn off the main breaker to be safe.
Flip the breaker to the “OFF” position.
Test the existing doorbell by pressing it. If it doesn’t ring, the power is off.
Use a non-contact voltage tester on the wires to double-check. Touch the tester to the wires—if it beeps or lights up, power is still on.

Important: Never skip this step. Even low-voltage doorbell wires can cause shocks or damage your Ring device if handled incorrectly.

Step 4: Remove the Old Doorbell (If Applicable)

If you’re replacing an old doorbell, you’ll need to remove it first.

Steps to Remove the Old Doorbell:

Unscrew the old doorbell from the wall using a screwdriver.
Gently pull it away from the wall to expose the wires.
Take a photo of the wiring setup for reference.
Loosen the terminal screws and disconnect the wires. Don’t cut them—just disconnect.
Tuck the wires back into the wall slightly so they don’t fall in.

Tip: Label the wires (e.g., “Front” and “Trans”) with tape if you’re unsure which is which. This helps when connecting to the new doorbell.

Step 5: Install the Mounting Bracket

The mounting bracket is what holds your Ring Doorbell securely to the wall. It’s included in the box and designed to fit most models.

How to Install the Bracket:

Hold the bracket against the wall where you want to install the doorbell. Make sure it’s level using a spirit level.
Mark the screw holes with a pencil.
Drill pilot holes if needed (especially for brick or concrete).
Insert wall anchors if required (use the ones included or buy masonry anchors for hard surfaces).
Screw the bracket into place using the provided screws.
Ensure it’s tight and secure—don’t overtighten, or you might crack the wall.

Pro Tip: For best motion detection, install the doorbell at a height of 48 inches (4 feet) from the ground and angled slightly toward the walkway.

Step 6: Connect the Wires (For Wired Models)

If you’re using a wired Ring Doorbell, now’s the time to connect the wires.

Steps to Connect Wires:

Strip about 1/4 inch of insulation from the ends of the wires if needed.
Loosen the terminal screws on the back of the Ring Doorbell or the mounting bracket (depending on the model).
Insert the wires into the terminals. It doesn’t matter which wire goes where—Ring devices are not polarity-sensitive.
Tighten the screws to secure the wires.
Gently tug the wires to make sure they’re snug.

Note: If your doorbell has a jumper wire (a small metal strip), use it to connect the two terminals. This helps power the doorbell and chime.

Step 7: Attach the Ring Doorbell to the Bracket

Once the bracket is mounted and wires are connected (if applicable), it’s time to attach the doorbell.

How to Attach the Doorbell:

Align the doorbell with the mounting bracket.
Slide it down until it clicks into place.
Secure it with the included security screw using a screwdriver. This prevents theft.
Make sure it’s firmly attached and doesn’t wobble.

For battery-powered models, simply snap the doorbell onto the bracket and tighten the security screw.

Step 8: Turn the Power Back On (For Wired Models)

If you turned off the power earlier, now’s the time to restore it.

Steps to Restore Power:

Go back to the breaker box.
Flip the doorbell breaker back to the “ON” position.
Wait a few seconds for the system to power up.
Check your indoor chime—if it rings when you press the doorbell, power is restored.

Warning: If the chime doesn’t work or the doorbell doesn’t power on, double-check your wiring and breaker.

Step 9: Download and Set Up the Ring App

The Ring app is essential for setup, live viewing, and managing your doorbell.

How to Set Up the App:

Download the “Ring” app from the Apple App Store or Google Play Store.
Create a Ring account (or log in if you already have one).
Tap the “+” icon to add a new device.
Select “Video Doorbell” and follow the on-screen instructions.
Scan the QR code on the back of your doorbell or enter the serial number manually.
The app will guide you through Wi-Fi setup, naming your device, and setting up motion zones.

Tip: Use a strong, unique password for your Ring account and enable two-factor authentication for extra security.

Step 10: Connect to Wi-Fi

A strong Wi-Fi connection is crucial for video quality and alerts.

Steps to Connect to Wi-Fi:

In the Ring app, select your Wi-Fi network.
Enter your Wi-Fi password carefully—case-sensitive.
Wait for the doorbell to connect. This may take 30–60 seconds.
If it fails, move closer to your router or use a Wi-Fi extender.

Pro Tip: Ring recommends a minimum upload speed of 2 Mbps for smooth video. Test your speed at the doorbell location using a smartphone.

Step 11: Test the Doorbell

Once everything is set up, test all features to ensure they work.

What to Test:

Live View: Open the app and tap “Live View” to see the camera feed.
Two-Way Audio: Tap the microphone icon and speak. You should hear yourself through the doorbell’s speaker.
Motion Detection: Walk in front of the doorbell. You should get a notification in the app.
Doorbell Press: Press the button. Your phone should alert you, and the indoor chime (if connected) should ring.

If any feature doesn’t work, go to the troubleshooting section below.

Step 12: Adjust Settings and Preferences

Customize your Ring Doorbell to fit your lifestyle.

Recommended Settings:

Motion Zones: Set zones to avoid false alerts from trees or passing cars.
Motion Sensitivity: Adjust from low to high based on your environment.
Recording Options: Choose between “On Motion” or “On Doorbell Press.”
Chime Settings: If you have a Ring Chime, link it to your doorbell for indoor alerts.
Privacy Zones: Block out areas like neighbor’s windows for privacy.

You can change these anytime in the Ring app under “Device Settings.”

Troubleshooting Common Issues

Even with careful installation, problems can happen. Here’s how to fix the most common ones.

Doorbell Won’t Power On

Check if the breaker is on.
Verify wires are connected securely.
Test the transformer voltage (should be 16–24V).
For battery models, charge the battery fully.

Poor Wi-Fi Connection

Move your router closer or use a Wi-Fi extender.
Reduce interference from microwaves or cordless phones.
Switch to a 2.4 GHz network (Ring doesn’t support 5 GHz).

No Motion Alerts

Check motion zones and sensitivity settings.
Ensure the doorbell is angled correctly.
Clean the lens—dirt or spider webs can block detection.

Two-Way Audio Not Working

Check microphone and speaker settings in the app.
Ensure your phone’s volume is up.
Restart the app and reconnect to the doorbell.

Doorbell Disconnects Frequently

Update the Ring app and firmware.
Reset the doorbell by holding the setup button for 20 seconds.
Reconnect to Wi-Fi through the app.

Final Tips for Long-Term Success

Now that your Ring Doorbell is up and running, here are a few tips to keep it working smoothly:

Clean the Lens Monthly: Use a soft, dry cloth to wipe away dust and debris.
Check Battery Levels: For battery models, recharge every 3–6 months depending on use.
Update Firmware: The Ring app will notify you of updates—install them promptly.
Review Recordings: Check your event history regularly to spot unusual activity.
Use a Solar Charger: If you have a battery model, consider adding a solar panel for continuous charging.

Conclusion

Congratulations! You’ve successfully learned how to hook a Ring Doorbell up—from choosing the right model to final testing and troubleshooting. Whether you went wired or wireless, the process is straightforward when you follow the steps carefully.

A Ring Doorbell isn’t just a gadget—it’s a smart upgrade that enhances your home’s security and convenience. With motion alerts, live video, and two-way talk, you’ll always know who’s at the door, even when you’re not home.

Remember: safety first, double-check your connections, and don’t hesitate to use the Ring app’s support features if you run into issues. With your new doorbell in place, you’re one step closer to a smarter, safer home.

Welcome to the Ring family!
