This guide walks you through how to hook up a Google Nest Doorbell, whether you’re using the wired or battery model. You’ll get clear steps, helpful tips, and troubleshooting advice to ensure a smooth installation and reliable performance.
Key Takeaways
- Choose the right model: Decide between the wired or battery-powered Nest Doorbell based on your home’s wiring and power access.
- Check compatibility first: Ensure your existing doorbell wiring (for wired models) or Wi-Fi network meets Nest’s requirements before starting.
- Use the Google Home app: All setup and configuration is done through the Google Home app, not the Nest app.
- Install at the right height: Mount the doorbell 48–60 inches from the ground for optimal motion and facial recognition.
- Test after installation: Always test the doorbell, chime, and live view to confirm everything works before finishing.
- Enable smart alerts: Customize notifications for people, packages, and motion to get the most out of your doorbell.
- Troubleshoot common issues: If the doorbell won’t connect or the chime doesn’t ring, check power, Wi-Fi, and wiring connections.
Introduction: Why Install a Google Nest Doorbell?
Upgrading to a smart doorbell like the Google Nest Doorbell is one of the easiest ways to boost your home security and convenience. Whether you’re at work, running errands, or just relaxing on the couch, you can see who’s at your door in real time—no more missed deliveries or surprise visitors. The Nest Doorbell comes in two versions: one that runs on battery and one that connects to your existing doorbell wiring. Both offer HD video, two-way audio, motion detection, and smart alerts.
In this guide, we’ll walk you through how to hook up a Google Nest Doorbell from start to finish. You’ll learn how to choose the right model, prepare for installation, mount the device, connect it to your Wi-Fi, and customize settings in the Google Home app. We’ll also cover troubleshooting tips to help you solve common problems. By the end, you’ll have a fully functional smart doorbell that keeps your home safe and connected.
Step 1: Choose the Right Nest Doorbell Model
Visual guide about How to Hook Up a Google Nest Doorbell
Image source: techgenuinely.com
Before you begin, it’s important to know which Nest Doorbell model you have—or which one you should buy. Google offers two main versions:
- Nest Doorbell (battery): Runs on a rechargeable battery and can be installed anywhere, even if you don’t have existing doorbell wiring. Ideal for renters or homes without a wired doorbell.
- Nest Doorbell (wired): Connects to your home’s existing doorbell wiring and requires a transformer with 8–24V AC. Best for permanent installations and homes with compatible wiring.
If you’re unsure which model to choose, consider your home setup. Do you already have a doorbell with wires running to it? If yes, the wired model might be a better long-term option because it doesn’t require battery recharging. However, if you’re renting or don’t want to deal with wiring, the battery version is more flexible.
Pro tip: The battery model can also be hardwired using a jumper wire (sold separately), giving you the best of both worlds—continuous power without battery maintenance.
Step 2: Gather Your Tools and Materials
Before you start installing, make sure you have everything you need. Here’s a checklist:
- Google Nest Doorbell (battery or wired)
- Screwdriver (usually Phillips #2)
- Drill and drill bits (if mounting on brick, stucco, or concrete)
- Level (to ensure the doorbell is straight)
- Pencil (for marking drill holes)
- Wire strippers (for wired models)
- Voltage tester (recommended for wired models)
- Smartphone with the Google Home app installed
- Wi-Fi network with 2.4 GHz or 5 GHz support (5 GHz recommended for better performance)
For the battery model, you’ll also need a fully charged battery. Google recommends charging it for at least 4 hours before installation.
If you’re installing the wired model, you may need a Nest Doorbell Transformer (sold separately) if your current transformer doesn’t provide enough power. Most older doorbells use 8–16V, but Nest recommends 16–24V for reliable performance.
Step 3: Turn Off Power (For Wired Models Only)
Safety first! If you’re installing the wired Nest Doorbell, you must turn off the power to your existing doorbell before touching any wires.
Locate Your Doorbell Transformer
The transformer is usually found in your basement, garage, or near your electrical panel. It converts your home’s 120V electricity to the lower voltage needed for the doorbell.
Turn Off the Circuit Breaker
Find the breaker that controls your doorbell (it may be labeled “doorbell” or “chime”) and switch it off. If you’re unsure which breaker it is, turn off the main power to be safe.
Test the Wires
Use a non-contact voltage tester to confirm there’s no power running to the doorbell wires. Touch the tester to the wires—if it beeps or lights up, the power is still on. Double-check your breaker.
Never skip this step. Working with live wires can cause injury or damage your doorbell.
Step 4: Remove Your Old Doorbell
Whether you’re replacing an old doorbell or installing a new one, you’ll need to remove the existing unit.
Unscrew the Old Doorbell
Use a screwdriver to remove the screws holding the old doorbell to the wall. Gently pull the doorbell away from the wall to expose the wires.
Disconnect the Wires
For wired models, carefully disconnect the two wires from the back of the old doorbell. You don’t need to cut them—just loosen the screws or pull them out of the terminals.
Label the wires (e.g., “Front” and “Transformer”) if possible, though Nest Doorbell doesn’t require polarity.
For battery models, you can skip this step if there are no wires. Just remove the old doorbell and patch any holes if needed.
Cap the Wires (Optional)
If you’re not using the wires (e.g., for a battery doorbell), twist wire nuts onto the exposed ends to prevent them from touching and causing a short.
Step 5: Install the Mounting Plate
The Nest Doorbell uses a mounting plate that attaches to your wall. This plate holds the doorbell securely and allows for easy removal.
Position the Mounting Plate
Hold the mounting plate against the wall where you want to install the doorbell. The ideal height is between 48 and 60 inches from the ground—this ensures the camera can see faces clearly and captures motion effectively.
Use a level to make sure the plate is straight. Mark the screw holes with a pencil.
Drill Pilot Holes
If you’re mounting on wood or drywall, you can often screw directly into the surface. For brick, stucco, or concrete, drill pilot holes using a masonry bit. Insert wall anchors if needed.
Secure the Plate
Align the mounting plate with the holes and screw it into place. Make sure it’s tight and level.
Pro tip: If your doorbell is near a corner or under an eave, consider using the optional wedge mount (sold separately) to angle the camera for a better view.
Step 6: Connect the Wires (Wired Models Only)
If you’re installing the wired Nest Doorbell, now’s the time to connect the wires.
Strip the Wire Ends
Use wire strippers to remove about 1/4 inch of insulation from each wire. This exposes the copper for a solid connection.
Attach Wires to the Mounting Plate
The Nest Doorbell mounting plate has two terminals. Insert each wire into the corresponding slot and tighten the screw to secure it. It doesn’t matter which wire goes where—Nest Doorbell is non-polarized.
Double-Check Connections
Make sure the wires are firmly attached and not loose. Loose connections can cause power issues or intermittent operation.

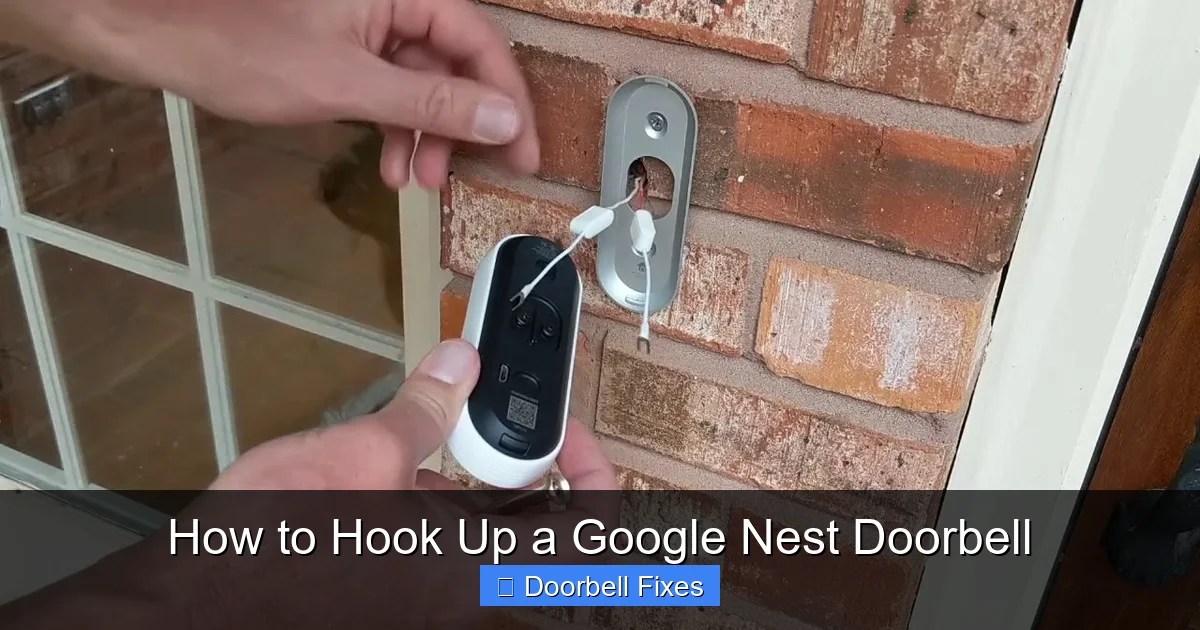

Step 7: Attach the Nest Doorbell
Now it’s time to snap the doorbell onto the mounting plate.
Align the Doorbell
Hold the Nest Doorbell so the camera faces forward and the bottom aligns with the plate. Gently press it onto the plate until you hear a click.
Secure with the Security Screw
Use the included security screw and screwdriver to fasten the doorbell to the plate. This prevents theft and ensures it stays in place.
For battery models, insert the charged battery into the compartment on the back of the doorbell before attaching it to the plate.
Step 8: Turn Power Back On (Wired Models)
If you turned off the power earlier, now’s the time to restore it.
Flip the Breaker
Go back to your electrical panel and turn the doorbell breaker back on.
Wait for the Doorbell to Power Up
The Nest Doorbell will take a few seconds to boot up. You’ll see a light ring on the front—blue means it’s starting up, and green means it’s ready to connect.
If the light doesn’t turn on, double-check your wiring and breaker. The doorbell needs power to function.
Step 9: Set Up the Doorbell in the Google Home App
All Nest devices are now set up through the Google Home app—not the old Nest app. Make sure you have the latest version installed on your iPhone or Android device.
Open the Google Home App
Launch the app and sign in with your Google account. If you don’t have one, create it—it’s free and required for setup.
Tap the + Icon
In the top-left corner, tap the “+” icon and select “Set up device.”
Choose “New Device”
Follow the prompts to add a new device. The app will search for nearby Nest products.
Scan the QR Code
Hold your phone up to the QR code on the back of the doorbell or the packaging. The app will recognize the device and begin setup.
Follow the On-Screen Instructions
The app will guide you through:
- Connecting to your Wi-Fi network (enter your password)
- Choosing a location (e.g., “Front Door”)
- Naming your doorbell (e.g., “Front Doorbell”)
- Setting up motion zones (optional)
- Enabling smart alerts
Make sure your phone is connected to the same Wi-Fi network you want the doorbell to use. Nest Doorbells work best on 2.4 GHz networks, but 5 GHz is also supported if your router allows it.
Step 10: Test the Doorbell and Chime
Once setup is complete, it’s time to test everything.
Test the Live View
Open the Google Home app and tap your doorbell. You should see a live video feed. Tap the microphone icon to test two-way audio—say something and listen for a response.
Test the Doorbell Button
Press the button on the front of the doorbell. Your phone should receive a notification, and if you have a Nest Chime or compatible mechanical/digital chime, it should ring.
Check Smart Alerts
Walk in front of the doorbell to trigger motion detection. You should get a notification on your phone. If you’ve set up person or package alerts, test those too.
If the chime doesn’t ring, check your wiring (for wired models) or ensure your chime is compatible. The Nest Doorbell works with most mechanical and digital chimes, but some older models may not be compatible.
Step 11: Customize Settings for Better Performance
Take a few minutes to fine-tune your doorbell settings for the best experience.
Adjust Motion Zones
In the Google Home app, go to your doorbell settings and select “Motion zones.” You can draw areas where you want to detect motion (e.g., the walkway) and ignore others (e.g., a busy street).
Enable Smart Alerts
Turn on alerts for people, packages, animals, and vehicles. This reduces false alarms and ensures you only get notified about important activity.
Set Quiet Hours
If you don’t want to be disturbed at night, set quiet hours in the app. During this time, motion alerts will be silenced, but doorbell presses will still notify you.
Adjust Video Quality
You can change video quality in settings. Higher quality uses more data and battery (for battery models), so choose based on your needs.
Enable Familiar Face Alerts (Optional)
If you have a Nest Aware subscription, you can enable familiar face alerts. The doorbell will recognize people it’s seen before and notify you by name.
Troubleshooting Common Issues
Even with careful installation, you might run into problems. Here’s how to fix the most common ones.
Doorbell Won’t Connect to Wi-Fi
- Make sure your Wi-Fi signal is strong at the doorbell location. Use a Wi-Fi extender if needed.
- Restart your router and try setup again.
- Ensure your network is 2.4 GHz or 5 GHz—Nest doesn’t support 6 GHz or enterprise networks.
- Move your phone closer to the doorbell during setup.
Chime Doesn’t Ring
- For wired models: Check that the wires are securely connected and the transformer provides 16–24V.
- For battery models: Ensure your chime is compatible. Some digital chimes require a resistor (included in the box).
- Test the chime directly by shorting the wires (with power off) to see if it rings.
Battery Drains Too Fast
- Reduce video quality or motion sensitivity.
- Disable unnecessary alerts.
- Ensure the doorbell isn’t in a high-traffic area triggering constant recordings.
- Recharge the battery fully and check for firmware updates.
Live View is Laggy or Freezes
- Check your internet speed—Nest recommends at least 2 Mbps upload speed.
- Move your router closer or use a mesh Wi-Fi system.
- Restart the doorbell by removing it from the mount and reattaching it.
Doorbell Falls Off the Wall
- Make sure the security screw is tightened.
- Use the wedge mount if the wall is uneven.
- Check that the mounting plate is securely attached to a solid surface.
Conclusion: Enjoy Your Smart Doorbell
Congratulations! You’ve successfully learned how to hook up a Google Nest Doorbell. Whether you chose the battery or wired model, you now have a powerful tool that enhances your home security and convenience. From real-time video to smart alerts, your Nest Doorbell keeps you connected to your front door no matter where you are.
Remember to keep your doorbell clean, update its firmware regularly, and recharge the battery (if applicable) every few months. With proper care, your Nest Doorbell will provide reliable service for years to come.
If you run into issues, don’t hesitate to consult the Google Support page or reach out to their customer service team. And if you’re looking to expand your smart home, consider pairing your doorbell with other Nest devices like cameras, thermostats, or smart displays.
Now go enjoy peace of mind—one doorbell press at a time.
