This guide walks you through how to hook up a Ring doorbell to a transformer for reliable wired power. You’ll learn the tools needed, wiring steps, and safety tips to ensure a successful installation.
Key Takeaways
- Check voltage requirements: Ring doorbells need 16–24V AC at 30–40VA. Use a compatible transformer to avoid damage.
- Turn off power first: Always shut off electricity at the breaker before working on wiring to prevent shocks or short circuits.
- Use the right tools: A voltage tester, screwdrivers, wire strippers, and a drill are essential for safe and accurate installation.
- Upgrade old transformers: Many older homes have underpowered transformers—replace them to ensure your Ring doorbell works properly.
- Test before finalizing: After wiring, test the doorbell and chime to confirm everything powers on correctly.
- Consider professional help: If you’re unsure about electrical work, hire a licensed electrician for safety and compliance.
- Maintain connections: Secure wires tightly and protect them from moisture to prevent future issues.

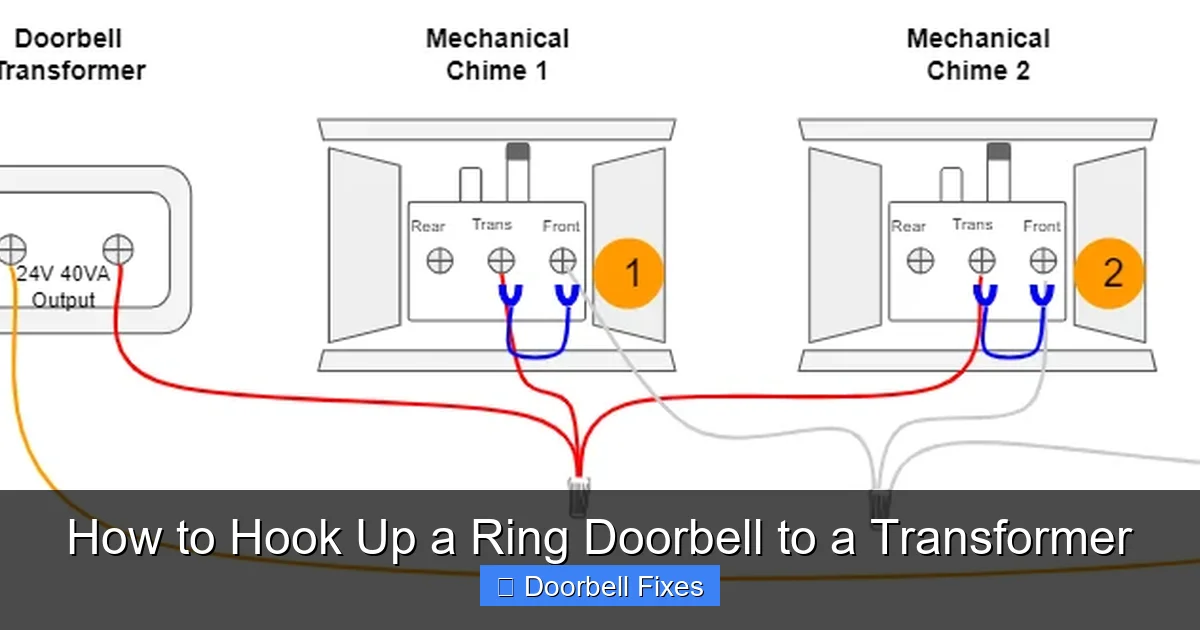

How to Hook Up a Ring Doorbell to a Transformer
If you’ve recently bought a Ring doorbell and want to wire it directly to your home’s electrical system, you’re in the right place. While Ring offers battery-powered models, many users prefer the reliability of a wired connection. That’s where a transformer comes in. A transformer converts your home’s standard 120V AC power into the lower voltage (16–24V AC) that your Ring doorbell needs to operate safely and efficiently.
In this guide, we’ll walk you through the entire process of how to hook up a Ring doorbell to a transformer. Whether you’re replacing an old doorbell or installing a new system from scratch, this step-by-step tutorial will help you get your smart doorbell up and running with confidence. We’ll cover everything from checking your current setup to testing the final installation. By the end, you’ll have a reliable, hardwired Ring doorbell that never runs out of battery.
Why Wire Your Ring Doorbell?
Before diving into the installation, let’s talk about why you might want to wire your Ring doorbell instead of using batteries.
First, a wired connection means no more charging or replacing batteries. That’s a huge win for convenience, especially if you live in an area with frequent visitors or package deliveries. You’ll never miss a notification because your doorbell died at the worst possible time.
Second, wired Ring doorbells often perform better. They can support advanced features like continuous video recording (with a Ring Protect Plus plan), two-way audio, and motion detection without draining a battery. Plus, they’re less likely to disconnect from Wi-Fi due to low power.
Finally, wiring your Ring doorbell can improve your home’s overall smart security setup. It integrates seamlessly with other Ring devices, like security cameras and smart lights, creating a cohesive system that enhances safety and peace of mind.
What You’ll Need
Before you start, gather all the necessary tools and materials. Having everything ready will make the process smoother and safer.
- Compatible transformer: Must output 16–24V AC and at least 30–40VA (volt-amperes). Check your current transformer or buy a new one if needed.
- Voltage tester: To confirm power is off and verify voltage levels.
- Screwdrivers: Phillips and flathead for removing covers and tightening terminals.
- Wire strippers: To expose fresh wire ends for secure connections.
- Electrical tape: For insulating wire connections.
- Drill and drill bits: For mounting the doorbell and routing wires if necessary.
- Wire nuts or terminal screws: To connect wires safely.
- Ladder: To safely reach the doorbell location.
- Safety gear: Gloves and safety glasses for protection.
Optional but helpful:
- Fish tape (for running wires through walls)
- Multimeter (for precise voltage testing)
- Ring Doorbell installation kit (includes mounting bracket and screws)
Step 1: Turn Off the Power
Safety is the most important part of this project. Before touching any wires, you must turn off the power to your doorbell circuit.
Locate Your Electrical Panel
Go to your home’s main electrical panel (also called the breaker box). Look for the circuit breaker that controls your doorbell. It’s often labeled “Doorbell,” “Chime,” or something similar. If it’s not labeled, you may need to test each breaker by turning them off one at a time and checking if your existing doorbell stops working.
Switch Off the Breaker
Once you’ve identified the correct breaker, switch it to the “OFF” position. This cuts power to the doorbell transformer and wiring.
Test the Wires
Even after turning off the breaker, it’s smart to double-check. Use a non-contact voltage tester or multimeter to touch the wires at the doorbell or chime. If the tester beeps or lights up, power is still on—don’t proceed until it’s fully off.
Never skip this step. Working on live wires can cause serious injury or damage your equipment.
Step 2: Check Your Current Transformer
Now that the power is off, it’s time to inspect your existing doorbell transformer. Many older homes have transformers that don’t meet Ring’s power requirements.
Find the Transformer
The transformer is usually located in one of these places:
- Inside the doorbell chime box (mounted on the wall near your front door)
- In the basement or crawlspace
- Inside the electrical panel
- Near the furnace or HVAC system
Look for a small metal or plastic box with wires coming out of it. It often has “16V” or “10VA” printed on it.
Check the Voltage and VA Rating
Ring doorbells require a transformer that outputs between 16 and 24 volts AC and provides at least 30 to 40 volt-amperes (VA). If your current transformer is rated lower—say, 8V or 10VA—it won’t supply enough power.
For example, a common old transformer might say “16V 10VA.” That’s not enough. You need at least “16V 30VA” or higher.
Test the Voltage (Optional but Recommended)
If you have a multimeter, you can test the transformer’s output. Set the multimeter to AC voltage, touch the probes to the transformer’s output terminals, and check the reading. It should be between 16 and 24 volts.
If the voltage is too low or the transformer is old and worn, it’s time to replace it.
Step 3: Install a New Transformer (If Needed)
If your current transformer doesn’t meet Ring’s requirements, you’ll need to install a new one. This is a common step, especially in older homes.
Choose the Right Transformer
Look for a transformer labeled “16V 30VA” or “16V 40VA.” These are widely available at hardware stores or online. Popular brands include Nutone, Heath/Zenith, and Ring’s own compatible transformer.
Make sure it’s designed for doorbell use and compatible with smart doorbells.
Turn Off Power Again
Even if you already turned off the breaker, double-check that power is off before touching the transformer.
Remove the Old Transformer
Disconnect the wires from the old transformer. Take a photo or label the wires so you remember which goes where. Unscrew the transformer from its mounting location.
Mount the New Transformer
Attach the new transformer to the same location using screws. Make sure it’s secure and won’t move around.
Connect the Wires
Connect the low-voltage wires (usually two, often black and white or red and white) to the output terminals of the new transformer. Tighten the screws securely.
Then, connect the line-voltage wires (from your home’s 120V circuit) to the input terminals. These are typically black (hot) and white (neutral). If there’s a green or bare wire, that’s the ground—connect it to the grounding screw.
Use wire nuts or terminal screws to secure connections. Wrap them with electrical tape for extra safety.
Restore Power and Test
Turn the breaker back on. Use your multimeter to test the output voltage. It should read between 16 and 24 volts AC.
If the voltage is correct, you’re ready to move on. If not, double-check your wiring and connections.
Step 4: Prepare the Doorbell Wiring
With the transformer in place, it’s time to prepare the wires that will connect to your Ring doorbell.
Locate the Doorbell Wires
Go to your front door and remove the existing doorbell button (if there is one). Unscrew the mounting plate and gently pull the wires out of the wall.
You should see two wires—usually low-voltage, insulated wires like 18 or 20 gauge.
Strip the Wire Ends
Use wire strippers to remove about 1/4 inch of insulation from each wire end. This exposes fresh copper for a solid connection.
Test the Wires for Power
Turn the breaker back on briefly and use a voltage tester to confirm the wires are live. Then turn the power off again before proceeding.
Never work on live wires without proper training.
Step 5: Mount the Ring Doorbell
Now it’s time to install your Ring doorbell.
Choose the Mounting Location
Pick a spot about 48 inches above the ground, centered on your door. Make sure it’s close enough to the wires and has a clear view of your entryway.
Use the included mounting bracket as a template to mark screw holes.
Drill Pilot Holes
Drill small pilot holes into the wall or door frame. This makes it easier to insert screws and prevents splitting.
Attach the Mounting Bracket
Secure the bracket with screws. Make sure it’s level and tight.
Connect the Wires
Thread the doorbell wires through the back of the Ring doorbell. Connect them to the terminals on the back of the device. It doesn’t matter which wire goes to which terminal—Ring doorbells are not polarized.
Tighten the screws to hold the wires in place. Don’t overtighten, as this can damage the terminals.
Attach the Doorbell
Snap the Ring doorbell onto the mounting bracket. Make sure it clicks into place securely.
Step 6: Test the Installation
With everything connected, it’s time to test your work.
Turn the Power Back On
Go to the breaker box and switch the doorbell circuit back on.
Check the Doorbell
The Ring doorbell should power on within a few seconds. You’ll see lights on the front, and it should connect to your Wi-Fi network.
Open the Ring app on your phone and follow the setup instructions. The app will guide you through connecting to Wi-Fi, naming your device, and testing motion and audio.
Test the Chime (If Applicable)
If you have a mechanical or digital chime, press the doorbell button. You should hear it ring inside your home.
If the chime doesn’t work, check the wiring at the chime unit. Make sure the wires are connected to the correct terminals (usually labeled “Front” and “Trans”).
Troubleshooting Common Issues
Even with careful installation, problems can happen. Here’s how to fix the most common issues.
Doorbell Doesn’t Power On
- Check that the breaker is on.
- Test the transformer output with a multimeter.
- Ensure wires are securely connected at both the doorbell and transformer.
- Verify the transformer meets Ring’s voltage and VA requirements.
Chime Doesn’t Ring
- Make sure the chime wires are connected to the right terminals.
- Check for loose or corroded connections.
- If using a digital chime, ensure it’s compatible with Ring.
Weak Wi-Fi Signal
- Move your router closer or use a Wi-Fi extender.
- Ensure the doorbell is within range of your network.
- Avoid mounting near metal surfaces or thick walls.
Flickering or Intermittent Power
- This often means the transformer is underpowered.
- Upgrade to a 16V 40VA transformer.
- Check for loose wire connections.
Safety Tips and Best Practices
Working with electricity can be dangerous. Follow these tips to stay safe.
- Always turn off power at the breaker before working on wiring.
- Use a voltage tester to confirm wires are dead.
- Never work on live circuits unless you’re a licensed electrician.
- Wear safety glasses and gloves.
- Keep water away from electrical components.
- If you’re unsure at any point, hire a professional.
When to Call a Professional
While many homeowners can install a Ring doorbell themselves, some situations call for expert help.
- You’re uncomfortable working with electricity.
- Your home has complex wiring or no existing doorbell wires.
- You need to run new wires through walls or ceilings.
- The electrical panel is hard to access or outdated.
- You’re not sure about local electrical codes.
A licensed electrician can ensure the job is done safely and up to code. It’s a small investment for peace of mind.
Conclusion
Hooking up a Ring doorbell to a transformer might seem intimidating at first, but with the right tools and careful steps, it’s a manageable DIY project. By upgrading to a compatible transformer, following safety protocols, and testing your connections, you can enjoy a reliable, hardwired smart doorbell that enhances your home’s security.
Remember, the key to success is preparation and patience. Check your voltage, turn off the power, and double-check every connection. If something doesn’t work, don’t panic—most issues are fixable with a little troubleshooting.
Now that you know how to hook up a Ring doorbell to a transformer, you’re ready to enjoy 24/7 protection, crystal-clear video, and instant alerts—all without worrying about battery life. Welcome to the future of home security.
