How to Hook Up Doorbell Button to Arduino

How to Hook Up Doorbell Button to Arduino

by

Turn your ordinary doorbell into a smart device using an Arduino. This guide walks you through wiring, coding, and troubleshooting so you can detect button presses and trigger custom actions like lights, sounds, or notifications.

Key Takeaways

  • Understand the basics: Learn how a doorbell button works and why it’s perfect for Arduino input.
  • Safe wiring practices: Use low-voltage components and proper insulation to avoid electrical hazards.
  • Simple circuit setup: Connect the doorbell button to Arduino using a pull-down resistor for reliable signal detection.
  • Code made easy: Use Arduino IDE to write a basic sketch that reads the button state and triggers an action.
  • Expand functionality: Add LEDs, buzzers, or Wi-Fi modules to create a smart doorbell system.
  • Troubleshoot like a pro: Fix common issues like false triggers or unresponsive buttons with simple checks.
  • Customize your project: Adapt the setup for home automation, security alerts, or fun notifications.

Introduction: Why Hook Up a Doorbell Button to Arduino?

Have you ever wished your doorbell could do more than just ring? Maybe you want it to flash a light, send you a text, or log who visited while you were out. That’s where Arduino comes in.

Arduino is a small, affordable microcontroller that lets you build smart devices with code. By connecting a doorbell button to Arduino, you turn a simple mechanical switch into the brain of a custom notification system. Whether you’re a beginner or a seasoned tinkerer, this project is fun, practical, and highly customizable.

In this guide, you’ll learn exactly how to hook up a doorbell button to Arduino. We’ll cover everything from understanding how doorbell buttons work to writing your first Arduino sketch. You’ll also learn how to expand your project with lights, sounds, or even internet connectivity.

No prior experience? No problem. We’ll walk you through each step with clear instructions, diagrams, and troubleshooting tips. By the end, you’ll have a working smart doorbell prototype—and the knowledge to make it even smarter.

What You’ll Need

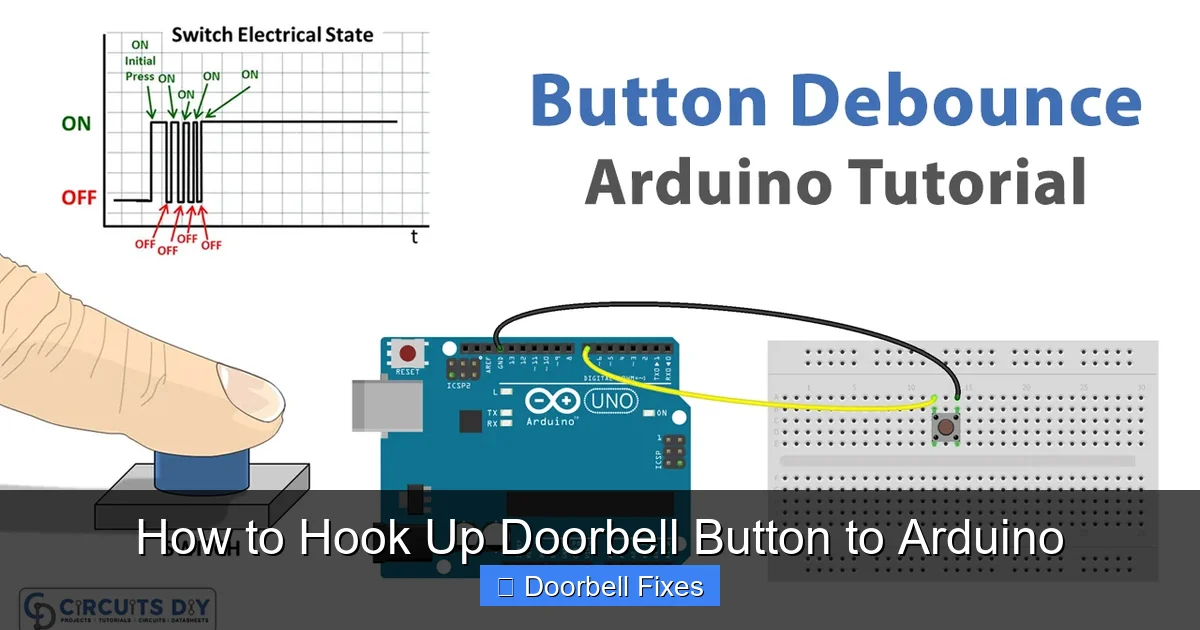

How to Hook Up Doorbell Button to Arduino

Visual guide about How to Hook Up Doorbell Button to Arduino

Image source: circuits-diy.com

Before we start wiring, let’s gather the tools and parts. Most of these are inexpensive and easy to find online or at electronics stores.

Essential Components

  • Arduino board: The Arduino Uno is perfect for beginners. It’s widely supported and has plenty of digital pins.
  • Doorbell button: A standard momentary push button. Look for one labeled “normally open” (NO).
  • Breadboard: Helps you prototype without soldering.
  • Jumper wires: Male-to-male and male-to-female wires for connections.
  • Resistor (10kΩ): Used as a pull-down resistor to stabilize the input signal.
  • LED (optional): For visual feedback when the button is pressed.
  • 220Ω resistor (optional): Protects the LED from too much current.
  • USB cable: To connect Arduino to your computer for power and programming.

Tools

  • Computer with Arduino IDE installed (free download from arduino.cc)
  • Wire strippers (if using solid core wire)
  • Screwdriver (if your doorbell button has screw terminals)

Optional Upgrades

  • Buzzer or speaker for sound alerts
  • Wi-Fi module (like ESP8266) for internet notifications
  • Relay module to control high-voltage doorbells safely
  • Enclosure to protect your circuit

Understanding How a Doorbell Button Works

Before wiring anything, it helps to know what’s happening inside that button.

A typical doorbell button is a momentary switch. That means it only closes the circuit when you press it. Once you let go, it springs back open. Most home doorbells use this type because they’re simple and reliable.

When you press the button, it completes a circuit and sends power to the doorbell chime. But in our Arduino project, we’re not powering a chime—we’re using the button to send a signal to the microcontroller.

Arduino reads this signal through one of its digital input pins. These pins can detect whether a voltage is high (5V) or low (0V). When the button is pressed, the pin reads “HIGH.” When released, it should read “LOW.”

But here’s the catch: if the pin isn’t connected to anything, it can “float” and give random readings. That’s why we use a pull-down resistor—it ensures the pin stays at 0V when the button isn’t pressed.

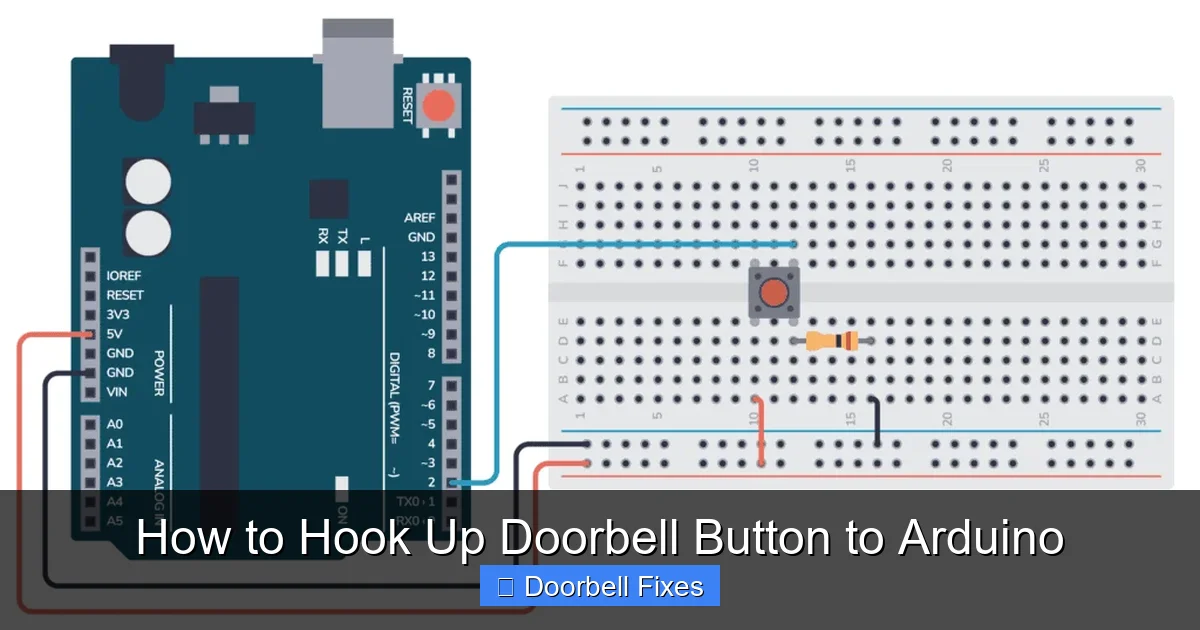

Step-by-Step Wiring Guide

Now let’s build the circuit. Follow these steps carefully to avoid mistakes.

Step 1: Power the Breadboard

Start by connecting the Arduino’s power rails to the breadboard.

  • Connect the 5V pin on Arduino to the red (+) rail on the breadboard.
  • Connect the GND (ground) pin to the blue (-) rail.

These rails will supply power to your components.

Step 2: Place the Doorbell Button

Insert the doorbell button into the breadboard so that its four legs straddle the center gap. This ensures the two left legs are connected together, and the two right legs are connected—but not to each other.

Most buttons have two pairs of connected pins. You only need to use one pair. Pick the left side for this example.

Step 3: Connect the Pull-Down Resistor

Take the 10kΩ resistor (brown-black-orange-gold) and connect one end to the same row as one leg of the button. Connect the other end to the ground rail (blue).

This resistor pulls the input pin down to 0V when the button isn’t pressed.

Step 4: Wire the Input Pin

Use a jumper wire to connect the same row (where the resistor and button leg meet) to digital pin 2 on the Arduino.

This is where Arduino will read the button state.

Step 5: Connect Power to the Button

Use another jumper wire to connect the other leg of the button (on the same side) to the 5V rail (red).

Now, when you press the button, 5V will flow through the button to pin 2. When released, the pull-down resistor keeps pin 2 at 0V.

Step 6: Add an LED (Optional)

For visual feedback, add an LED:

  • Connect the long leg (anode) of the LED to digital pin 13 through a 220Ω resistor.
  • Connect the short leg (cathode) to the ground rail.

Pin 13 has a built-in resistor on most Arduino boards, but using your own is safer and clearer.

Writing the Arduino Code

Now that the circuit is ready, let’s write code to read the button and light the LED.

Step 1: Open Arduino IDE

Download and install the Arduino IDE from [arduino.cc](https://www.arduino.cc) if you haven’t already. Launch it on your computer.

Step 2: Set Up the Sketch

Start a new sketch and name it “Doorbell_Button.”

At the top, define your pins:

const int buttonPin = 2;     // the number of the pushbutton pin
const int ledPin = 13;       // the number of the LED pin

int buttonState = 0;         // variable for reading the pushbutton status

Step 3: Configure Pins in setup()

In the setup() function, set the pin modes:

void setup() {
  pinMode(ledPin, OUTPUT);      // initialize the LED pin as an output
  pinMode(buttonPin, INPUT);    // initialize the pushbutton pin as an input
  Serial.begin(9600);           // start serial communication for debugging
}

The Serial.begin(9600) line lets you see messages in the Serial Monitor.

Step 4: Read the Button in loop()

In the loop() function, read the button and control the LED:

void loop() {

  buttonState = digitalRead(buttonPin);  // read the state of the pushbutton


  if (buttonState
