Setting up your Google Nest Doorbell doesn’t have to be complicated. This guide walks you through every step—whether you’re installing a wired or battery-powered model—so you can start monitoring your front door in no time. We’ll cover tools, app setup, mounting, and common fixes to keep your doorbell running smoothly.
Key Takeaways
- Choose the right model: Google offers both wired and battery-powered Nest Doorbells—pick the one that fits your home’s setup.
- Download the Google Home app: This is essential for setup, live viewing, and managing notifications.
- Check your Wi-Fi signal: A strong 2.4 GHz or 5 GHz connection near your door ensures reliable performance.
- Use the right tools: A drill, screwdriver, level, and possibly a voltage tester are key for a clean install.
- Test before final mounting: Always test your doorbell temporarily before securing it permanently.
- Enable smart alerts: Customize motion and person detection to reduce false alarms.
- Troubleshoot common issues: From Wi-Fi drops to charging problems, we’ve got solutions.
Introduction: Why Install a Google Nest Doorbell?
Your front door is the first line of defense for your home. With a Google Nest Doorbell, you can see who’s at the door—even when you’re not home. Whether it’s a delivery person, a neighbor, or something suspicious, you’ll get instant alerts on your phone. Plus, with two-way audio, you can talk to visitors from anywhere.
But before you can enjoy these features, you need to know how to hook up your Google Nest Doorbell properly. This guide will walk you through the entire process, from unboxing to final setup. Whether you’re installing a wired Nest Doorbell (1st or 2nd gen) or the battery-powered Nest Doorbell (2nd gen), we’ve got you covered.
By the end of this guide, you’ll have a fully functional smart doorbell that integrates seamlessly with your Google Home ecosystem. We’ll cover everything: tools you’ll need, step-by-step installation, app configuration, and troubleshooting tips. Let’s get started!
What You’ll Need Before You Begin
Before you start drilling or connecting wires, make sure you have the right tools and materials. Having everything ready will save you time and frustration.
Visual guide about How to Hook Up Google Nest Doorbell
Image source: hellotech.com
Tools and Materials Checklist
- Google Nest Doorbell (wired or battery) – Make sure it’s the correct model for your needs.
- Google Home app – Download it from the App Store (iOS) or Google Play (Android).
- Smartphone or tablet – Required for setup and monitoring.
- Drill and drill bits – For mounting the doorbell bracket.
- Screwdriver (Phillips head) – For securing screws and terminal connections.
- Level – To ensure your doorbell is straight.
- Pencil or marker – For marking drill points.
- Voltage tester (for wired models) – To check if your existing doorbell wiring is live and compatible.
- Wire strippers (for wired models) – If you need to trim or expose wires.
- Optional: Wire nuts or electrical tape – For securing loose wires.
- Optional: Chime connector (for wired models) – If your mechanical chime isn’t compatible.
Having these tools on hand will make the installation process smoother. If you’re installing a battery-powered model, you won’t need a voltage tester or wire strippers, but a drill is still necessary for mounting.
Step 1: Choose the Right Nest Doorbell Model
Google offers two main types of Nest Doorbells: wired and battery-powered. Choosing the right one depends on your home’s setup and your preferences.
Wired Nest Doorbell (1st & 2nd Gen)
The wired models connect directly to your existing doorbell wiring. They’re ideal if you already have a doorbell system with low-voltage wires (typically 16–24V). These models don’t require charging and provide continuous power, so you never have to worry about battery life.
However, they do require some electrical knowledge. You’ll need to turn off power at the breaker, remove your old doorbell, and connect the wires to the Nest Doorbell’s terminals. If your chime is mechanical (not digital), you may also need a Nest Chime Connector to prevent damage.
Battery-Powered Nest Doorbell (2nd Gen)
The battery-powered version is easier to install and doesn’t require existing wiring. It runs on a rechargeable battery that lasts about 1–2 months, depending on usage. You’ll need to remove and charge it periodically, but it’s perfect for renters or homes without doorbell wiring.
This model also supports optional wiring—if you do have wires, you can connect them to keep the battery charged. But even without wires, it works great on battery power alone.
Tip: If you’re unsure which model to choose, consider your home’s wiring and how often you want to charge the device. For most people, the battery model offers the best balance of ease and functionality.
Step 2: Prepare Your Installation Location
Before you start drilling, take time to plan where you’ll install your Nest Doorbell. The ideal spot is at eye level, about 4–5 feet above the ground, and within range of your Wi-Fi signal.
Check Wi-Fi Signal Strength
A weak Wi-Fi signal can cause lag, dropped video, or failed alerts. Use your phone to check the signal strength at your front door. If it’s weak, consider moving your router, using a Wi-Fi extender, or upgrading to a mesh network.
The Nest Doorbell works on both 2.4 GHz and 5 GHz networks, but 2.4 GHz typically has better range through walls. If your router broadcasts both bands, make sure your phone connects to the 2.4 GHz network during setup.
Assess Existing Wiring (For Wired Models)
If you’re installing a wired Nest Doorbell, check your current doorbell wiring. Turn off the power at the breaker, then remove the old doorbell button. Use a voltage tester to confirm the wires are live and measure the voltage.
Nest recommends a voltage between 16V and 24V AC. If your system is lower (like 8V), it may not provide enough power. In that case, you might need a transformer upgrade or consider the battery model.
Mark the Mounting Spot
Hold the Nest Doorbell mounting bracket against the wall where you want to install it. Use a level to make sure it’s straight, then mark the screw holes with a pencil. Make sure the doorbell will face the right direction—toward the walkway or driveway.
Pro Tip: If you’re installing near a doorframe or trim, angle the doorbell slightly outward for a better view of approaching visitors.
Step 3: Install the Mounting Bracket
Now it’s time to secure the mounting bracket to your wall. This step is the same for both wired and battery models, though wired installations require extra care with the wires.
Drill Pilot Holes
Using the marks you made earlier, drill pilot holes into the wall. Use a drill bit slightly smaller than the screws provided. This prevents the wall from cracking and makes screwing easier.
If you’re drilling into brick, concrete, or stucco, use a masonry bit and wall anchors. For wood or siding, standard screws should work fine.
Secure the Bracket
Line up the bracket with the pilot holes and screw it into place. Make sure it’s tight and level. The Nest Doorbell will snap onto this bracket, so it needs to be sturdy.
Tip: If you’re installing on a sloped surface, use the included angled mount (if available) to keep the doorbell level.

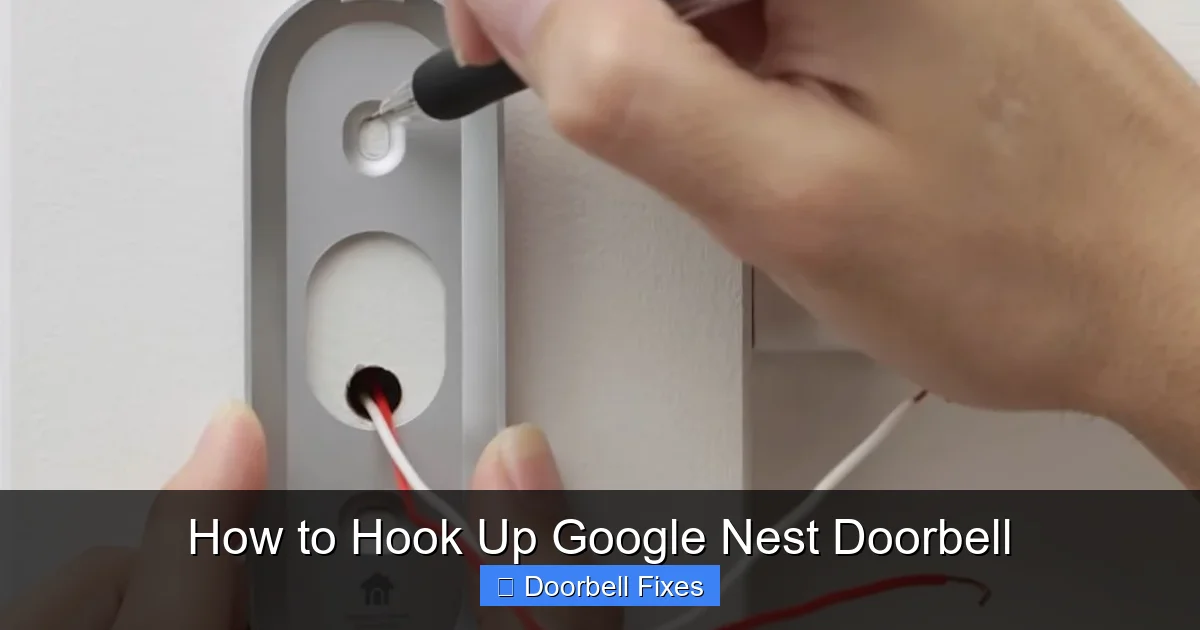

Route the Wires (Wired Models Only)
If you’re using a wired model, feed the existing doorbell wires through the center hole of the bracket. Leave enough slack to connect them to the doorbell terminals later.
Trim the wires if they’re too long, and strip about 1/4 inch of insulation from the ends using wire strippers. This ensures a solid connection.
Step 4: Connect the Wires (Wired Models Only)
This step is only for wired Nest Doorbells. If you’re using the battery model, skip to the next section.
Turn Off Power
Safety first! Go to your electrical panel and turn off the breaker that controls your doorbell circuit. Use a voltage tester to confirm the wires are not live before touching them.
Connect the Wires
The Nest Doorbell has two terminal screws: one marked “Front” and one marked “Trans.” Connect your existing doorbell wires to these terminals. It doesn’t matter which wire goes where—Nest uses polarity-free wiring.
Tighten the screws securely, but don’t over-tighten. Loose connections can cause power issues or intermittent operation.

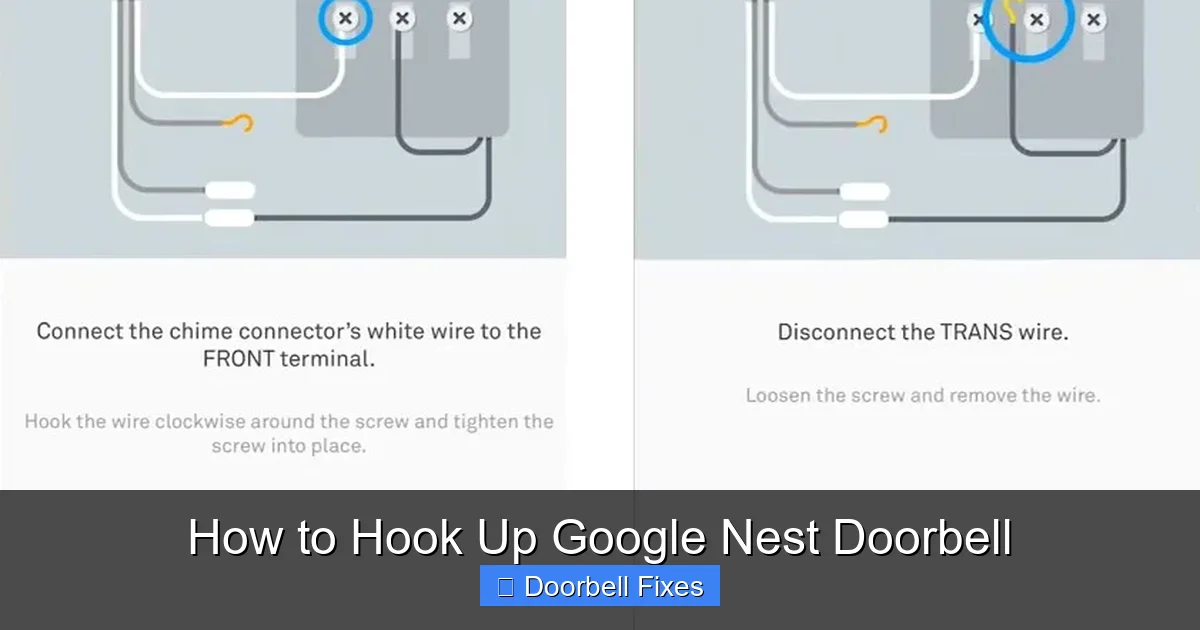

Install the Chime Connector (If Needed)
If you have a mechanical chime (the kind with a physical bell inside), you may need a Nest Chime Connector. This small device prevents voltage spikes that can damage the doorbell.
Connect the Chime Connector to the “Front” and “Trans” terminals on your chime, following the instructions in the Nest app. The app will guide you through this during setup.
Note: Digital chimes usually don’t need a connector. If you’re unsure, check your chime model or consult Nest’s compatibility list.
Step 5: Attach the Nest Doorbell
Now it’s time to snap the doorbell onto the mounting bracket. This step is the same for both models.
Snap It Into Place
Align the doorbell with the bracket and press firmly until it clicks. You should hear a secure snap, indicating it’s locked in place.
For wired models, make sure the wires aren’t pinched or strained. They should sit neatly behind the doorbell.
Test the Fit
Gently tug on the doorbell to ensure it’s secure. It shouldn’t wobble or come loose. If it does, double-check the bracket installation.
Tip: If you’re installing the battery model and plan to wire it later, you can still attach it now and add wires afterward.
Step 6: Set Up the Google Home App
The Google Home app is the control center for your Nest Doorbell. It’s where you’ll view live video, adjust settings, and receive alerts.
Download and Open the App
If you haven’t already, download the Google Home app from the App Store or Google Play. Open it and sign in with your Google account.
Add Your Doorbell
Tap the “+” icon in the top-left corner, then select “Set up device.” Choose “New device” and follow the on-screen prompts.
The app will search for nearby Nest devices. When it finds your doorbell, tap it to begin setup.
Connect to Wi-Fi
Enter your Wi-Fi network name (SSID) and password. Make sure you’re connecting to a 2.4 GHz or 5 GHz network. The app will guide you through the process.
If your network uses a hidden SSID or enterprise security, you may need to manually enter the details.
Complete the Setup
The app will ask you to name your doorbell (e.g., “Front Door”), choose a room, and set up notifications. You can also enable features like motion zones and familiar face detection.
Once setup is complete, you’ll see a live video feed from your doorbell. Tap the screen to test two-way audio.
Step 7: Customize Your Settings
Now that your doorbell is online, take a few minutes to customize it for your needs.
Adjust Motion Zones
In the Google Home app, go to your doorbell settings and select “Motion zones.” You can draw areas where you want to receive alerts (e.g., the driveway) and ignore others (e.g., a busy street).
This reduces false alarms from passing cars or animals.
Enable Smart Alerts
Turn on “Person alerts” and “Package alerts” to get notified only when relevant activity is detected. You can also set quiet hours to avoid disturbances at night.
Set Up Chime Notifications
If you have a Nest Chime or a compatible smart speaker, you can set it to ring when someone presses the doorbell. Go to “Doorbell settings” and link your chime.
Review Video History
With a Nest Aware subscription, you can save and review video clips. This is useful for security or checking deliveries. You can choose between 3-hour event history (free) or longer storage with a paid plan.
Troubleshooting Common Issues
Even with careful installation, you might run into problems. Here are solutions to the most common issues.
Doorbell Won’t Turn On
If your wired doorbell doesn’t power on, check the breaker and wiring connections. Make sure the wires are securely attached and the voltage is within range.
For battery models, ensure the battery is charged and properly inserted. Try removing and reinserting it.
Poor Wi-Fi Connection
If the video is laggy or drops frequently, your Wi-Fi signal may be weak. Move your router closer, use a Wi-Fi extender, or switch to a 2.4 GHz network.
You can also check the signal strength in the Google Home app under device settings.
Chime Not Ringing
If your mechanical chime doesn’t ring, you may need a Chime Connector. Make sure it’s installed correctly and the wires are connected.
For digital chimes, check compatibility and ensure the doorbell is sending the signal.
Battery Draining Too Fast
If your battery doorbell drains quickly, reduce motion sensitivity, disable unnecessary alerts, or connect it to existing wires for continuous charging.
Also, avoid placing it in direct sunlight, which can overheat the battery.
App Not Connecting
If the Google Home app can’t find your doorbell, make sure both devices are on the same Wi-Fi network. Restart your router and phone, then try again.
You can also reset the doorbell by holding the button on the back for 10 seconds until it blinks red.
Conclusion: Enjoy Your Smart Doorbell
Congratulations! You’ve successfully learned how to hook up your Google Nest Doorbell. Whether you chose the wired or battery model, you now have a powerful tool to monitor your home and stay connected to visitors.
Remember to keep your app updated, check battery levels regularly (for battery models), and adjust settings as needed. With the right setup, your Nest Doorbell will provide peace of mind for years to come.
If you run into any issues, refer back to this guide or contact Google Support. And don’t forget to explore advanced features like Nest Aware, which adds cloud storage and intelligent alerts.
Your front door just got a whole lot smarter. Welcome to the future of home security!
