This guide walks you through how to hook up Ring to doorbell—whether you’re replacing an old doorbell or installing a new one. You’ll learn about compatibility, wiring, app setup, and troubleshooting common issues.
Key Takeaways
- Check compatibility first: Not all doorbells work with Ring. Verify your existing wiring and voltage before buying.
- Choose the right Ring model: Ring Video Doorbell (wired), Ring Video Doorbell Pro, or Ring Video Doorbell Battery each have different installation needs.
- Turn off power safely: Always shut off electricity at the breaker before working with wires to avoid shocks or damage.
- Use the Ring app for setup: The app guides you through Wi-Fi connection, device pairing, and motion settings.
- Test after installation: Make sure the chime rings, video streams, and motion alerts work properly.
- Troubleshoot common issues: Problems like no power, weak signal, or failed pairing often have simple fixes.
- Consider a Ring Chime or Chime Pro: These enhance audio alerts and extend Wi-Fi range for better performance.
How to Hook Up Ring to Doorbell: A Complete Step-by-Step Guide
So, you’ve decided to upgrade your home security with a Ring doorbell—great choice! Whether you’re replacing an old mechanical doorbell or installing a smart one from scratch, knowing how to hook up Ring to doorbell properly is key to getting the best performance. This guide will walk you through every step, from checking compatibility to final testing, so you can enjoy crystal-clear video, instant alerts, and peace of mind.
In this guide, you’ll learn:
– How to determine if your current doorbell setup works with Ring
– The differences between Ring doorbell models and which one suits your home
– Step-by-step instructions for both wired and battery-powered installations
– How to use the Ring app to complete setup and customize settings
– Troubleshooting tips for common problems like no power, poor Wi-Fi, or failed pairing
Let’s get started!
Step 1: Check Compatibility Before You Buy

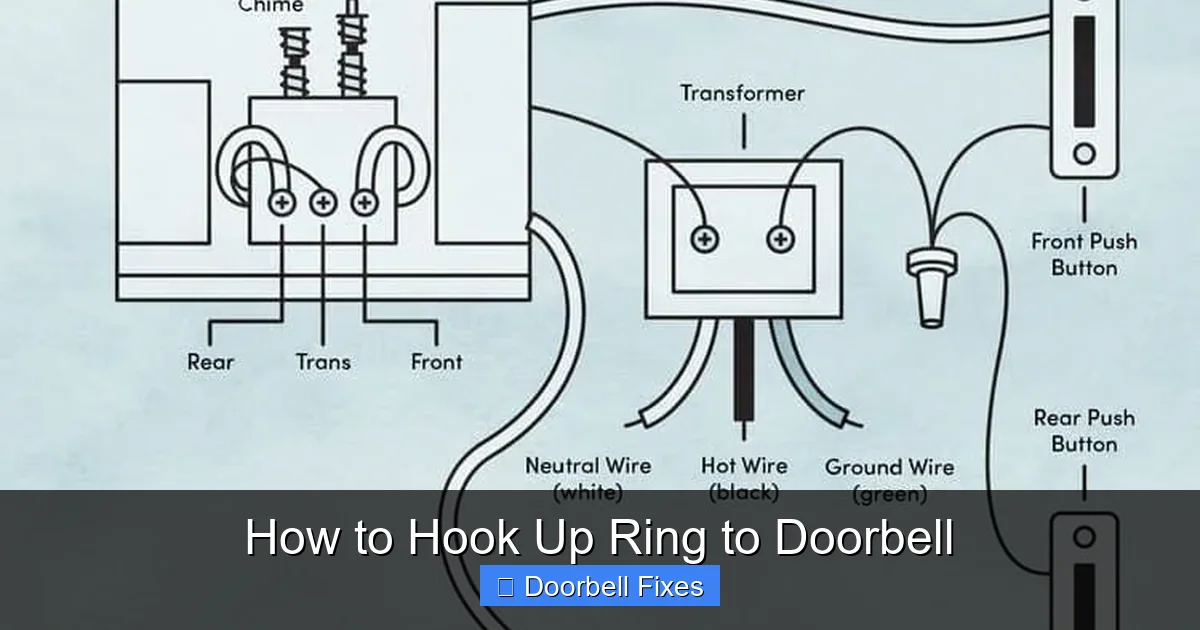

Visual guide about How to Hook Up Ring to Doorbell
Image source: storables.com
Before you even unbox your Ring doorbell, it’s essential to make sure your home is ready for it. Not all doorbells are compatible with Ring, especially older homes with low-voltage systems or no existing wiring.
Check Your Existing Doorbell Wiring
Most Ring wired models (like the Ring Video Doorbell Wired or Ring Video Doorbell Pro) require low-voltage AC wiring—typically 8–24 volts. Here’s how to check:
– Locate your existing doorbell transformer. It’s usually near your electrical panel, in the basement, or in a closet.
– Use a multimeter to test the voltage across the doorbell wires. If it reads between 8V and 24V AC, you’re good to go.
– If there’s no voltage or the reading is too low, you may need to upgrade your transformer.
Pro Tip: If you’re unsure about electrical work, consult a licensed electrician. Safety first!
Assess Your Doorbell Chime
Ring doorbells work with both mechanical (ding-dong) and digital chimes, but some older digital chimes may not be compatible. Ring provides a compatibility list in their support center. If your chime isn’t listed, you might need a Ring Chime (sold separately) to get audible alerts inside your home.
Wi-Fi Requirements
Your Ring doorbell needs a stable 2.4 GHz Wi-Fi connection (some newer models support 5 GHz). Make sure your router is within range of your front door. If your signal is weak, consider using a Wi-Fi extender or the Ring Chime Pro, which doubles as a Wi-Fi booster.
Step 2: Choose the Right Ring Doorbell Model
Ring offers several doorbell models, each with different installation requirements. Picking the right one ensures a smoother setup.
Ring Video Doorbell (Battery)
– Powered by a rechargeable battery
– No wiring needed—ideal for renters or homes without existing doorbell wires
– Easy to install in under 10 minutes
– Requires battery recharging every 6–12 months
Ring Video Doorbell Wired
– Connects to existing doorbell wires
– No battery to charge—powered by your home’s electrical system
– Requires compatible wiring and voltage
– Sleeker design than the battery version
Ring Video Doorbell Pro / Pro 2
– Advanced features like pre-roll video, dual-band Wi-Fi, and enhanced motion detection
– Requires a Pro Power Kit (included) and compatible transformer (16–24V)
– Best for users who want top-tier performance
Ring Video Doorbell Elite
– Hardwired with Ethernet connection for maximum reliability
– Requires professional installation
– Ideal for large homes or areas with poor Wi-Fi
For most homeowners, the Ring Video Doorbell (Battery) or Ring Video Doorbell Wired offers the best balance of ease and functionality.
Step 3: Gather Your Tools and Materials
Before you begin, make sure you have everything you need. Here’s a checklist:
– Ring doorbell (and mounting bracket, included)
– Screwdriver (Phillips and flathead)
– Drill and drill bits (if mounting on brick or concrete)
– Level (to ensure the doorbell is straight)
– Smartphone with the Ring app installed
– Ladder (if your doorbell is high up)
– Wire strippers (for wired models)
– Electrical tape (optional, for securing wires)
If you’re installing a wired model, you may also need:
– Voltage tester
– Wire nuts
– Ring Pro Power Kit (for Pro models)
Having these tools ready will save time and frustration during installation.
Step 4: Turn Off Power at the Breaker
Safety is critical when working with electricity. Even though doorbell wires carry low voltage, it’s still possible to get shocked or damage your device.
Locate Your Electrical Panel
Find your home’s main electrical panel (breaker box). Look for the circuit labeled “doorbell” or “chime.” If it’s not labeled, turn off the main power or test each breaker until the doorbell stops working.
Test the Wires
After turning off the breaker, remove the old doorbell and use a voltage tester to confirm no power is flowing. This extra step ensures safety.
Important: Never skip this step. Even low-voltage systems can be dangerous if mishandled.
Step 5: Remove the Old Doorbell
Now it’s time to take down your existing doorbell.
Unscrew the Faceplate
Use a screwdriver to remove the screws holding the old doorbell in place. Gently pull it away from the wall.
Disconnect the Wires
You’ll see two wires connected to the back. Loosen the screws or pull out the wire connectors. Label them “Front” and “Trans” (Transformer) if possible, so you know where to reconnect them later.
Tuck Wires into the Wall
Push the wires back into the wall slightly so they don’t get in the way. Don’t cut them—you’ll need them for the Ring doorbell.
Step 6: Install the Ring Mounting Bracket
The mounting bracket holds your Ring doorbell securely and ensures proper alignment.
Choose the Right Bracket Angle
Ring includes angled brackets (10°, 20°, 30°) to adjust the viewing angle. Use the one that gives the best view of your walkway or driveway.
Mark and Drill Holes
Hold the bracket against the wall where you want the doorbell. Use a level to make sure it’s straight. Mark the screw holes with a pencil.
If you’re mounting on wood, screw directly into the wall. For brick or concrete, drill pilot holes and use wall anchors.
Secure the Bracket
Attach the bracket using the provided screws. Make sure it’s tight and doesn’t wobble.
Step 7: Connect the Wires (Wired Models Only)
If you’re installing a wired Ring doorbell, now’s the time to connect the wires.
Strip the Wire Ends
Use wire strippers to remove about 1/4 inch of insulation from each wire. This exposes fresh copper for a solid connection.
Attach Wires to the Bracket
On the back of the mounting bracket, you’ll see two terminals. Loosen the screws, insert the wires, and tighten them down. It doesn’t matter which wire goes where—Ring is non-polarized.
Pro Tip: If the wires are too short, use wire extenders or fish new wires through the wall.
Secure Loose Wires
Tuck any excess wire into the wall to prevent it from getting pinched or damaged.
Step 8: Attach the Ring Doorbell
Now it’s time to mount the Ring device.
Slide the Doorbell onto the Bracket
Align the doorbell with the bracket and slide it down until it clicks into place. You should hear a secure snap.
Secure with Security Screw
Use the included security screw and screwdriver to lock the doorbell in place. This prevents theft or tampering.
Step 9: Turn Power Back On
Go back to your electrical panel and turn the breaker back on. The Ring doorbell should power up within a few seconds.
Check for Lights
Look for a light on the front of the doorbell. A solid green or blue light means it’s receiving power and connecting to Wi-Fi.
If there’s no light, double-check your wiring and breaker.
Step 10: Set Up the Ring App
The Ring app is your control center for everything—setup, alerts, video history, and more.
Download the Ring App
Available for free on iOS and Android. Create an account or log in if you already have one.
Add a New Device
Tap the “+” icon and select “Doorbells.” Choose your model and follow the on-screen instructions.
Scan the QR Code
Use your phone’s camera to scan the QR code on the back of the doorbell or inside the app. This pairs the device with your account.
Connect to Wi-Fi
Select your home Wi-Fi network and enter the password. The app will guide you through the connection process.
Note: Use 2.4 GHz Wi-Fi for best results. If your router broadcasts both 2.4 GHz and 5 GHz under the same name, temporarily rename the 5 GHz network to avoid confusion.
Test the Connection
Once connected, the app will confirm the setup. You should see a live video feed from your doorbell.
Step 11: Configure Settings and Preferences
Now that your Ring is online, customize it to fit your lifestyle.
Set Motion Zones
In the app, go to Device Settings > Motion Settings. Draw zones where you want motion detection (e.g., driveway, sidewalk). Avoid areas like busy streets to reduce false alerts.
Adjust Motion Sensitivity
Choose from Low, Medium, or High. Start with Medium and adjust based on how many alerts you receive.
Enable Smart Alerts
Ring can distinguish between people, packages, and vehicles. Turn on “People Only Mode” to reduce unnecessary notifications.
Set Up Chime
If you have a Ring Chime or Chime Pro, pair it in the app. You can choose different sounds and adjust volume.
Enable Two-Way Talk
Test the microphone and speaker by speaking through the app. Make sure visitors can hear you clearly.
Step 12: Test Everything
Before calling the job done, run a full test.
Test the Doorbell Button
Press the button and confirm:
– The chime rings (if connected)
– You receive a notification on your phone
– The video call opens in the app
Test Motion Detection
Walk through your motion zones and check if alerts appear. Review the video clips to ensure quality.
Check Night Vision
Test the doorbell at night. The infrared LEDs should provide clear black-and-white video.
Verify Two-Way Audio
Speak through the app and have someone at the door confirm they can hear you.
Troubleshooting Common Issues
Even with careful installation, problems can happen. Here’s how to fix the most common ones.
No Power or Lights
– Check the breaker—make sure it’s on.
– Test the wires with a multimeter.
– Ensure the transformer provides 8–24V AC.
– For battery models, charge the battery fully.
Weak or No Wi-Fi Signal
– Move your router closer or use a Wi-Fi extender.
– Switch to 2.4 GHz network.
– Consider a Ring Chime Pro for boosted signal.
Doorbell Doesn’t Ring Inside
– Confirm your chime is compatible.
– Pair a Ring Chime or Chime Pro.
– Check volume settings in the app.
Video is Blurry or Laggy
– Clean the camera lens with a soft cloth.
– Check internet speed—Ring needs at least 2 Mbps upload.
– Reduce motion sensitivity to lower data usage.
App Won’t Connect or Pair
– Restart your phone and router.
– Reinstall the Ring app.
– Reset the doorbell (hold the setup button for 20 seconds).
Battery Drains Too Fast
– Reduce motion sensitivity.
– Disable pre-roll if not needed.
– Use a solar charger (sold separately) for continuous power.
Maintenance Tips for Long-Term Performance
To keep your Ring doorbell working smoothly:
– Clean the lens monthly with a microfiber cloth.
– Check battery level regularly (for battery models).
– Update the app and firmware when prompted.
– Trim bushes or trees that block the camera view.
– Review motion settings seasonally (e.g., snow, leaves).
Conclusion
Hooking up a Ring to your doorbell doesn’t have to be complicated. By following this guide, you’ve learned how to check compatibility, choose the right model, install it safely, and configure it for optimal performance. Whether you went with a wired or battery-powered option, your new Ring doorbell now provides real-time alerts, HD video, and two-way communication—all from your smartphone.
Remember, the key to success is preparation and patience. Take your time with each step, especially when dealing with wiring and Wi-Fi. And if you run into trouble, don’t hesitate to consult Ring’s support team or a professional installer.
With your Ring doorbell up and running, you’re not just upgrading your doorbell—you’re enhancing your home’s security, convenience, and peace of mind. Welcome to the future of smart home living!
